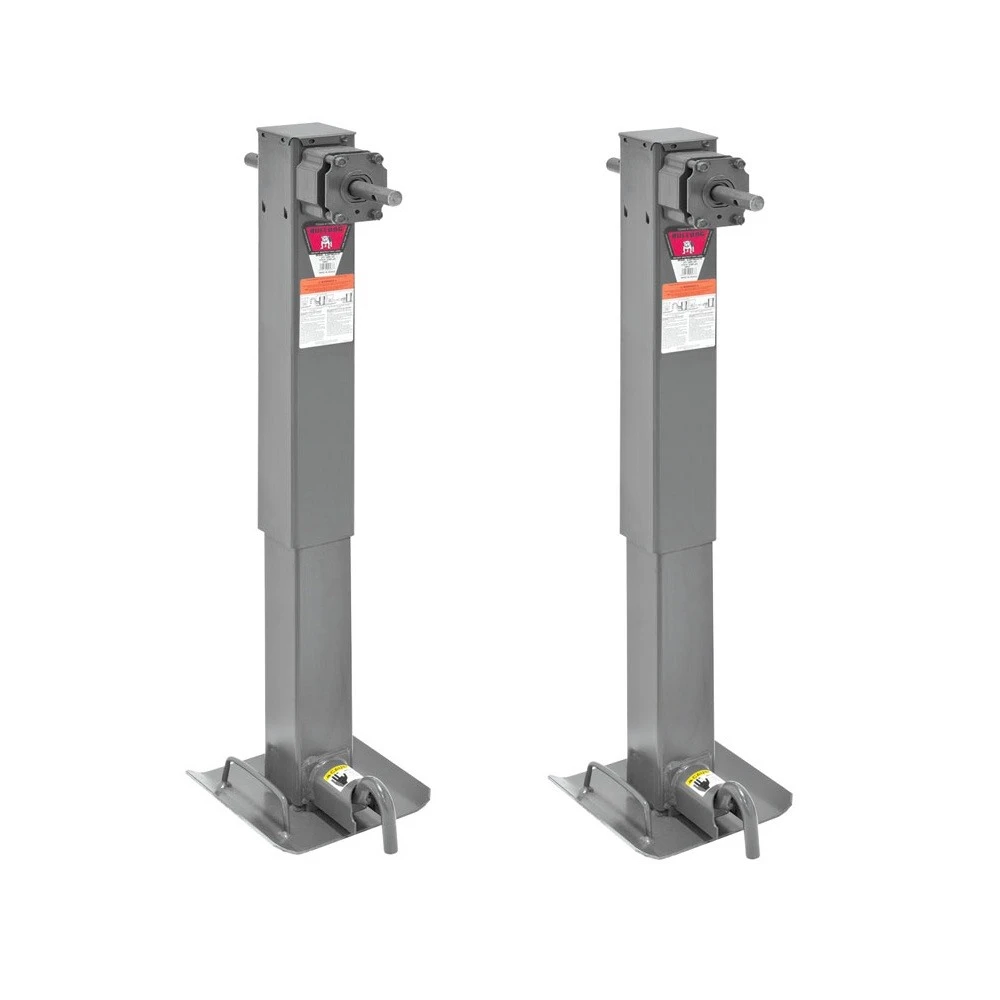

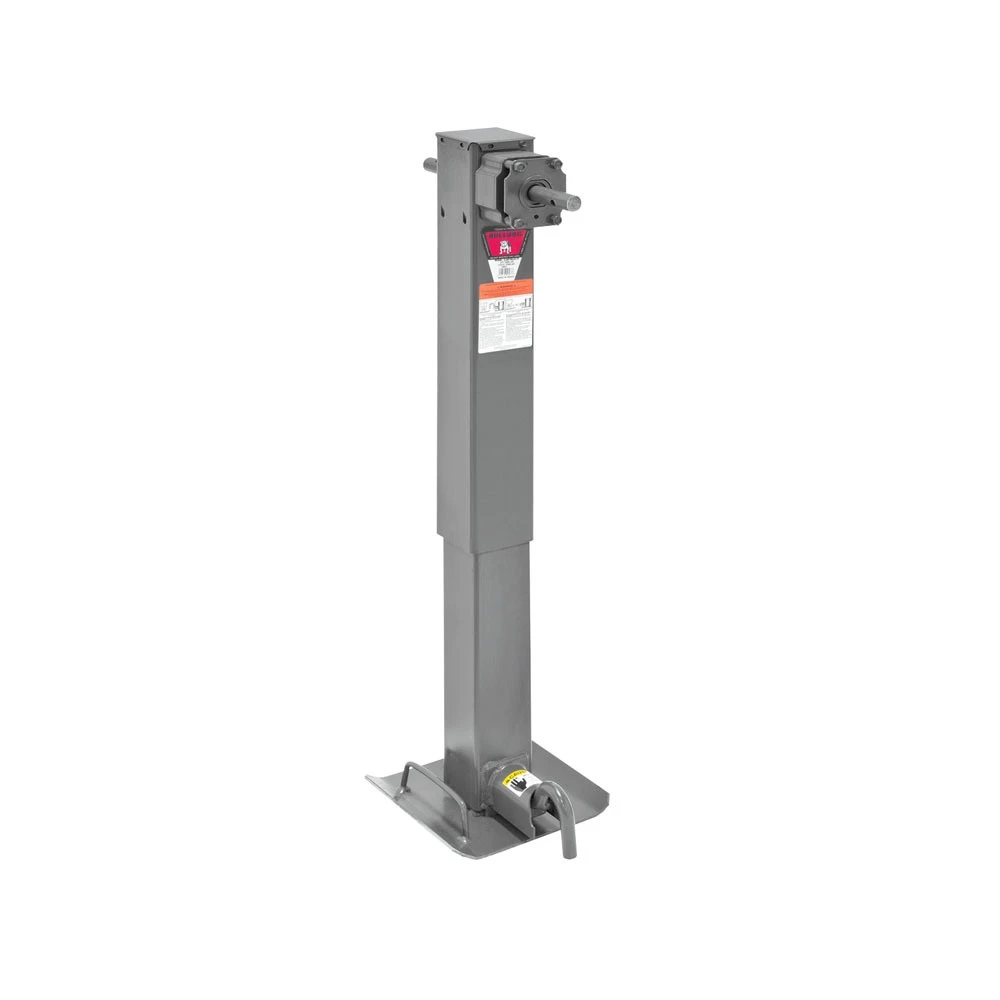

Bulldog 2x 12K 2-Speed Square Trailer Jack w/ Planetary Gearbox 26" Lift
Model: BDTJ69Bulldog 12,000 lb Two-Speed Square Trailer Jack Pair with Planetary Gearbox – 26″ Lift
This bundle includes two heavy-duty Bulldog two-speed trailer jacks featuring a planetary gearbox for effortless lifting and cranking efficiency. Perfect for agricultural, construction, and industrial trailers, these jacks deliver smooth operation under full load and rapid travel when unloaded. Built with engineered alloys and a compact gearbox profile, they fit within the outer tube without extra spacers, ensuring long-term durability and sideload resistance.
Bundle Contents:
- QTY (2): Two-Speed Square Trailer Jack, 12,000 lbs. Lift Capacity, Sidewind, 12-1/2″ Travel
- State-of-the-art two-speed gearbox delivers full power in low gear (27 turns per 1″ travel planetary, 29 turns per 1″ traditional) and fast travel in high gear (9 turns per 1″).
- Designed for modern agricultural, construction, and industrial trailer applications with 12,000 lb support capacity and 10,000 lb lift capacity.
- User-friendly sidewind handle crank provides smooth, easy operation under load.
- Engineered alloy components enhance strength, stability, and sideload capability.
- Compact planetary gearbox fits inside the jack’s outer tube profile, eliminating the need for spacers.
We recommend verifying your trailer’s original equipment specifications before installation and performing regular maintenance—such as greasing all moving parts and inspecting for wear—to maximize service life and reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.6 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
