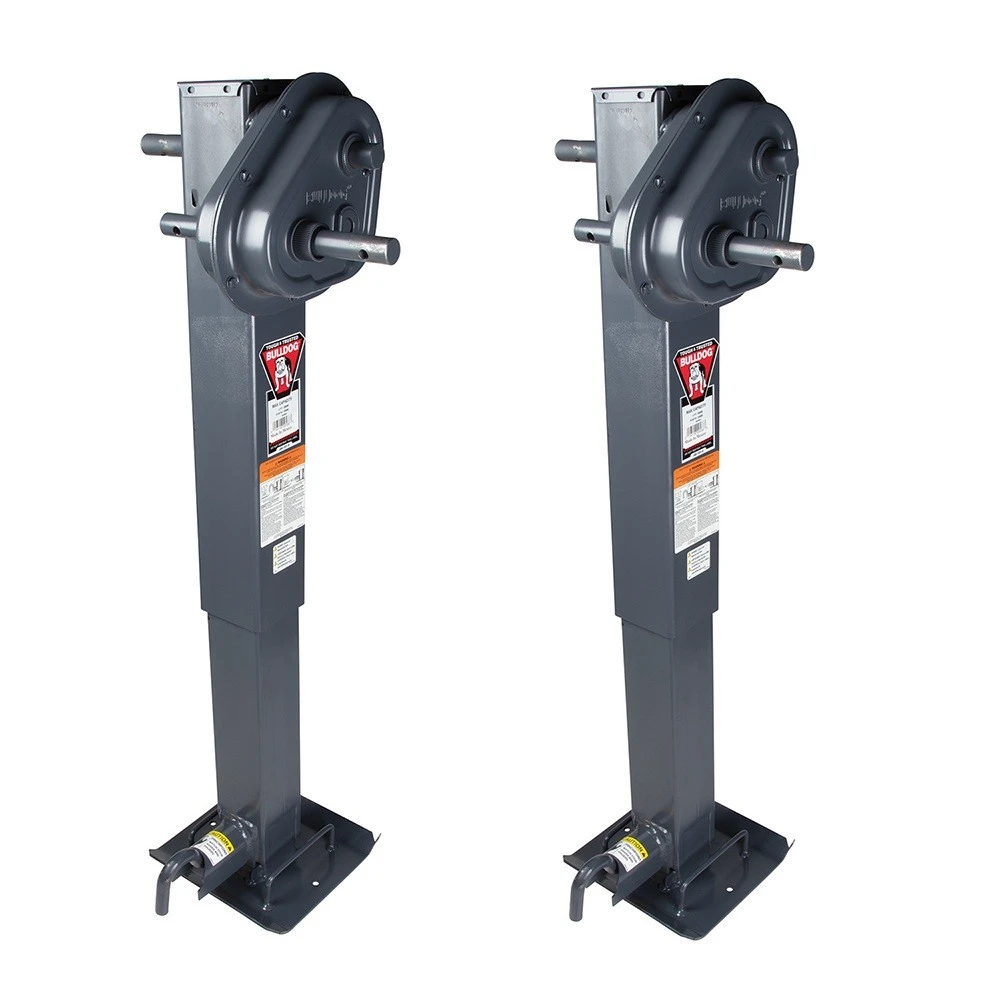

Bulldog 2x 12K 2-Speed Square Trailer Jack w/ Traditional Gearbox for Non Spring Return
Model: BDTJ101Dual Bulldog 12K 2-Speed Square Trailer Jacks with Traditional Gearbox (Non Spring Return)
Get reliable lifting power and smooth operation with this bundle of two Bulldog 12,000 lb capacity square jacks. Built with a dual-speed gearbox, they make heavy loads easy to raise and lower while fitting directly to your trailer frame—ideal for agricultural, construction, and industrial applications.
Bundle Contents:
- QTY (2): Two-Speed Square Trailer Jack, 12,000 lbs. Lift Capacity, Sidewind, 12-1/2″ Travel
- First 2-speed gearbox designed for drop-leg jacks
- Low gear: 27 turns per 1″ (planetary) / 29 turns per 1″ (traditional)
- High gear: 9 turns per 1″ for rapid operation
- Engineered alloy construction for enhanced strength and sideload stability
- Planetary gearbox fits within outer tube profile—no spacers needed
Before installation, verify compatibility with your trailer’s original equipment and perform regular maintenance to ensure optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 12000 LB |
| Lifting Load Capacity | 10000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 4 Inch |
| Jack Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 30 Inch |
| Bracket-to-Bottom Clearance (Extended) | 56 Inch |
| Bracket-to-Top Clearance | User-Configurable Clearance |
| Exact Retracted Clearance | 29.5 Inch |
| Exact Extended Clearance | 55.6 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$1,254 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,254 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ101
- Includes: 2-Speed 12K Jack
