Bulldog 3.5K A-Frame Powered Drive Trailer Jack 14" Lift w/ 12.5K Collar-Lok Coupler for 2-5/16" Ball

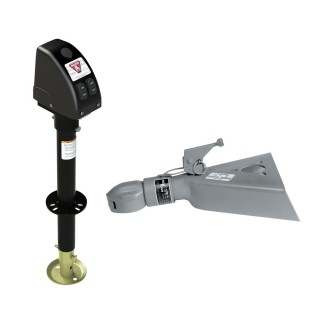

Model: BTJC228Bulldog 3.5K Electric A-Frame Jack with 12.5K Collar-Lok Coupler
Get superior lifting power and reliable coupling in one convenient package. This bundle pairs a 3,500 lb-capacity powered A-frame trailer jack—complete with electric lift, LED courtesy light, and emergency manual override—with a 12,500 lb Bulldog Collar-Lok™ A-frame coupler for 2-5/16″ ball, engineered for utility, horse/livestock, cargo, and construction trailers.
Bundle Contents:

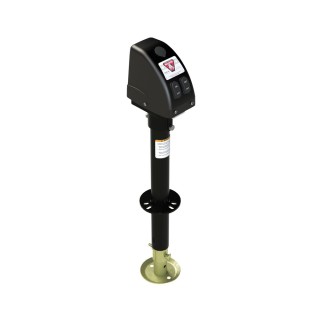

- QTY (1): Powered Trailer Jack, A-Frame, 3,500 lbs. Lift Capacity, Bolt-On, 14″ Travel
- Electric lift mechanism with integrated gearbox and motor
- 14″ travel & 22″ total stroke
- Built-in LED courtesy light for easy nighttime hookup
- Drop-leg footplate & emergency manual override (crank included)
- Black zinc-plated finish for corrosion resistance
- 5-year limited warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16″ Diameter, 12,500 lbs. Capacity
- Automatic, continuously tight ball fit
- Hinged ball socket for effortless hookup
- Clear visual indication of proper closure
- Strong static and dynamic load performance
- QTY (1): Bulldog Collar-Lok™ Coupler Series Features
- Industry-leading strength for utility, livestock, cargo, and construction trailers
- Adjustable coupler configurations to match virtually any trailer tongue
- Hinged design for ease of use and maintenance
Before installation, verify compatibility with your trailer’s existing equipment and schedule regular maintenance to ensure safe, long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 3,001–5,000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Electric Lift (3,500 lb) |
| Travel Range | 14″ lift / 22″ total stroke |
| Finish | Black Zinc Plated |
| Foot Type | Drop Leg Footplate |
| Outer Tube Ø | 2.25″ |
| Inner Tube Ø | 2.00″ |
| Exact Clearance (Retracted) | 9.75″ |
| Exact Clearance (Extended) | 31.50″ |
| Bracket-to-Top Clearance | 20.50″ |
$560 69 $618.75 9% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$618.75 $560 69
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC228
- Includes: Powered A-Frame Jack, Trailer Coupler
