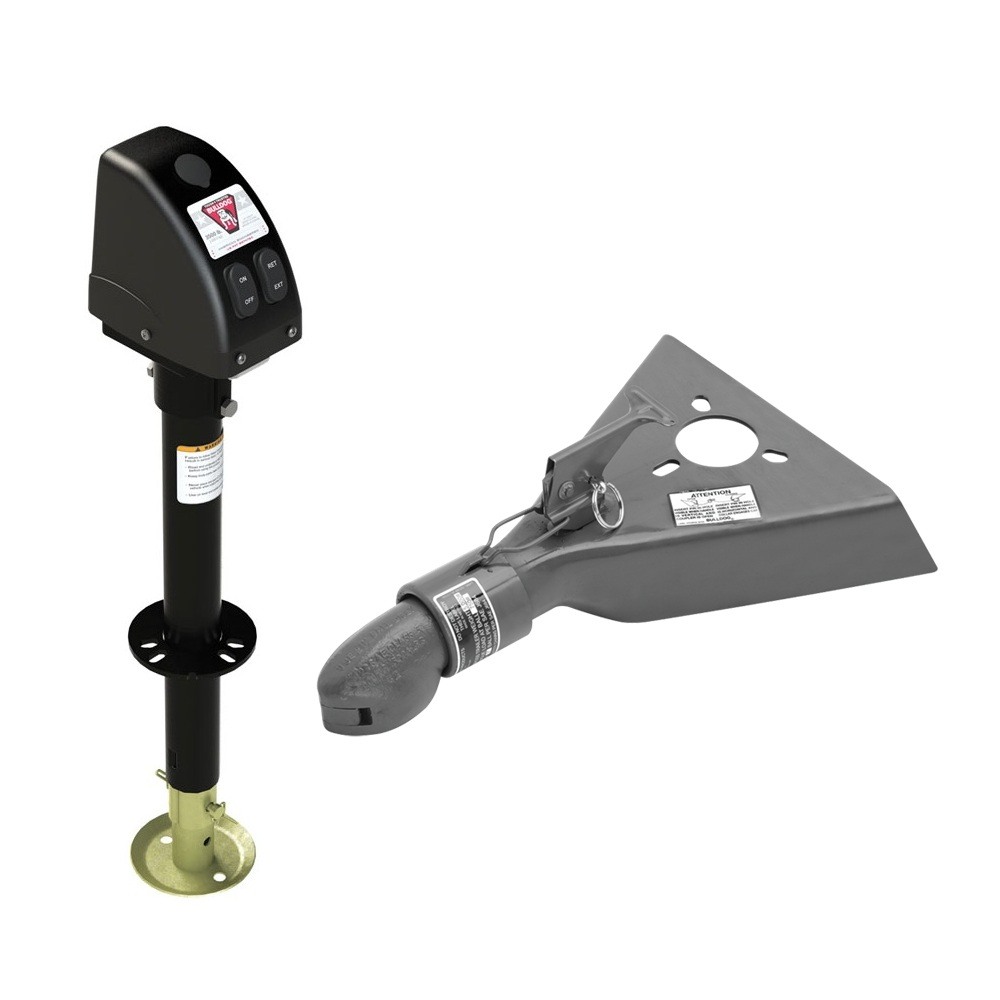

Bulldog 3.5K A-Frame Powered Drive Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
Model: BTJC232Bulldog 3.5K Electric A-Frame Powered Trailer Jack w/ 5K Collar-Lok Coupler
Get professional-grade performance with this Bulldog bundle featuring a 3,500 lb-capacity electric A-Frame jack and a 5,000 lb-capacity Collar-Lok coupler. Perfect for utility, horse/livestock, cargo, and construction trailers, this combo delivers smooth operation, corrosion resistance, and industry-leading strength.
Bundle Contents:

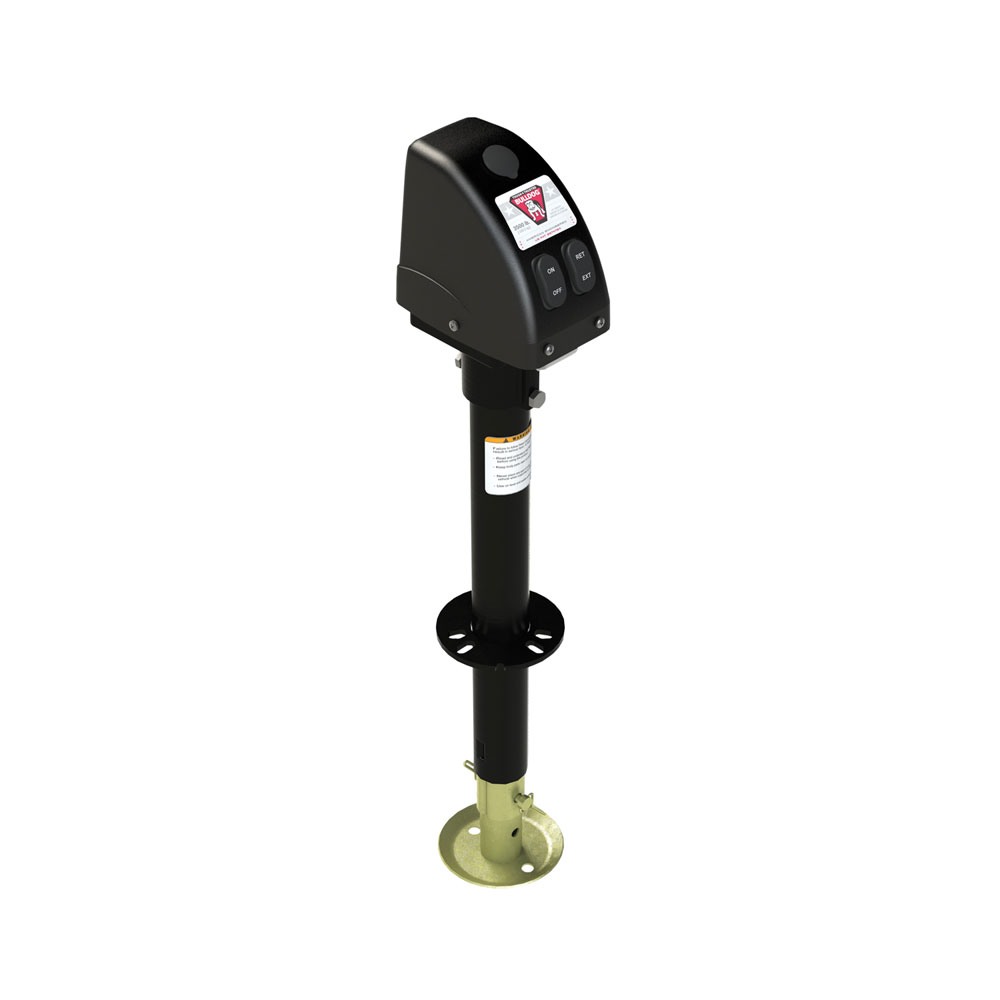

- QTY (1): Powered Trailer Jack, A-Frame, 3,500 lbs Lift Capacity, Bolt-On, 14 Inch Travel
- Positions quickly with 22" of total travel
- 3500 lbs lift capacity
- Integrated gearbox and motor
- Drop leg design
- Onboard LED courtesy light angled to illuminate coupler at night
- Emergency manual override with top-access crank
- Durable, corrosion-resistant black zinc finish
- Limited 5-year warranty
- QTY (1): Collar-Lok™ A-Frame Coupler, 2" Diameter, 5,000 lbs Capacity
- Only automatic, continuously tight ball fit in the industry
- Adjustable for level operation on varied vehicles
- Hinged ball socket for easy hookup
- Clear visual indication of proper closure
- Strong under static and dynamic loads
- Easiest-to-use design
Always verify compatibility with your trailer’s original equipment guidelines and perform regular maintenance to ensure safe, reliable operation.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Electric Lift |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Zinc Plated |
| Jack Static Load Capacity | 3500 LB Static Capacity |
| Jack Lifting Load Capacity | 3500 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Retracted Clearance | 9.75 Inch Bracket-to-Bottom |
| Extended Clearance | 31.50 Inch Bracket-to-Bottom |
| Bracket-to-Top Clearance | 20.50 Inch |
| Approx. Ret. Clearance | 10 Inch Bracket-to-Bottom Retracted |
| Approx. Ext. Clearance | 32 Inch Bracket-to-Bottom Extended |
| Approx. Top Clearance | 21 Inch Bracket-to-Top |
| Electric Lift Rating | 3500 LB Electric Lift |
| Custom Bundle | No |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$555 99 $601.25 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$601.25 $555 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC232
- Includes: Powered A-Frame Jack, Trailer Coupler
