Bulldog 3K A-Frame Trailer Jack Sidewind 15" Lift w/ 12.5K Cast Head Coupler For 2-5/16" Ball
Model: BTJC126BULLDOG 3,000-lb A-Frame Trailer Jack with 15" Sidewind Lift + 12,500-lb Cast Head Coupler for 2-5/16" Ball
This bundle provides a high-strength, reliable solution for your trailer’s front end support and secure coupling. Whether you're hauling equipment, livestock, or cargo, this combination ensures smooth lifting, easy mounting, and dependable performance on the road.

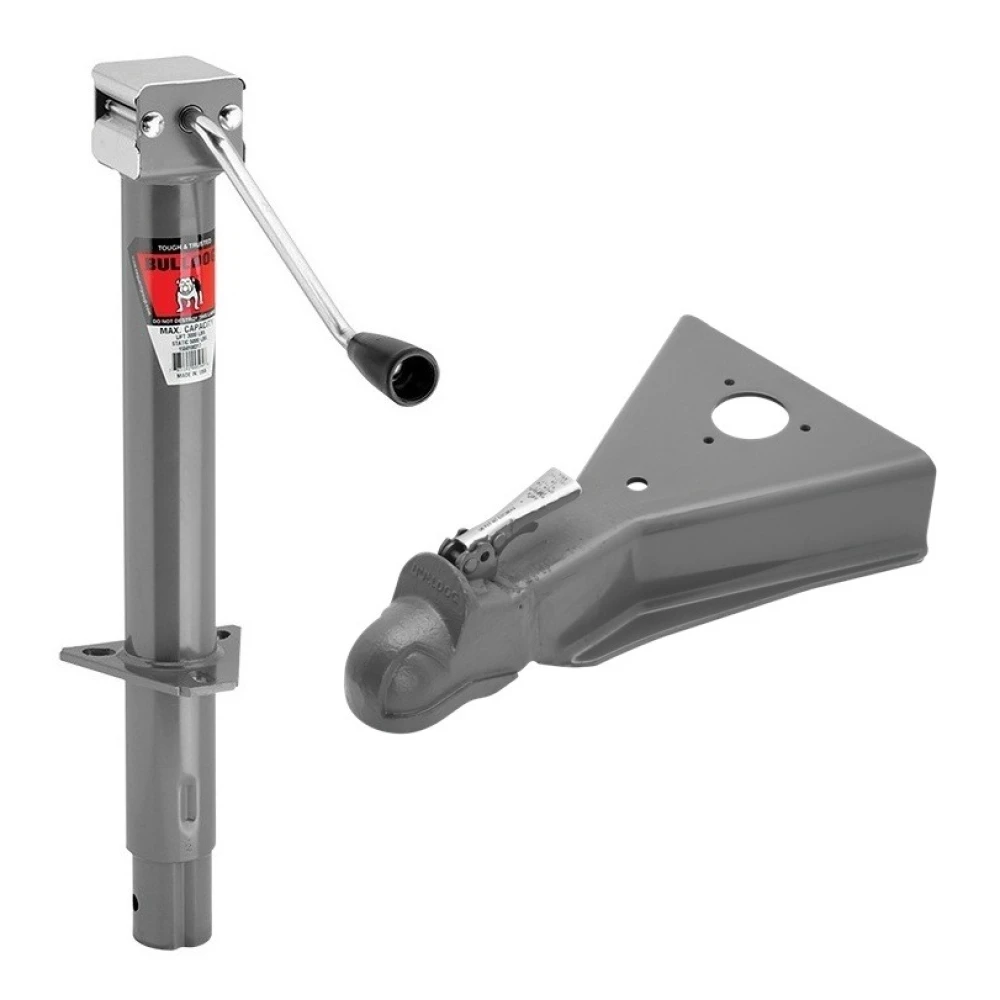

Bundle Contents:

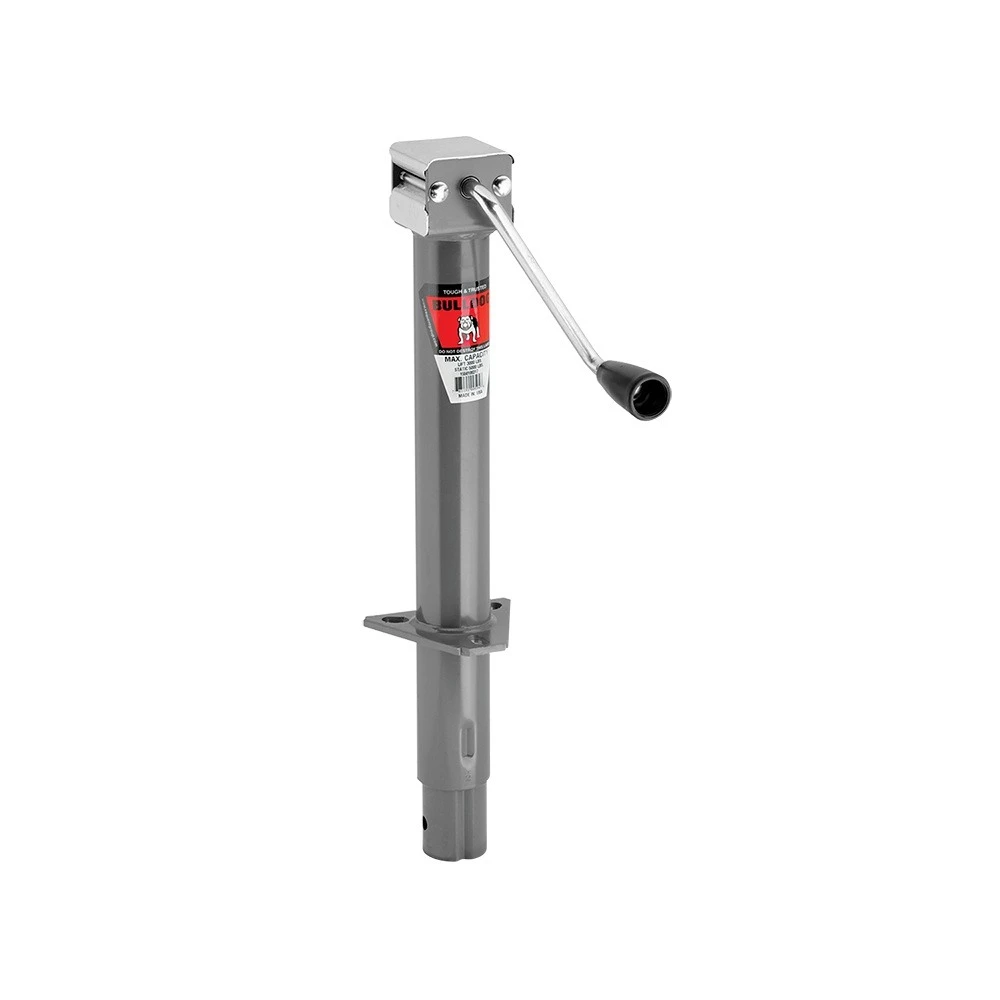

- QTY (1): Round Trailer Jack, A-Frame, 3,000 lbs. Lift Capacity, Sidewind, Bolt-On, 13 Inch Travel
- BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers
- For more than three quarters of a century, BULLDOG jacks have proven to be among the most reliable on the market
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Precision-fitted parts for extra stability
- A-Frame models feature gray painted outer and inner tubes
- Custom finishes available upon request

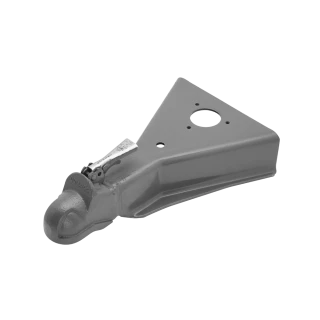

- QTY (1): A-Frame Coupler, 2-5/16 Inch Diameter, 12,500 lbs. Capacity
- Designed for utility, horse/livestock, cargo, and construction trailer applications
- Patented cast head "Wedge-Latch" coupler design for heavy-duty performance
- Replaceable latching hardware extends service life
- Quick and easy to engage; strong and secure on the road
- Compliance with SAE standard J684
We recommend verifying your existing trailer specifications before ordering. Regular inspection and maintenance of all trailer components helps ensure safety and longevity.
| Specifications: | |
|---|---|
| Bundle Type | A-Frame Jack & 2-5/16" Coupler |
| Jack Lifting Capacity | 3,000 lbs. |
| Coupler Capacity | 12,500 lbs. |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 13 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 3,000 lb static |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Outer Tube Diameter | 2.25 Inch |
| Jack Shape | Round |
| Approx Bracket-to-Bottom Clearance (Retracted) | 7 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 20 Inch |
| Approx Bracket-to-Top Clearance | 15 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$237 99 $287.57 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$287.57 $237 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC126
- Includes: A-Frame Jack, Trailer Coupler
