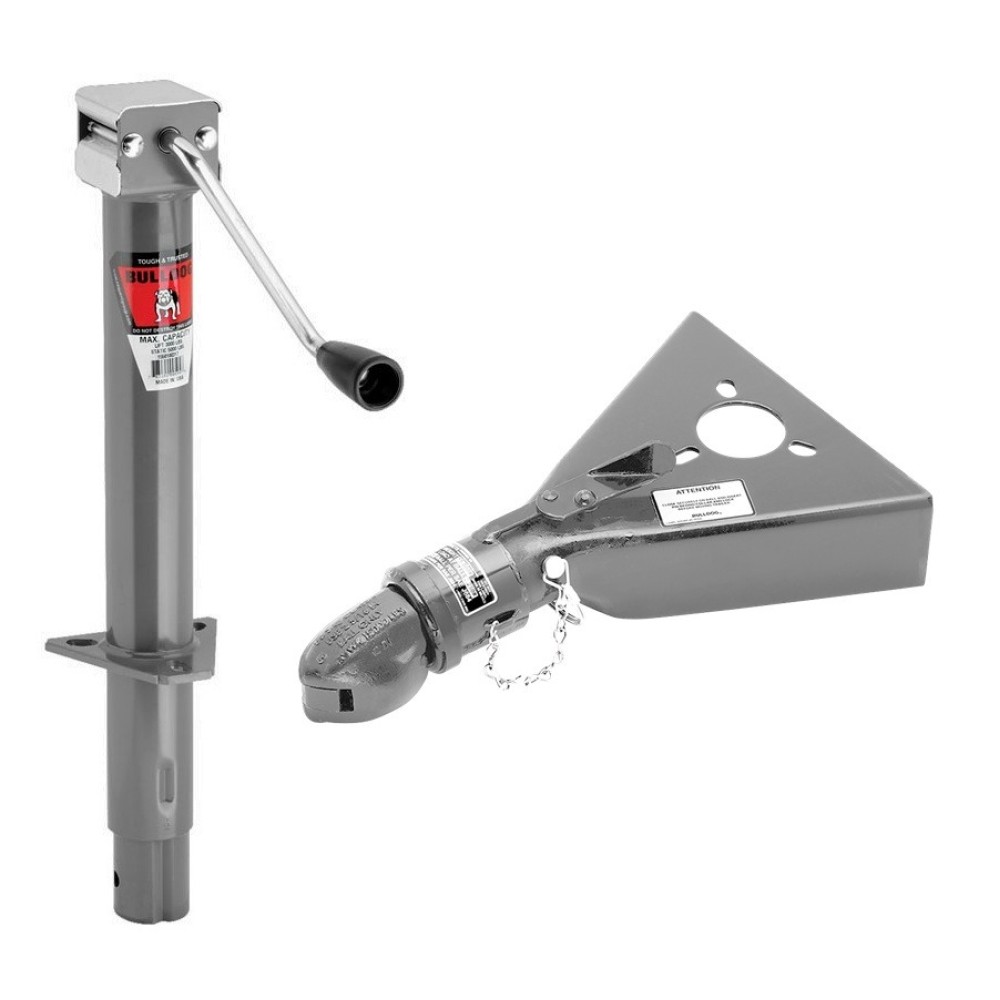

Bulldog 3K Round A-Frame Trailer Jack 13" Lift Sidewind w/ 15K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC159BULLDOG 3,000 lb Round A-Frame Trailer Jack (13" Lift, Sidewind) with 15,000 lb Collar-Lok Coupler for 2-5/16" Ball
This convenient bundle brings together a reliable BULLDOG 3,000 lb A-Frame trailer jack and a rugged 15,000 lb Collar-Lok coupler, giving you a dependable solution for a wide range of towing needs. Whether you’re upgrading an existing trailer or outfitting a new one, this combination ensures strength, durability, and ease of use.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 3,000 lbs. Lift Capacity, Sidewind, Bolt-On, 13 Inch Travel
- BULLDOG jacks are industry-standard for agricultural, commercial, horse, livestock, and other trailer manufacturers.
- Proven reliable, field-tested design for long-term use at rated loads.
- Smooth, ergonomic sidewind handle for comfortable operation.
- Dependable vertical and side load capacity.
- Precision-fitted parts for extra stability.
- Gray painted outer and inner tubes for lasting protection.
- Custom finishes available upon request.
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
- Ideal for utility, horse/livestock, cargo, and construction trailer applications.
- Features the only automatic, continuously tight ball fit in the industry.
- Multiple coupler styles and tongue mounts available to match most trailers.
- Adjustable couplers help keep trailers level behind various tow vehicles.
- Strong in both static and dynamic loading conditions.
- Easy hinged ball socket for quick hook-up.
- Clear, visual indication of proper closure.
Always confirm that your new jack and coupler are compatible with your trailer's specifications. Regular maintenance and inspections will help ensure safe and smooth towing.
| Specifications: | |
|---|---|
| Kit Type | BULLDOG A-Frame Jack + Collar-Lok Coupler Bundle |
| Weight Capacity | 2001-3000 Pounds (Jack) |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 13 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 3000 LB Static Capacity |
| Jack Lifting Load Capacity | 3000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 7 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 20 Inch |
| Approx Bracket-to-Top Clearance | 15 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 7 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 20 Inch |
| Exact Bracket-to-Top Clearance | 14.50 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$265 39 $302.50 12% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$302.50 $265 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC159
- Includes: A-Frame Jack, Trailer Coupler
