Bulldog 4x 8K Square Trailer Jack w/ Tubular Swivel Mount and 10" Lift

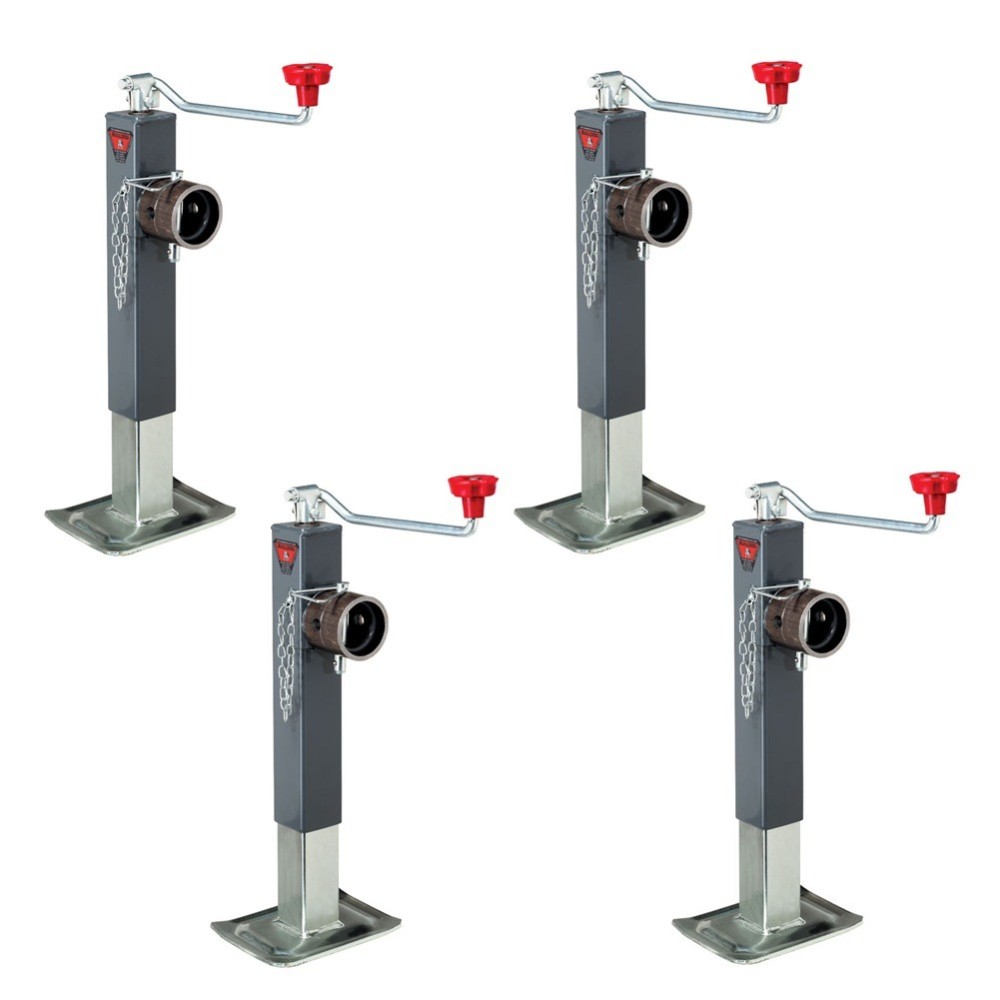

Model: BDTJ1184-Pack Bulldog 8,000 lb Square Pipe-Mount Topwind Trailer Jacks with Tubular Swivel & 10″ Lift
Upgrade your trailer setup with this value bundle of four Bulldog 8,000 lb capacity square jacks. Each jack features a heavy-duty tubular swivel mount and a smooth topwind handle, providing reliable support and effortless lifting up to 10″—ideal for agricultural, industrial, and utility trailers.
Bundle Contents:

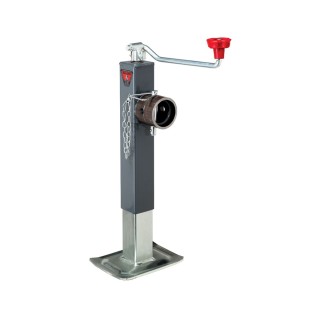

- QTY (4): Bulldog 8,000 lb Square Trailer Jack with Tubular Swivel Mount and 10″ Lift
- 8,000 lb support capacity—perfect for tight 3″ & 4″ square-tube applications
- Painted outer tube can serve as final finish or primer
- Zinc-plated inner tube and drop leg for corrosion resistance
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem prevents twisting under load
- Patented screw nut stop safeguards components at full extension
- Topwind handle with bushing in cap and eagle claw grip
- 1:1.33 gear ratio and 1/4″ cross pin to prevent gear-train shearing
We recommend verifying your trailer’s existing bracket dimensions and performing regular maintenance to ensure long-term performance.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB |
| Lifting Load Capacity | 5000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Outer Tube Diameter | 2.5″ |
| Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 11.41″ |
| Bracket-to-Bottom Clearance (Extended) | 21.41″ |
| Bracket-to-Top Clearance | 4.25″ |
| Electric Lift | Non Electric |
