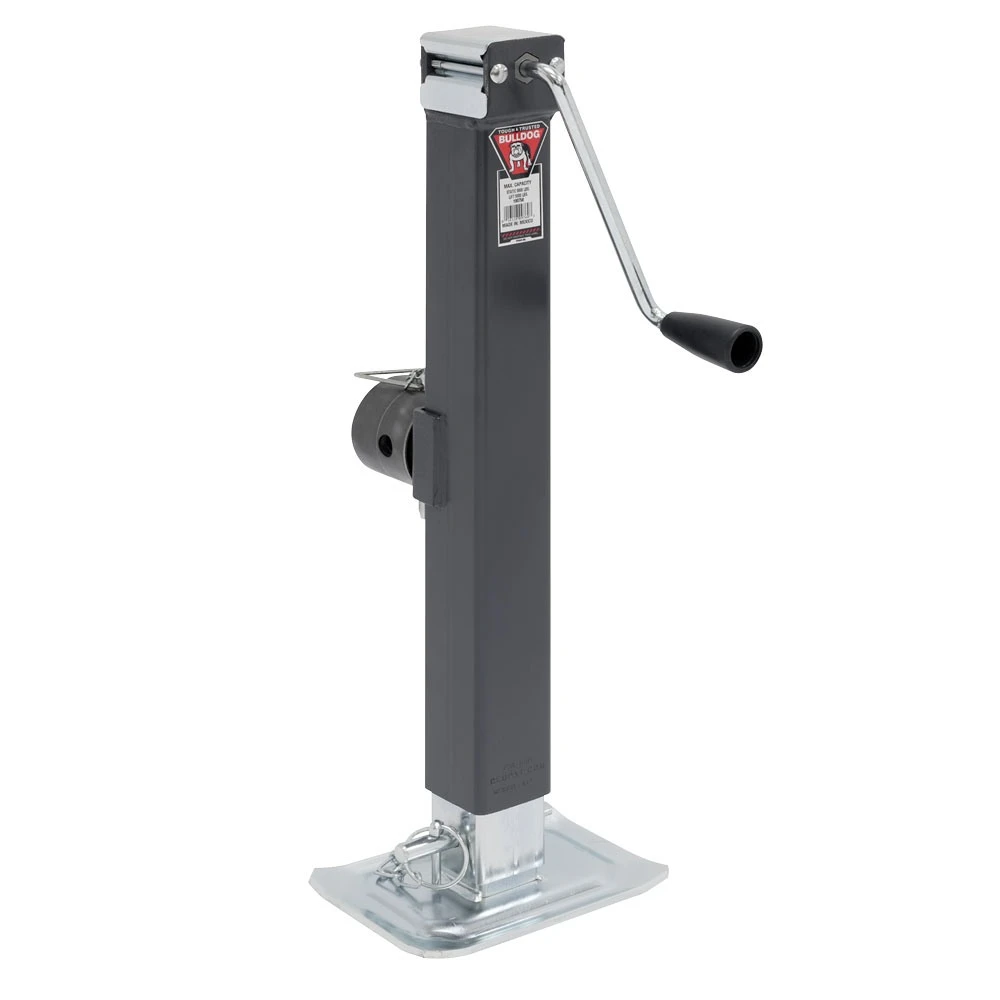

Bulldog 4x 8K Square Trailer Jack w/ Tubular Swivel Mount and 15" Lift

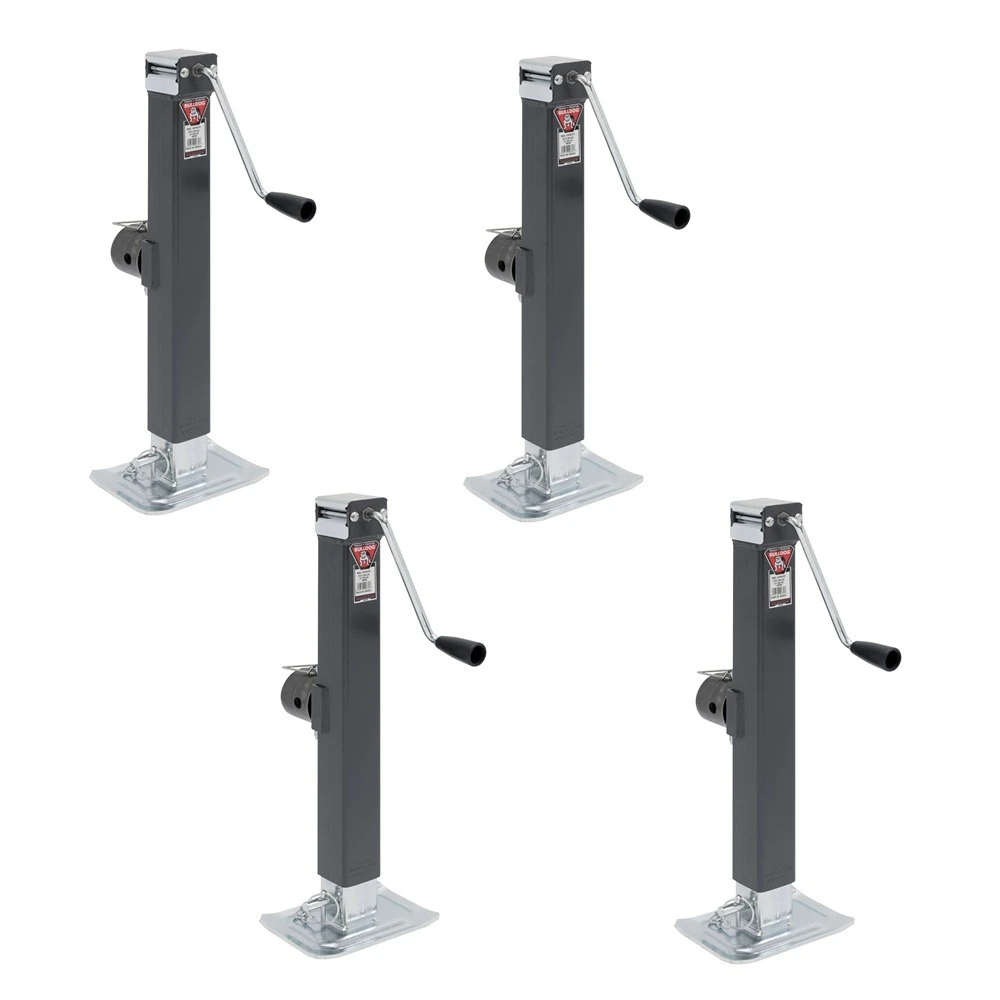

Model: BDTJ114Bulldog 4-Pack 8K Square Swivel Trailer Jacks with 15″ Lift
Get reliable, heavy-duty support for your trailer with our bundle of four Bulldog 8,000 lb square swivel jacks. These compact, pipe-mount sidewind jacks deliver smooth operation, corrosion-resistant finishes, and a full 15″ lift—ideal for agricultural, livestock, utility, and construction trailers where space is tight.
Bundle Contents:
- QTY (4): Bulldog 8K Square Swivel Trailer Jack
- 8,000 lb static load capacity, 5,000 lb lift capacity
- 15″ lift range with 1:1.33 sidewind gear ratio
- Zinc-plated inner tube and drop leg for corrosion resistance
- Painted gray outer tube serves as primer or finish
- Patented nut-stop prevents damage when fully extended
- Footplate for stable base on uneven ground
- Swivel mount allows 360° rotation
We recommend verifying your OEM bracket dimensions before installation and performing regular lubrication and inspection of the gear train and swivel bearings to ensure long service life.
| Specifications: | |
|---|---|
| Weight Capacity | 7001-8000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Swivel |
| Outer Tube Diameter | 2.5 Inch |
| Jack Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 13 Inch |
| Bracket-to-Bottom Clearance (Extended) | 41 Inch |
| Bracket-to-Top Clearance | 12 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Retracted Clearance | 12.66 Inch |
| Exact Extended Clearance | 41.16 Inch |
| Exact Top Clearance | 12.40 Inch |
