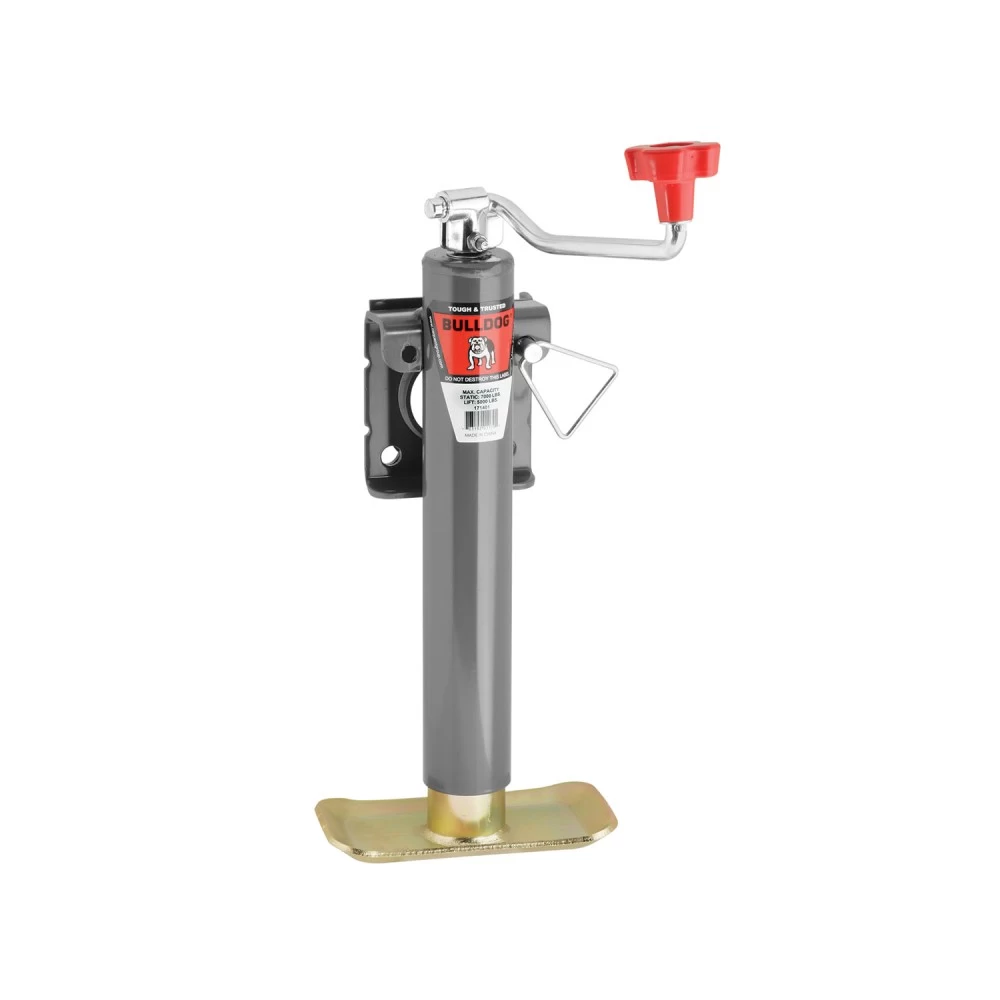

• Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 10" Lift w/ Footplate

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Grey painted outer and zinc inner tubes

  • Weld-on L-bend swivel bracket assembled

  • Limited 5-year warranty


Specifications:

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 11.25" from bracket to bottom

  • Extended Bracket Height: 21.25"

  • Travel/Lift: 10"

  • Clearance: 4" from bracket to top

  • Weld-On L-bend swivel bracket assembled

  • 1/2" diameter plunger pin

  • Includes footplate

  • Outer tube diameter: 2-1/4"

  • Inner tube diameter: 2"

  • Handle Radius: 6.65"

Reviews about Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 10" Lift w/ Footplate
Average rating: 0 reviews
Total reviews: 0
Write your own review on this product.
Write a review
Sort by:

There are no reviews for this product.

Write a review

Note: HTML is not translated!


Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 10" Lift w/ Footplate

  • Brand: Bulldog
  • Product Code: 171401
  • Availability: In Stock
  • $57.99
