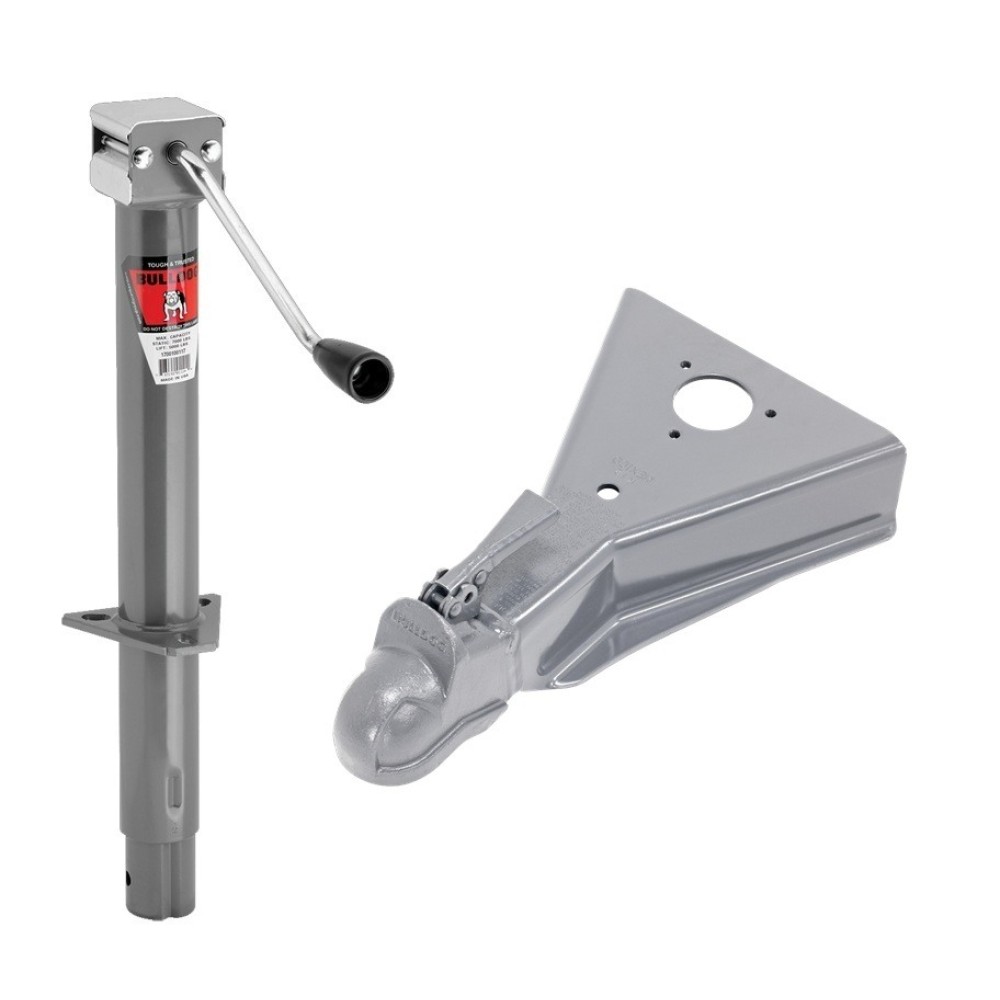

Bulldog 5K A-Frame Trailer Jack 15" Lift Sidewind w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC152Bulldog 5,000 lb A-Frame Trailer Jack (15" Lift) & 15,000 lb Cast Head Coupler for 2-5/16" Ball
Upgrade your trailer with this dependable Bulldog A-Frame Jack and Cast Head Coupler bundle. Perfect for utility, horse, livestock, or cargo trailers, this combination provides the strength and reliability you need on the road. The 5,000 lb lift capacity jack ensures easy hitching and leveling, while the 15,000 lb Wedge-Latch coupler delivers a secure connection for smooth towing.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15 Inch Travel
- BULLDOG round jacks are recognized as the industry standard by leading agricultrual, commercial, horse, livestock, and other trailer manufacturers.
- For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long term use at rated loads
- Precision fitted parts for extra stability
- A-Frame models listed have grey painted outer and inner tubes - All other models have grey painted outer and clear zinc inner tubes
- Custom finishes are available upon request
- QTY (1): A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
- Designed for utility, horse/livestock, cargo and construction trailer applications, BULLDOG Couplers are the strongest in the industry.
- The patented cast head "Wedge-Latch" coupler design is offered in heavy-duty, A-frame, and convenient adjustable height options.
- Replaceable latching hardware allows for longer service life
- Quick and easy to engage
- Strong and secures on the road
- Patented Wedge-Ledge ball clamp design
- Quick to hook up and disconnect
- In compliance with SAE standard J684
Always verify that this kit matches your trailer’s weight rating, ball size, and mounting pattern. Routine maintenance and proper installation ensure safe, reliable performance.
| Specifications: | |
|---|---|
| Kit Type | A-Frame Jack & Coupler Kit |
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 13 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 8.60 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 23.60 Inch |
| Exact Bracket-to-Top Clearance | 12.75 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$248 99 $301.90 18% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$301.90 $248 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC152
- Includes: A-Frame Jack, Trailer Coupler
