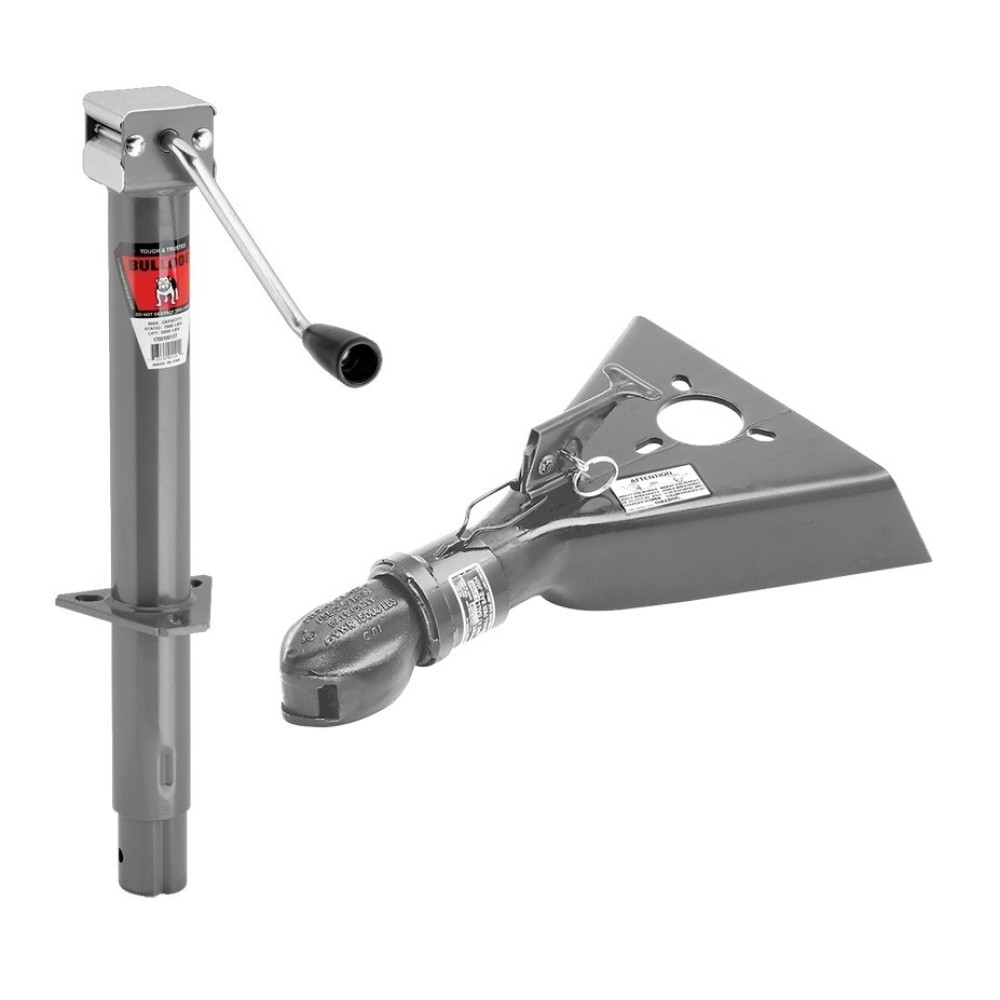

Bulldog 5K Round A-Frame Trailer Jack Sidewind 15" Lift w/ 15K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC172BULLDOG 5,000 lb Round A-Frame Trailer Jack with 15,000 lb Collar-Lok Coupler (2-5/16" Ball)
Experience reliable trailer support and secure towing with this convenient BULLDOG bundle. Perfect for utility, livestock, and commercial applications, this package combines a 5,000 lb-rated round A-frame trailer jack with a robust 15,000 lb Collar-Lok coupler—giving you the strength and performance needed for a variety of heavy-duty hauling tasks.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15 Inch Travel
- BULLDOG jacks are recognized as the industry standard for durability
- Smooth, comfortable, ergonomic design for easy operation
- Dependable vertical and side load capacity
- Precision-fitted parts for extra stability
- Grey painted outer and inner tubes for corrosion resistance
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
- Automatic and continuously tight ball fit for secure towing
- Strong in both static and dynamic loading conditions
- Hinged ball socket design for easy hookup
- Clear visual indication of proper closure
- Ideal for various trailer applications
Always confirm your trailer’s original equipment specifications before installing. Regular maintenance ensures optimal performance and extended service life.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch |
| Approx Bracket-to-Top Clearance | 13 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 8.60 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 23.60 Inch |
| Exact Bracket-to-Top Clearance | 12.75 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$262 99 $315.00 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$315.00 $262 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC172
- Includes: A-Frame Jack, Trailer Coupler
