Bulldog 8x 10K Square Trailer Jack w/ 15" Lift Sidewind and Footplate

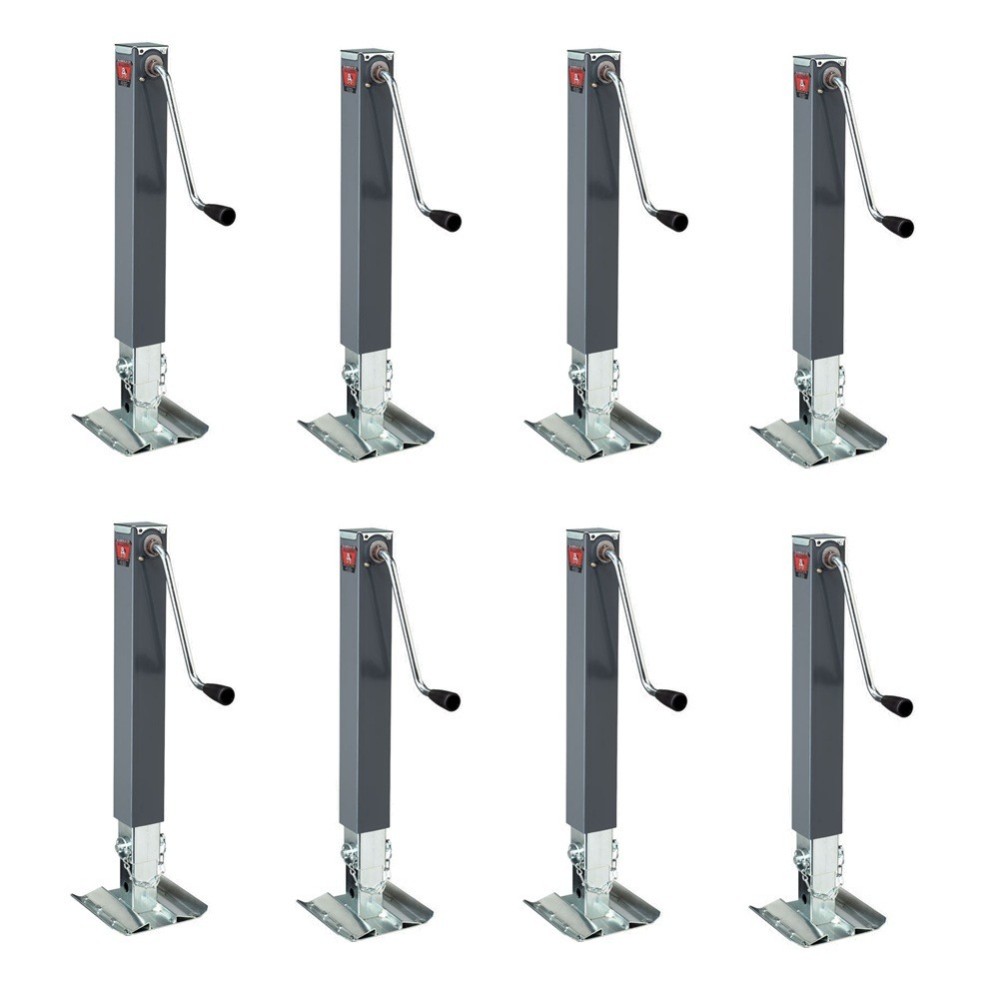

Model: BDTJ139Bundle of 8 Bulldog 10,000 lb Square Trailer Jacks – 15″ Sidewind with Footplate
This premium bundle includes eight high-performance Bulldog square trailer jacks, each rated for 10,000 lb static capacity and featuring a 15″ lift. Ideal for heavy-duty trailers that need reliable support and smooth operation, these direct-weld, sidewind jacks combine rugged construction with precision engineering for long-term durability and ease of use.
Bundle Contents:

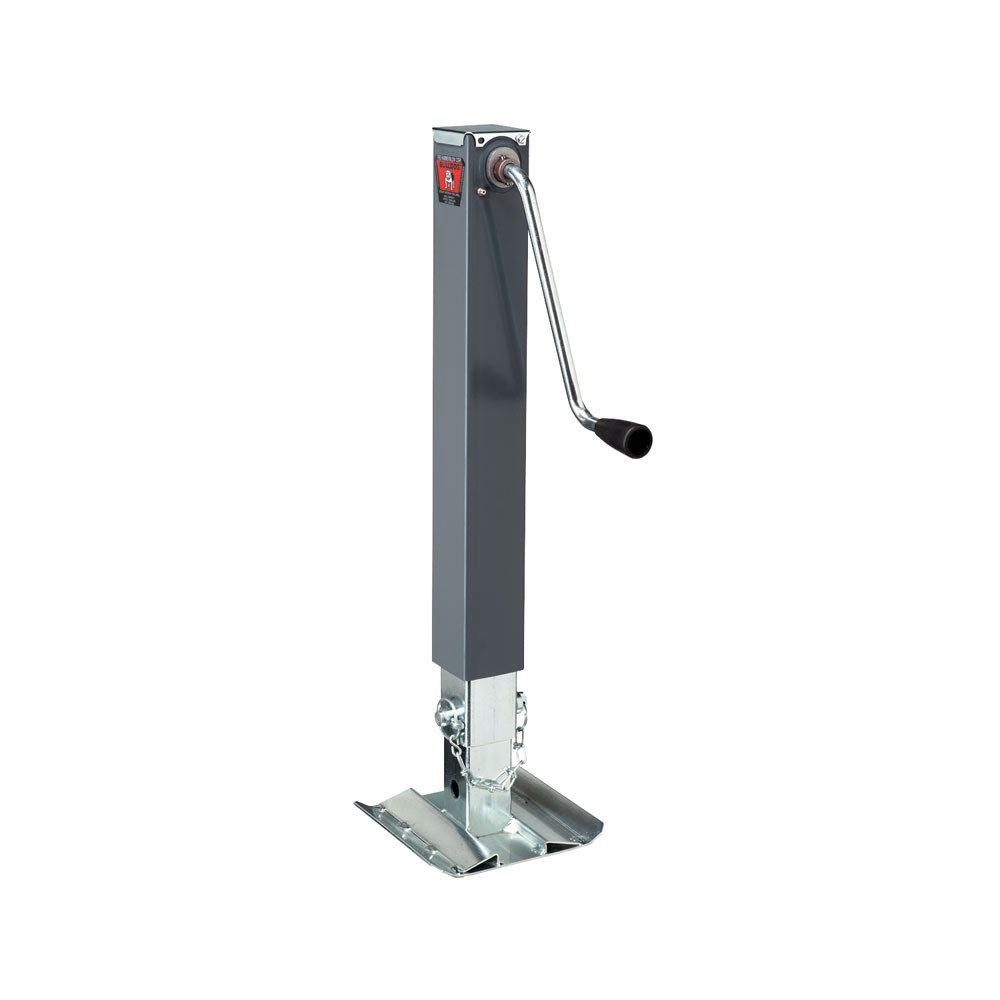

- QTY (8): Square Trailer Jack, No Mount, 10,000 lb Support Capacity, Sidewind, Weld-On, 15″ Travel
- Heavy-gauge 3″ square tubing for direct weld mounting – no burn-through
- Durable gray powdercoat finish; use as final paint or primer
- Zinc-plated inner tube and drop leg for corrosion resistance
- Reinforcement ribs prevent water retention and add strength
- Precision-manufactured for smooth cranking and long service life
- Grease zerk fitting for easy lubrication
- Oil-impregnated bushing improves bearing and gear longevity
- Standard direct-weld outer tube connection
- Sidewind gear ratio of 1:1.86 for efficient lift
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance to ensure optimal performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 8001–10000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10000 LB |
| Lifting Load Capacity | 7200 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 3 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 25.67 Inch |
| Bracket-to-Bottom Clearance (Extended) | 54.17 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$1,500 55 $1,800.00 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,800.00 $1,500 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BDTJ139
- Includes: 10K Drop Leg Jack
