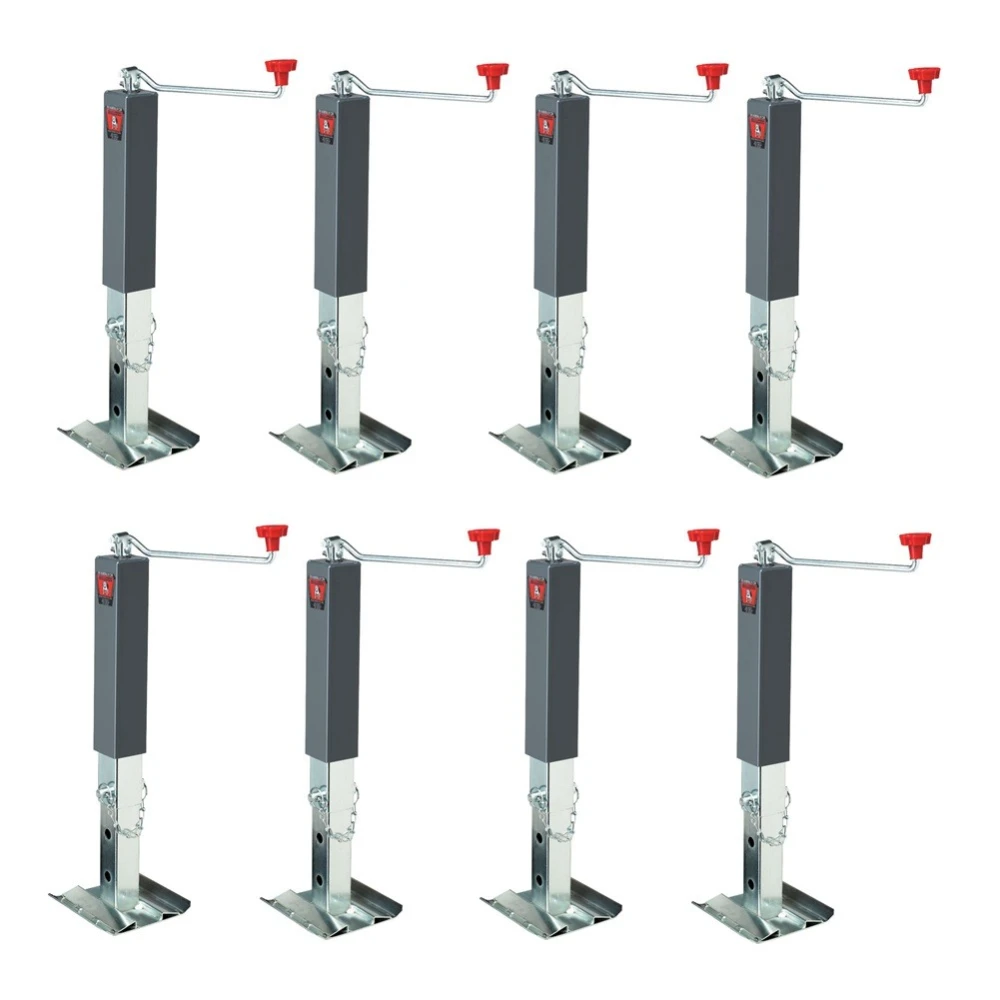

Bulldog 8x 10K Square Trailer Jack w/ 15" Lift Topwind and Footplate
Model: BDTJ143Bulldog 8-Pack 10,000 lb Square Topwind Weld-On Trailer Jacks with 15″ Lift & Footplate
Get maximum support and reliability with this bundle of eight Bulldog square trailer jacks. Each jack offers 10,000 lb static capacity, a smooth 15″ topwind lift, and a robust footplate—ideal for industrial, agricultural, and utility trailers. The direct-weld design and powdercoat finish ensure corrosion resistance and long-term performance.
Bundle Contents:
- QTY (8): Square Trailer Jack, No Mount
- 10,000 lbs. support capacity
- 15″ travel with topwind handle crank
- Gray powdercoat finish for corrosion protection
- Footplate with drop-leg, non-spring return design
We recommend verifying your trailer’s mounting plate dimensions and performing regular lubrication and inspections to keep your jacks operating smoothly.
| Specifications: | |
|---|---|
| Weight Capacity | 8,001–10,000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10,000 LB Static Capacity |
| Lifting Load Capacity | 7,200 LB Lift Capacity |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non-Spring Return |
| Swivel Type | Non Swivel |
| Outer Tube Diameter | 3″ Outer Tube |
| Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 18.18″ |
| Bracket-to-Bottom Clearance (Extended) | 38.31″ |
| Bracket-to-Top Clearance | User-Configurable |
| Gear Ratio (Sidewind) | 1:1.86 |
| Grease Zerk | Yes |
| Oil-Impregnated Bushing | Yes |
