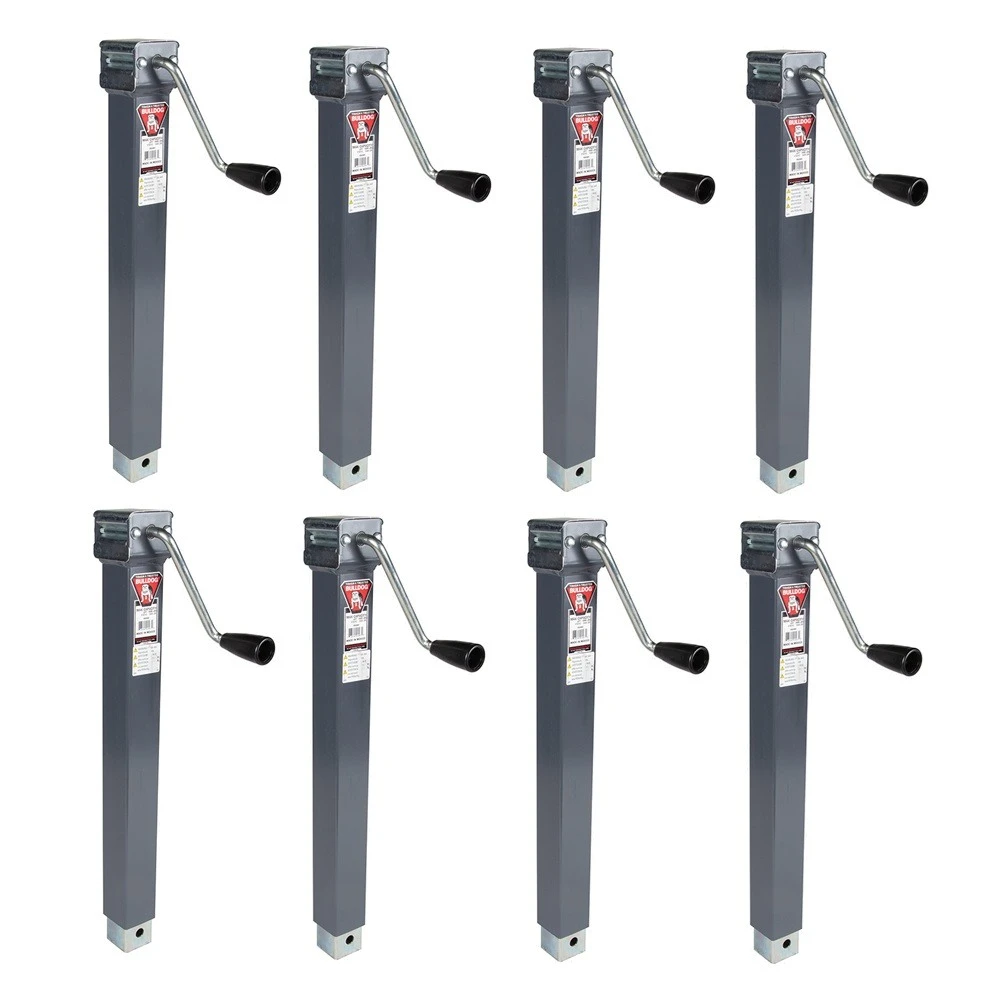

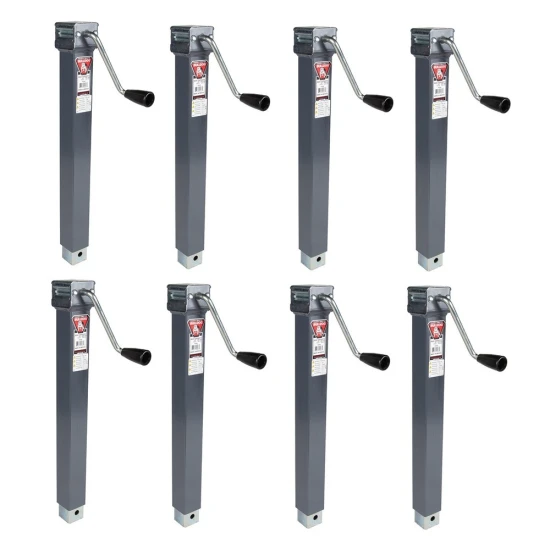

Bulldog 8x 5K Square Trailer Jack w/ 15" Lift and Sidewind Handle
Model: BDTJ348Bulldog 8-Pack: 5K Square Trailer Jacks with 15" Lift and Sidewind Handle
This Bulldog trailer jack 8-pack is the ideal upgrade for builders, fleet operators, or trailer manufacturers seeking high-strength, high-efficiency lifting solutions. Each square jack features a 5,000 lb support capacity, 15" travel range, and a direct weld-on mount. Designed with durability and reliability in mind, this bundle ensures long-lasting support in medium-duty trailer applications.
Bundle Contents:
- QTY (8): Bulldog 5K Square Trailer Jack – Sidewind, Weld-On, 15" Lift
- 5,000 lb static load capacity
- 15" lift range for versatile height adjustment
- 12-gauge square tube for 70% more side load strength
- 4.62" outer tube overlap at full extension
- Sidewind crank handle for smooth operation
- Painted outer tube with clear zinc inner tube
- Includes footplate; weld-on mounting
- Proven mechanical reliability for field performance
Please verify mounting compatibility and perform regular maintenance to ensure optimal performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Medium Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 5000 LB |
| Lifting Load Capacity | 3000 LB |
| Foot Type | Footplate |
| Leg Style | Fixed Leg |
| Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 24.20 Inch |
| Bracket-to-Bottom Clearance (Extended) | 39.20 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
