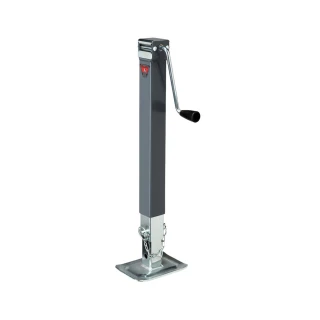

Bulldog 8x 8K Square Trailer Jack w/ 15" Lift Sidewind and Footplate
Model: BDTJ1518-Pack Bulldog 8,000 lb Sidewind Square Trailer Jack w/ 15″ Lift & Footplate
Equip your trailers with a full set of eight heavy-duty Bulldog 8,000 lb square jacks featuring a smooth 15″ sidewind lift and stable footplate. Perfect for agricultural, industrial, horse/livestock, and utility trailers, these weld-on jacks deliver superior side-load strength in a compact design.
Bundle Contents:
- QTY (8): Bulldog 8,000 lb Sidewind Square Trailer Jack with 15″ Lift & Footplate
- Direct weld-on mount for rock-solid stability
- Gray powdercoat outer tube; clear zinc inner tube
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem prevents twisting under load
- Patented screw-nut stop avoids damage at full extension
- 1:1.33 gear ratio for efficient sidewind operation
Always verify compatibility with your trailer’s original equipment and perform regular maintenance to ensure long service life.
| Specifications: | |
|---|---|
| Weight Capacity | 7,001–8,000 lb |
| Mounting Style | Direct Weld HD Jack |
| Jack Group | Heavy Duty Trailers |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 15″ Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 8,000 lb |
| Lifting Load Capacity | 5,000 lb |
| Foot Type | Footplate |
| Leg Style | Drop Leg, Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.5″ |
| Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) |
25″ (25.06″ exact) |
| Bracket-to-Bottom Clearance (Extended) |
54″ (53.56″ exact) |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | No |
