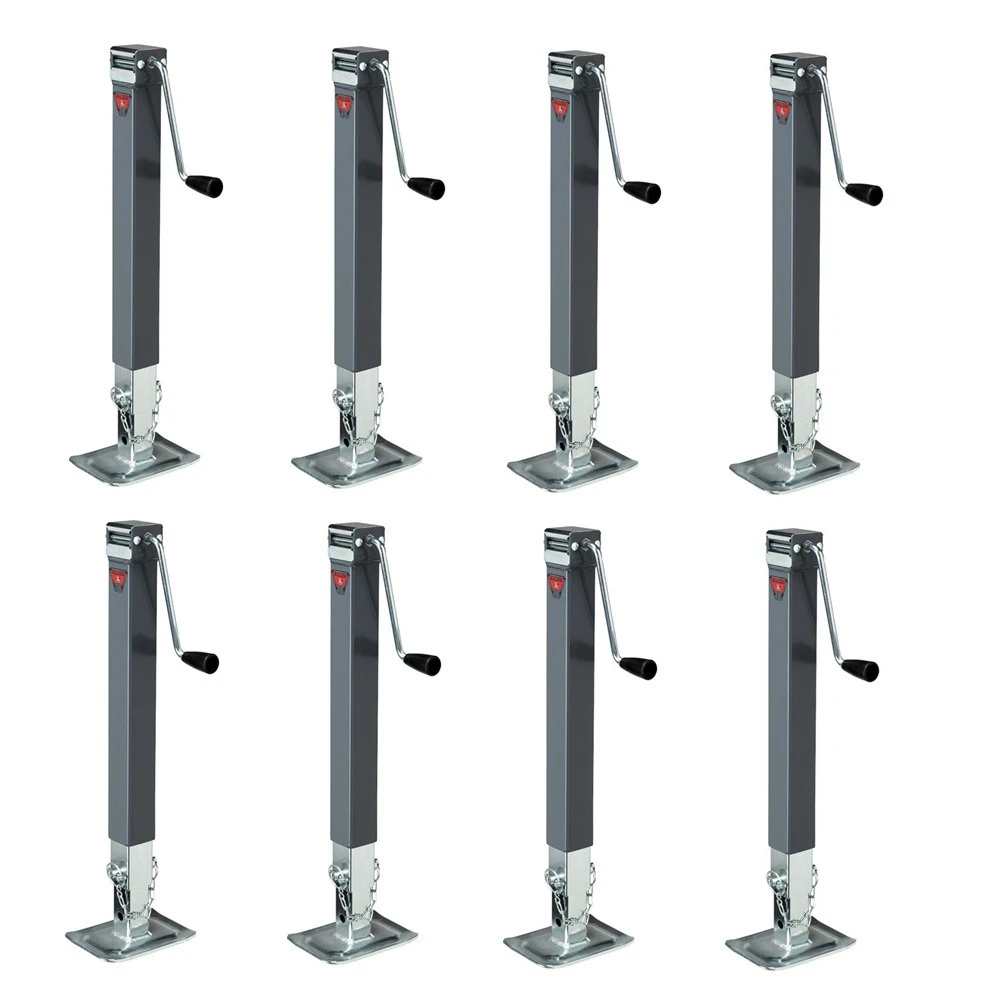

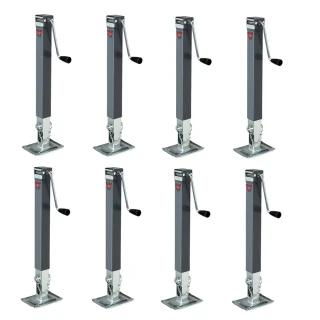

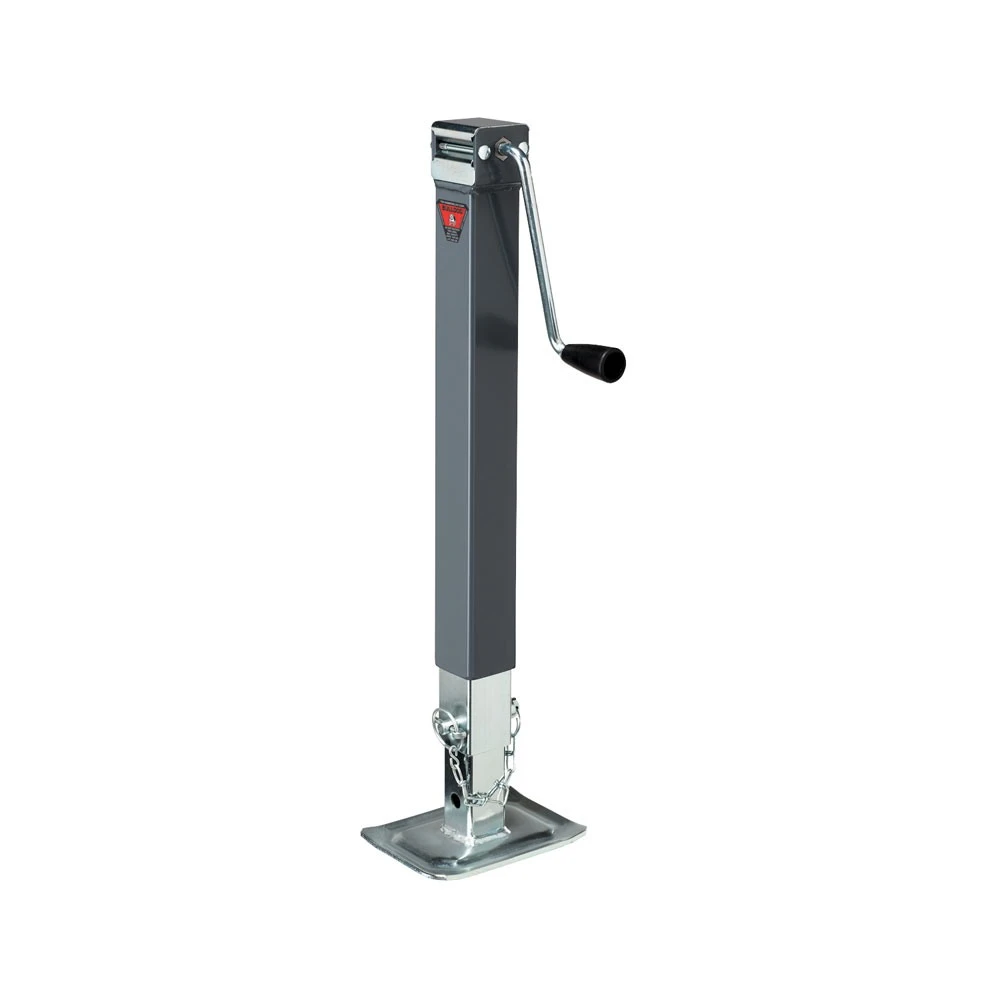

Bulldog 8x 8K Square Trailer Jack w/ Sidewind Handle and 15" Lift
Model: BDTJ1558-Pack Bulldog 8K Sidewind Square Trailer Jacks with 15″ Lift
Equip your heavy-duty trailer with eight Bulldog 8,000 lb capacity sidewind square jacks featuring a 15″ travel range. These direct-weld HD jacks deliver exceptional side-load performance and durable construction—ideal for agricultural, industrial, and utility trailer applications where space is tight.
Bundle Contents:
- QTY (8): Square Trailer Jack, No Mount, 8,000 lbs. Support Capacity, Sidewind, Weld-On, 15 Inch Travel
- BULLDOG's 8,000 lb support capacity square jack serves agricultural, industrial, construction, horse/livestock, and utility trailer markets.
- Use the painted outer tube as the final finish or primer.
- Zinc-plated inner tube and drop leg for corrosion resistance.
- 4.7″ outer/inner tube overlap for optimal side-load performance.
- 5/8″ screw stem guards against stem twisting off.
- Patented screw nut stop prevents damage at full extension.
- Topwind models feature a bushing-in-cap and eagle claw grip.
- Sidewind models use a 1/4″ cross pin to protect the gear train.
- Sidewind gear ratio of 1:1.33 for smooth operation.
We recommend verifying your trailer’s bracket dimensions before installation and performing regular lubrication and inspections to ensure long-term reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 7001-8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch |
| Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 25.06 Inch |
| Bracket-to-Bottom Clearance (Extended) | 53.56 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
$1,253 99 $1,601.12 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,601.12 $1,253 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ155
- Includes: 8K Drop Leg Jack
