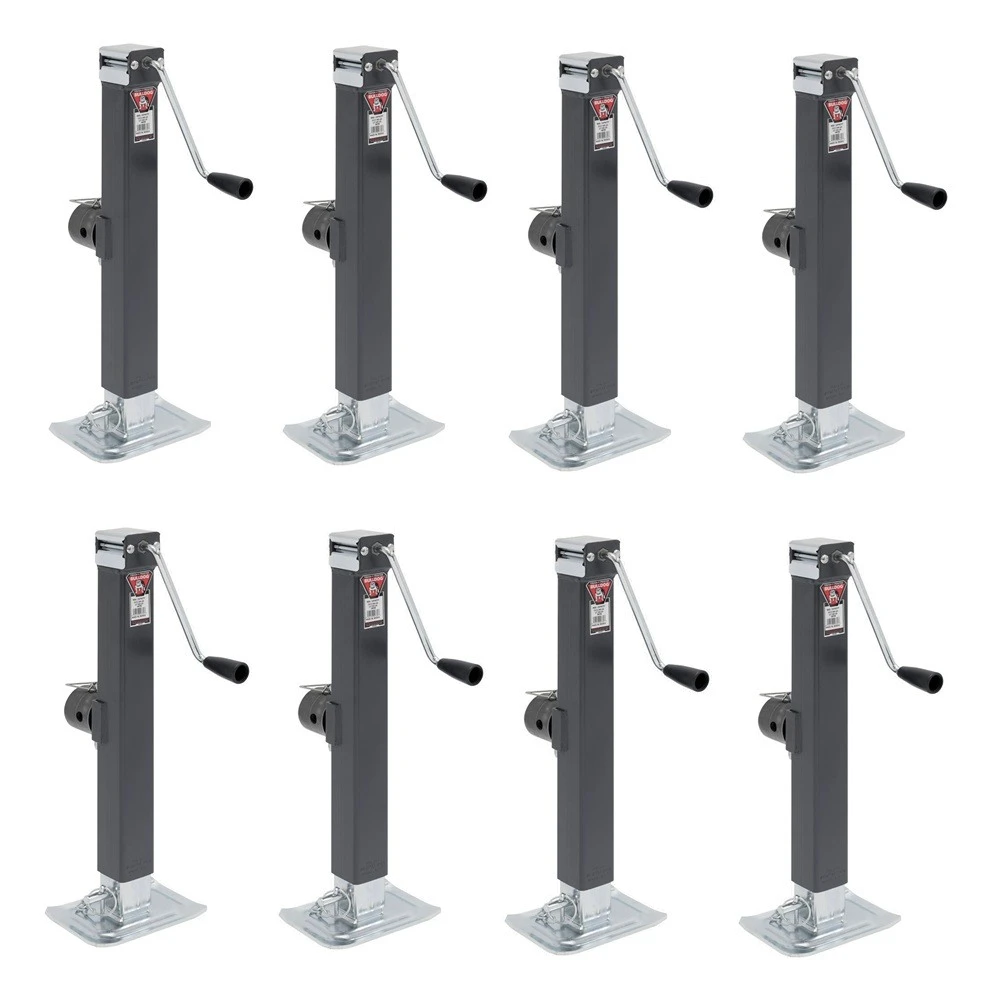

Bulldog 8x 8K Square Trailer Jack w/ Tubular Swivel Mount and 15" Lift
Model: BDTJ1158-Pack Bulldog 8,000 lb Square Swivel Mount Trailer Jacks – 15″ Lift
Outfit your fleet or trailer setup with these eight heavy-duty Bulldog 8,000 lb square swivel mount jacks. Constructed for maximum strength and corrosion resistance, this bundle delivers reliable lifting performance for agricultural, industrial, construction, horse/livestock, and utility trailers—especially where space is limited.
Bundle Contents:
- QTY (8): Square Trailer Jack, Side Mount, 8,000 lbs. Support Capacity, Sidewind, Weld-On, 15 Inch Travel
- BULLDOG’s 8,000 lbs. support capacity square jack serves multiple trailer markets.
- Compact design ideal where 3″ and 4″ square tube jacks are too large.
- Painted outer tube serves as final finish or primer; zinc-plated inner tube and drop leg for corrosion resistance.
- 4.7″ outer/inner tube overlap for optimal side-load performance.
- 5/8″ screw stem prevents twisting off; patented screw nut stop protects at full extension.
- Topwind models feature a bushing in the top cap and eagle claw grip; sidewind models include 1:1.33 gear ratio with 1/4″ cross-pin guard.
Always verify original equipment dimensions and perform routine maintenance—including lubrication and inspection—to ensure smooth, long-lasting operation.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Jack Bundle |
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB |
| Lifting Load Capacity | 5000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Swivel |
| Outer Tube Diameter | 2.5 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 13 Inch |
| Bracket-to-Bottom Clearance (Extended) | 41 Inch |
| Bracket-to-Top Clearance | 12 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Retracted Clearance | 12.66 Inch |
| Exact Extended Clearance | 41.16 Inch |
| Exact Top Clearance | 12.40 Inch |
$1,431 99 $1,500.00 5% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,500.00 $1,431 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ115
- Includes: 8K Drop Leg Jack
