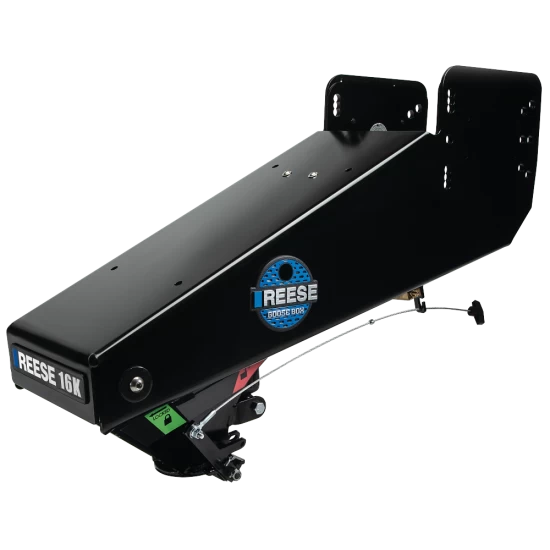

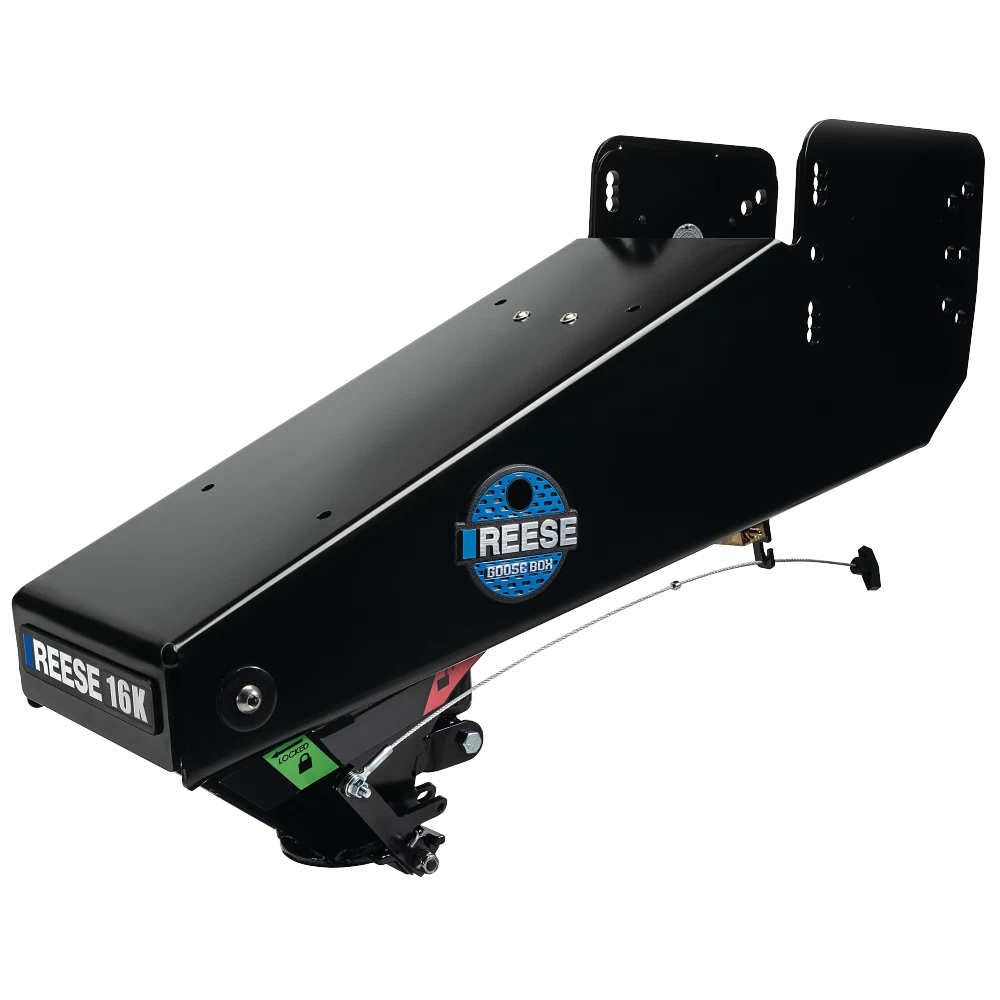

Reese Goose Box™ 5th Fifth Wheel Hitch Pin Box, Air Ride, 16,000 lbs. Capacity, Fits Lippert (1621, 1716, 0719), Fabex PB 600 Series
Model: 94716-TJStep up to RV comfort and keep your gooseneck hitch!
Take the heavy equipment out of the truck bed! The Goose Box™ gooseneck coupler is specifically designed for RV trailer owners who wish to tow with their gooseneck hitch. The Reese® Goose Box™ replaces a traditional pin box so the RV works with the truck gooseneck hitch. Includes 5th Airborne™ technology for a superb ride.
- World’s first OE approved gooseneck adapter, Endorsed by Lippert Components, Inc. for their frame systems
- Fits Lippert #1621, 1621HD, 0719 and Fabex PB-600 Series
- Fits Lippert #1716, 1116 and 0115 - Spacer kit #61301 is required
- 5th Airborne™ expertise reduces stress transferred to the RV frame
- Independent lab tested & proven to provide a better ride than king pin“bolt-on” adapter solutions (Bosch Automotive Proving Grounds)
- Bulldog® gooseneck coupler technology with traditional king pin styling
- Air bag, dual shocks and rubber bumpers provide multi-directional shock absorption for a smoother driving experience
- Air pressure relief valve prevents overfilling of air bags
- Available in bulk or individual packaging
- Rated for 16,000 lbs. capacity utilizing both CSA & SAE J2638 test standards
- Limited lifetime warranty
$1,399 99 $1,937.50 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,937.50 $1,399 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $349.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 94716-TJ
- UPC: 016118152500
- Includes: Goose Box
Description
Get Expert Help
Reese Goose Box™ 5th Fifth Wheel Hitch Pin Box, Air Ride, 16,000 lbs. Capacity, Fits Lippert (1621, 1716, 0719), Fabex PB 600 Series Install Notes
Installation Instructions for Goosebox ## Part Numbers - 94716 - 94720 --- ## Ratings ### 94716 - 16K Goosebox - Maximum Gross Trailer Weight (GTW): 16,000 lbs - Maximum Pin Weight: 3,200 lbs ### 94720 - 20K Goosebox - Maximum Gross Trailer Weight (GTW): 20,000 lbs - Maximum Pin Weight: 4,000 lbs > Warning: Do not exceed the towing vehicle manufacturer's recommended capacity. Failure to adhere to instructions may result in property damage, injury, or death. --- ## Tools Required - Fastener kit: 94621F (Included) - 15/16” Socket and Wrench - Torque Wrench (capable of 250 ft-lbs) - Lithium Grease - Equipment to lift approximately 250 lbs --- ## Hardware List (Included) - Goosebox assembly - Hex Bolt (5/8-11x2) - Qty: 8 - Conical Washer (5/8”) - Qty: 8 - Flat Washer (5/8”) - Qty: 8 - Hex Nut (5/8-11) - Qty: 8 --- ## Step-by-Step Installation Instructions ### General Installation: 1. Perform all safety checks before starting: - Ensure the towing vehicle is in park. - Engage the emergency brake. - Block the trailer's wheels. 2. Use lifting equipment to position the Goosebox. 3. Secure the Goosebox to the trailer using the provided hardware: - Install bolts and washers from the outside. - Place conical washers and nuts on the inside. - Torque bolts to 210 ft-lbs. --- ## Hitching and Unhitching ### Hitching: 1. Use only with a 2 5/16” diameter Gooseball. 2. Ensure the coupler handle is locked and unobstructed by the pull cable. 3. Lower the coupler onto the Gooseball. The handle will automatically lock into position. 4. Confirm the handle is in the locked position before towing. > Warning: Never tow a trailer without ensuring the Gooseball is fully recessed and locked within the coupler. ### Unhitching: 1. Pull the handle back using the pull cable and hook it into the cable stop. 2. Raise the trailer off the Gooseball and release the cable. 3. Ensure the latch remains in the locked position when the trailer is stationary. --- ## Air Fill and Adjustment 1. Perform the hitching procedure with the trailer loaded. 2. Inflate the air spring using the air bag fill valve. 3. Adjust the air pressure until the Goosebox reaches the nominal ride position as indicated on the visual air inflation indicator. 4. Recheck the air pressure to ensure desired ride comfort. > Note: The Goosebox features an automatic air relief valve to prevent over-inflation. --- ## Maintenance 1. Grease the coupler shaft and clean/grease the Gooseball before each use. 2. Inspect the Goosebox for damage or excessive wear. 3. Fully deflate and refill the airbag once per season. 4. Regularly check all bolts and nuts for proper torque. --- ## Safety Notes - Always follow the manufacturer's towing capacity. - Maintain a minimum 7-inch clearance between the truck bed and the trailer undercarriage. - Avoid placing any part of your body under the trailer or between the truck and trailer during hitching/unhitching. --- ## Warranty Information - Limited Lifetime Warranty: Covers defects in materials and workmanship for the original owner. - Excludes: - Normal wear and tear - Damage due to misuse or overloading - Alterations not performed per product instructions For warranty claims, contact Horizon Global America, Inc., at 1-800-632-3290 with proof of purchase. --- ## Manufacturer Details - Company: Horizon Global America, Inc. - Address: 47912 Halyard Drive Suite 100, Plymouth, MI 48170 - Document Revision: 94720IN, 9/25/18, Rev. B
Installation Instructions for Goosebox
Part Numbers
- 94716
- 94720
Ratings
94716 - 16K Goosebox
- Maximum Gross Trailer Weight (GTW): 16,000 lbs
- Maximum Pin Weight: 3,200 lbs
94720 - 20K Goosebox
- Maximum Gross Trailer Weight (GTW): 20,000 lbs
- Maximum Pin Weight: 4,000 lbs
Warning: Do not exceed the towing vehicle manufacturer's recommended capacity. Failure to adhere to instructions may result in property damage, injury, or death.
Tools Required
- Fastener kit: 94621F (Included)
- 15/16” Socket and Wrench
- Torque Wrench (capable of 250 ft-lbs)
- Lithium Grease
- Equipment to lift approximately 250 lbs
Hardware List (Included)
- Goosebox assembly
- Hex Bolt (5/8-11x2) - Qty: 8
- Conical Washer (5/8”) - Qty: 8
- Flat Washer (5/8”) - Qty: 8
- Hex Nut (5/8-11) - Qty: 8
Step-by-Step Installation Instructions
General Installation:
- Perform all safety checks before starting:
- Ensure the towing vehicle is in park.
- Engage the emergency brake.
- Block the trailer's wheels.
- Use lifting equipment to position the Goosebox.
- Secure the Goosebox to the trailer using the provided hardware:
- Install bolts and washers from the outside.
- Place conical washers and nuts on the inside.
- Torque bolts to 210 ft-lbs.
Hitching and Unhitching
Hitching:
- Use only with a 2 5/16” diameter Gooseball.
- Ensure the coupler handle is locked and unobstructed by the pull cable.
- Lower the coupler onto the Gooseball. The handle will automatically lock into position.
- Confirm the handle is in the locked position before towing.
Warning: Never tow a trailer without ensuring the Gooseball is fully recessed and locked within the coupler.
Unhitching:
- Pull the handle back using the pull cable and hook it into the cable stop.
- Raise the trailer off the Gooseball and release the cable.
- Ensure the latch remains in the locked position when the trailer is stationary.
Air Fill and Adjustment
- Perform the hitching procedure with the trailer loaded.
- Inflate the air spring using the air bag fill valve.
- Adjust the air pressure until the Goosebox reaches the nominal ride position as indicated on the visual air inflation indicator.
- Recheck the air pressure to ensure desired ride comfort.
Note: The Goosebox features an automatic air relief valve to prevent over-inflation.
Maintenance
- Grease the coupler shaft and clean/grease the Gooseball before each use.
- Inspect the Goosebox for damage or excessive wear.
- Fully deflate and refill the airbag once per season.
- Regularly check all bolts and nuts for proper torque.
Safety Notes
- Always follow the manufacturer's towing capacity.
- Maintain a minimum 7-inch clearance between the truck bed and the trailer undercarriage.
- Avoid placing any part of your body under the trailer or between the truck and trailer during hitching/unhitching.
Additional Notes
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship for the original owner.
- Excludes:
- Normal wear and tear
- Damage due to misuse or overloading
- Alterations not performed per product instructions
For complete warranty instructions, please download the full installation PDF.
