Product Details
- Brand: Draw-Tite
- Model: 41948 20252 21330 63836 63240

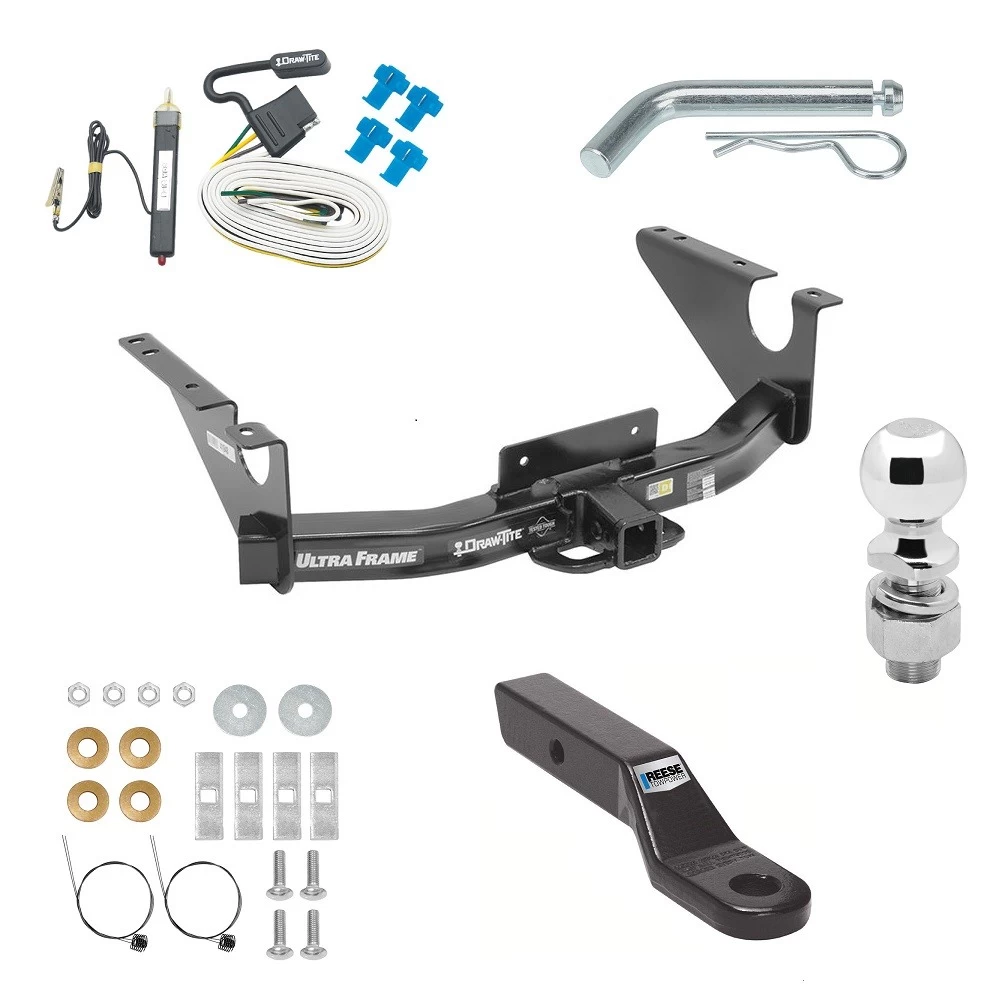

- Includes: Ultra Frame Class 5 Trailer Tow Hitch, Wiring Connector, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Get Expert Help

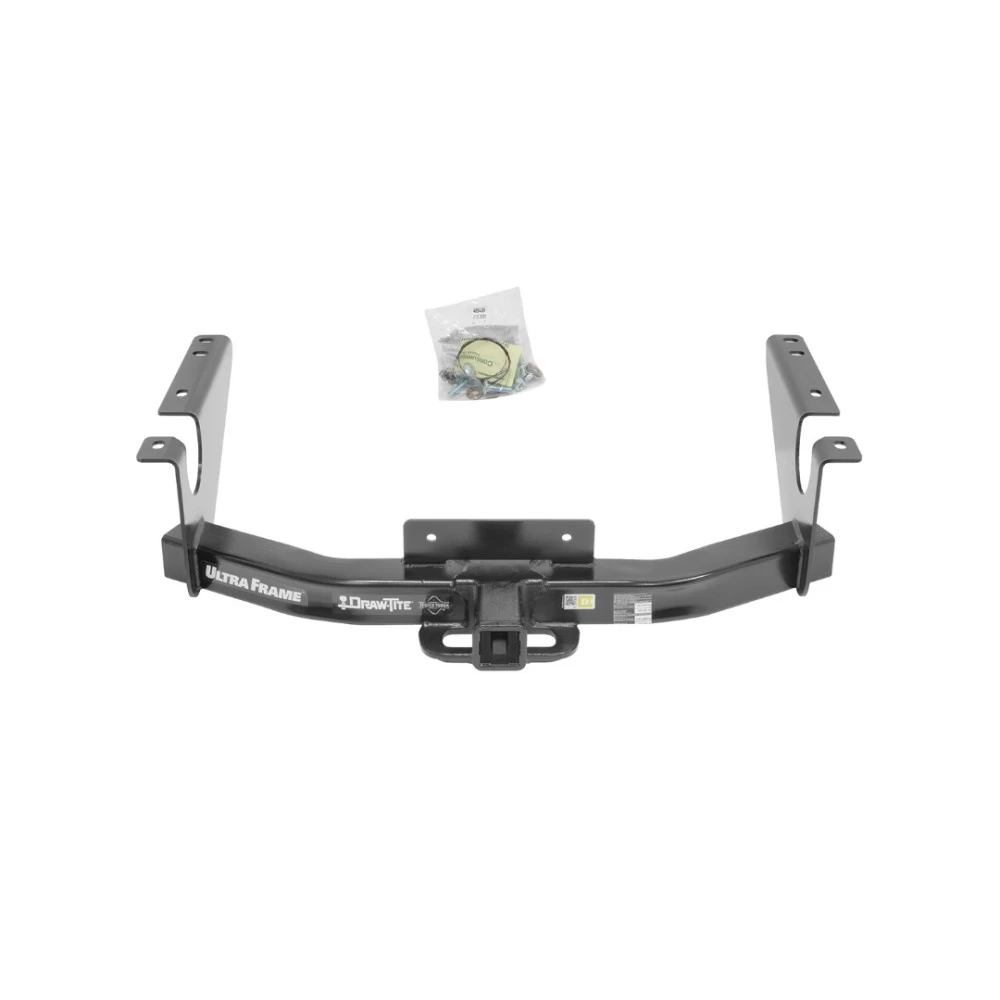

Class 5 11K Tow Package For 11-18 RAM 1500 19-23 (Classic) Trailer Hitch w/ Wiring 2-5/16" Ball 2" Drop Mount 2" Receiver Install Notes
Installation Instructions for RAM 1500
Part Numbers:
- 41948
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 3/4", 21mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the existing M14 bolts from each cross member bracket.
-
Prepare Fasteners:
- Feed a pull wire through the vehicle cross member. Attach a block and carriage bolt to the pull wire and pull them through the vehicle cross member into position as shown in the diagram.
-
Fishwire Fasteners:
- Fishwire blocks and carriage bolts through the frame rails into the existing holes in the vehicle.
-
Raise Hitch:
- Lift the hitch into position.
-
Install Rear Attachment:
- Place a 1/2" flat washer between the frame rail and hitch for the rear attachment.
-
Reinstall Existing Bolts:
- Reinstall the existing M14 bolts through the receiver and frame into the existing weld nuts.
-
Secure Fasteners:
- Loosely install conical washers and nuts onto the carriage bolts.
-
Tighten All Fasteners:
- Torque all fasteners to the following specifications:
- M14 x 1.5 fasteners: 148 lb-ft (201 N*m)
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
- Torque all fasteners to the following specifications:
Torque Specifications:
- M14 x 1.5: 148 lb-ft (201 N*m)
- 1/2"-13 GR5: 75 lb-ft (102 N*m)

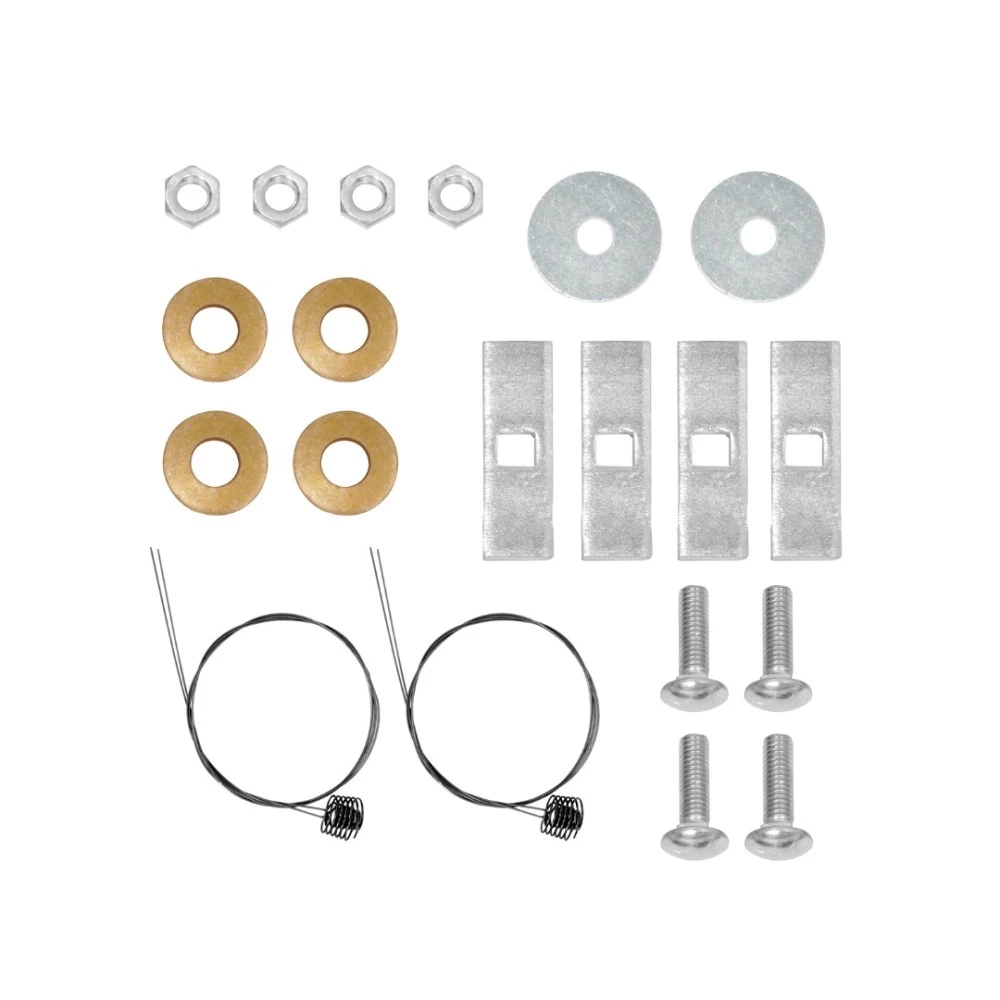

Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Flat Washers, 1/2"
- (4) Blocks, 1/4" x 1" x 3"
- (4) Pull Wires, 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the vehicle's body to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- Removal of the spare tire will make installation easier.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks (1500 Model)
Part Numbers:
- 41948
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 3/4", 21mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the existing M14 bolts from each cross member bracket.
-
Prepare Fasteners:
- Feed a pull wire through the vehicle cross member. Attach a block and carriage bolt to the pull wire and pull them through the vehicle cross member into position as shown in the diagram.
-
Fishwire Fasteners:
- Fishwire blocks and carriage bolts through the frame rails into the existing holes in the vehicle.
-
Raise Hitch:
- Lift the hitch into position.
-
Install Rear Attachment:
- Place a 1/2" flat washer between the frame rail and hitch for the rear attachment.
-
Reinstall Existing Bolts:
- Reinstall the existing M14 bolts through the receiver and frame into the existing weld nuts.
-
Secure Fasteners:
- Loosely install conical washers and nuts onto the carriage bolts.
-
Tighten All Fasteners:
- Torque all fasteners to the following specifications:
- M14 x 1.5 fasteners: 148 lb-ft (201 N*m)
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
- Torque all fasteners to the following specifications:
Torque Specifications:
- M14 x 1.5: 148 lb-ft (201 N*m)
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Flat Washers, 1/2"
- (4) Blocks, 1/4" x 1" x 3"
- (4) Pull Wires, 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the vehicle's body to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- Removal of the spare tire will make installation easier.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
20252 Rev. A 2-6-07
