CURT 2000 Pound Pipe-Mount Swivel Trailer Jack Sidewind Handle 15 Inch Travel 28324
Model: 28324In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack, or the field.
CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are available in two categories: pipe mount and bracket mount.

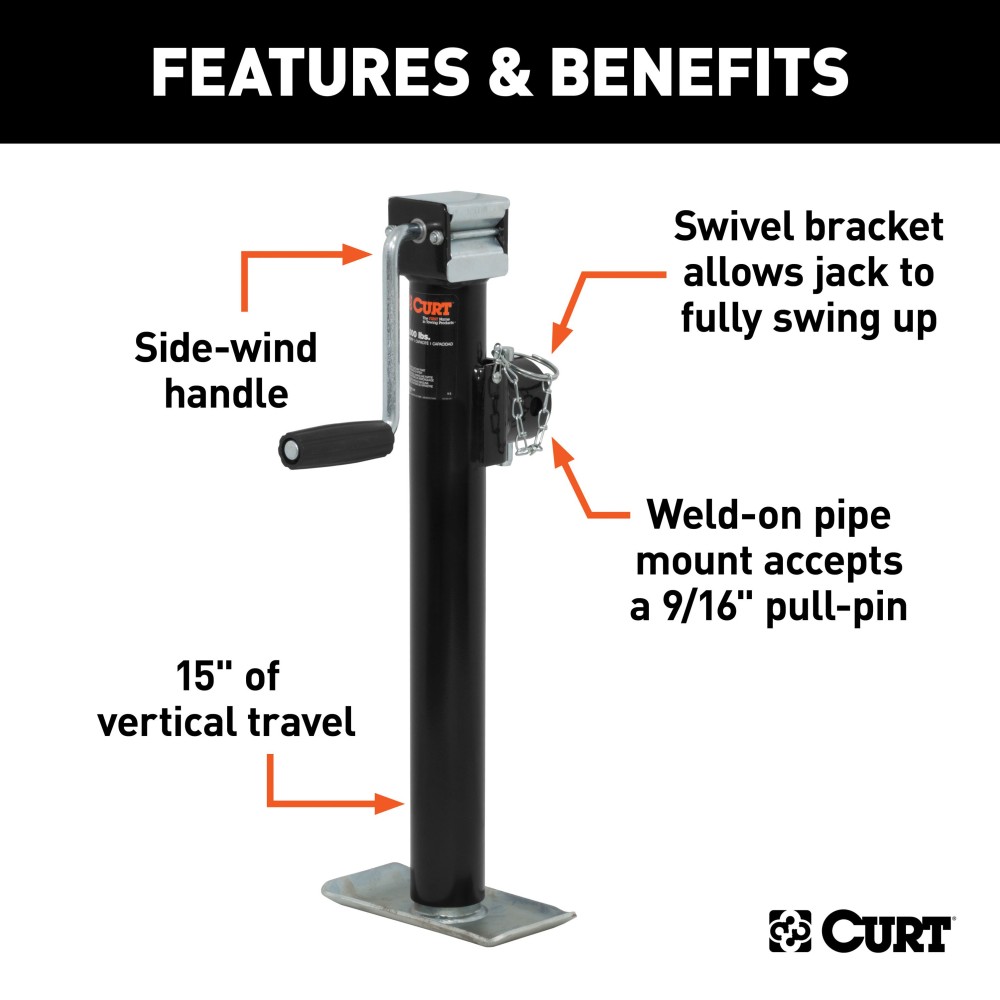

Product Features
- Rated for 3,000 lbs. support capacity and 2,000 lbs. lift capacity

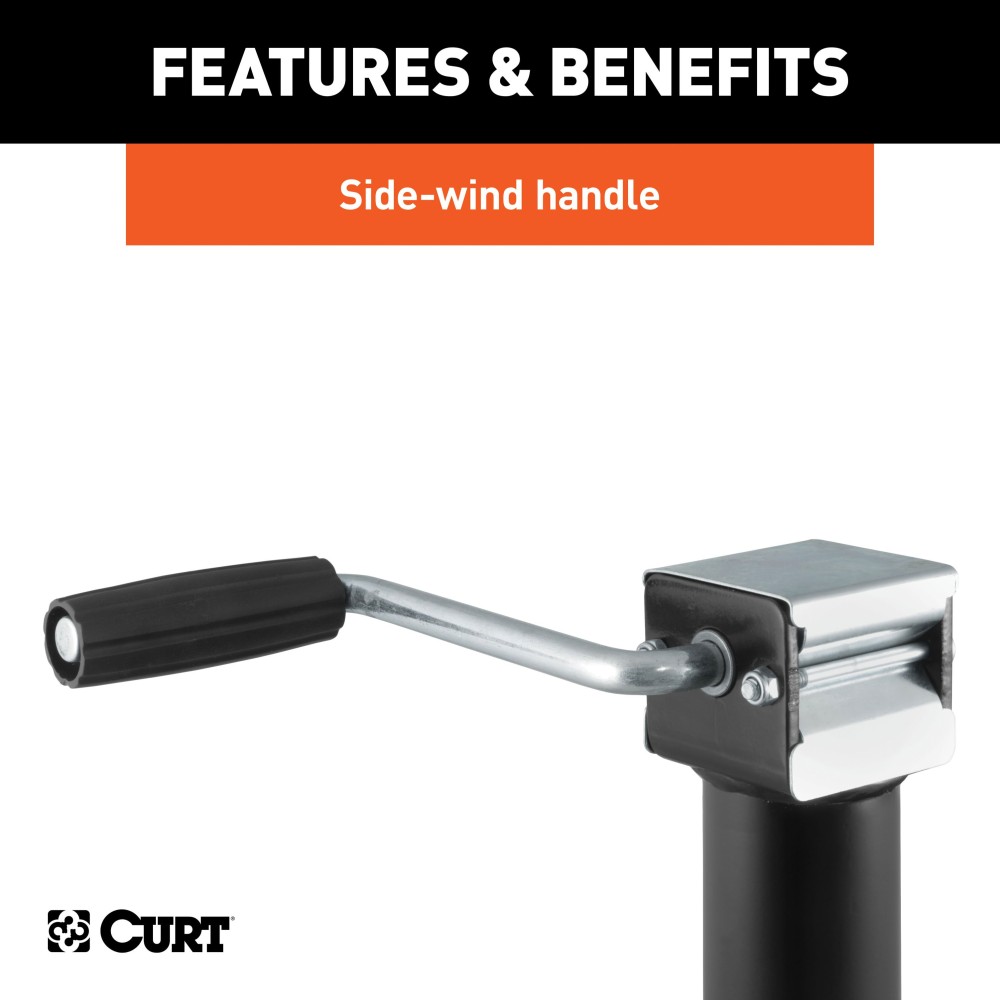

- Side-wind handle easily raises or lowers trailer coupler
- Weld-on pipe-mount accepts a 9/16" pull-pin

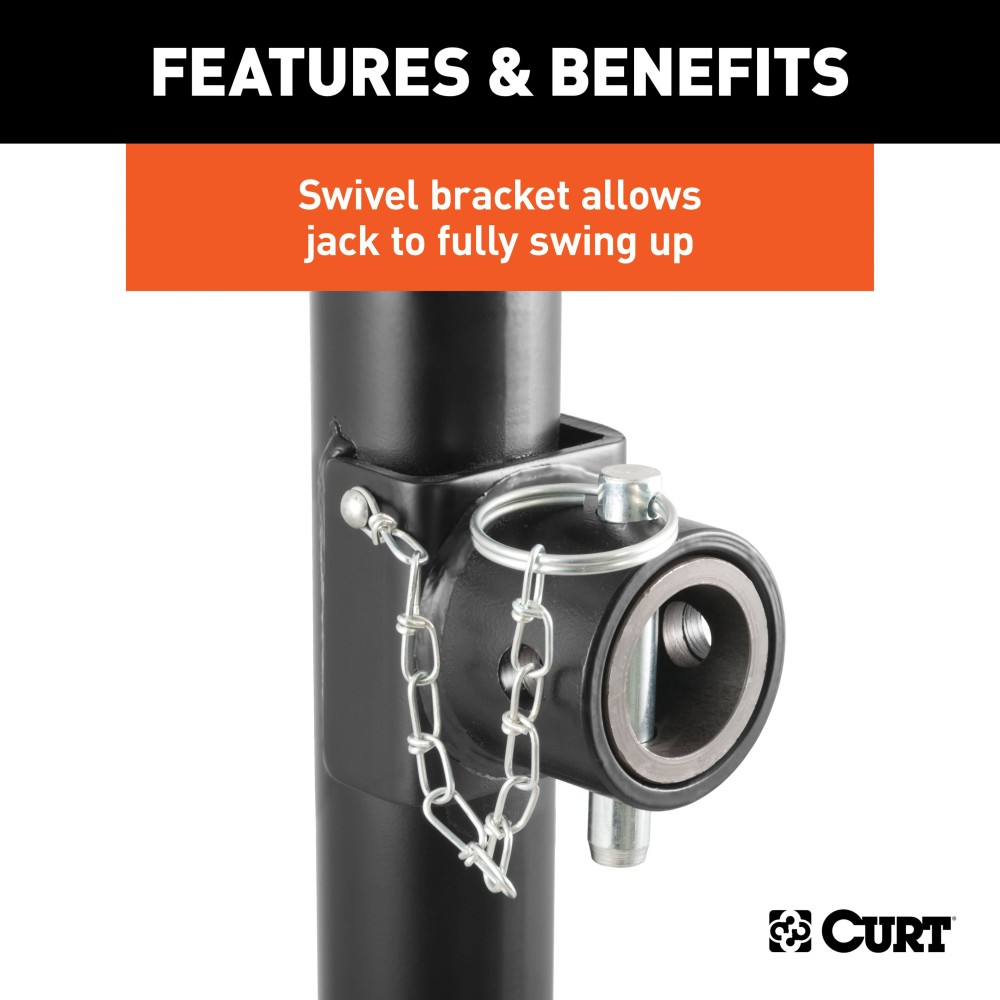

- Swivel bracket allows jack to fully swing up and out of the way for travel
- Pull-pin keeps jack securely locked in place
- 15" of vertical travel to accommodate multiple ball heights
- Limited lifetime warranty (one-year finish, one-year parts)

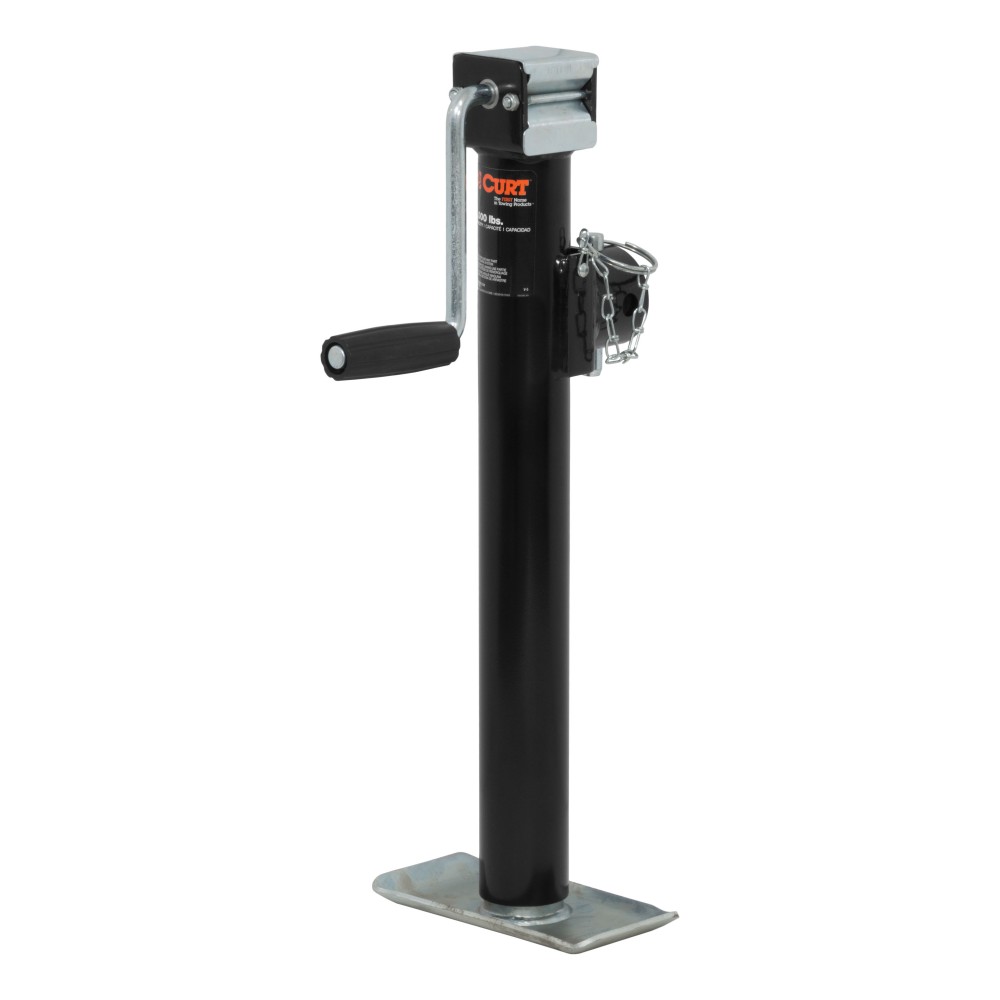

This CURT pipe mount swivel jack features a support capacity of 3,000 lbs., a lift capacity of 2,000 lbs., and a travel of 15". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and includes a weldable pipe with a 9/16" hole for secure mounting.
No matter the type of trailer you tow—be it a boat trailer, utility trailer, livestock hauler, or recreational vehicle trailer—if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.
| Specifications: | |
|---|---|
| Weight Capacity | 2001-3000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Medium Duty Tailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 3000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 15 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 30 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 6 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |

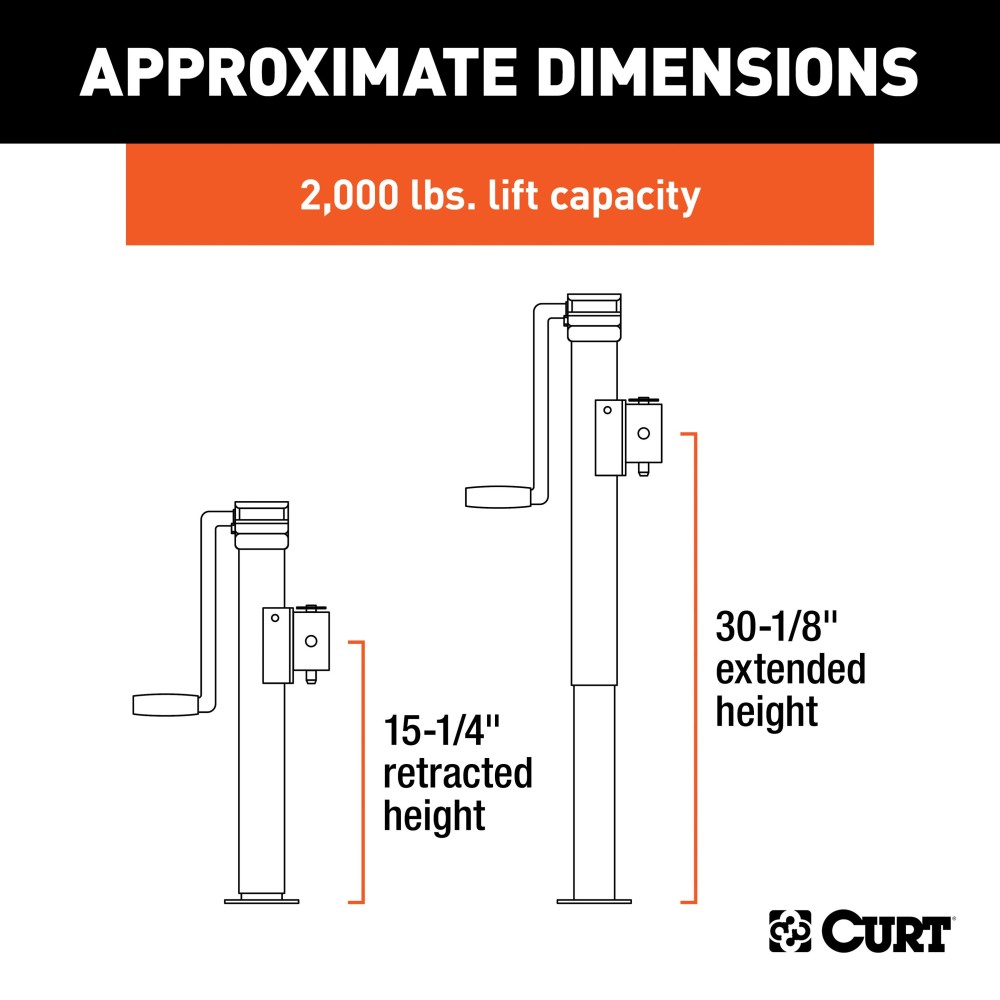

| Exact Bracket-to-Bottom Clearance (Retracted) | 15.25 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 30.1 Inch |
| Exact Bracket-to-Top Clearance | 6.25 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$81 68 $90.95 10% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$90.95 $81 68
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 28324
- UPC: 612314006625
- Includes: Pipe Mount Swivel Jack
