CURT 2K A-Frame Trailer Jack Top Wind 15" Travel w/ Wheel & Footplate
Model: CTJJWF2CURT 2,000 lb A-Frame Trailer Jack with 15" Travel, Wheel, and Foot
Upgrade your trailer setup with this convenient CURT A-frame jack bundle. Designed for quick and reliable lifting, this kit includes the 2,000 lb top-wind jack, a 6" caster wheel for easy maneuvering, and a pin-on foot for added stability. Whether you tow a boat, RV, or utility trailer, having both the caster wheel and foot on hand ensures you’re ready for various terrain and storage conditions.

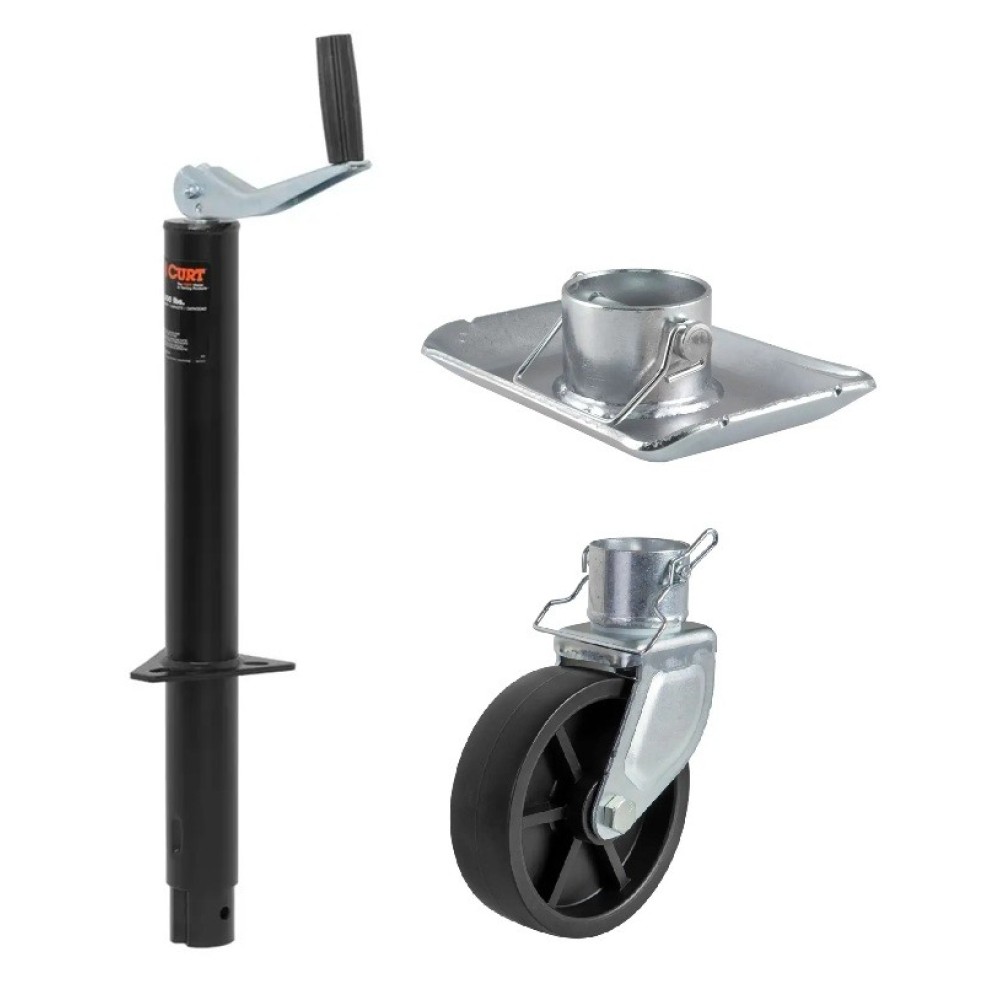

Bundle Contents:

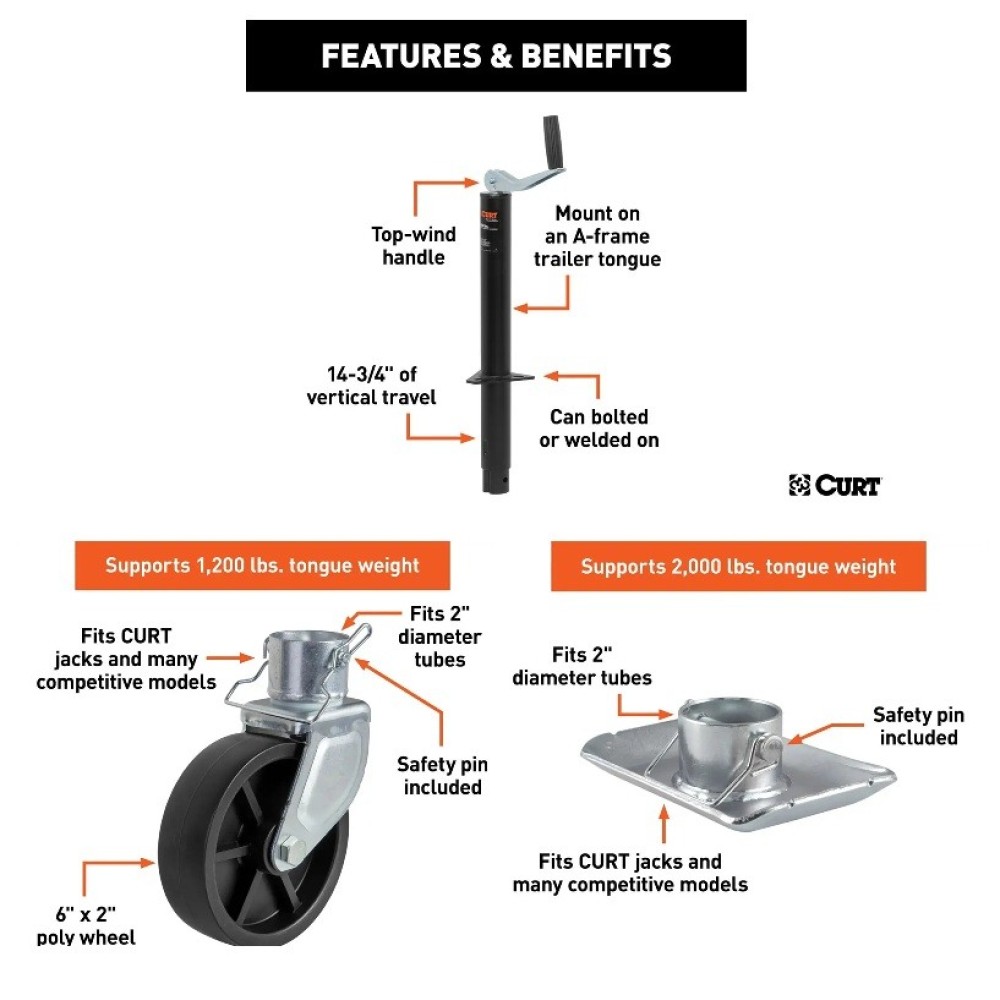

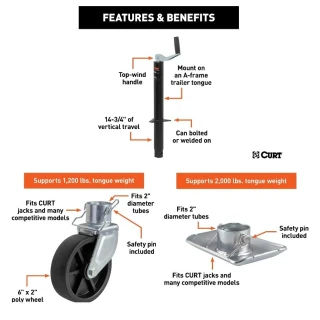

- QTY (1): A-Frame Jack with Top Handle (2,000 lbs, 15" Travel, Packaged)
- Designed to be mounted on an A-frame trailer tongue
- Supports up to 2,000 lbs. trailer tongue weight
- Top-wind handle easily raises or lowers trailer coupler
- 15" of vertical travel to accommodate multiple ball heights
- Can be bolted or welded on (hardware not included)
- Limited lifetime warranty (one-year finish, one-year parts)
- Use replacement handle bulk #28921
- QTY (1): 6" Jack Caster (Fits 2" Tube, 1,200 lbs, Packaged)
- Designed to fit CURT jacks and many competitive models
- Supports up to 1,200 lbs. trailer tongue weight
- Fits 2" diameter tubes
- Included safety pin allows for quick, secure attachment
- 6" x 2" poly wheel for convenient trailer mobility and coupling
- QTY (1): Pin-On Jack Foot (Fits 2" Tube, 2,000 lbs, 1-11/16" Height)
- Designed to fit CURT jacks and many competitive models
- Supports up to 2,000 lbs. trailer tongue weight
- Fits 2" diameter tubes
- Included safety pin allows for quick, secure attachment
Always confirm your trailer’s original equipment specifications and perform routine maintenance for optimal safety and performance. This combination of jack, wheel, and foot provides the versatility needed for on-the-road or at-home trailer management.
| Specifications: | |
|---|---|
| Kit Type | A-Frame Trailer Jack, Wheel & Foot Kit |
| Weight Capacity | 1001-2000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Foot and Wheel |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

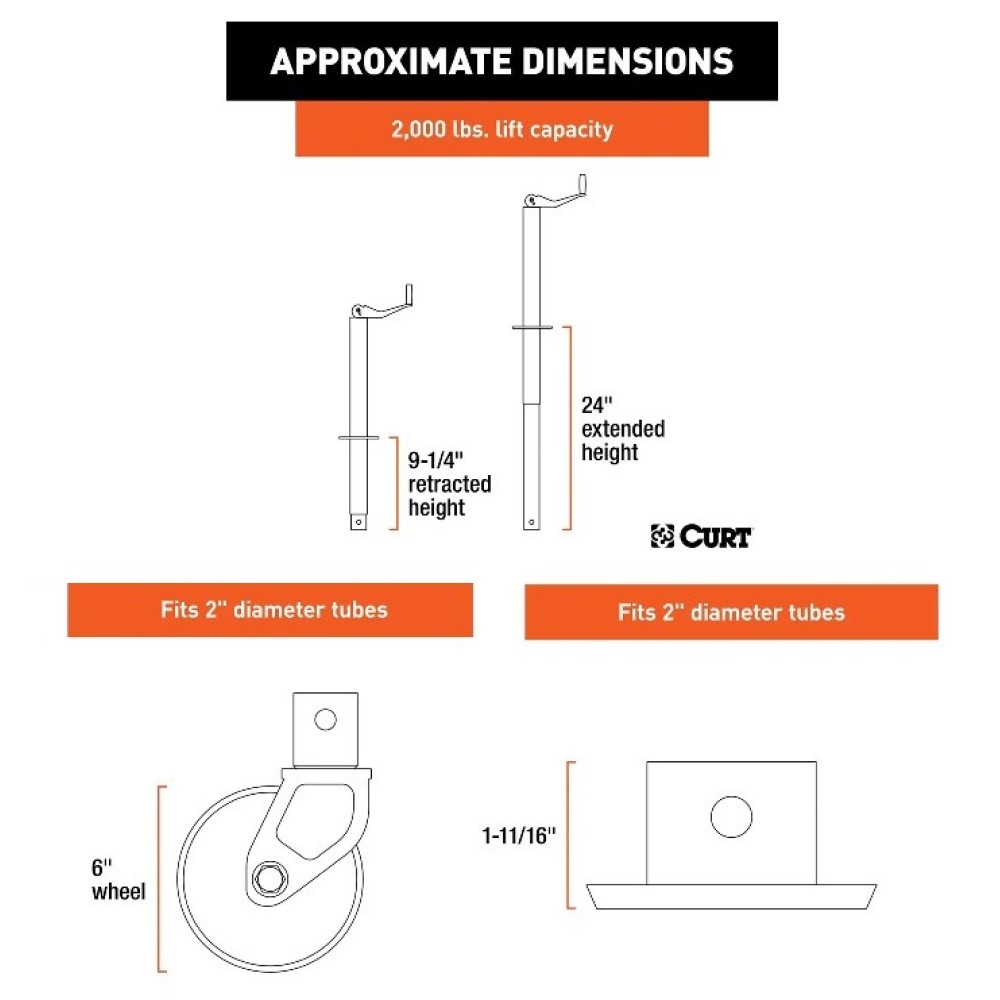

| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 12 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 9.25 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 24 Inch |
| Exact Bracket-to-Top Clearance | 12.4 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$119 99 $153.85 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$153.85 $119 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: CTJJWF2
- Includes: A-Frame Jack, Caster Wheel, Foot
