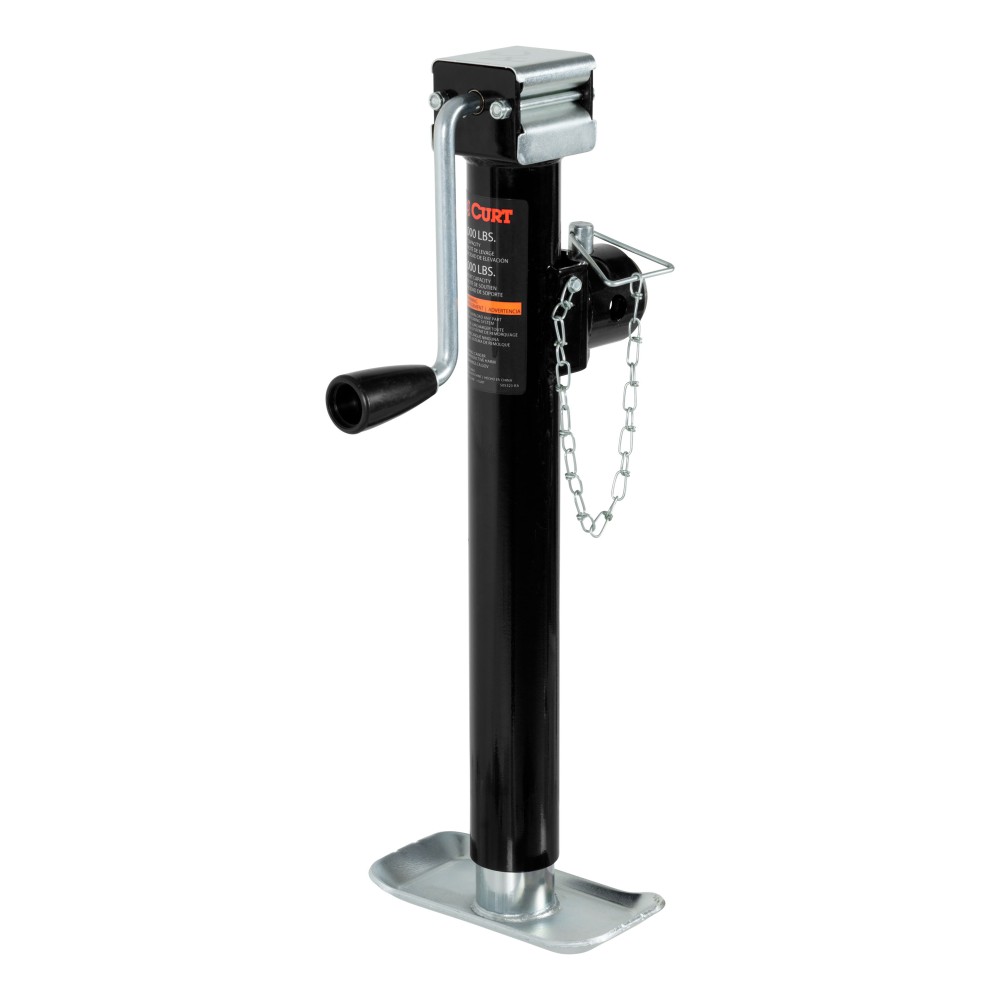

CURT 5000 Pound Pipe Mount Swivel Trailer Jack with Sidewind Handle 15 Inch Travel 25005
Model: 25005CURT Pipe Mount Swivel Trailer Jack
Enhance the performance and durability of your trailer with the CURT Pipe Mount Swivel Trailer Jack, carefully designed and manufactured for optimum functionality. Whether you’re towing at the boat landing, campground, racetrack, or open field, the CURT trailer jack is built to meet your needs.

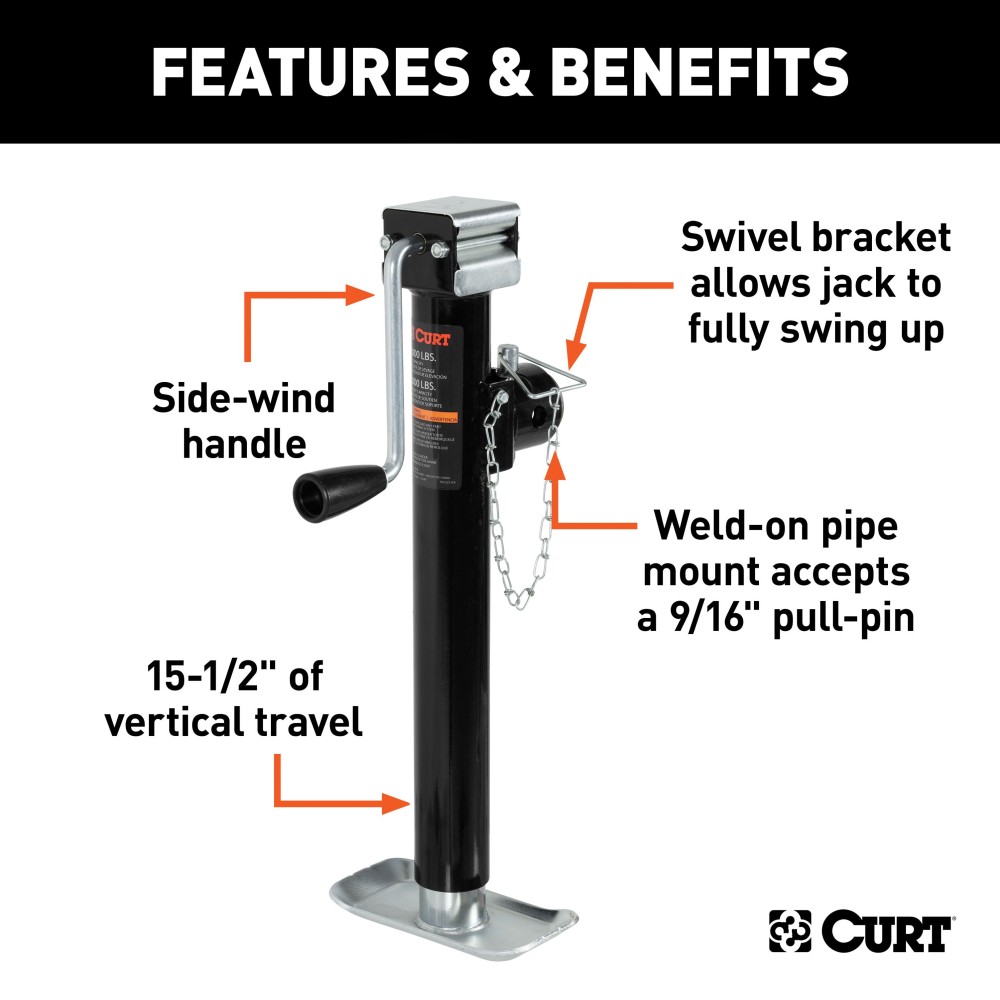

Product Features:
- Support Capacity: Rated for 5,000 lbs. A robust support capacity ensures your trailer remains balanced.
- Lift Capacity: 3,000 lbs. Easily manages the height adjustment of your trailer.

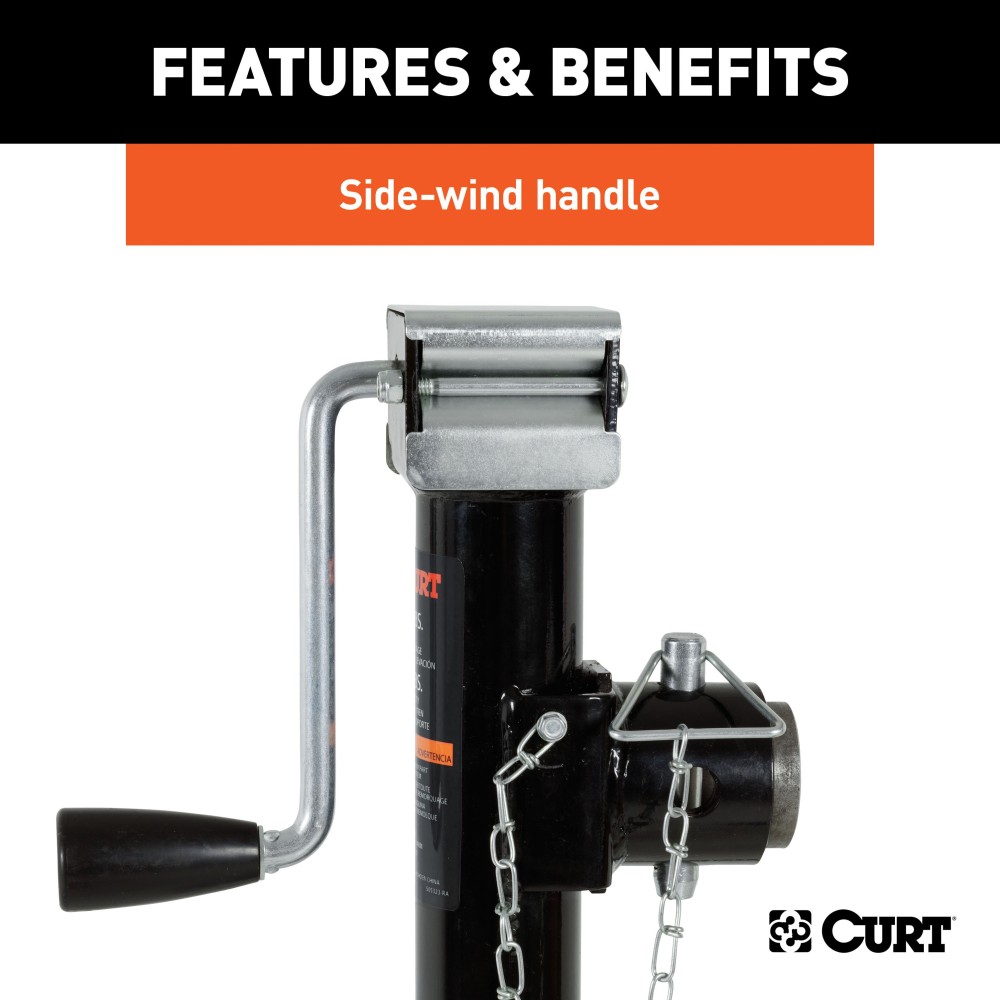

- Side-Wind Handle: Effortlessly raise or lower the trailer coupler with a side-wind handle.
- Mounting Versatility: Comes with a weld-on pipe mount featuring a 5/8" pull-pin for secure installation.

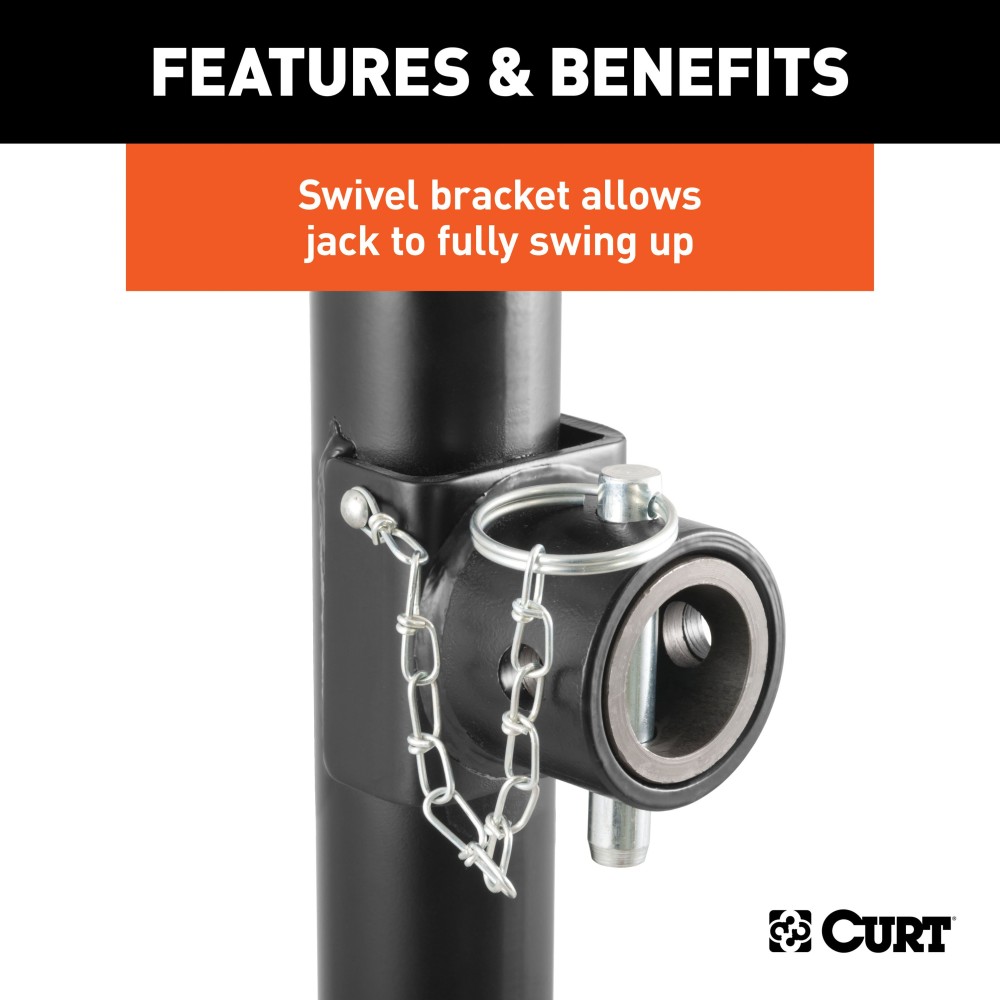

- Swivel Bracket: Offers a pivoting feature that allows the jack to swing up and out of the way during travel, making transitions smoother.
- Security: Pull-pin ensures the jack remains securely locked in place when not in use.
- Variable Heights: Provides 15" of vertical travel to accommodate different ball heights with ease.
Designed with a welded foot plate for enhanced stability on rough terrains, this durable trailer jack is perfect for boats, utility trailers, livestock haulers, or recreational vehicle trailers. Choose CURT for reliability that won't steer you wrong.
Warranty:
Enjoy peace of mind with a limited lifetime warranty, including one-year coverage on parts and finish.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Medium Duty Tailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 3000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

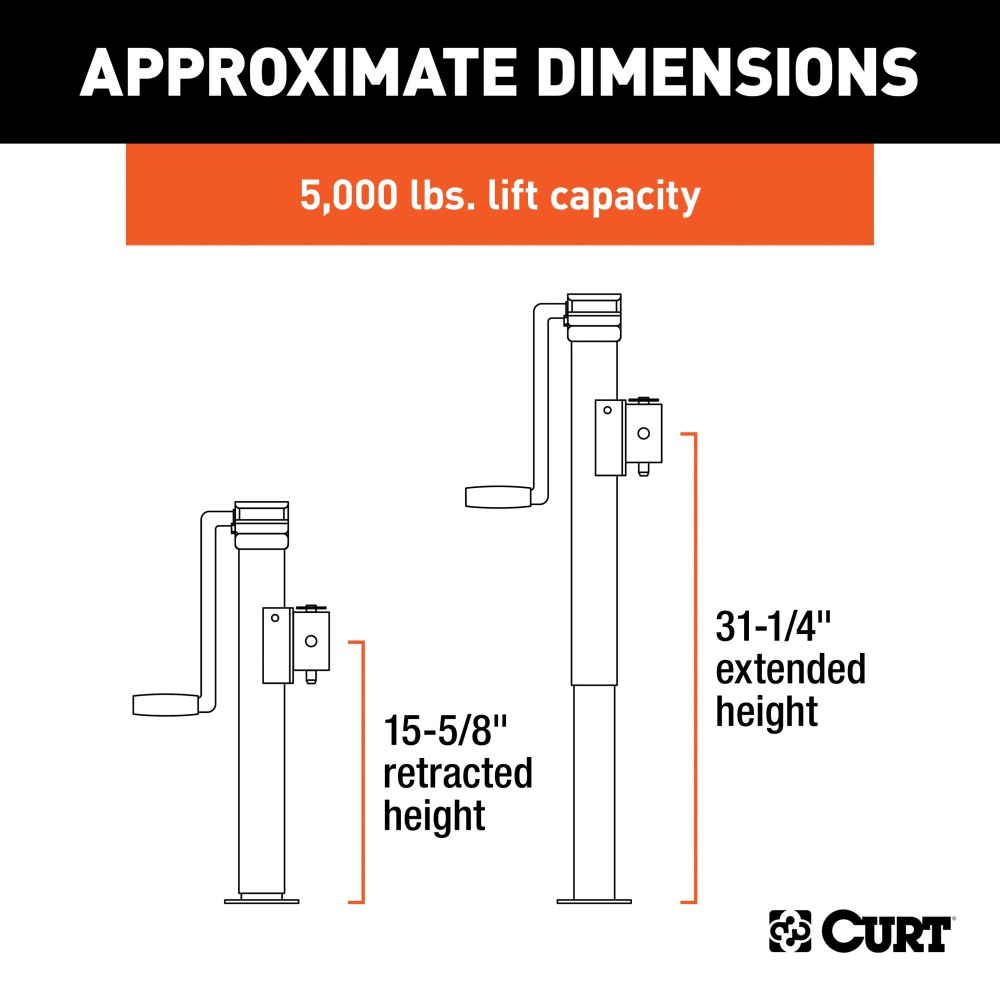

| Approx Bracket-to-Bottom Clearance (Retracted) | 15 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 30 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 6 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 15.25 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 30.1 Inch |
| Exact Bracket-to-Top Clearance | 6.25 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$90 23 $103.95 13% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$103.95 $90 23
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 25005
- UPC: 612314056194
- Includes: Pipe Mount Swivel Jack
