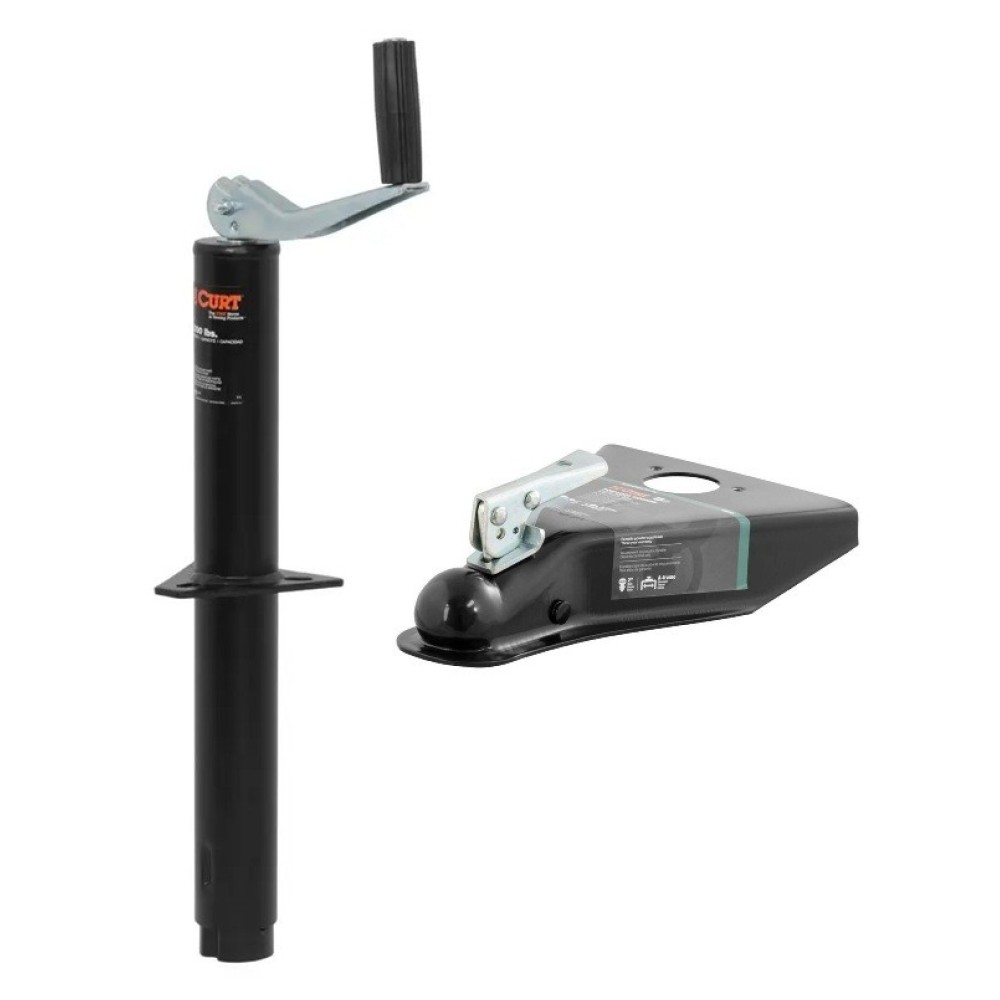

CURT 5K A-Frame Trailer Jack Top Handle 14" Travel w/ A-Frame Coupler for 2" Ball Weld-On
Model: CTJC6CURT 5000 lbs A-Frame Trailer Jack & 2" Coupler Bundle – 14" Travel, Top Handle, Weld-On
Experience quality towing solutions with this CURT bundle featuring a robust A-Frame trailer jack and a durable A-Frame coupler. Designed specifically for A-frame trailers, this bundle delivers exceptional performance, safety, and reliability for all your towing needs.

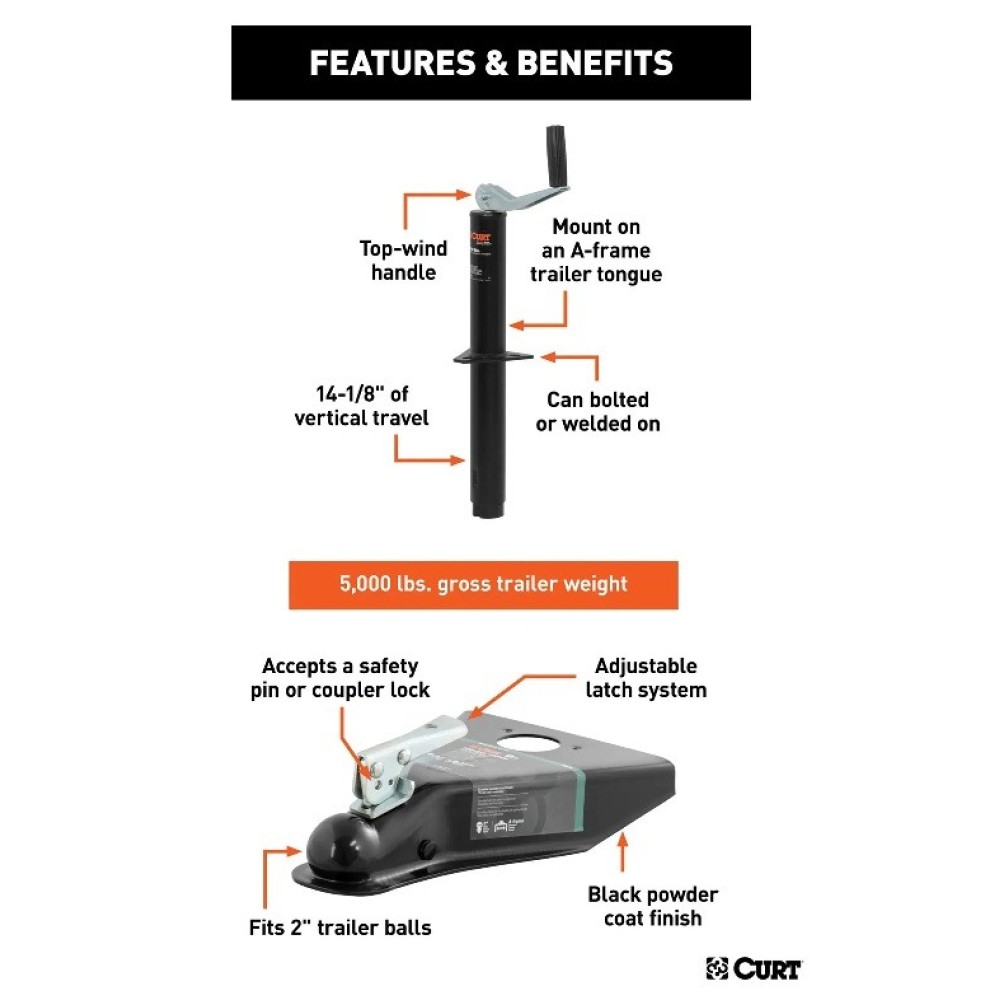

Bundle Contents:
- QTY (1): A-Frame Jack with Top Handle (5,000 lbs, 14" Travel)
- Designed to be mounted on an A-frame trailer tongue
- Rated for 5,000 lbs. support capacity and 3,000 lbs. lift capacity
- Top-wind handle easily raises or lowers trailer coupler
- 14" of vertical travel accommodates multiple ball heights
- Can be bolted or welded on (hardware not included)
- Limited lifetime warranty (one-year finish, one-year parts)
- Use replacement handle bulk #28921
- QTY (1): 2" A-Frame Coupler with Posi-Lock (5,000 lbs, Black)
- Fits A-frame trailer tongues and 2" trailer balls
- Passes SAE-684 performance testing as a class 3 coupler
- Spring and nut posi-lock mechanism allows for easy adjustment
- Features holes to accept a safety pin or coupler lock
- Constructed from die-cut, punched out steel
- Protected by a durable gloss black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Please ensure that your trailer's original equipment specifications match these components and perform regular maintenance for optimal performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

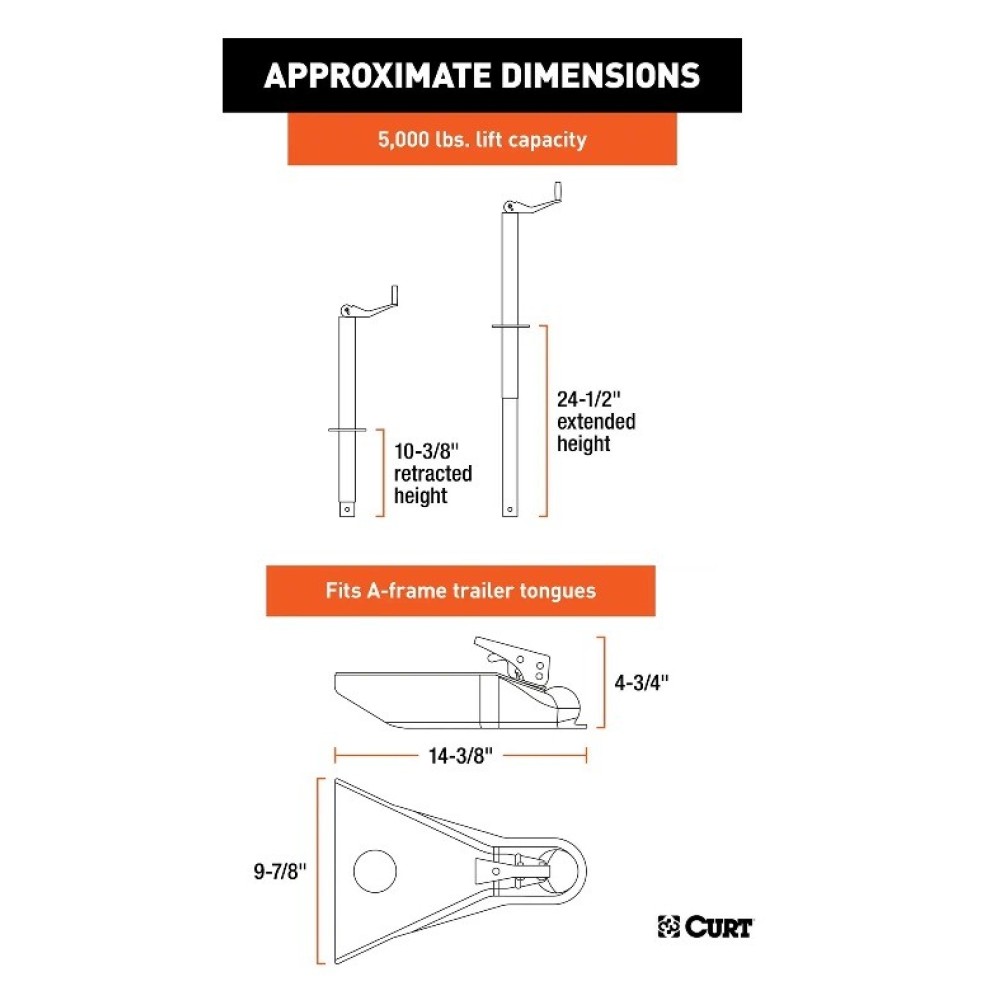

| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 25 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 13 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.40 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 24.5 Inch |
| Exact Bracket-to-Top Clearance | 13 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$98 99 $101.90 3% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$101.90 $98 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: CTJC6
- Includes: A-Frame Jack, Trailer Coupler
