CURT A16 Fifth Wheel Slider Hitch 16000 Pounds GTW Short Bed Trucks Above Bed Rails 16052

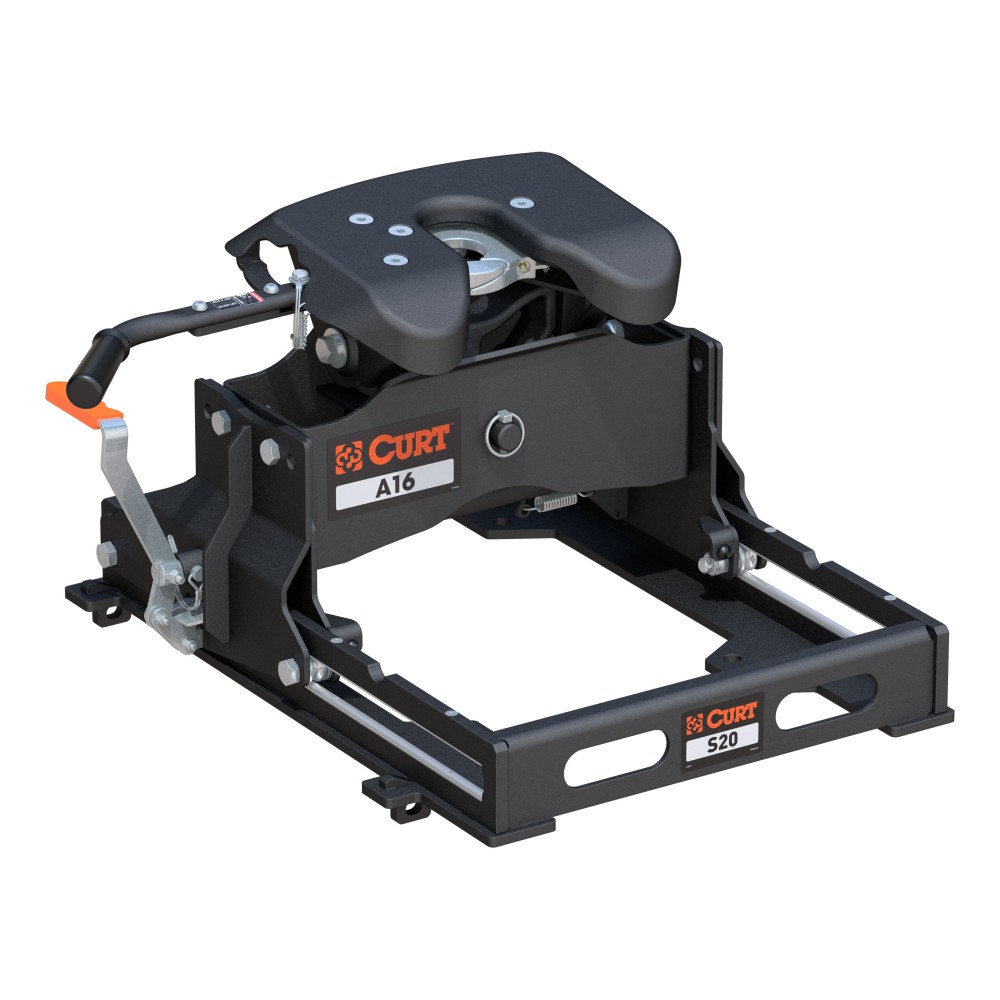

Model: 16052CURT A16 5th Wheel Hitch with S20 Slider
The CURT A16 is expertly engineered to deliver a serene towing experience without compromising on strength. It boasts a substantial gross trailer weight capacity of 16,000 lbs. and can manage a vertical load of up to 4,000 lbs. This hitch is equipped with a unique three-position coupling indicator, easily visible from your pickup truck cab, a wide head for convenient coupling, and high-strength interlocking die-cast jaws that securely hold your 5th wheel trailer in place.
Designed for excellence in quiet 5th wheel towing, the A16 employs a fully articulating torsion head, a cast yoke with poly-torsion inserts, and interlocking jaws to ensure stability between your trailer and tow vehicle. These components work together to suppress shock and vibrations, reducing any additional noise from your trailer.
Like other CURT A-Series hitches, the A16 is carefully coated with a durable carbide powder coat finish. It has been rigorously tested in accordance with SAE J2638 for safety and comes with a limited lifetime warranty.

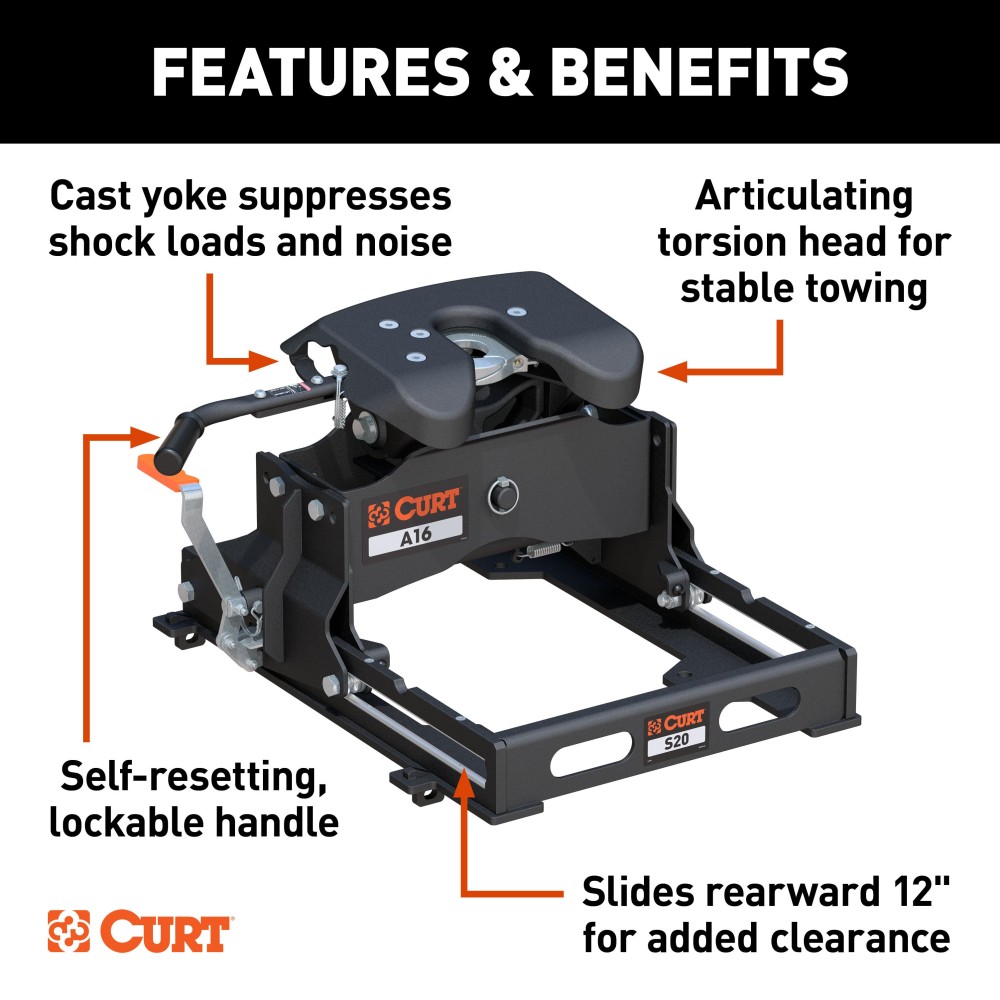

Features & Benefits:
- Cast yoke with poly-torsion inserts to suppress shock loads and noise.

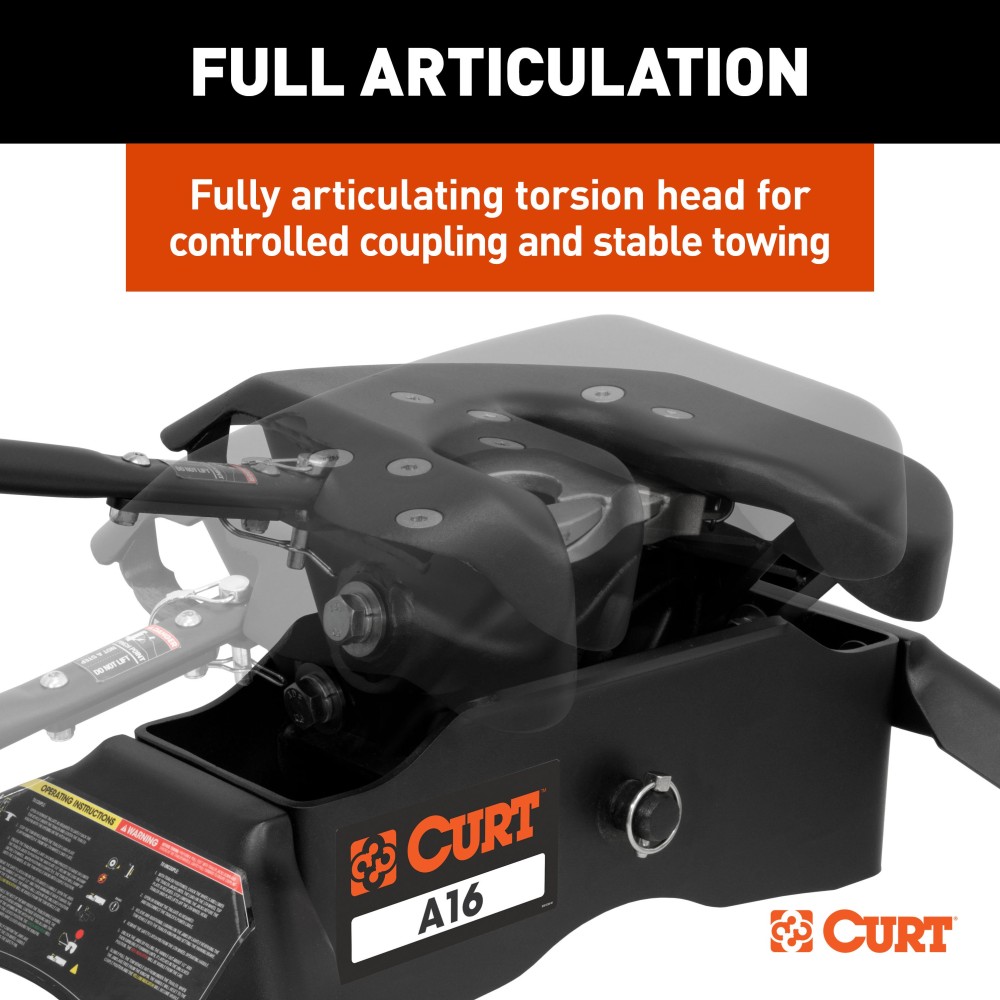

- Fully articulating torsion head for controlled coupling and stable towing.

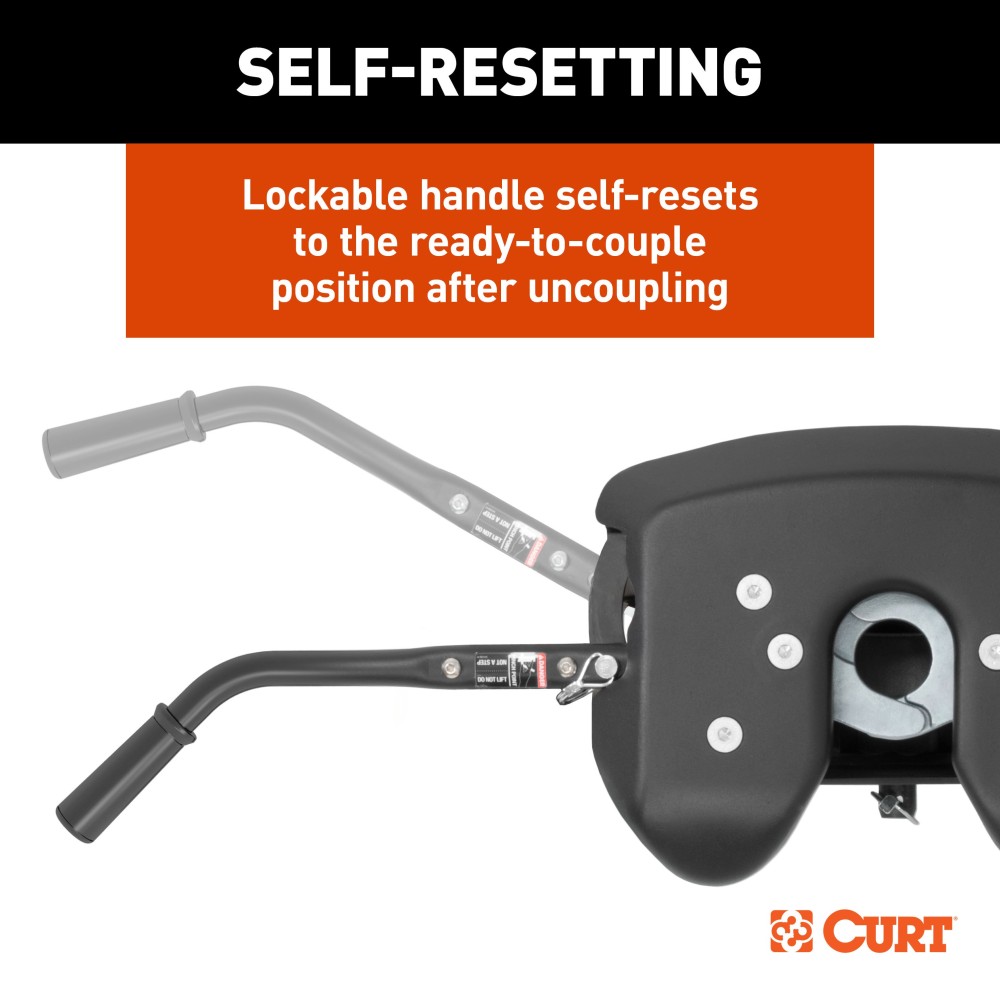

- Lockable handle resets automatically to the ready-to-couple position after uncoupling.
- Interlocking jaws fully wrap the kingpin for noise minimization.
- Extra wide head opening for easy coupling.
- One-pin head removal for easy transportation with smaller, lighter parts.

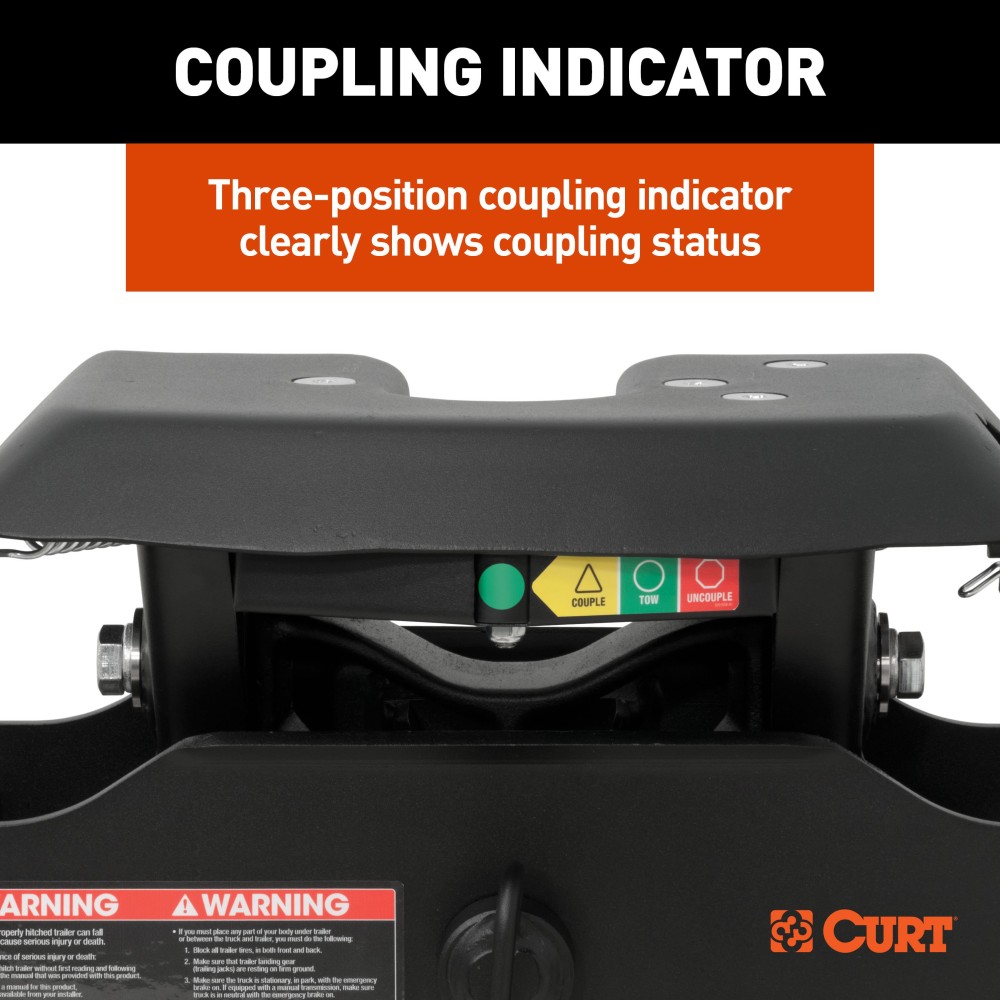

- Three-position coupling indicator clearly displays coupling status.
S20 5th Wheel Slider

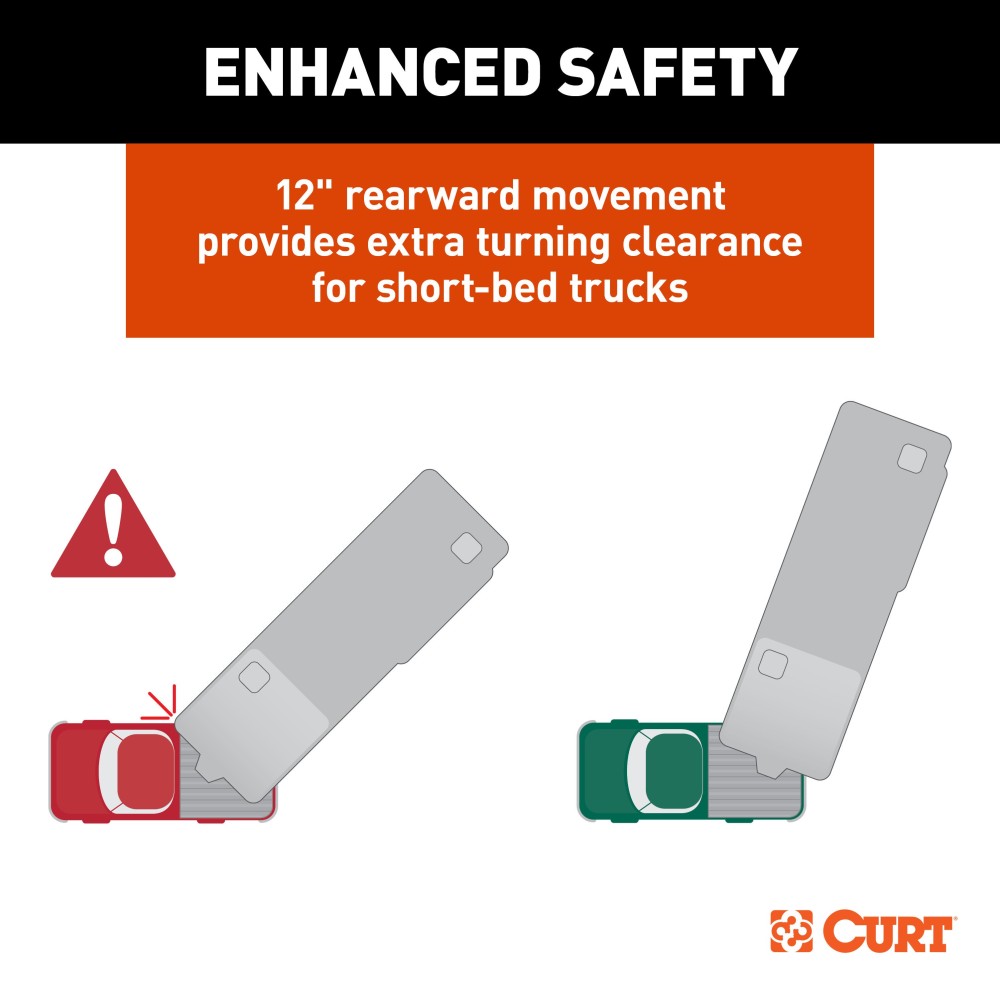

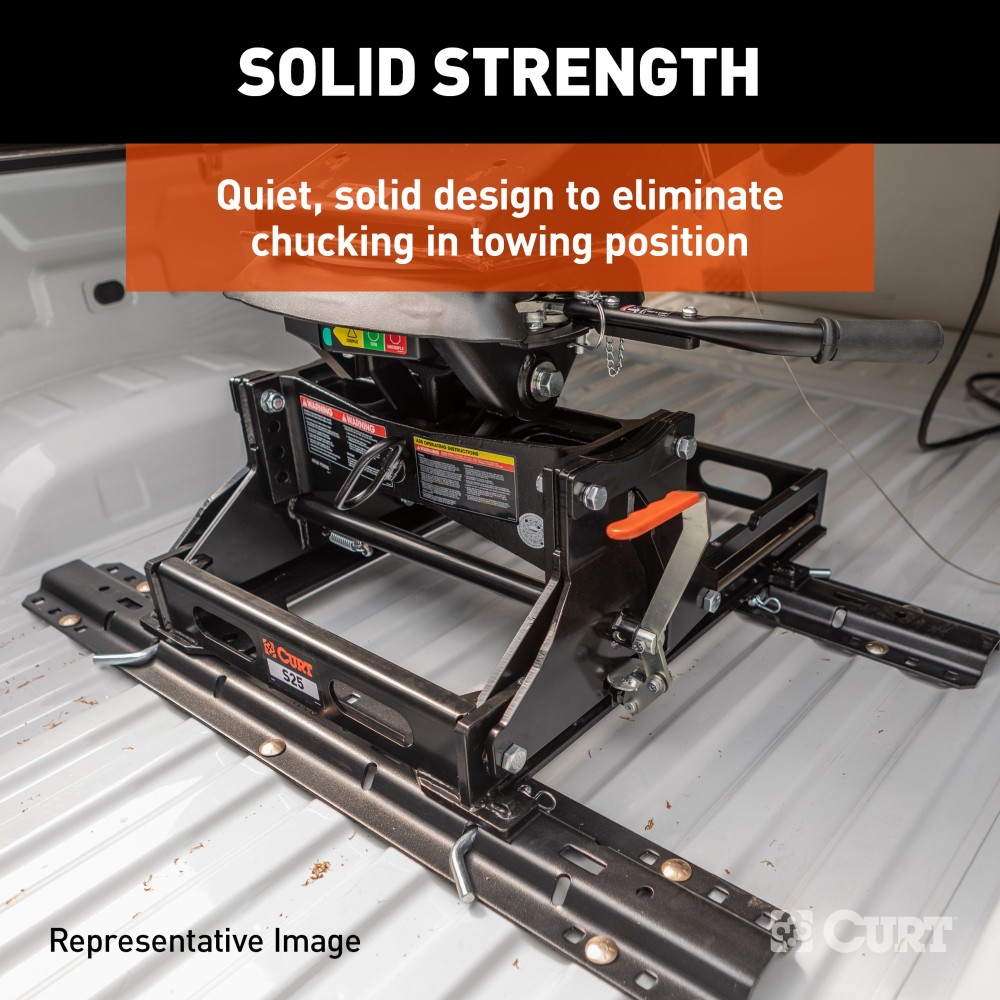

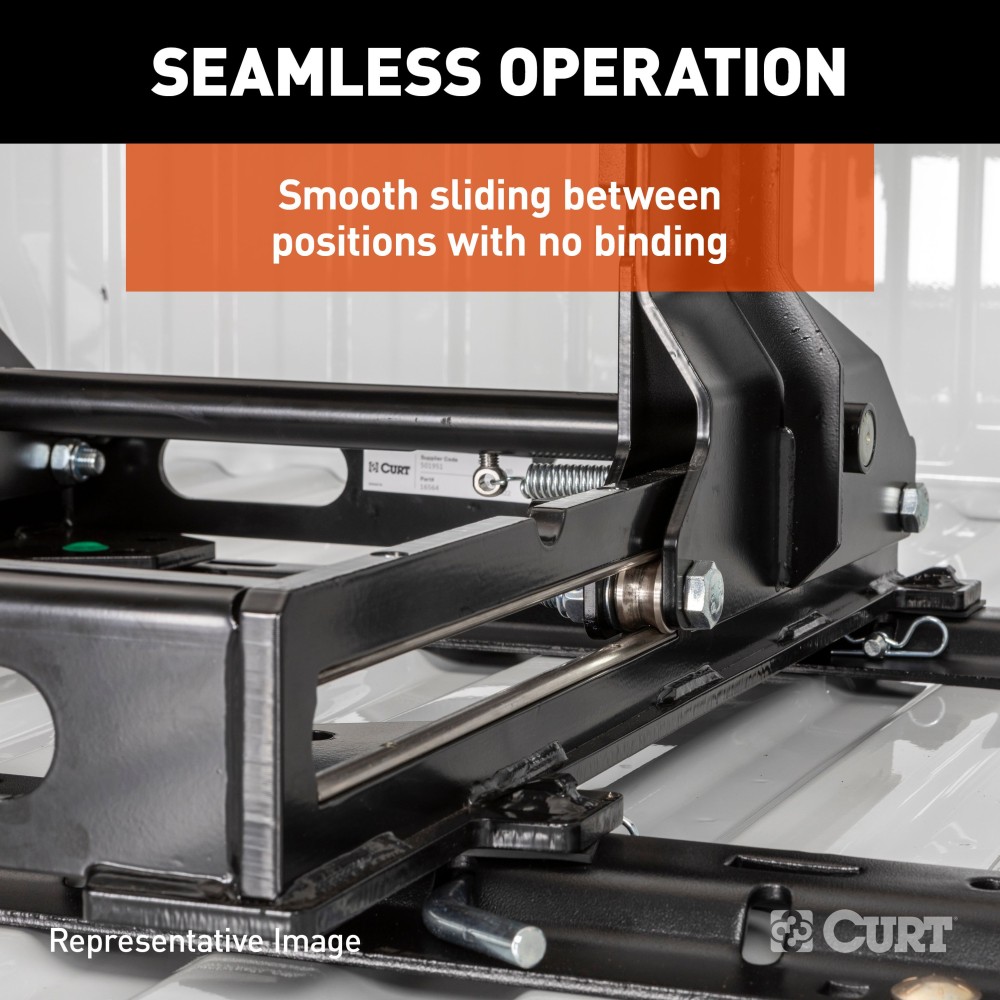

The A16 5th wheel hitch head comes fixed to the CURT S20 slider, known for its solid design that prevents chucking in the towing position and supports smooth transitions between forward and rearward positions without binding. With the slider, the coupling point can conveniently move 12" rearward, providing your short-bed truck enough clearance to turn without obstruction.

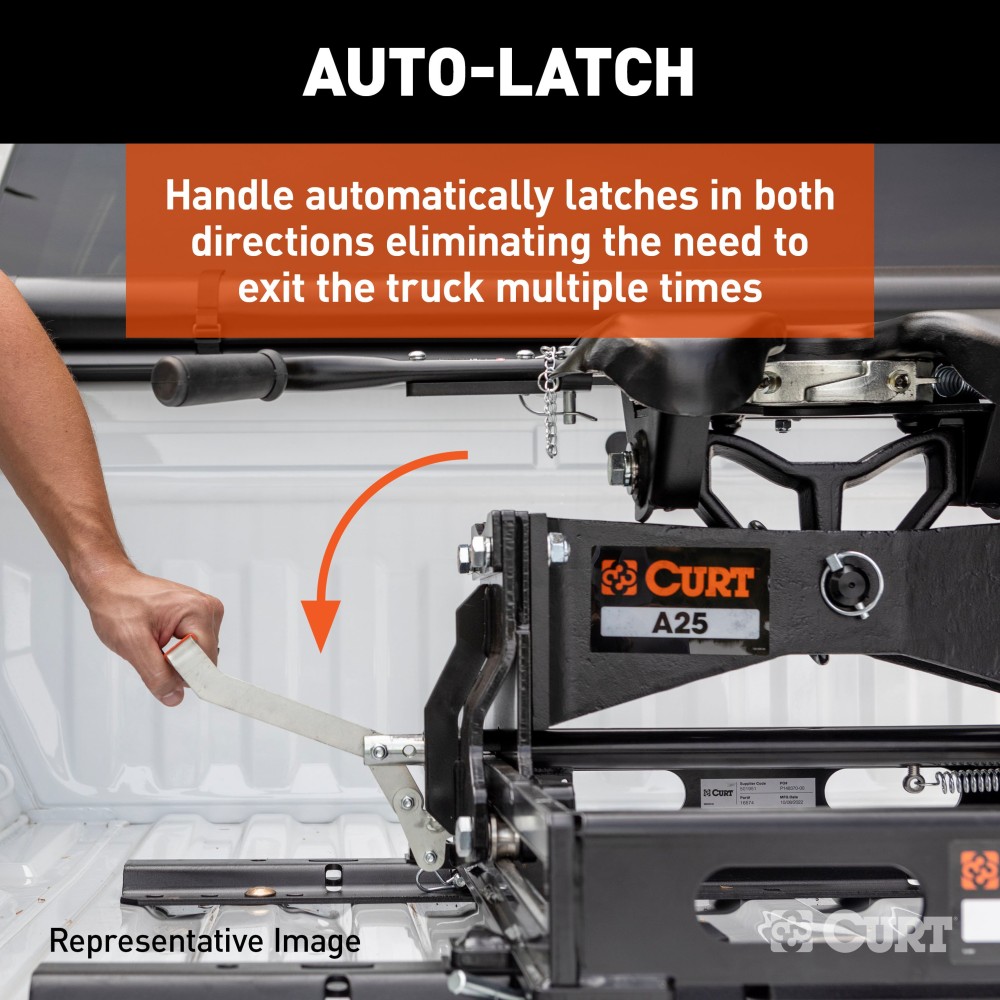

The slider is user-friendly, featuring a lift-style lever that can be easily accessed over the side of the truck wall. This ergonomic lever motion replaces the traditional, cumbersome pull-out-style levers. Best of all, the slider automatically latches in both directions, simplifying the process as exiting the truck is required only once.
- Compatible with all industry-standard rails and CURT puck system adapters.
- Works with kingpin extension boxes, including common pivoting pin boxes.
- Offers three height adjustment positions for different truck beds.
- Includes a polyethylene lube plate to eliminate grease deposits.
- Protected by a highly durable carbide powder coat finish.
- Includes A16 5th wheel hitch head #16520, S20 slider #16564, and hardware.
Each truck-trailer configuration varies, so it's essential to review each setup and ensure adequate trailer-to-cab clearance when maneuvering. The capacity is limited to the lowest-rated towing component. Note: Not compatible with X5 adapters.
Warranty: Limited lifetime warranty (one-year finish, one-year parts)
Patent #8,827,298
| Specifications: | |
|---|---|
| Gross Towing Weight | 16000 LB GTW |
| Compatible Trucks | Fifth Wheel Trailer |
| Hitch Type | Trucks with Existing Above Bed Rail Kit |
| Features | Sliding Fifth Wheel |
| Features | King Pin |
$1,137 95 $1,518.95 25% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,518.95 $1,137 95
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 16052
- UPC: 612314049271
- Includes: 5th Wheel Slider Hitch
