CURT 16470 5th Wheel Installation Brackets (QTY 1)

Manufactured by: Curt

When you purchase a 5th wheel trailer hitch, you expect it to be capable of towing your RV, flatbed or whatever other 5th wheel trailer you own While a 5th wheel hitch does offer an impressive amount of towing strength, it cannot get far without the proper installation equipment Engineered for specific makes and models, CURT custom 5th wheel brackets provide the ideal solution for complementing the power of your 5th wheel trailer hitch.

A custom 5th wheel bracket features a shape that contours to the frame of your truck and uses pre-drilled holes in the frame wherever possible to make installation quick and easy Depending on your model of pickup truck, they also reduce or eliminate the need for drilling These particular custom 5th wheel brackets offer a custom fit for certain model years of the Nissan Titan (see application info to verify fitment).

Finished in a durable liquid A-coat, CURT custom 5th wheel brackets are made to last They include all necessary mounting hardware and are designed to be used in conjunction with CURT industry-standard 5th wheel base rails #16104 or #16204 (base rails sold separately)..

Features:

• Provides a solid mounting point for 5th wheel base rails and a 5th wheel hitch
• Designed to be used in combination with CURT base rails #16104 or #16204
• Protected by a rust-resistant liquid A-coat
• Made in USA (may include imported hardware)
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16204 Industry-Standard 5th Wheel Hitch Rails, Carbide Black, 25,000 Pounds (QTY 1)

Manufactured by: Curt

CURT 5th wheel base rails are industry-standard, meaning they can be used with any 5th wheel trailer hitch with industry-standard anchoring points They are compatible with virtually all CURT 5th wheel trailer hitches and many competitors Installation of CURT universal 5th wheel base rails is quick and simple.

They mount with high-strength hardware, providing a solid mounting place for a new 5th wheel hitch 5th wheel base rail bolts and other hardware can also be purchased separately to aid in reinstalling used rails To protect our 5th wheel base rails from corrosion, scratches and UV damage, we coat each one in a co-cured finish of A-coat and powder coat.

This gives them the tough skin they need for hauling that RV trailer, flatbed or other heavy-duty trailer and gives you the confidence to tow wherever the horizon leads This set of 5th wheel rails is rated for 25,000 pound gross trailer weight and has a carbide black finish Knowing that your 5th wheel trailer hitch is properly mounted in your truck bed is vitally important to the success of your towing.

Without a firm attachment point, a 5th wheel hitch is rendered useless to your tow vehicle When you choose a 5th wheel hitch for your pickup, install it with confidence with a CURT 5th wheel bracket kit and a set of CURT 5th wheel base rails..

Features:

• Helps provide a solid mounting point for a 5th wheel hitch
• Industry-standard mounting point to accept most 5th wheel hitches
• Protected by a highly durable carbide powder coat finish
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16180 A25 5th Wheel Hitch, 25,000 lbs (QTY 1)

Manufactured by: Curt

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 25K 5th wheel hitch Like our A16 and A20 hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.

The A25 5th wheel hitch is also engineered for easier installation The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier.

This 25K 5th wheel mounts to any industry-standard 5th wheel rails, using the 5th wheel legs or a CURT 5th wheel roller It can also be mounted into the puck system of a truck equipped with the towing prep package, using our OEM puck system legs or roller adapters Once installed, the A25 is fast and simple to operate.

It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling.

To protect the A25 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish and a limited lifetime warranty We also test the A25 for safety in accordance with SAE J2638 to ensure reliability for the road ahead..

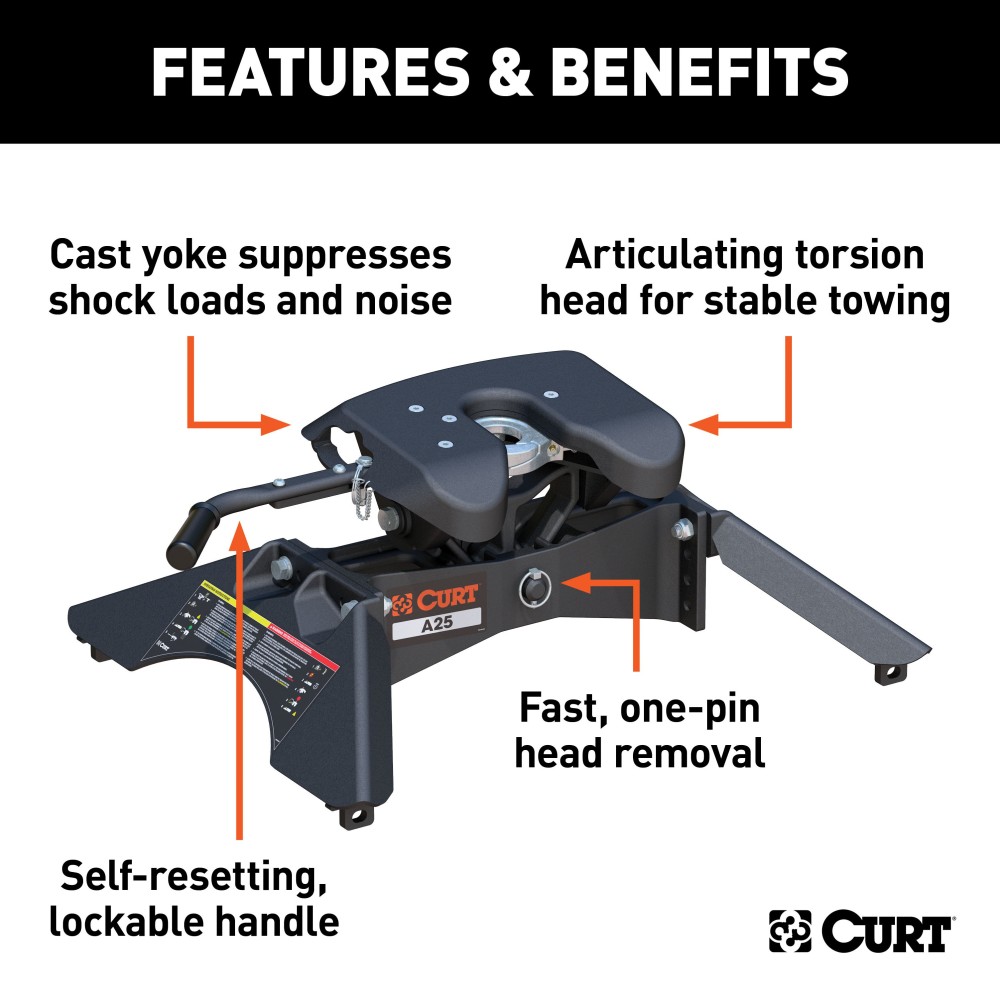

Features:

• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
• Fully articulating torsion head for controlled coupling and stable towing
• Lockable handle self-resets to the ready-to-couple position after uncoupling
• Constructed with a cast steel main body for a more precise build
• High-strength, interlocking cast jaws fully wrap the kingpin to minimize noise
• Extra wide head opening for easier coupling

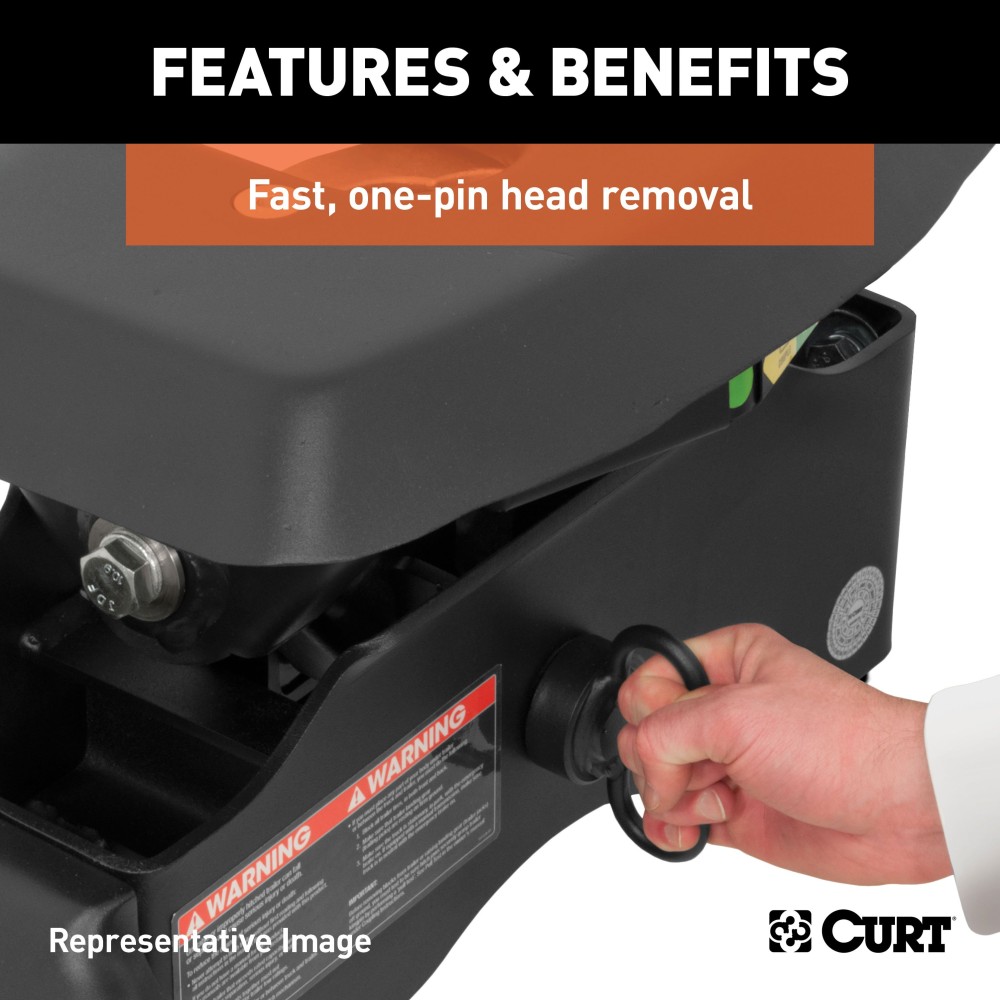

• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

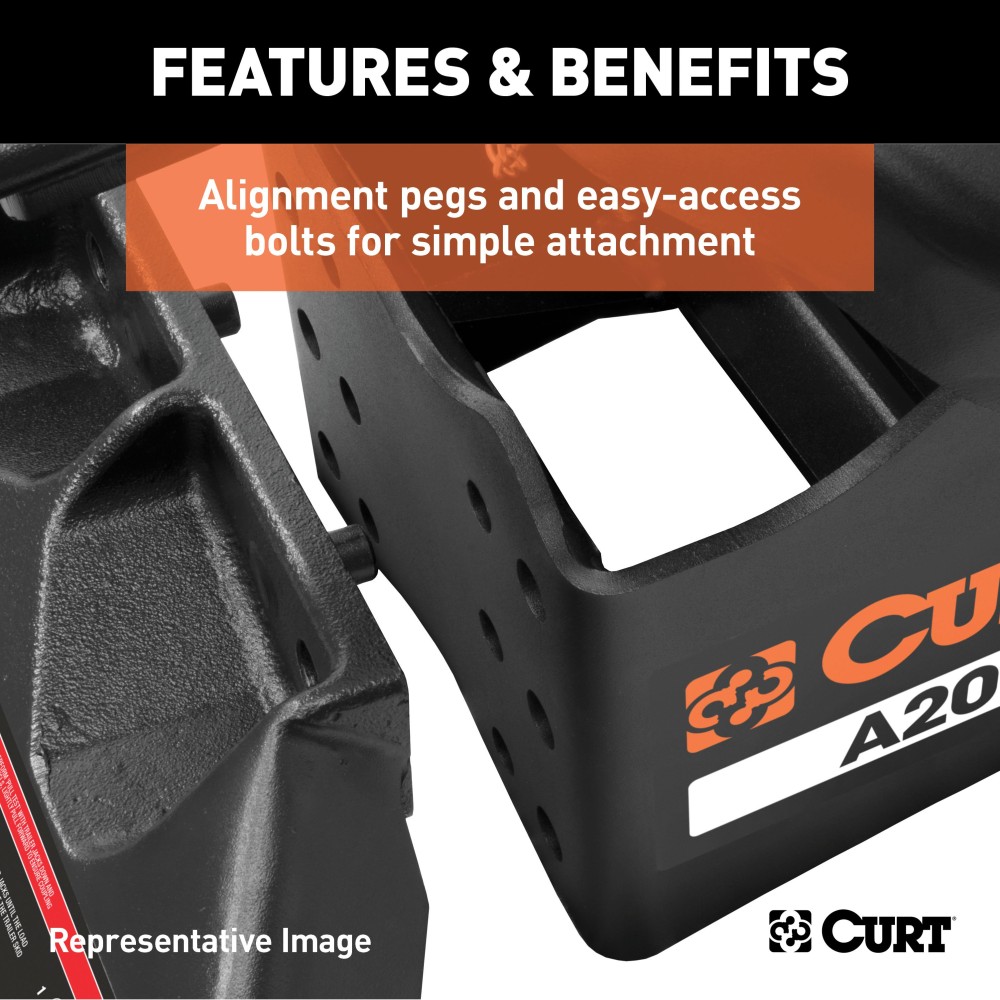

• Alignment pegs and easy-access bolts for simple leg-to-body attachment
• Three-position coupling indicator clearly shows coupling status
• Compatible with kingpin extension boxes, including common pivoting pin boxes
• Mounts to all industry-standard base rails
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
