CURT Channel Mount Pintle Attachment with 2‑5/16 Inch Ball 13000 Pounds Adjustable Plate Mount 45920
Model: 45920Versatile Ball and Pintle Hitch Combination

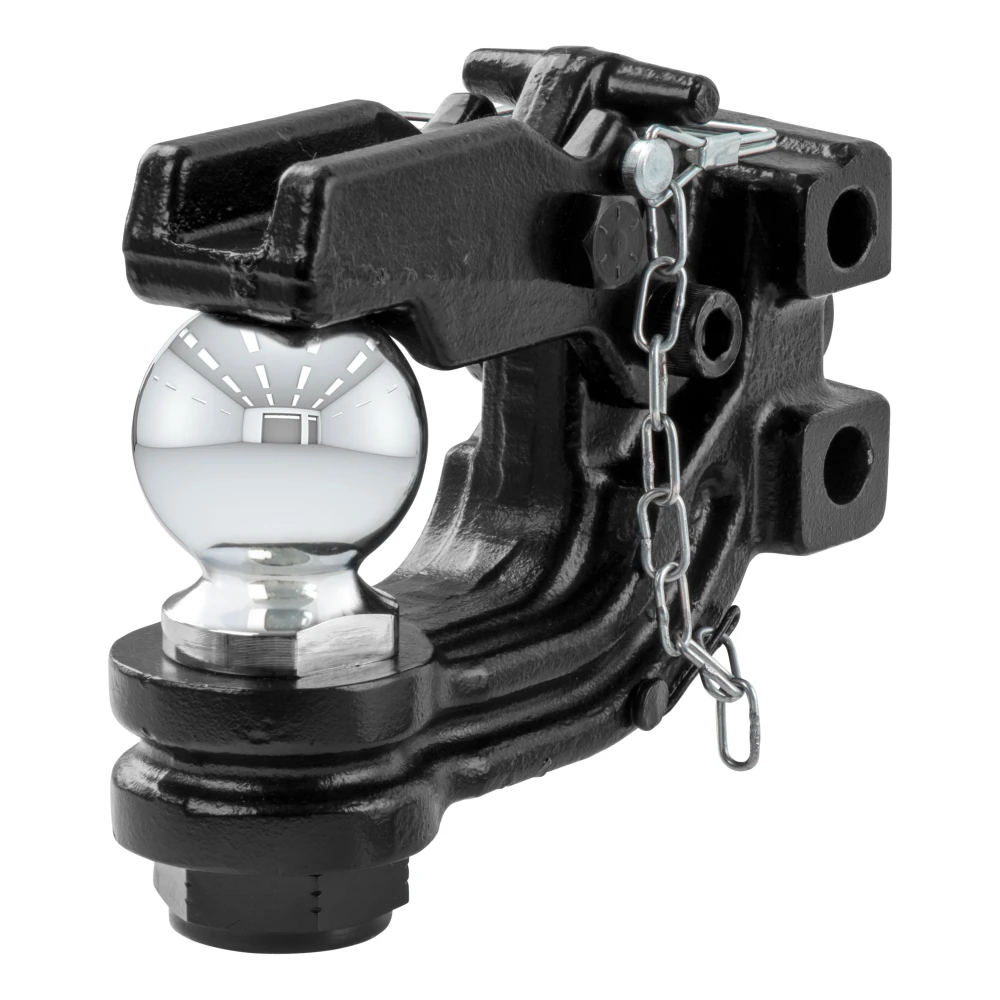

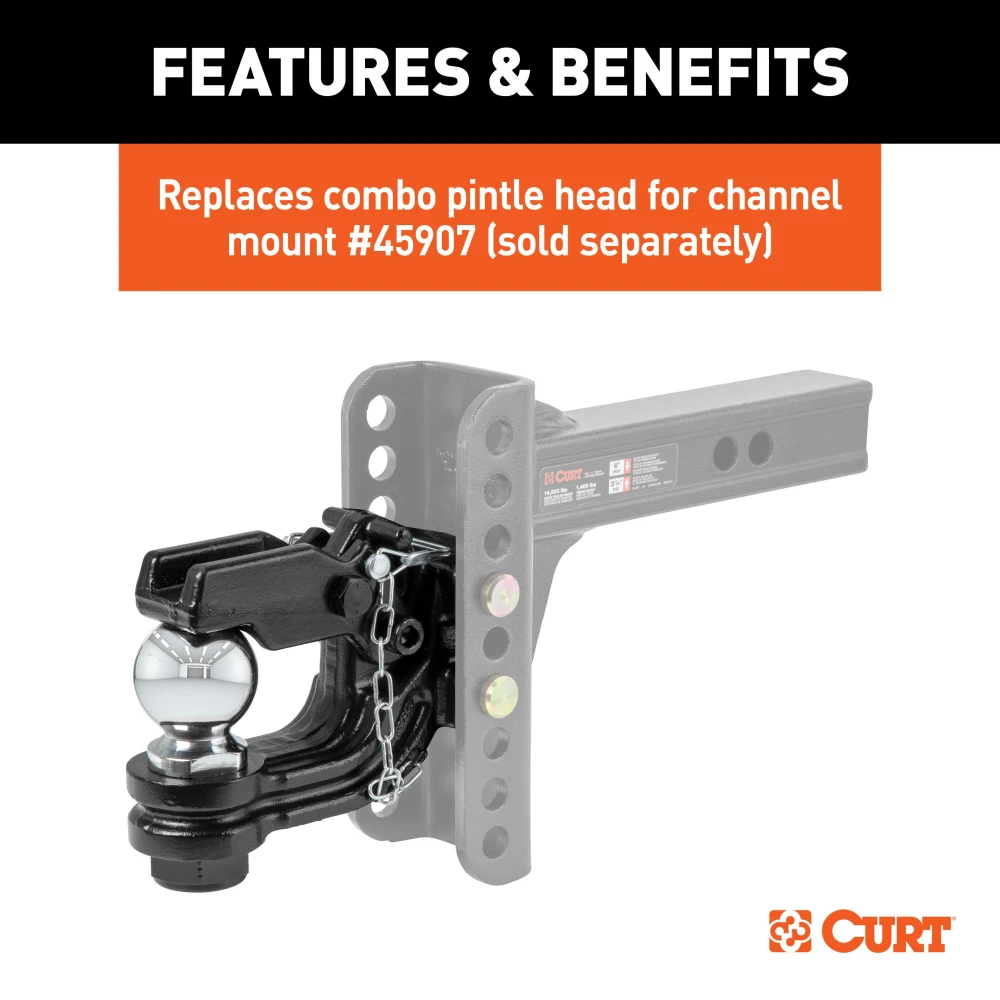

Enhance your towing capabilities with this replacement ball and pintle combination head, specifically designed for the CURT adjustable channel mount #45907. Perfectly engineered to provide flexibility and ease of use, it is an essential accessory for any heavy-duty towing setup.

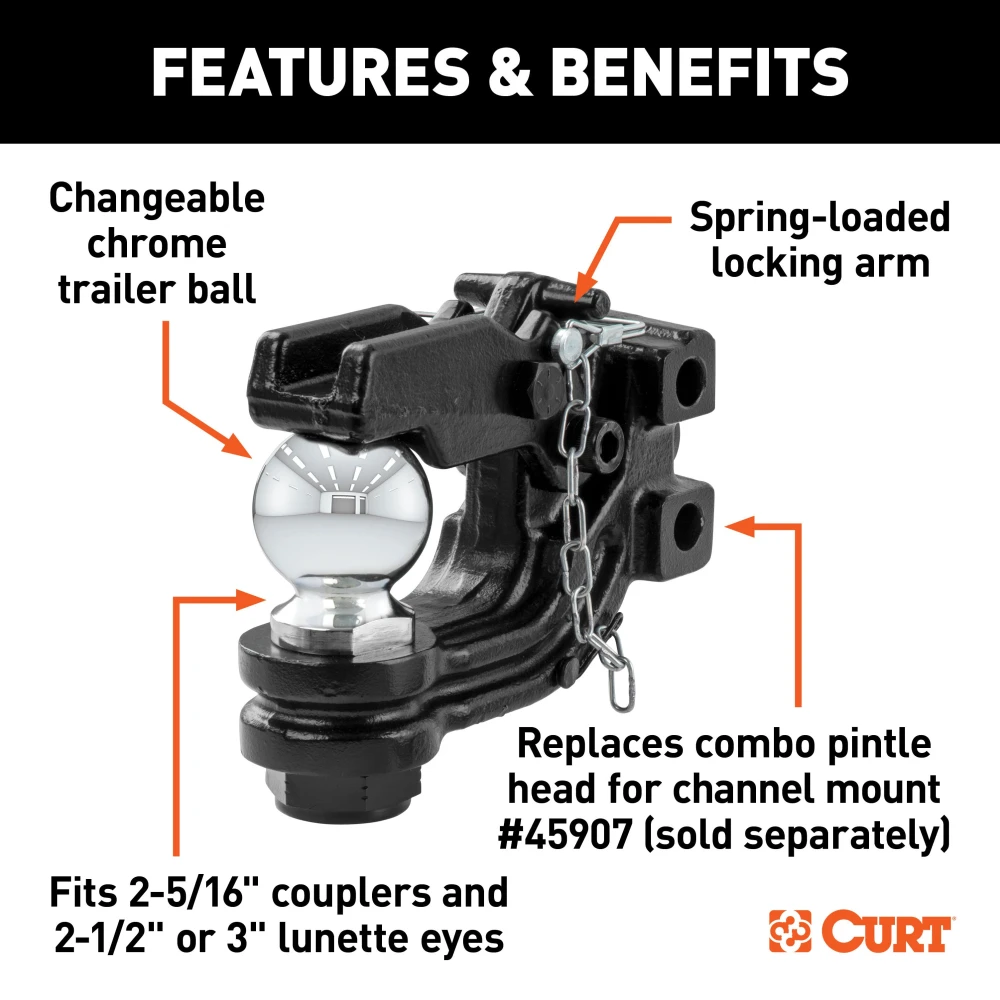

- Universal Compatibility: Comes with a standard 2-5/16-inch diameter trailer ball, fitting any 2-5/16-inch trailer coupler seamlessly.

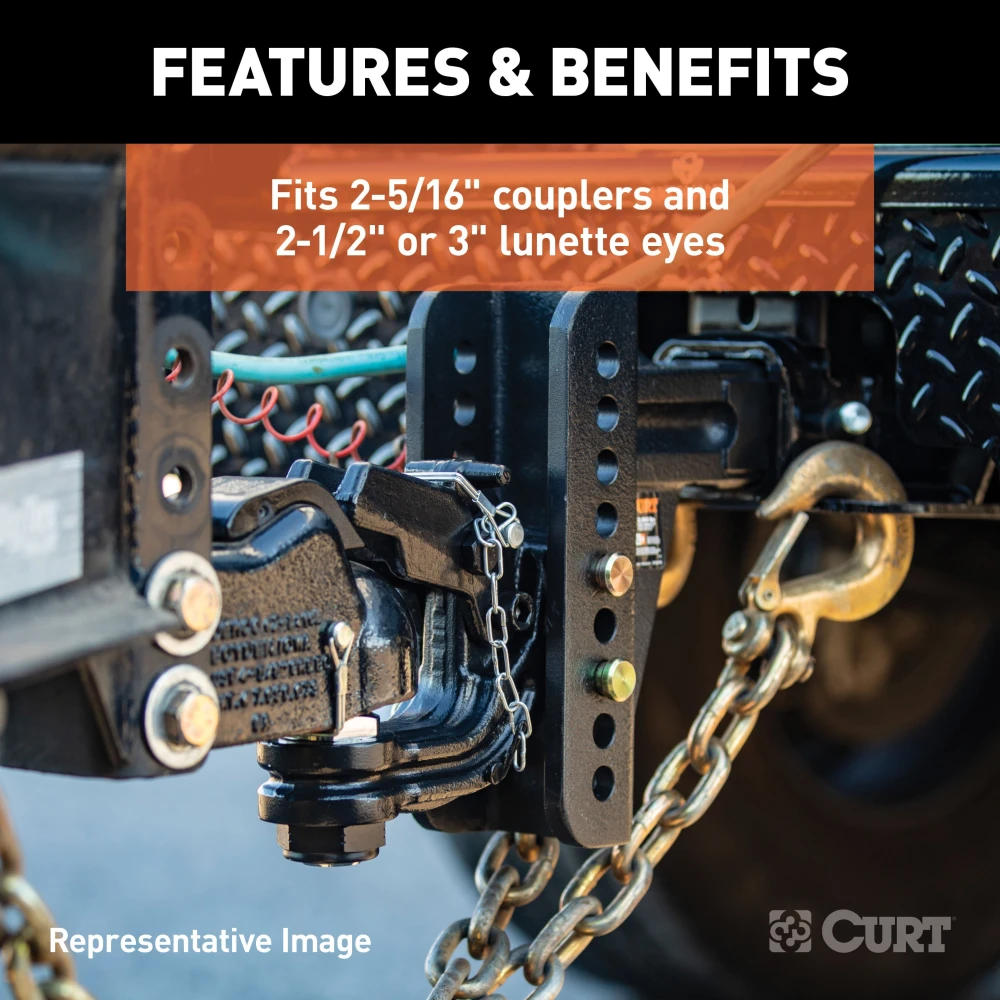

- Multi-Use Coupling: Equipped with an integrated spring-loaded arm, allowing coupling with 2-1/2-inch or 3-inch lunette rings (inside diameter).
- Durable Construction: Crafted with a highly resilient carbide powder coat finish for superior protection against elements.
- Reliable Performance: The changeable trailer ball features a hard chrome finish, ensuring long-lasting wear and resistance.
- Warranty: Comes with a limited lifetime warranty for peace of mind (one-year finish, one-year parts).
Note: This package includes the pintle attachment only. The channel mount is sold separately.
| Specifications: | |
|---|---|
| Mount Type | Adjustable Channel Mount |
| Mount Type | Plate Mount |
| Gross Trailer Weight | 13000 LB GTW |

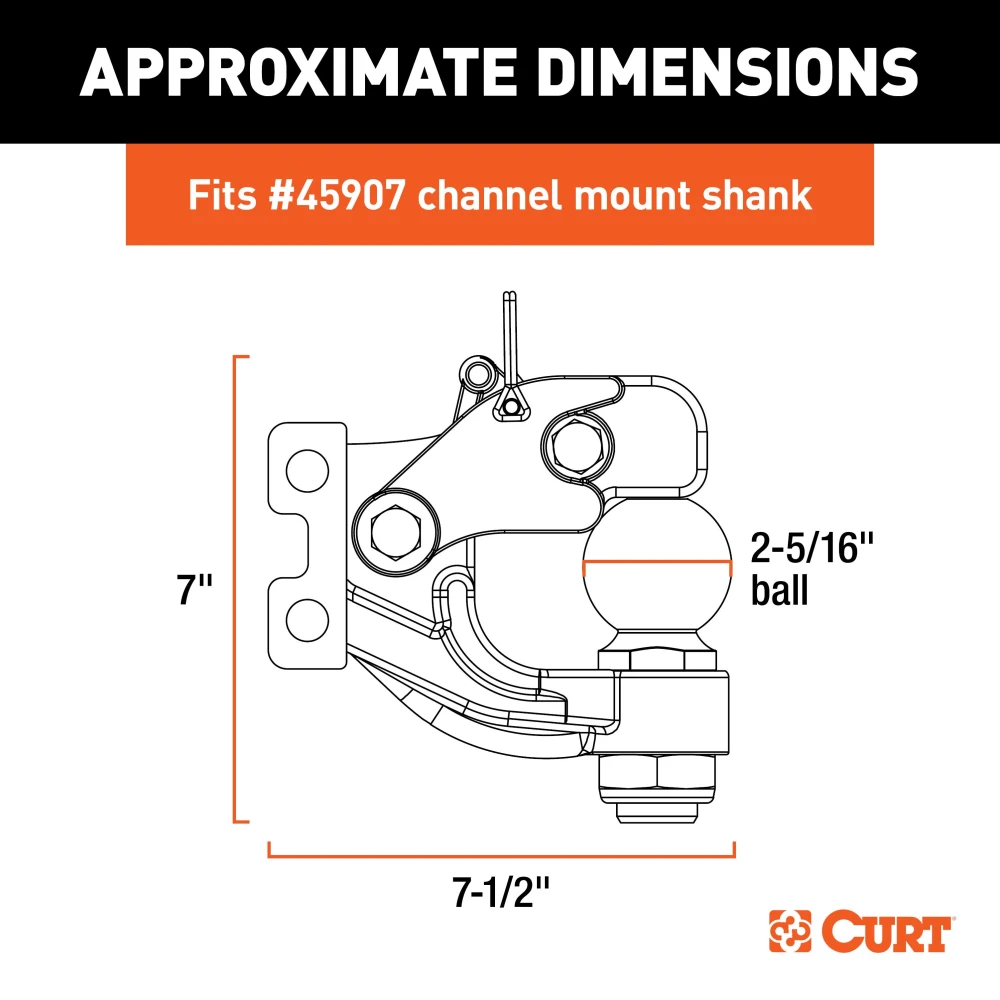

| Hitch Ball Size | 2-5/16 Inch Ball |
$150 76 $235.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$235.95 $150 76
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $37.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 45920
- UPC: 612314459209
- Includes: Channel Mount Pintle
Get Expert Help
CURT Channel Mount Pintle Attachment with 2-5/16 Inch Ball 13000 Pounds Adjustable Plate Mount 45920 Install Notes
Installation Instructions for CURT 45920 Channel-Mount Forged Pintle & Ball ### Part Numbers: - 45919 (2" ball, 10,000 lbs GTW / 1,000 lbs TW) - 45920 (2 5/16" ball, 13,000 lbs GTW / 1,300 lbs TW) - 45922 (2 5/16" ball, 20,000 lbs GTW / 2,000 lbs TW) ### Wiring Access Location: N/A ### Tools Required: - Ratchet - Wrenches (Various Sizes) ### Step-by-Step Instructions: 1. Install the Channel-Mount Shank: - Install the adjustable channel-mount shank into the trailer hitch of the vehicle. - Secure with a hitch pin & clip. Always secure the hitch pin with a clip unless a locking device is being used. 2. Adjust Pintle Height: - Raise or lower the pintle to the desired height. - Insert the channel-mount system pins through the holes that align with the holes in the channel-mount. - Secure the pins with clips. Use only the pins and clips specifically engineered for the channel-mount system. If replacements are needed, use original factory pins. 3. Tighten Anti-Rattle Set Screw: - After the pintle is set to the correct height and secured, tighten the anti-rattle set screw into the channel-mount to eliminate noise. - Note: The set screw is only used to eliminate rattle, not for safety. 4. Attach Trailer Ball (If Applicable): - If towing with the trailer ball, open the pintle latch by removing the safety pin and pulling up on the lock. - Lift the latch and replace the safety pin to retain the open latch position. - Position the coupler over the trailer ball and lock it into place according to the coupler manufacturer's instructions. 5. Final Checks: - Ensure that the pins are secured in place with clips before towing. - Warning: Never hook up trailer safety chains to the channel-mount system. ### Hardware List: - Channel-Mount Forged Pintle & Ball: 1 piece - Hitch Pin & Clip: 1 piece - Set Screw: 1 piece (for anti-rattle) - Pins & Clips for Channel-Mount System: 2 pieces ### Safety Notes: - Towing Capacity: Never exceed the vehicle manufacturer's recommended towing capacity. - Trailer Safety: Ensure that the safety chains operate freely around the channel-mount system and do not become entangled. ### Maintenance: - Periodically check to ensure that all pins are secured and that the system is functioning properly. - Clean the system regularly to prevent dirt buildup and ensure proper operation. ### Specifications: - Ball Size: 2" or 2 5/16" - Gross Trailer Weight Capacity: - 45919: 10,000 lbs - 45920: 13,000 lbs - 45922: 20,000 lbs - Tongue Weight Capacity: - 45919: 1,000 lbs - 45920: 1,300 lbs - 45922: 2,000 lbs ### Warnings: - Do Not Exceed: Never exceed the vehicle manufacturer's recommended towing capacity. - Vehicle Compatibility: Use only with the channel-mount system as specified by the manufacturer. Using an incompatible channel-mount system could be a serious safety hazard and void the warranty.
Installation Instructions for Channel-Mount Forged Pintle & Ball
Part Numbers:
- 45919 (2" ball, 10,000 lbs GTW / 1,000 lbs TW)
- 45920 (2 5/16" ball, 13,000 lbs GTW / 1,300 lbs TW)
- 45922 (2 5/16" ball, 20,000 lbs GTW / 2,000 lbs TW)
Wiring Access Location:
- N/A
Tools Required:
- Ratchet
- Wrenches (Various Sizes)
Step-by-Step Instructions:
-
Install the Channel-Mount Shank:
- Install the adjustable channel-mount shank into the trailer hitch of the vehicle.
- Secure with a hitch pin & clip. Always secure the hitch pin with a clip unless a locking device is being used.
-
Adjust Pintle Height:
- Raise or lower the pintle to the desired height.
- Insert the channel-mount system pins through the holes that align with the holes in the channel-mount.
- Secure the pins with clips. Use only the pins and clips specifically engineered for the channel-mount system. If replacements are needed, use original factory pins.
-
Tighten Anti-Rattle Set Screw:
- After the pintle is set to the correct height and secured, tighten the anti-rattle set screw into the channel-mount to eliminate noise.
- Note: The set screw is only used to eliminate rattle, not for safety.
-
Attach Trailer Ball (If Applicable):
- If towing with the trailer ball, open the pintle latch by removing the safety pin and pulling up on the lock.
- Lift the latch and replace the safety pin to retain the open latch position.
- Position the coupler over the trailer ball and lock it into place according to the coupler manufacturer's instructions.
-
Final Checks:
- Ensure that the pins are secured in place with clips before towing.
- Warning: Never hook up trailer safety chains to the channel-mount system.
Hardware List:
- Channel-Mount Forged Pintle & Ball: 1 piece
- Hitch Pin & Clip: 1 piece
- Set Screw: 1 piece (for anti-rattle)
- Pins & Clips for Channel-Mount System: 2 pieces
Safety Notes:
- Towing Capacity: Never exceed the vehicle manufacturer's recommended towing capacity.
- Trailer Safety: Ensure that the safety chains operate freely around the channel-mount system and do not become entangled.
Maintenance:
- Periodically check to ensure that all pins are secured and that the system is functioning properly.
- Clean the system regularly to prevent dirt buildup and ensure proper operation.
Specifications:
- Ball Size: 2" or 2 5/16"
- Gross Trailer Weight Capacity:
- 45919: 10,000 lbs
- 45920: 13,000 lbs
- 45922: 20,000 lbs
- Tongue Weight Capacity:
- 45919: 1,000 lbs
- 45920: 1,300 lbs
- 45922: 2,000 lbs
Warnings:
- Do Not Exceed: Never exceed the vehicle manufacturer's recommended towing capacity.
- Vehicle Compatibility: Use only with the channel-mount system as specified by the manufacturer. Using an incompatible channel-mount system could be a serious safety hazard and void the warranty.
Installation Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
