CURT Direct-Weld Square Jack with Sidewind Handle 12000 Pound Static Capacity 12.5 Inch Travel 28512
Model: 28512CURT Heavy-Duty Square Trailer Jack
Introducing the CURT Heavy-Duty Square Trailer Jack, a robust and reliable solution designed to enhance the longevity and utility of your trailer. Crafted with precision and quality, this trailer jack is tailored for enthusiasts who frequently explore boat landings, campgrounds, racetracks, and farms.

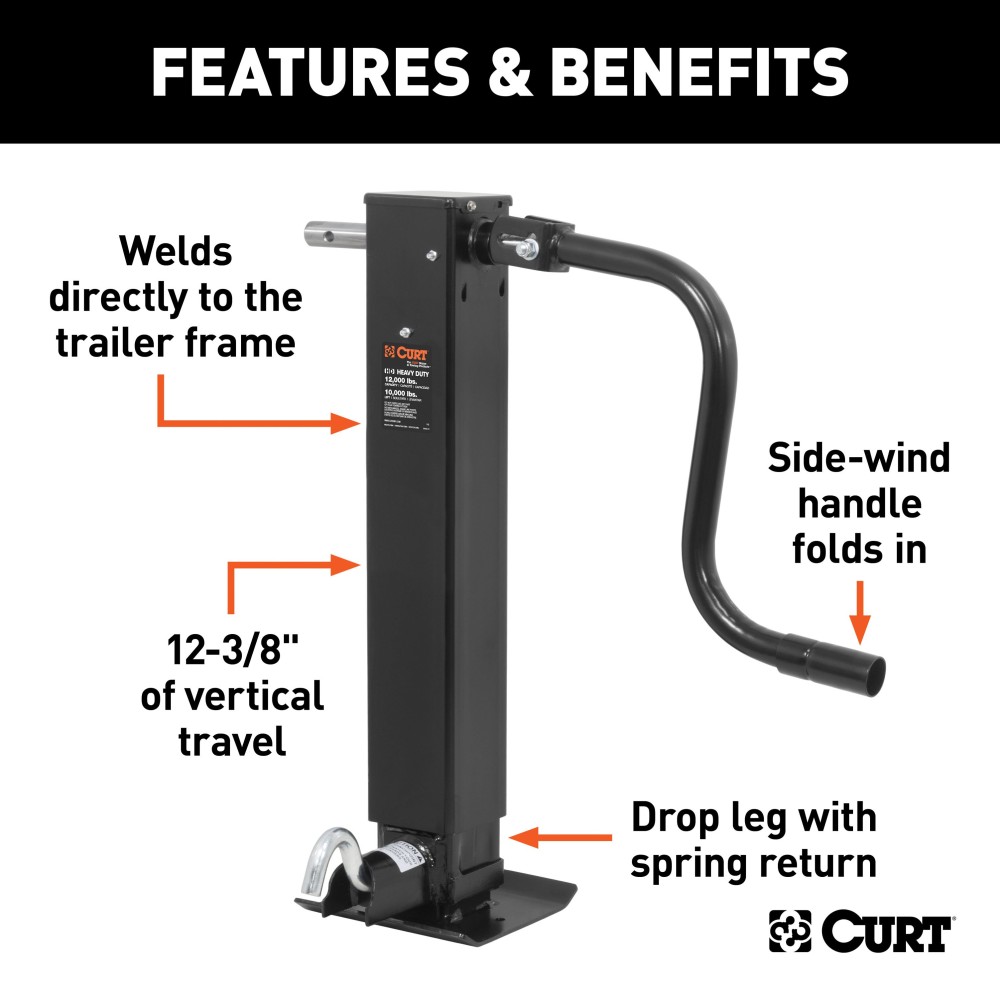

Key Features:
- High Load Capacity: This jack supports up to 12,000 lbs. of trailer tongue weight, ensuring steadfast performance.
- Enhanced Stability: Equipped with a jack foot plate to provide added stability, especially on rugged terrain.

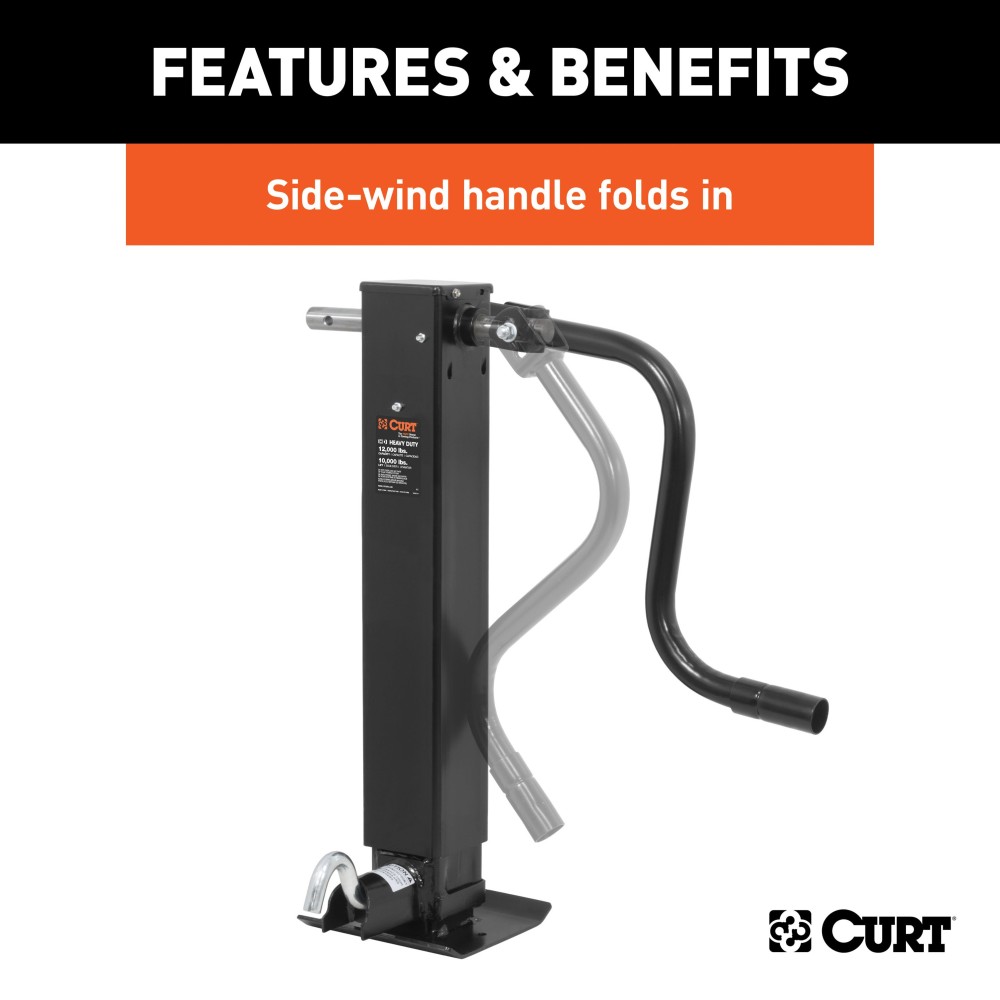

- Side-Wind Handle: The handle folds compactly for easy storage, adding convenience to functionality.
- Direct Weld Design: The jack is meant to be welded directly onto your trailer frame, providing superior hold and durability.
- Quick Retraction: Features a drop leg with spring return for fast and efficient retraction.
- Secure Locking: Includes a pull-pin to keep the jack securely locked in position.
- Flexible Travel: It offers 12-1/2" of vertical travel to accommodate different ball heights.
This direct weld square jack is specifically constructed to meet the high demands of the farming and construction industry. Whether supporting a boat trailer, utility trailer, livestock hauler, or recreational vehicle trailer, the CURT jack is the dependable choice for any receiver-style trailer. Note: This jack is not designed to be used with a motor.
Warranty Information: Enjoy peace of mind with a limited lifetime warranty, which covers a one-year finish and one-year parts.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |

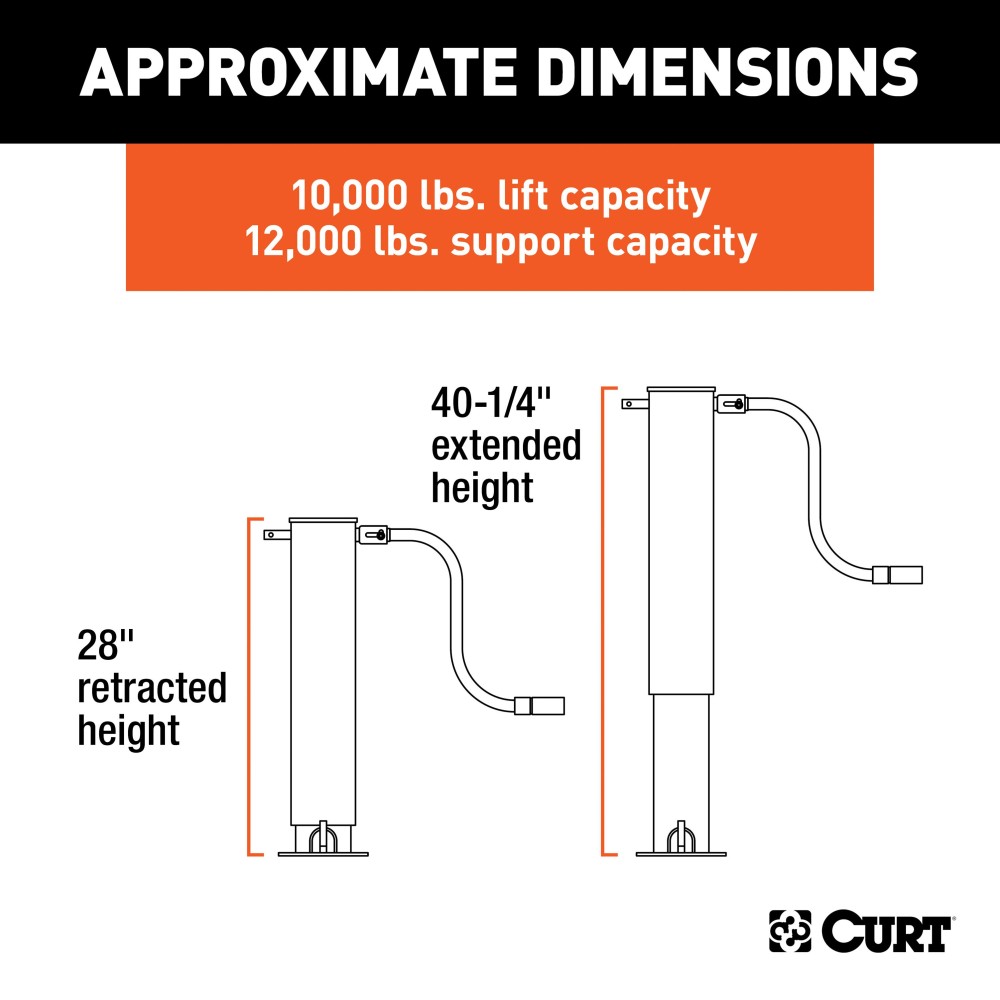

| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.6 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.6 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$271 99 $389.95 30% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$389.95 $271 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 28512
- UPC: 612314006724
- Includes: Direct-Weld Square Jack
