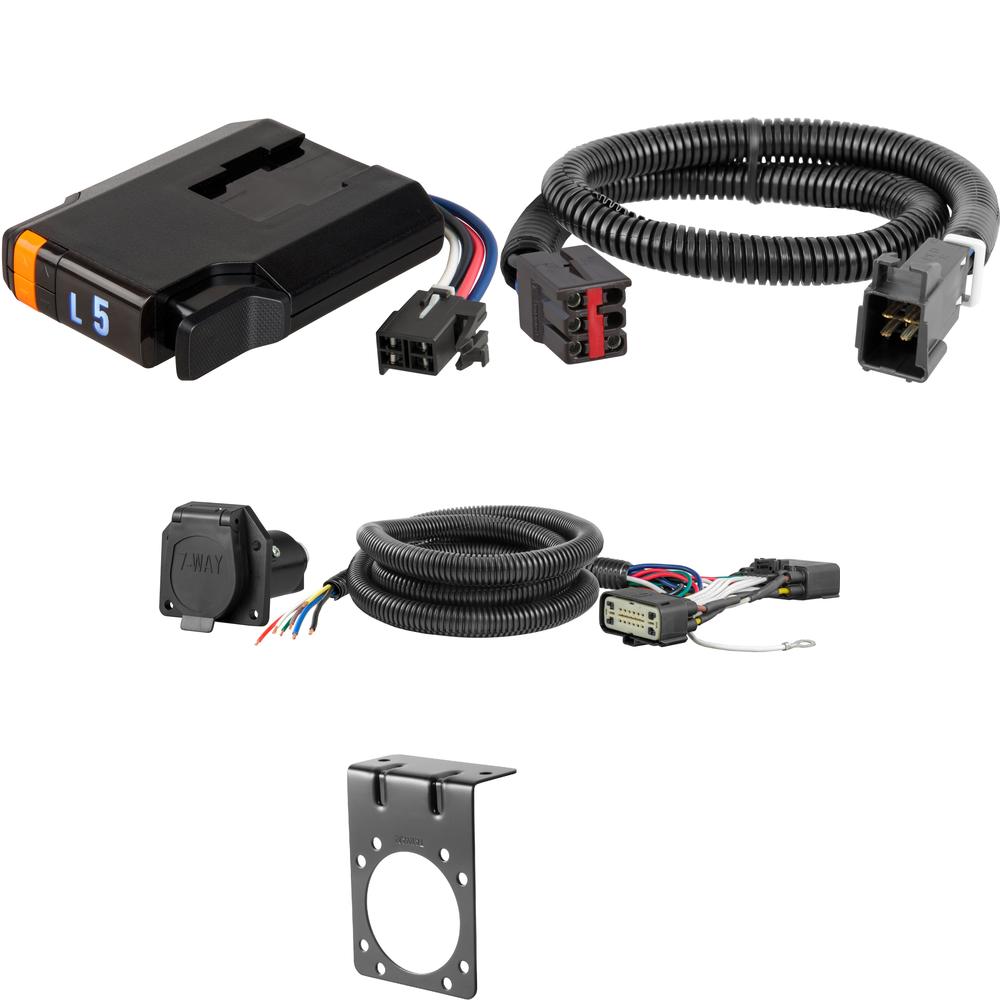

Curt Discovery Next Electric Trailer Brake Control w/ 7-Way Wiring Kit For 11-19 Ford Explorer
Model: CU54NHConnector Mounting Bracket for 7-Way RV Blade (Black)
Discovery NEXT Trailer Brake Controller Time-Delay
Brake Controller Harness
Installation Hardware (if required)
Installation Instructions (if required)
Installation Schematics & Diagrams (if required)
This Trailer Wiring Harness Fits The Following Vehicles:
- 2011 - 2019 Ford Explorer All Models

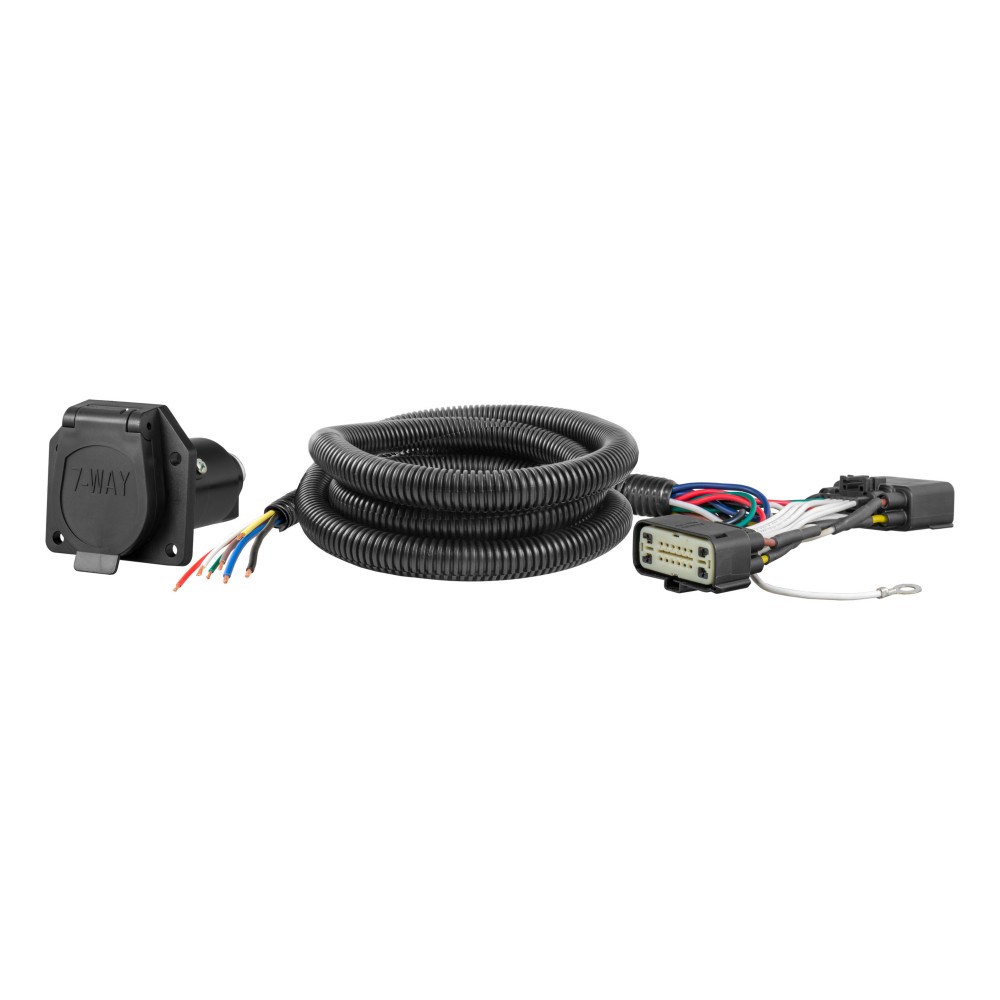

CURT 56306 Vehicle-Side Custom RV Blade 7-Pin Trailer Wiring Harness (QTY 1)
Manufactured by: Curt
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection.
This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Ford Explorer and Police Interceptor Utility (see application info to verify fitment).
It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming.
It takes a solid connection and the right amount of power..
Features:

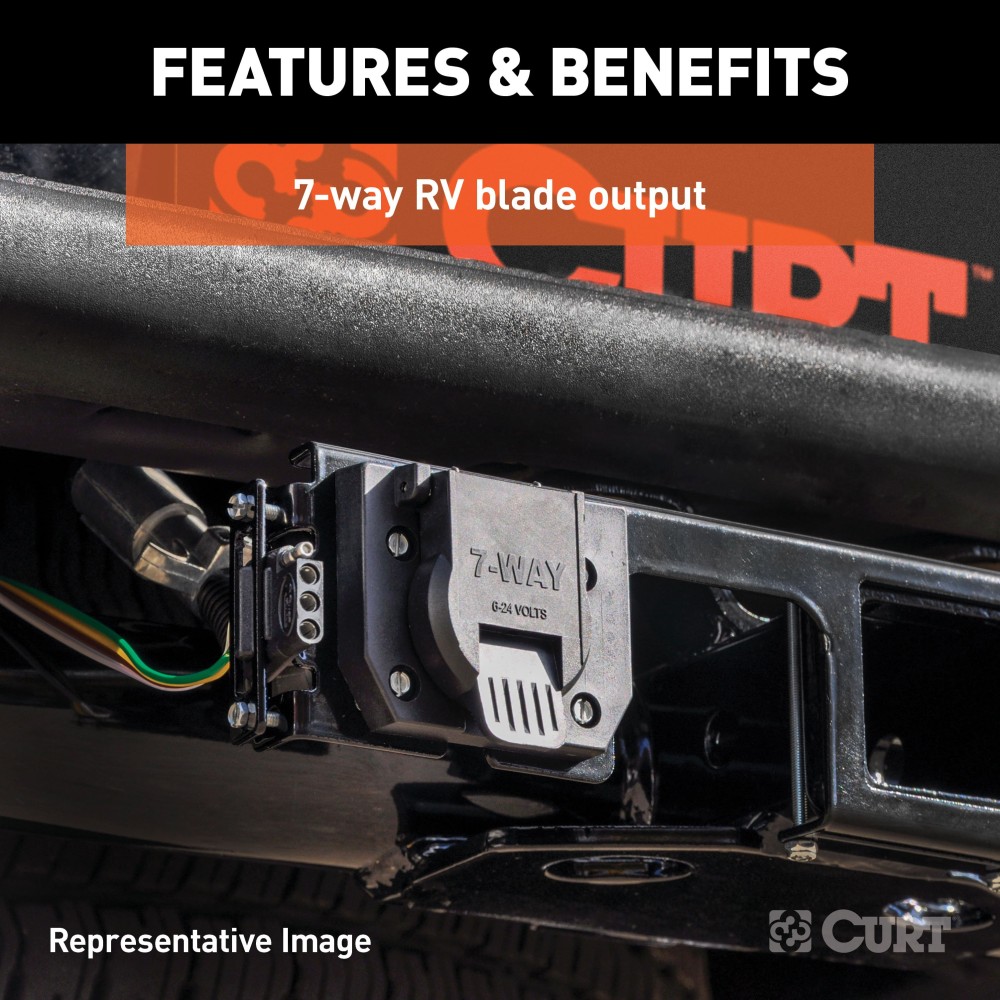

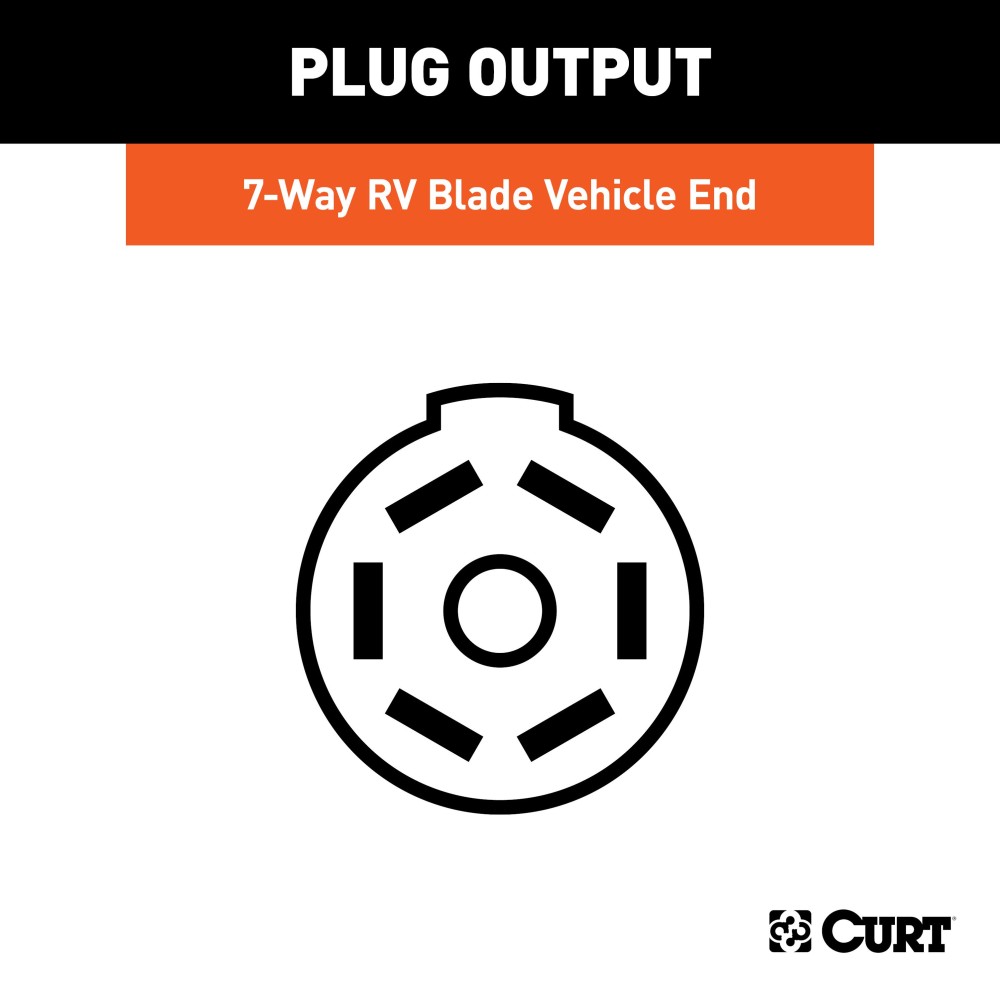

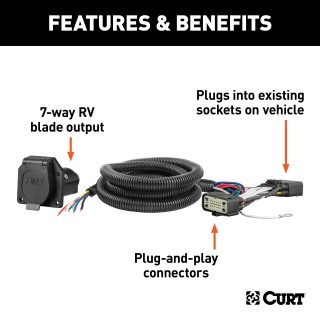

- Plugs into vehicle wiring assembly to provide a 7-way RV blade socket
- Simple plug-and-play design for less cutting and splicing
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
- Spring-loaded dust cover keeps connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
CURT 58290 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 7-Way RV Blade (QTY 1)
Manufactured by: Curt
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around They can get tangled up with cargo and even damaged.
An electrical connector left to hang off the back end of your vehicle is an even greater hazard Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 7-way RV blade socket.
It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch When it comes to plugging in your trailer lights, it pays not to skimp out CURT electrical is the smart way to ensure that your trailer lights and electrical systems are prepared for the road ahead.
Keep the power flowing, no matter where your adventures take you, with quality electrical products from CURT..
Features:
- Securely mounts 7-way RV blade connector sockets
- Allows for attachment to the vehicle or trailer hitch
- Multiple screw holes offer flexible mounting options
- Constructed from high-strength steel
- Protected by a durable gloss black finish
CURT 51126 Discovery NEXT Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 2-4 Axles, Plug-and-Play (QTY 1)
Manufactured by: Curt
Introducing the CURT Discovery NEXT, a powerful, compact, and user-friendly brake controller designed to ensure reliable operation of your electric trailer brakes right from the comfort of your vehicle's cabin With its sleek and modern design, as well as a low-profile bracket for improved clearance, this controller delivers exceptional control Manage the braking system of 2-8 trailers at a time, accommodating 1-4 axles, with ease thanks to its fully adjustable settings that seamlessly adapt to your specific vehicle-trailer configuration.
The Discovery NEXT represents an upgraded and enhanced iteration of our highly regarded Discovery brake controller It boasts compatibility with a wide range of brake systems, including low-volt, PWM, ABS, cruise control, and electric over hydraulic brakes Its slim profile strikes a balance between functionality and modern aesthetics, ensuring powerful brake control is right at your fingertips without overwhelming your vehicle's dashboard.
Stay informed about your brake settings at a glance, courtesy of the LED display that showcases power adjustments in precise 0.5 increments The display also provides comprehensive full-text diagnostics, simplifying troubleshooting, while the adjustable brightness guarantees optimal visibility for towing during any time of the day or night Moreover, the included unique mounting bracket further enhances clearance, allowing for an unobtrusive installation.
Equipped with a time-delay feature, the Discovery NEXT brake controller offers fully adjustable power and ramp time to achieve precise control With a selection of 10 gain settings and nine load settings, you can finely calibrate the controller to align perfectly with your specific towing requirements The ramp-up progress is clearly indicated through LED indicators, and the brightness is adjustable to suit the conditions of daytime or nighttime towing..
Features:
- Slim, low-profile design for a functional, modern aesthetic
- Unique bracket system for improved dash clearance
- Fully adjustable power and ramp time
- Operates 2-8 trailer brakes at a time (1-4 axles)
- No internal moving parts and no leveling required
- 10 gain settings and 9 load settings to adapt to various driving conditions
- LED display shows power adjustments in 0.5 increments
- Day-night mode and adjustable brightness for optimal visibility
- Mounts anywhere in the vehicle, at any angle
- Full-text diagnostics for easier troubleshooting
- Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
- Auto-sleep mode prevents battery drain after five minutes of idle time
- Plug-and-play install with vehicle-specific quick plug harness (sold separately)
CURT 51322 Quick Plug Electric Trailer Brake Controller Wiring Harness (QTY 1)
Manufactured by: Curt
A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle’s factory brake controller socket The other end plugs into your CURT trailer brake controller.
Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation This particular brake controller harness fits certain years of the Ford Bronco, E150, E250, E350, E450 Club Wagon, Econoline, Excursion, Expedition, Explorer, Flex, F150, F150 Heritage, F250, F250 HD, F350 Super Duty, Police Interceptor Utility, Windstar, Land Rover LR3, LR4, Range Rover, Evoque, Sport, Lincoln Mark LT, MKT, Navigator and Mercury Mountaineer (see application info to verify fitment) CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation.
They're also great for towing all types of trailers with electric brakes For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long It also features a slit loom sleeve to keep the wires protected against crushing and abrasions.

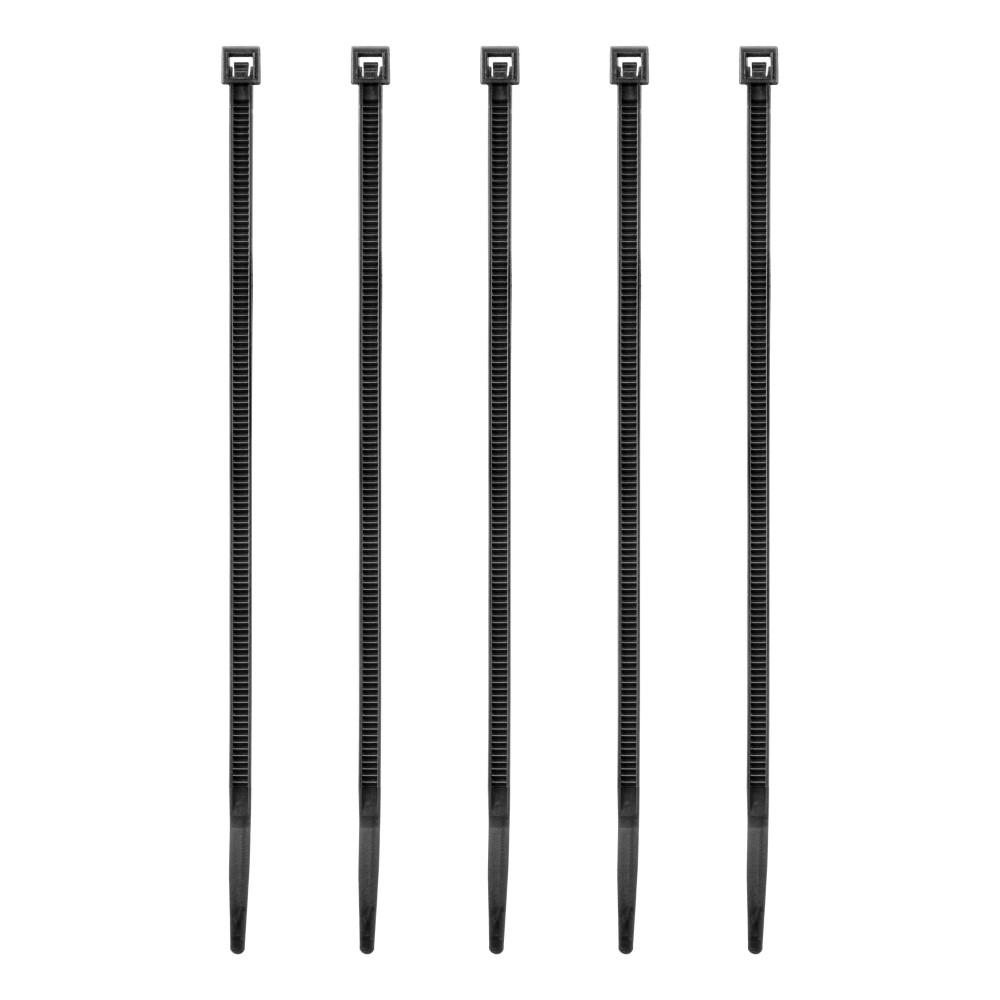

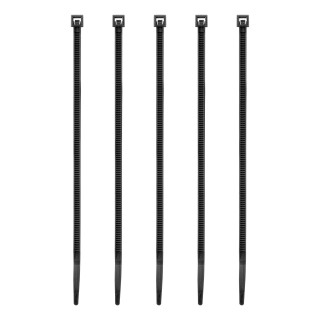

CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight..
Features:
- Allows a CURT trailer brake controller to be plugged into OEM socket
- Quick plug harness installs with plug-and-play convenience
- Wire colors match standard brake controller harnesses
- Includes 24" of 12 gauge wire for flexible installation
- Slit-loom sleeve keeps wires contained and protected
List of Fitment Years:
2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011$253 97
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$253 97
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: CU54NH
- Includes: Trailer Wiring 7-Way Plug w/ Bracket, Discovery Next Brake Control
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
