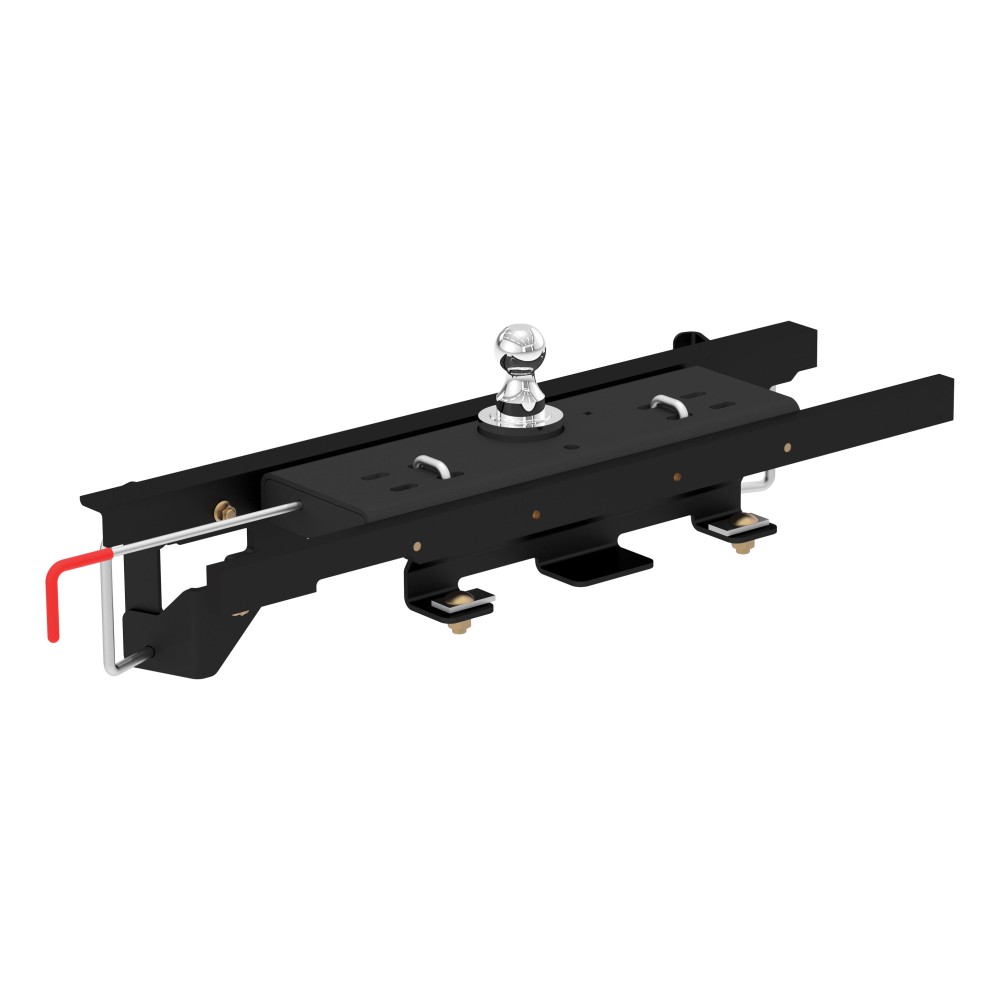

CURT 60730 Double Lock Gooseneck Hitch, 2-5/16-Inch Flip-Over Ball 30K (QTY 1)

Manufactured by: Curt

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be That is why CURT offers gooseneck hitch kits that include both the hitch and the installation brackets, making it simpler and easier to get your truck towing-ready This kit includes the CURT Double Lock gooseneck hitch and installation brackets to match.

The under-bed Double Lock gooseneck hitch gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers The Double Lock mounts underneath your truck bed, using the included brackets, and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs and a tongue weight capacity of 7,500 lbs.

Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed The Double Lock comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty This particular Double Lock gooseneck hitch kit is design to be a custom fit for certain years of the Dodge Ram 1500 (excluding air suspension) (for a complete listing of vehicle and installation bracket compatibility, see application info)..

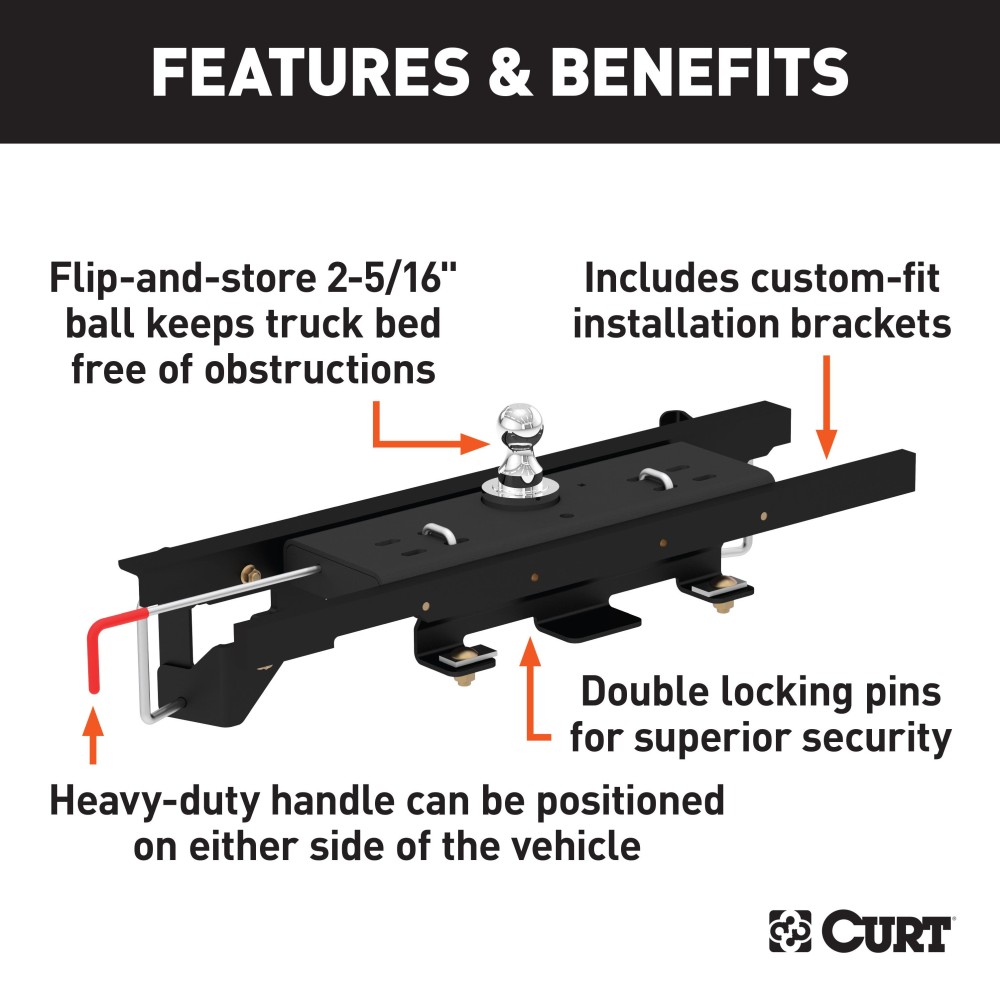

Features:

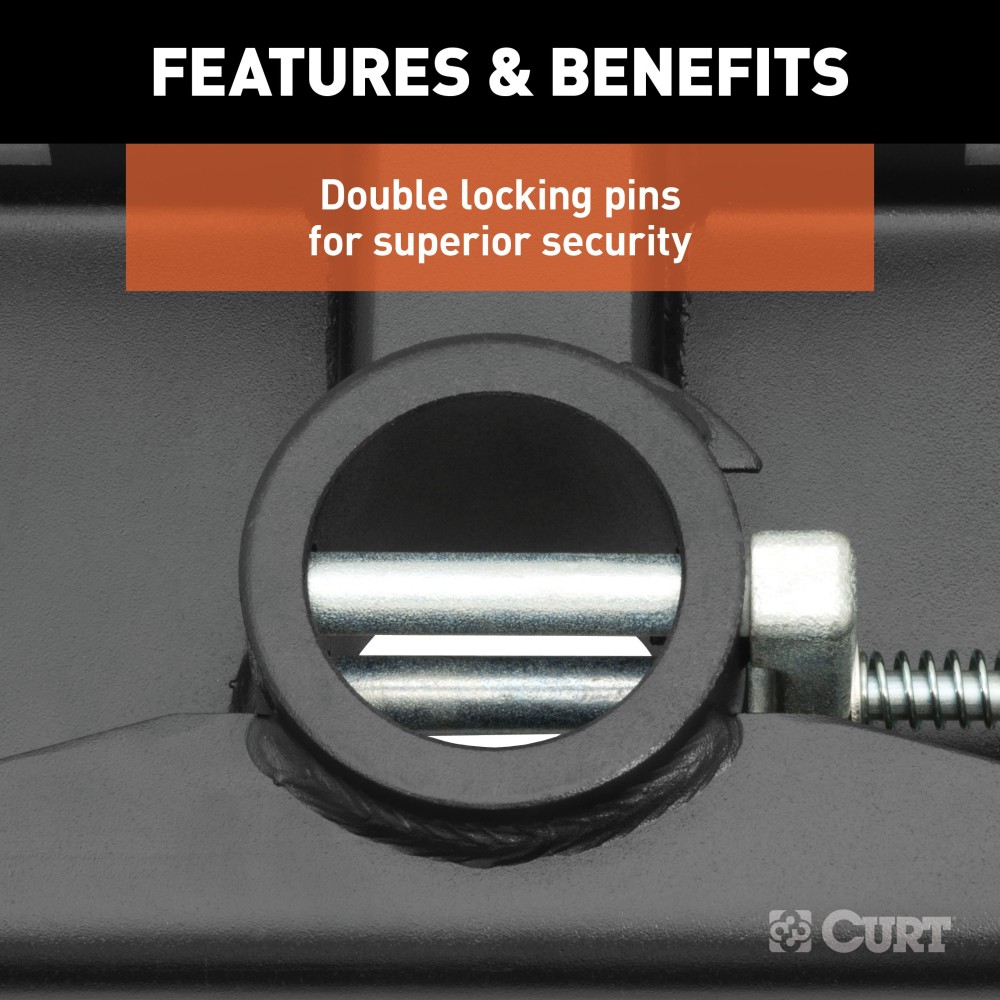

• Double locking pins for superior trailer and trailer ball security

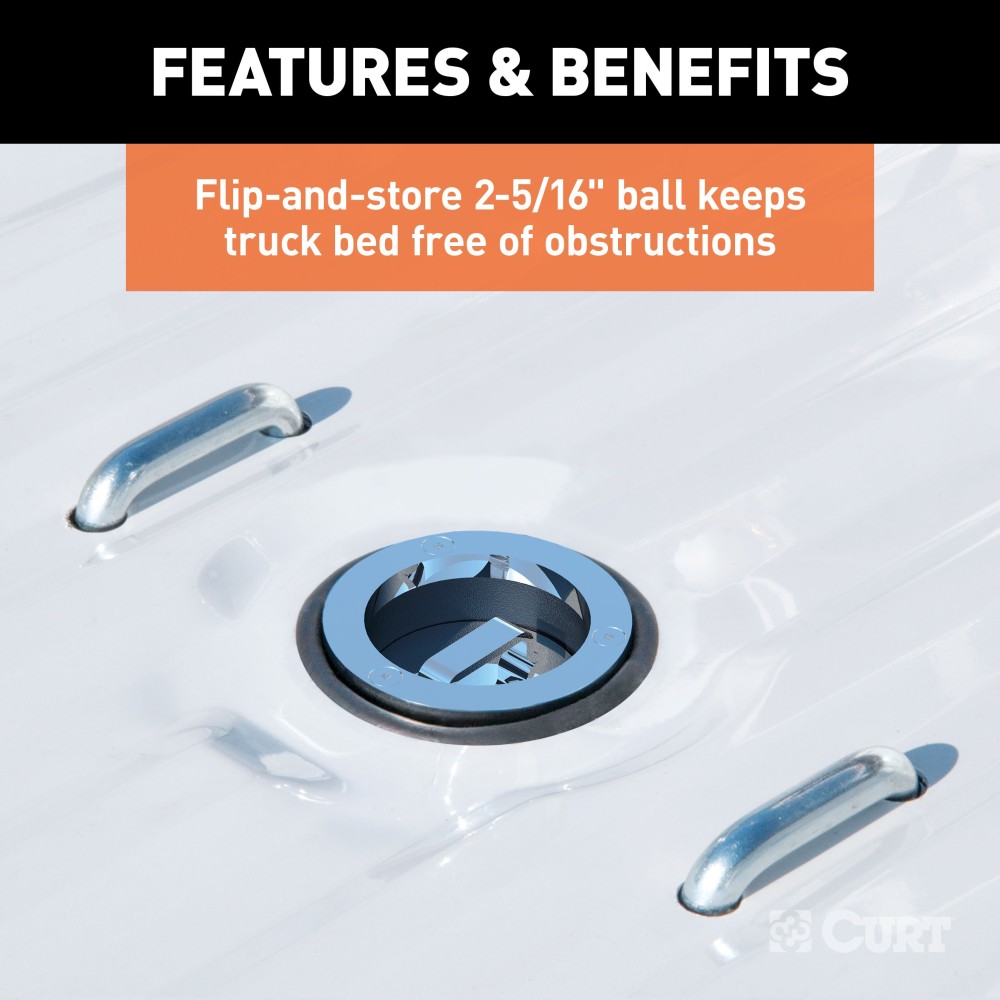

• Flip-and-store ball keeps truck bed free of obstructions
• Vehicle-specific design optimizes strength and installation time
• Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
• Installation requires no welding or truck bed removal

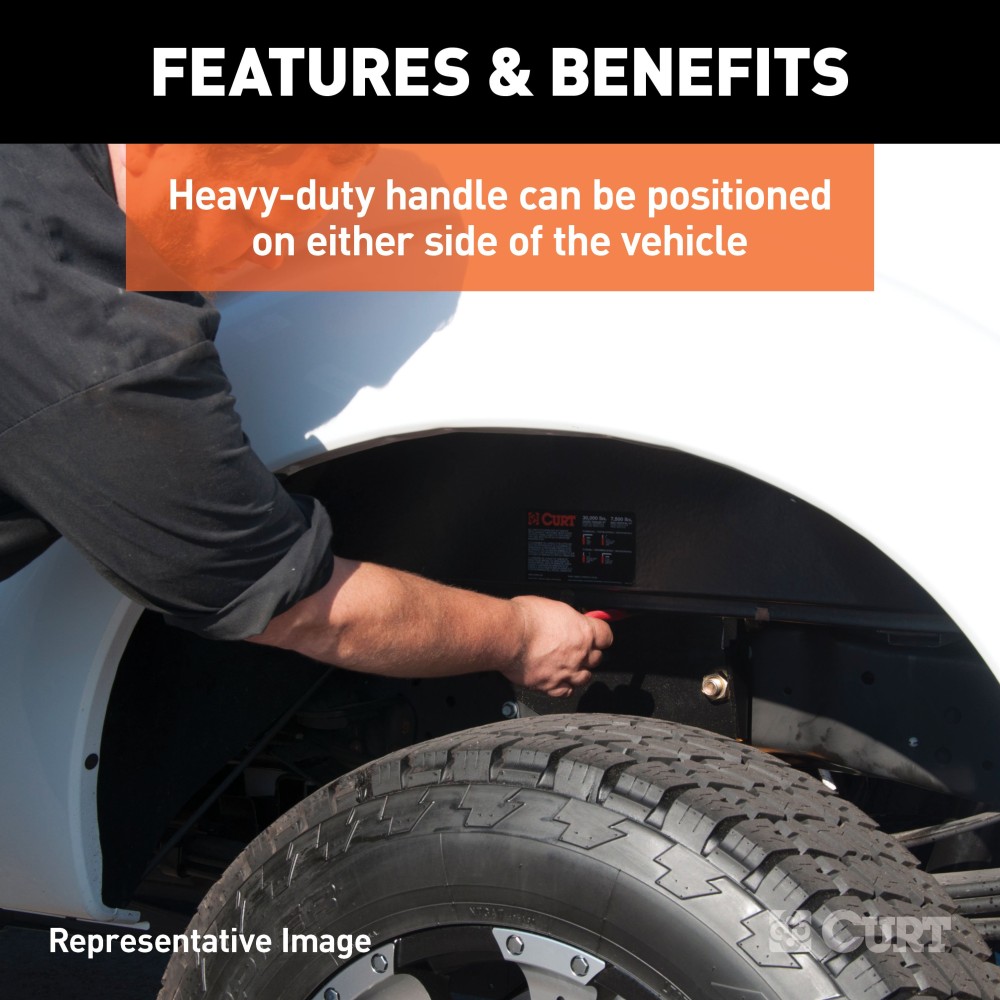

• Heavy-duty handle can be positioned on either side of the vehicle
• Chrome-plated trim ring provides a finished look
• Rubber hole cover helps prevent corrosion in trailer ball hole
• Includes spring-loaded safety chain loops and grade-8 hardware
• Protected by a durable A-coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16210 X5 Gooseneck to 5th Wheel Adapter for Double Lock Hitches, Industry-Standard Base Rails, 20,000 lbs (QTY 1)

Manufactured by: Curt

CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails.

This CURT 5th wheel adapter plate features a round shank and is compatible with CURT Double Lock gooseneck hitches It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller..

Features:

• Converts CURT Double Lock gooseneck hitches to 5th wheel rails
• For use with CURT and competitive 5th wheels up to 20,000 lbs.
• Industry-standard base rails accept 5th wheel hitches and rollers
• Protected by a highly durable carbide powder coat finish
• No assembly or tools required – just drop it in, lock it and go
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16115 E16 5th Wheel Hitch, 16,000 lbs (QTY 1)

Manufactured by: Curt

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches The E16 has a gross trailer weight rating of 16,000 lbs and can withstand a vertical load up to 4,000 lbs.

It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty.

This 16K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately)..

Features:

• Pivots on dual axes for 10 degrees of lateral movement
• Automatically locks for easy, secure coupling
• Operates using a single handle
• Features an anti-rattle skid plate to help reduce noise
• Compatible with kingpin extension boxes, including common pivoting pin boxes
• Mounts to all industry-standard base rails
• Offers four height adjustment positions to adapt to each unique truck bed
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
