CURT Factory Style Gooseneck Ball 3 Inch Diameter Fits Chevrolet Ford GMC Nissan Ram Puck System 30000 Pounds 60628

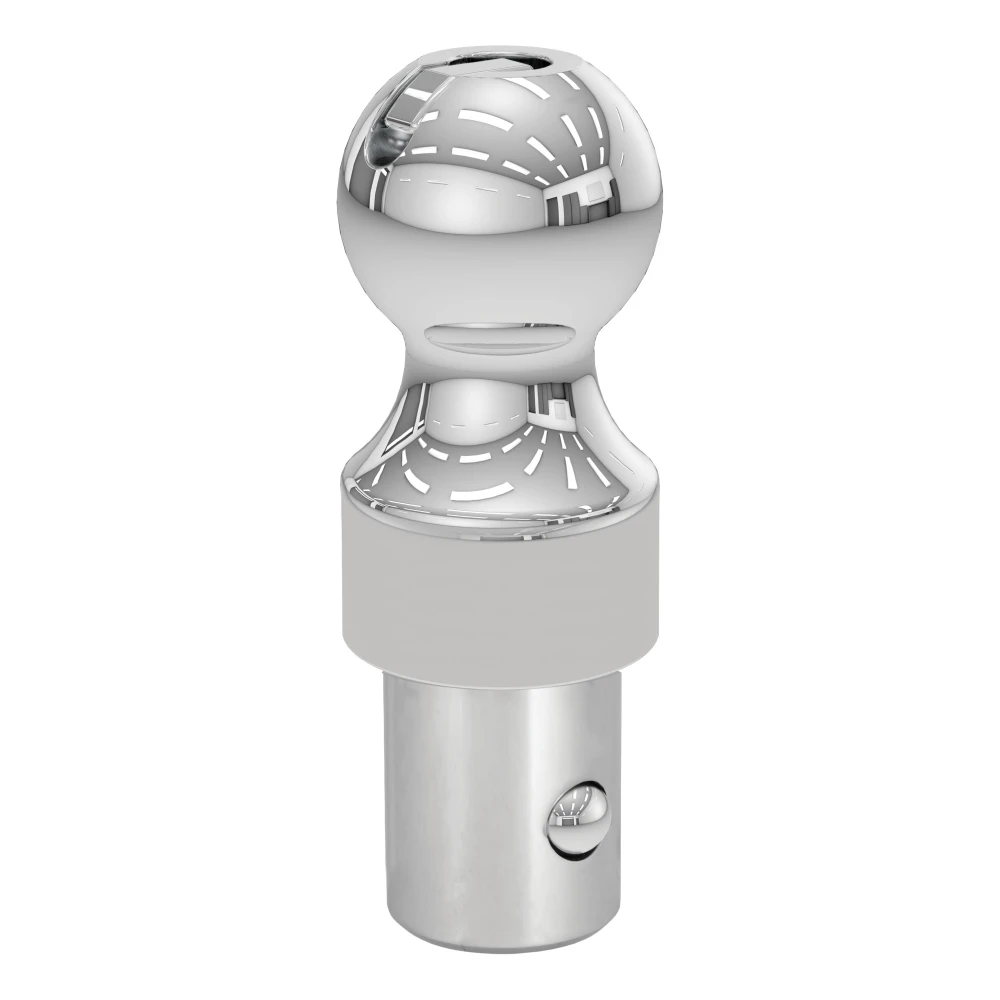

Model: 60628CURT OEM Puck System Gooseneck Ball - 30K Capacity
Upgrade your towing setup effortlessly with the CURT OEM Puck System Gooseneck Ball, engineered for optimum towing performance and compatibility with select pickup trucks. Whether you're towing a flatbed or transporting livestock, this gooseneck ball is designed to handle the heavy loads securely and with ease.

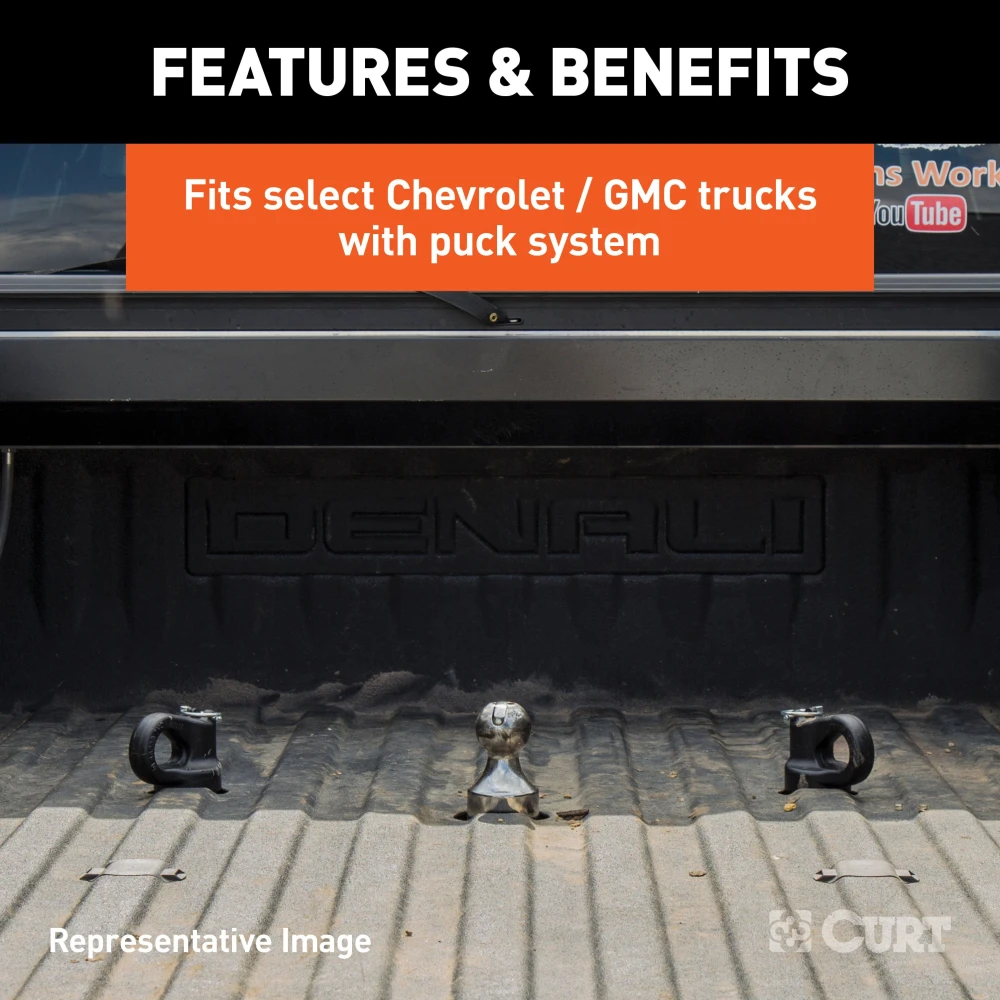

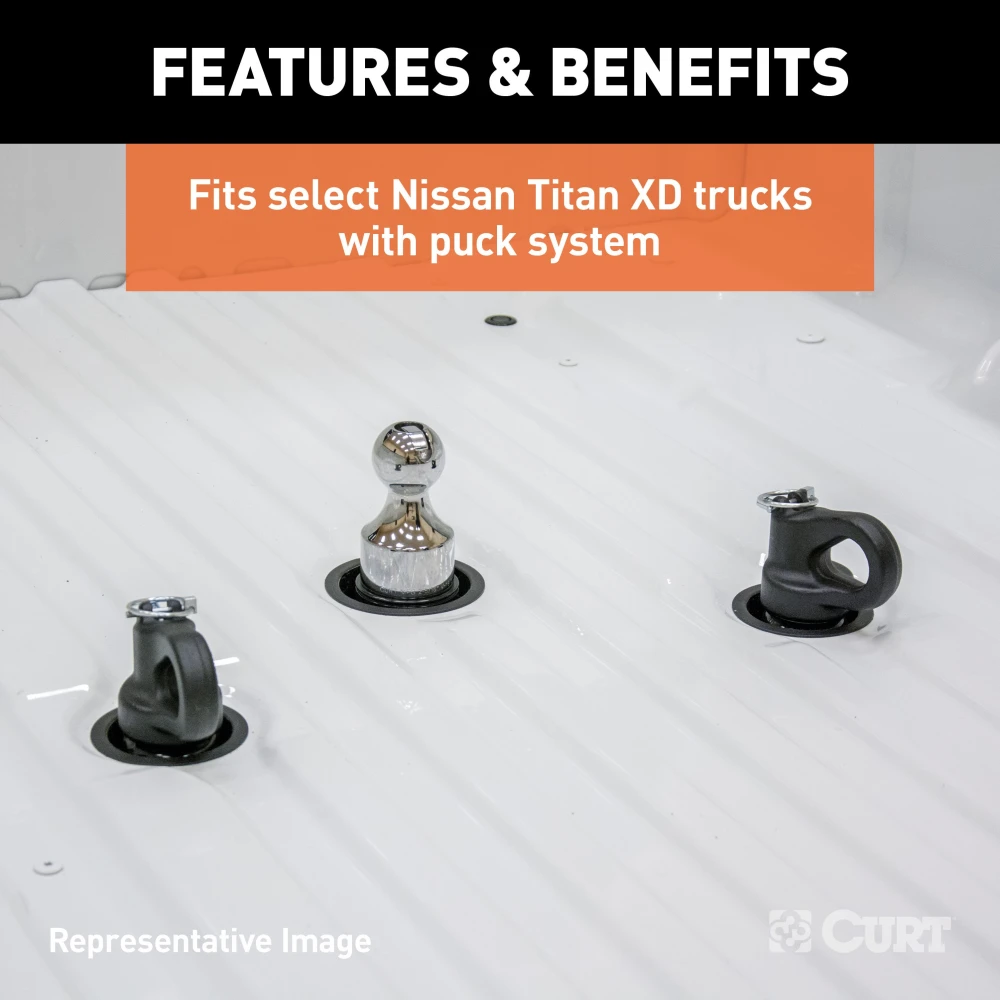

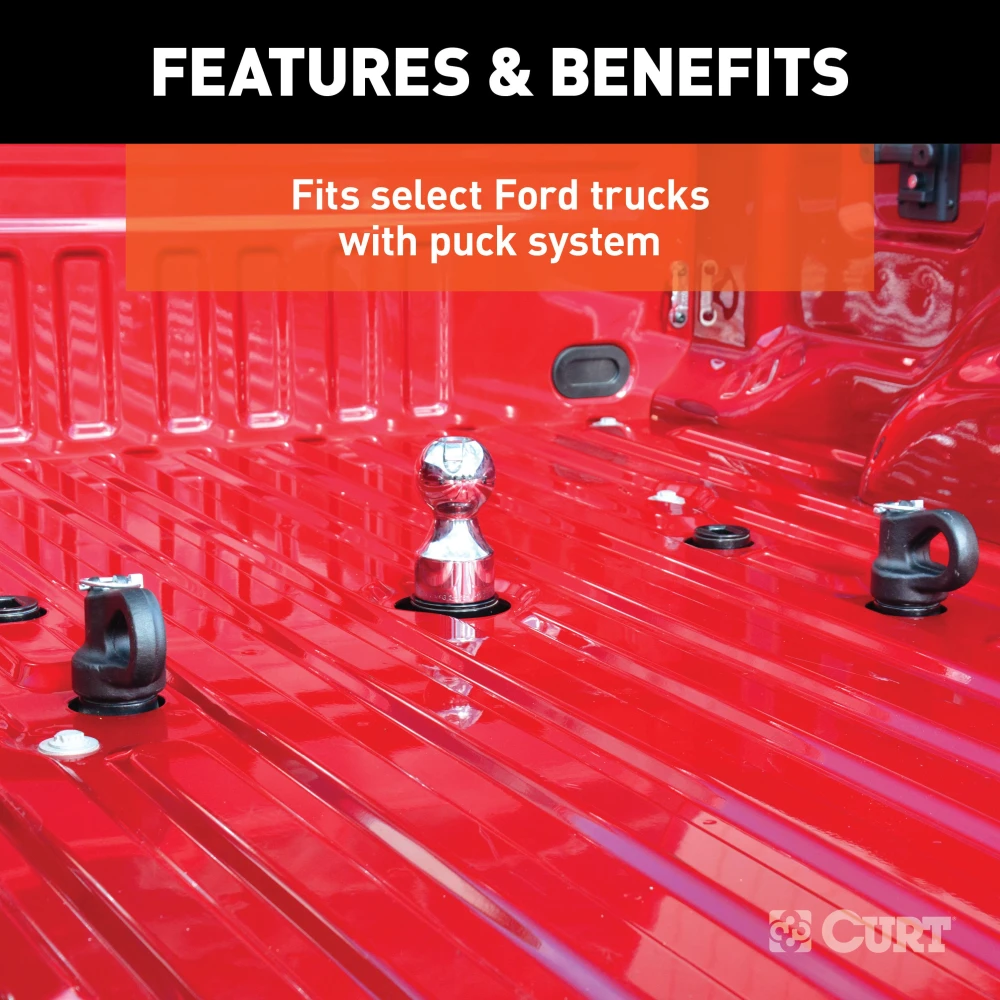

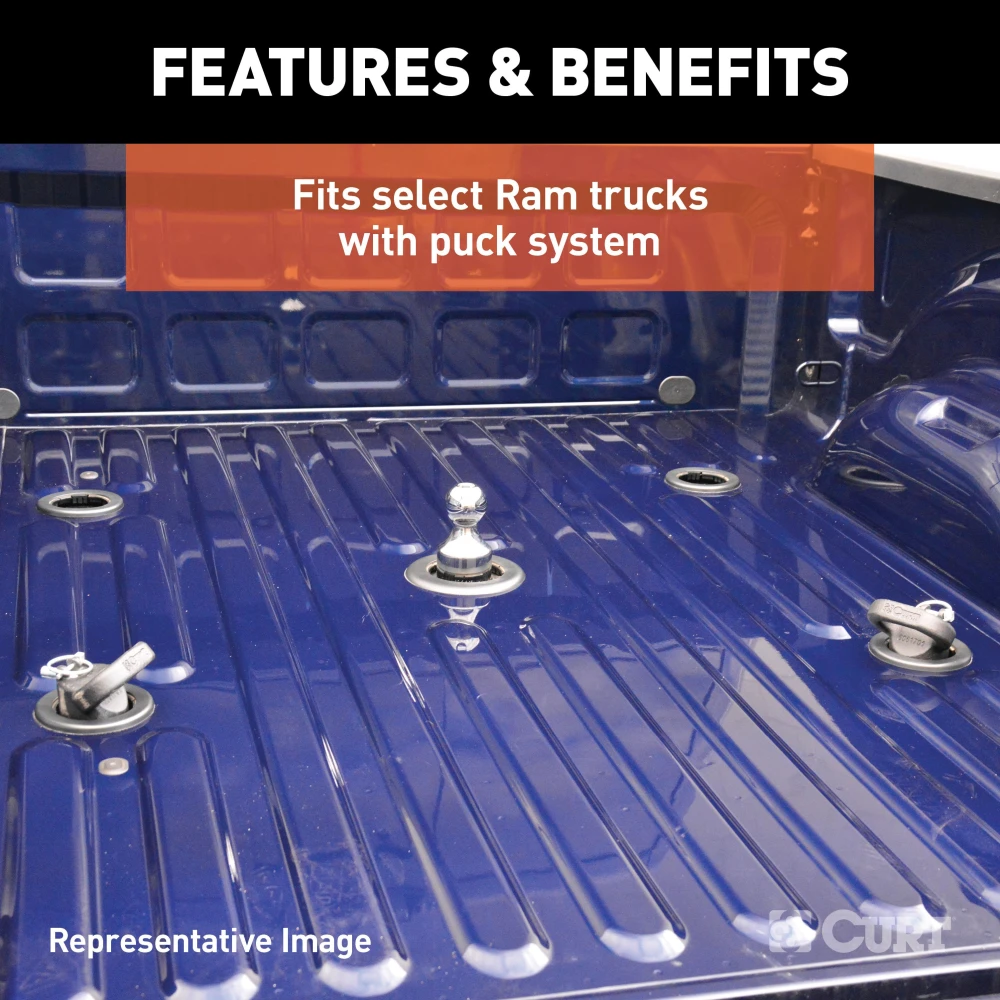

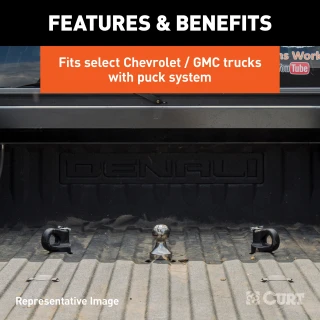

- Perfect Fit: Compatible with Chevrolet, Ford, GMC, Nissan Titan XD, and Ram pickups equipped with the truck bed puck system.
- Impressive Strength: Supports up to 30,000 lbs. of gross trailer weight and a vertical load of up to 7,500 lbs.

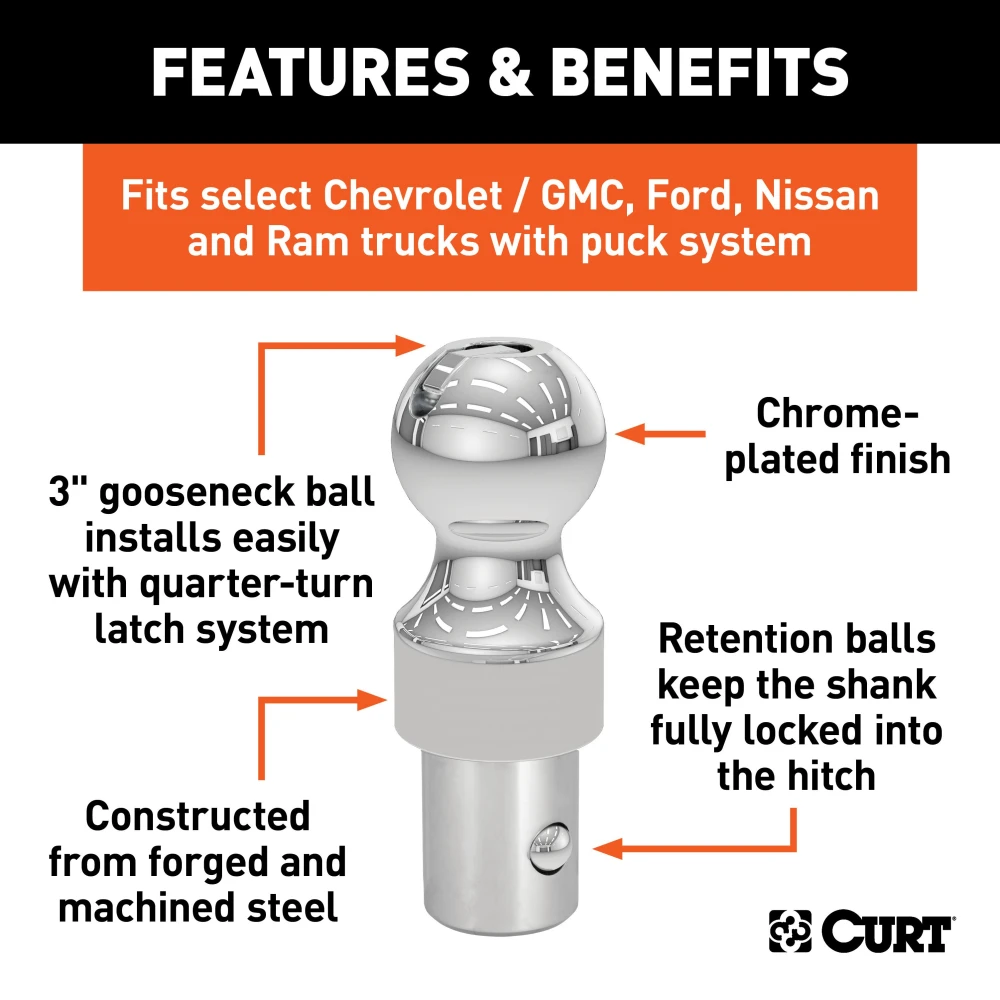

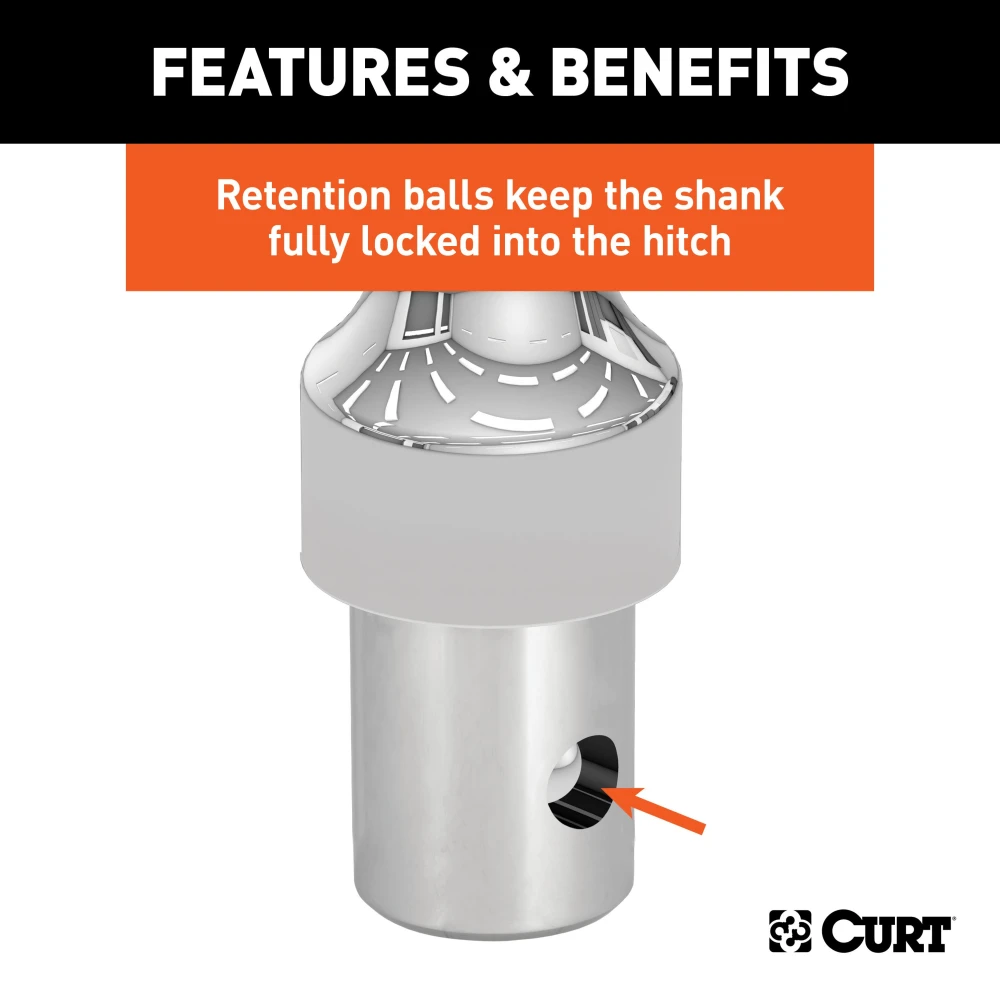

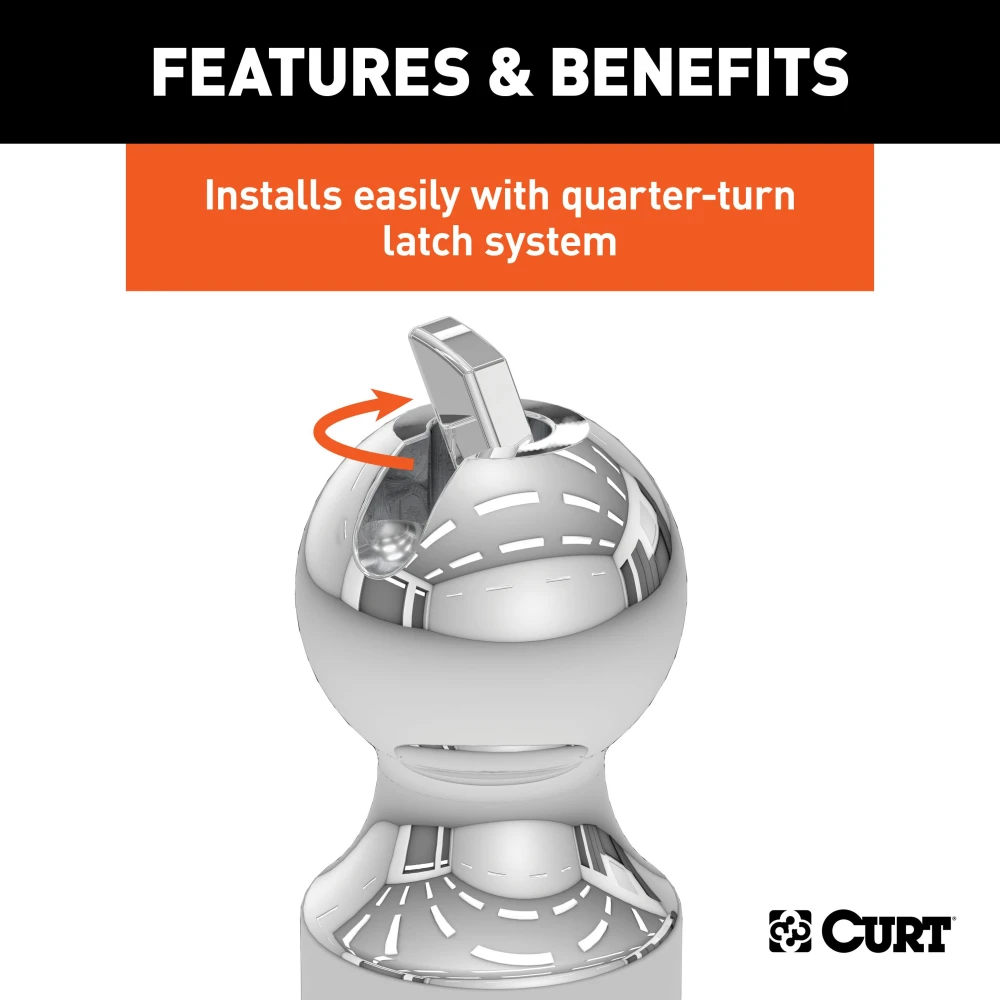

- Secure Installation: The unique quarter-turn latch lock ensures easy and secure installation, while retention balls maintain a tight lock on your trailer.
- Robust Construction: Crafted from forged and machined steel with a chrome-plated finish, this gooseneck ball is built for durability.
- Safety Compliant: Meets the U.S. VESC V-19 safety specifications, offering peace of mind during every journey.
- Warranty: Covered by a limited lifetime warranty, with one year on finish and parts.
Note: Installation requires the specific puck system available in Chevrolet, Ford, GMC, Nissan, or Ram trucks. This product is not designed for any other gooseneck ball holes.
Patented #8,955,866. Towing capacity limited to the lowest-rated component in your towing system.
| Specifications: | |
|---|---|

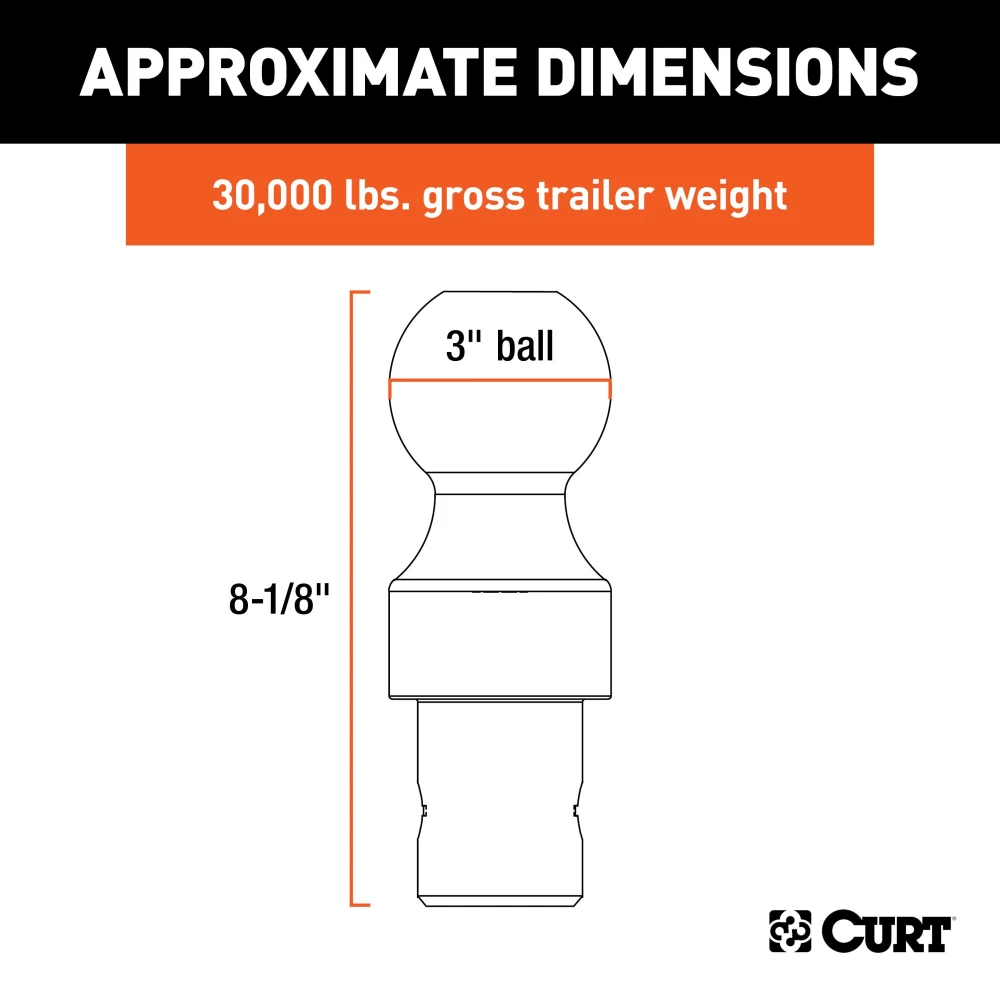

| Hitch Ball Size | 3 Inch Ball |
| Hitch Ball Type | Puck System Ball |
| Gross Trailer Weight | 30000 LB GTW |
$224 20 $304.95 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$304.95 $224 20
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 60628
- UPC: 612314606283
- Includes: Factory Gooseneck Ball
Get Expert Help
CURT Factory Style Gooseneck Ball 3 Inch Diameter Fits Chevrolet Ford GMC Nissan Ram Puck System 30000 Pounds 60628 Install Notes
Installation Instructions for Gooseneck Ball (Part # 60628)
Part Numbers:
- 60628
Wiring Access Location:
N/A
Tools Required:
- None
Step-by-Step Instructions:
-
Lift the Handle:
Lift the handle from its seat and rotate it 90°. -
Insert the Gooseneck Ball:
Insert the gooseneck ball into the receiver tube in the bed of the truck. -
Lock the Handle:
Rotate the handle into the locked position and flip it down into its seat.- Note: If the handle does not rotate freely into the locked position, rotate the ball while applying light pressure to the side of the handle. Once the handle rotates into place, flip it down into the seated position.
-
Remove the Gooseneck Ball When Not in Use:
When the gooseneck ball is not in use, remove it from the receiver tube and store it in a dry, clean area. -
Install Rubber Cover:
Place the rubber cover (#66155, sold separately) in the gooseneck receiver when the ball is removed to keep dirt and contaminants out.
Hardware List:
- Gooseneck Ball (1)
- Description: Gooseneck ball for towing use.
Safety Notes:
-
Maximum Towing Capacity:
Never exceed the vehicle manufacturer's recommended towing capacity. -
Performance Impact:
Vehicle performance (braking, handling, acceleration, turning radius) can be drastically affected by towing a trailer. Allow additional time and space for stopping, changing lanes, passing, and turning. -
One Trailer Only:
Do not tow more than one trailer at a time, as this may cause loss of control. -
Avoid Rough Terrain:
Severe bumps can damage the towing system. Drive slowly over rough terrain to prevent damage. -
Maintenance:
Keep the gooseneck ball, receiver, and trailer coupler lubricated regularly to prevent wear and rust.
Specifications:
- Level of Difficulty: Easy
- Maintenance Tips:
Regular lubrication with silicone spray or equivalent is recommended. Ensure that all fasteners are tight and structural components are sound.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
