CURT Hand Crank Trailer Winch with 20 ft Strap 1400 lbs Capacity 7.5 Inch Handle 29435

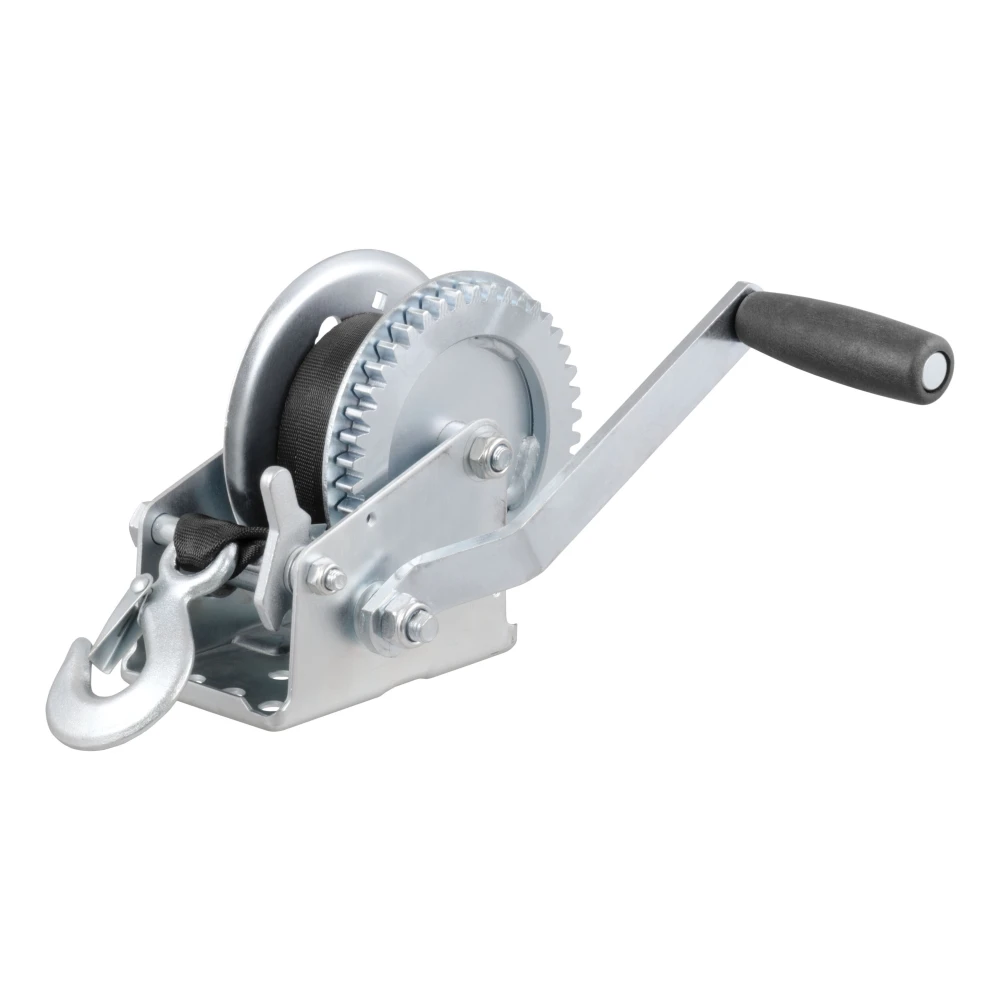

Model: 29435CURT Hand Winch for Boat Trailers with 1,400 lbs. Capacity
Experience effortless docking and boat transportation with the CURT Hand Winch, expertly designed for boat trailers. Its construction from high-strength, cold-forged steel ensures longevity and structural superiority, making it a reliable choice for various hoisting applications.
Product Features:

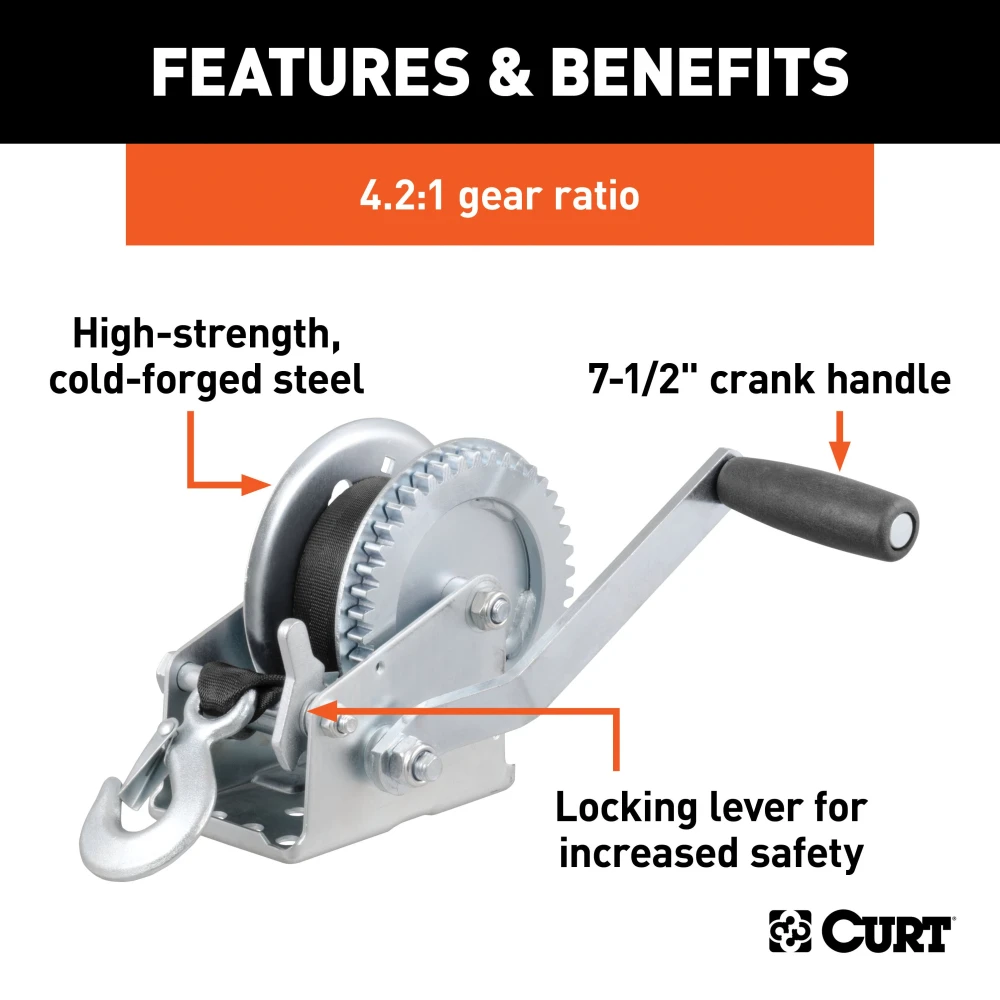

- High Capacity: This winch features an impressive capacity of 1,400 lbs. with a gear ratio of 4.2:1, making it ideal for managing heavy loads.
- Durable Construction: Made from cold-forged steel, it provides superior strength over laminated gears, ensuring reliability and durability.
- Efficient Operation: The 7-1/2" handle includes a plastic grip cover for easy and comfortable handling during operation.
- Flexible Compatibility: Compatible with CURT winch straps #29007, #29450, or #29451, this winch is versatile for your needs.

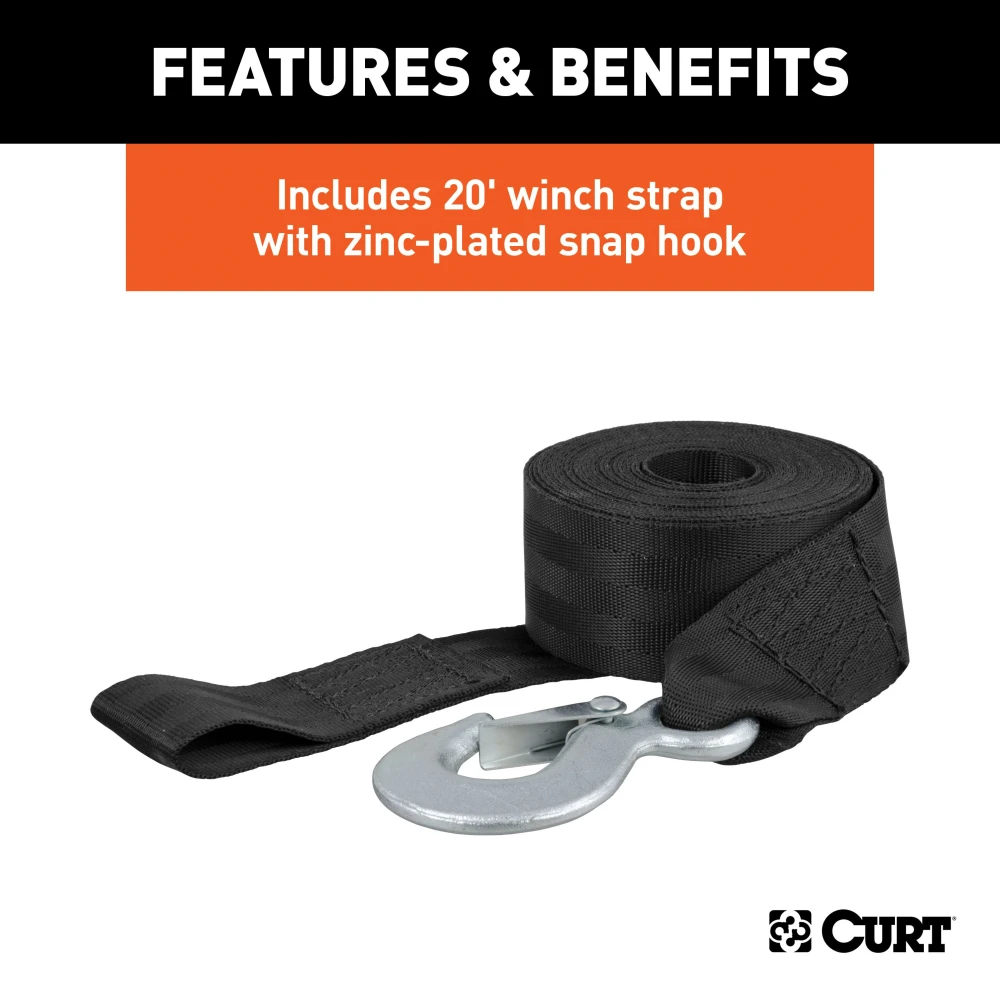

- Includes Quality Strap: Comes with a 20' winch strap (#29451) and a zinc-plated snap hook, ensuring secure load handling.

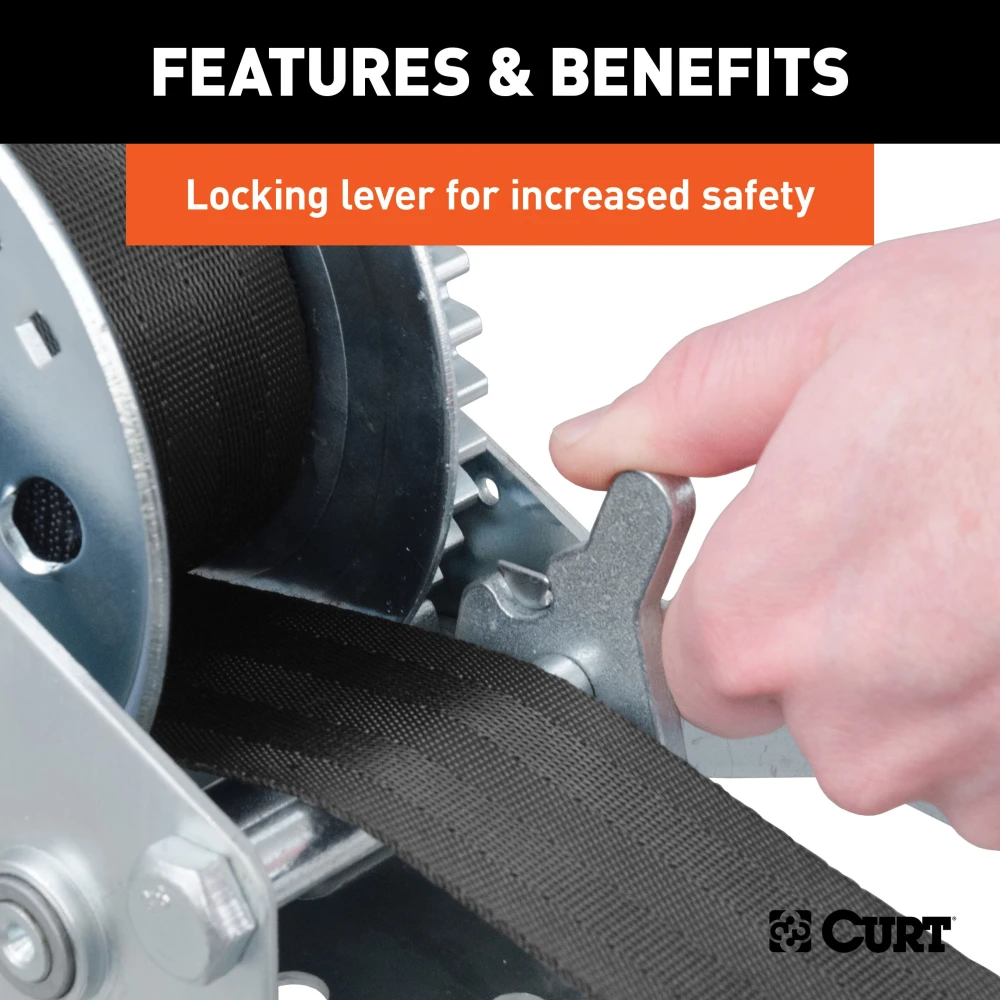

- Enhanced Safety: Equipped with a locking lever to increase safety during load securing and transport.
- Secure Mounting: The base features slotted screw holes, offering flexible mounting options for your convenience.
- Warranty Coverage: Backed by a limited lifetime warranty (one-year finish, one-year parts) for peace of mind.
Whether you're using it to haul your fishing boat after a long day on the water or for other hoisting applications, the CURT Hand Winch is your trusted partner for quick and efficient workflow. Invest in a tool that stands the test of time and harsh marine environments with CURT's expertly crafted hand winch.
| Specifications: | |
|---|---|
| Gear Ratio | 4.2:1 |
| Capacity | 1400 |

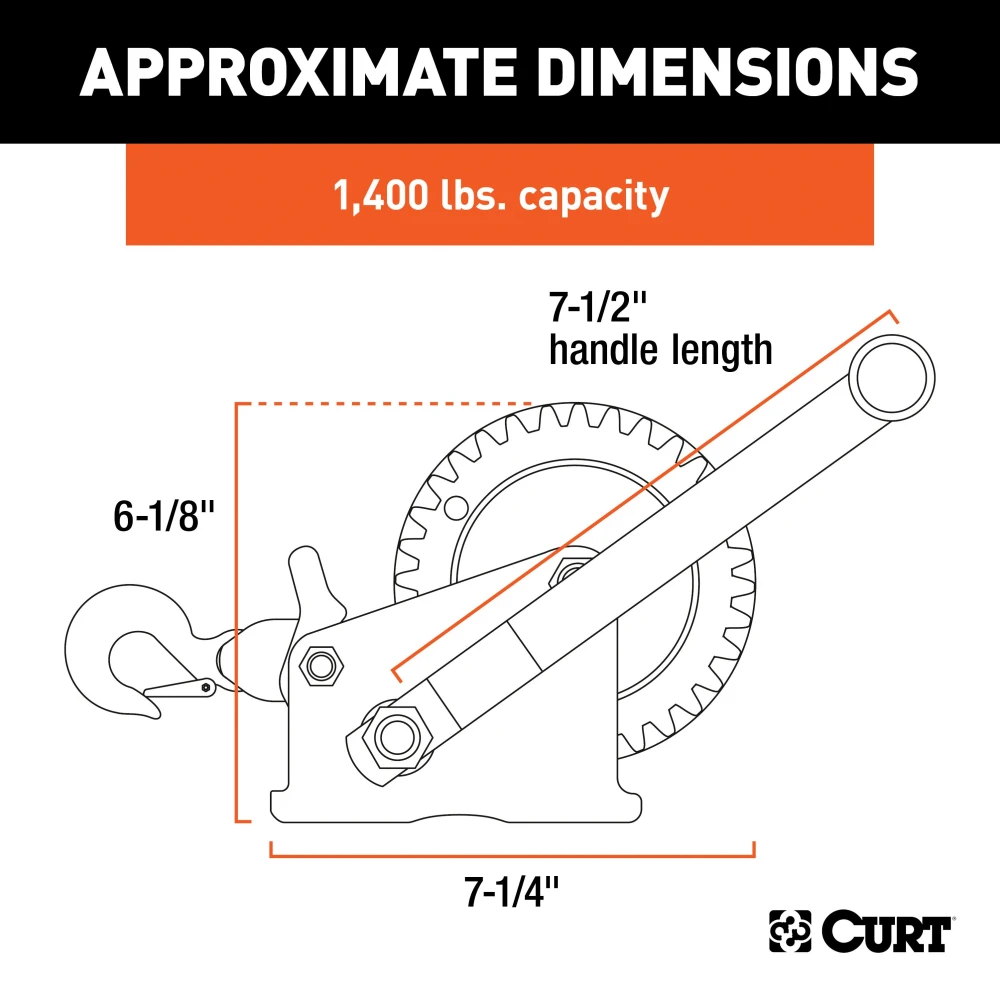

| Handle Length (in.) | 7.5 |
| Finish | Clear Zinc |
| Warranty | Lifetime |
| Rope Storage Capacity (ft. x in.) | 20 x 5/16 |
| Strap Storage Capacity (ft. x in.) | 20 x 2 |
| Custom Bundle | No |
| Ratchet Type | One-Way |
$90 28 $103.95 13% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$103.95 $90 28
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 29435
- UPC: 612314294350
- Includes: Hand Crank Winch
Description
Get Expert Help
CURT Hand Crank Trailer Winch with 20 ft Strap 1400 lbs Capacity 7.5 Inch Handle 29435 Install Notes
Installation Instructions for Hand Winch
Part Numbers:
- 29424 (1,200 lbs)
- 29425 (1,400 lbs)
- 29435 (1,400 lbs, includes winch strap)
Tools Required:
- Ratchet
- Sockets: 9/16", 3/4"
- Wrench: 9/16"
Step-by-Step Instructions:
Winch Installation:
-
Mounting the Winch:
- Secure the winch to the mounting location using three grade-5, 3/8" diameter bolts, each with a lock washer, flat washers on both sides, and nuts.
- Ensure the mounting surface can support at least five times the winch's rated capacity.
-
Handle Installation:
- Attach the handle to the input shaft and secure it with the provided locknut.
-
Cable Installation:
- Insert the steel cable through the square hole from the inside to the outside.
- Insert the cable through the second hole from the outside to the inside.
- Pull the cable tight and wrap it onto the drum.
-
Strap Installation:
- Insert the provided strap bolt through the sewn loop of the winch strap and secure it with the strap bolt nut.
- Ensure the strap is rated at 1.5 times the winch’s capacity, and the hook is rated at 1.5 times the strap’s capacity.
Operating the Winch:
-
Winding Strap In:
- Engage the ratchet lever in the pinion gear.
- Turn the handle to wind the strap onto the drum.
- The ratchet should make a loud clicking noise during this process.
-
Letting Strap Out:
- Firmly hold the winch handle.
- Release the ratchet lever from the pinion gear.
- Carefully rotate the handle to let the strap out.
- Do not let go of the handle until the ratchet lever has properly engaged and is supporting the load.
Maintenance:
- Regularly inspect and replace damaged straps or cables.
- Apply oil to the input shaft, bushings, and drum hub.
- Grease all gears periodically to ensure smooth operation.
Safety Notes:
- Always maintain at least five wraps of cable or strap on the drum.
- Do not exceed the rated load capacity of the winch.
- Never use the winch for lifting humans or equipment vertically.
- Inspect the winch and cables before each use for wear or damage.
- Stand clear of the cable path during operation to avoid injury.
- Keep the work area clean, dry, and safe for use.
- Ensure the winch is securely bolted to a surface capable of handling the load.
- Never apply a load to a fully extended strap or cable.
- Avoid leaving the winch unattended while under load.
Specifications:
| Model | Rated Capacity | Gear Ratio | Handle Length |
|---|---|---|---|
| 29424 | 1,200 lbs | 4.2:1 | 7.5 inches |
| 29425 | 1,400 lbs | 4.2:1 | 7.5 inches |
| 29435 | 1,400 lbs | 4.2:1 | 7.5 inches |
Important Notice:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under a standard warranty for defects in material and workmanship. For complete warranty instructions, please download the full installation PDF.
