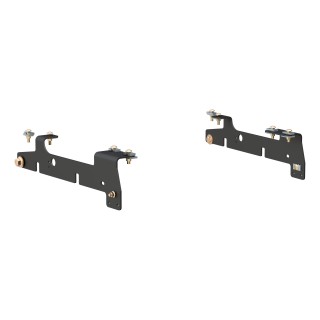

CURT 16437 5th Wheel Installation Brackets (QTY 1)

Manufactured by: Curt

When you purchase a 5th wheel trailer hitch, you expect it to be capable of towing your RV, flatbed or whatever other 5th wheel trailer you own While a 5th wheel hitch does offer an impressive amount of towing strength, it cannot get far without the proper installation equipment Engineered for specific makes and models, CURT custom 5th wheel brackets provide the ideal solution for complementing the power of your 5th wheel trailer hitch.

A custom 5th wheel bracket features a shape that contours to the frame of your truck and uses pre-drilled holes in the frame wherever possible to make installation quick and easy Depending on your model of pickup truck, they also reduce or eliminate the need for drilling These particular custom 5th wheel brackets offer a custom fit for certain model years of the Ford F-150 and F-250 (see application info to verify fitment).

Finished in a durable liquid A-coat, CURT custom 5th wheel brackets are made to last They include all necessary mounting hardware and are designed to be used in conjunction with CURT industry-standard 5th wheel base rails #16104 or #16204 (base rails sold separately)..

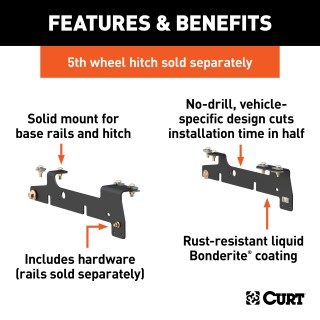

Features:

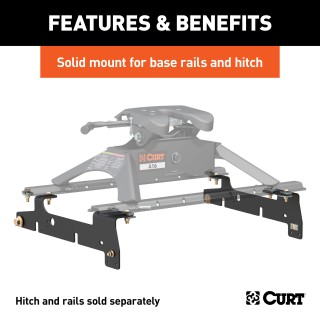

• Provides a solid mounting point for 5th wheel base rails and a 5th wheel hitch
• Designed to be used in combination with CURT base rails #16104 or #16204
• Protected by a rust-resistant liquid A-coat
• Made in USA (may include imported hardware)
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16205 Industry-Standard 5th Wheel Hitch Rails, Grey Teridium, 40,000 Pounds (QTY 1)

Manufactured by: Curt

CURT 5th wheel base rails are industry-standard, meaning they can be used with any 5th wheel trailer hitch with industry-standard anchoring points They are compatible with virtually all CURT 5th wheel trailer hitches and many competitors Installation of CURT universal 5th wheel base rails is quick and simple.

They mount with high-strength hardware, providing a solid mounting place for a new 5th wheel hitch 5th wheel base rail bolts and other hardware can also be purchased separately to aid in reinstalling used rails To protect our 5th wheel base rails from corrosion, scratches and UV damage, we coat each one in a co-cured finish of A-coat and powder coat.

This gives them the tough skin they need for hauling that RV trailer, flatbed or other heavy-duty trailer and gives you the confidence to tow wherever the horizon leads This set of 5th wheel rails is rated for 40,000 pound gross trailer weight and has a grey teridium finish Knowing that your 5th wheel trailer hitch is properly mounted in your truck bed is vitally important to the success of your towing.

Without a firm attachment point, a 5th wheel hitch is rendered useless to your tow vehicle When you choose a 5th wheel hitch for your pickup, install it with confidence with a CURT 5th wheel bracket kit and a set of CURT 5th wheel base rails..

Features:

• Rated for 40,000 lbs. GTW and tested according to SAE J2638 specifications
• Constructed with 80,000-PSI alloy steel for superior strength and durability
• Industry-standard mounting point to accept most 5th wheel hitches
• Designed for use with custom 5th wheel brackets (sold separately)
• Protected by durable A-coat and teridium powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

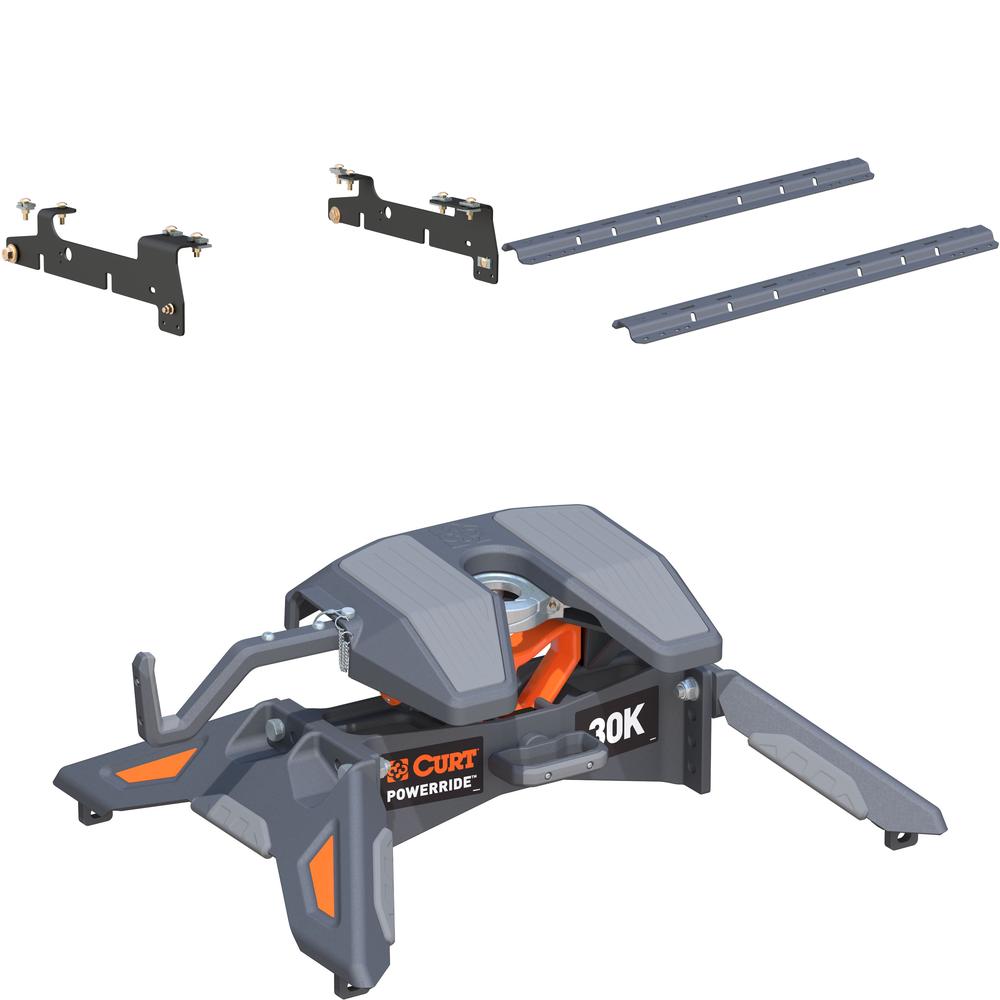

CURT 16320 PowerRide 30K 5th Wheel Hitch, 30,000 lbs (QTY 1)

Manufactured by: Curt

The CURT PowerRide 30K 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing It features a 30,000-pound, fully tested rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit.

It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety It's ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions -- not just forward and backward -- to promote a smooth ride.

PowerRide is very easy to operate It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process.

For installation and removal, PowerRide is unique with a one-pin head removal system The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces Strategically placed grips also offer a comfortable handhold.

The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required It easily drops into any industry-standard 5th wheel rails This kit comes with the hitch head and legs.

Rails and brackets must be purchased separately..

Features:

• Tough, professional-grade capacity and enhanced functionality
• Ergonomic, self-resetting handle for easier use from the side of the truck bed
• Multi-directional, cast yoke head for a smooth ride and less strain on the truck
• Constructed with a cast steel main body for dependable strength
• Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638
• Integrated wear plates for smooth operation, extended longevity and no grease
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces
• Strategic grip points for ergonomic moving and handling
• Three-position coupling indicator clearly shows coupling status
• Patented interlocking jaws for full kingpin contact and coupling security
• Premium, textured, dark grey teridium finish for lasting rust resistance
• 4" height adjustment for greater versatility versus 3" options
• No welding or fabrication required for installation
• Patent# 8,827,298
