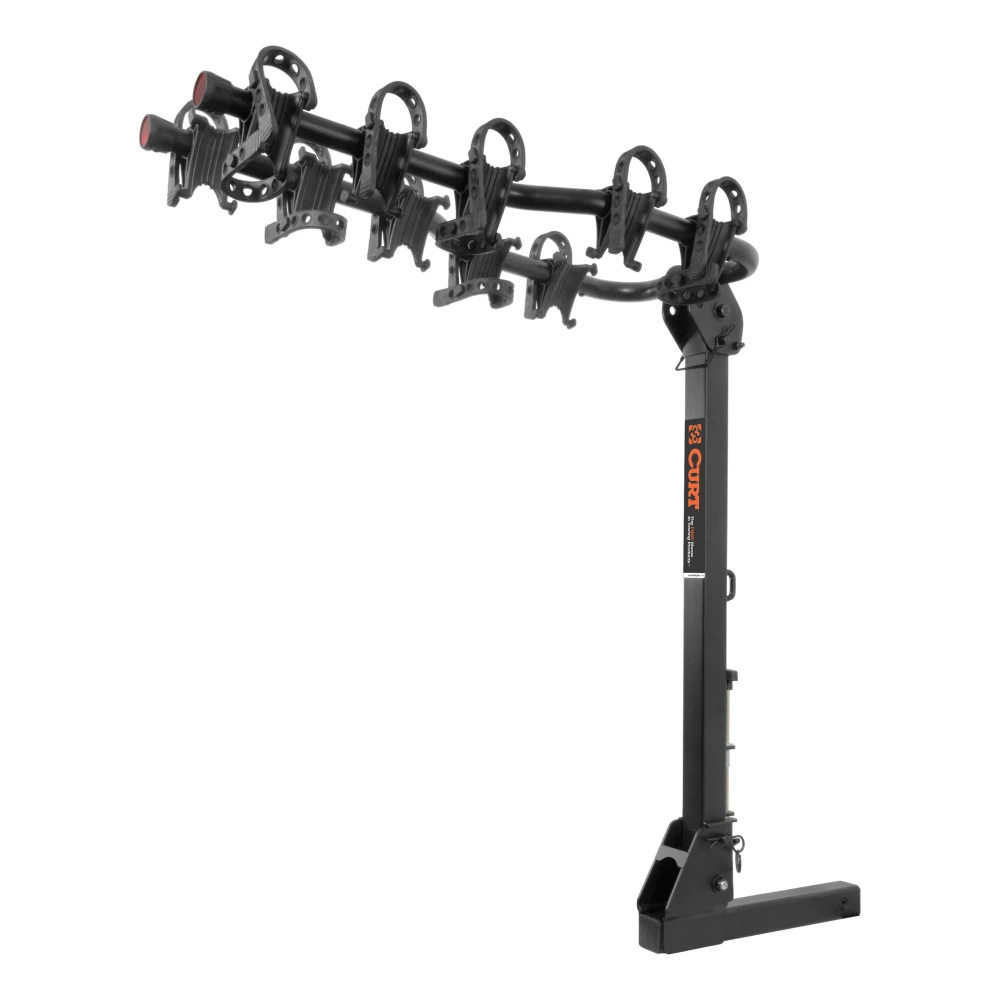

Product Details
- Brand: Curt
- Model: 18065
- UPC: 612314180653
- Includes: Premium Bike Rack

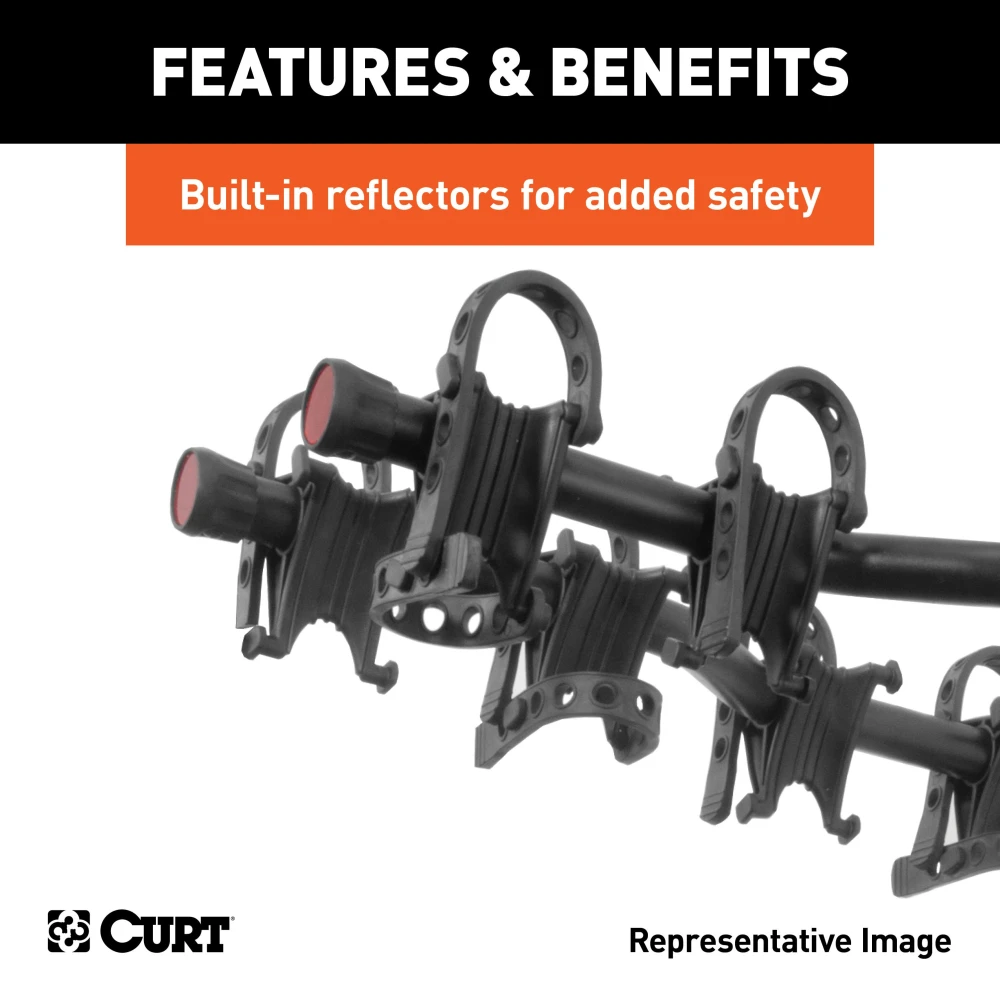

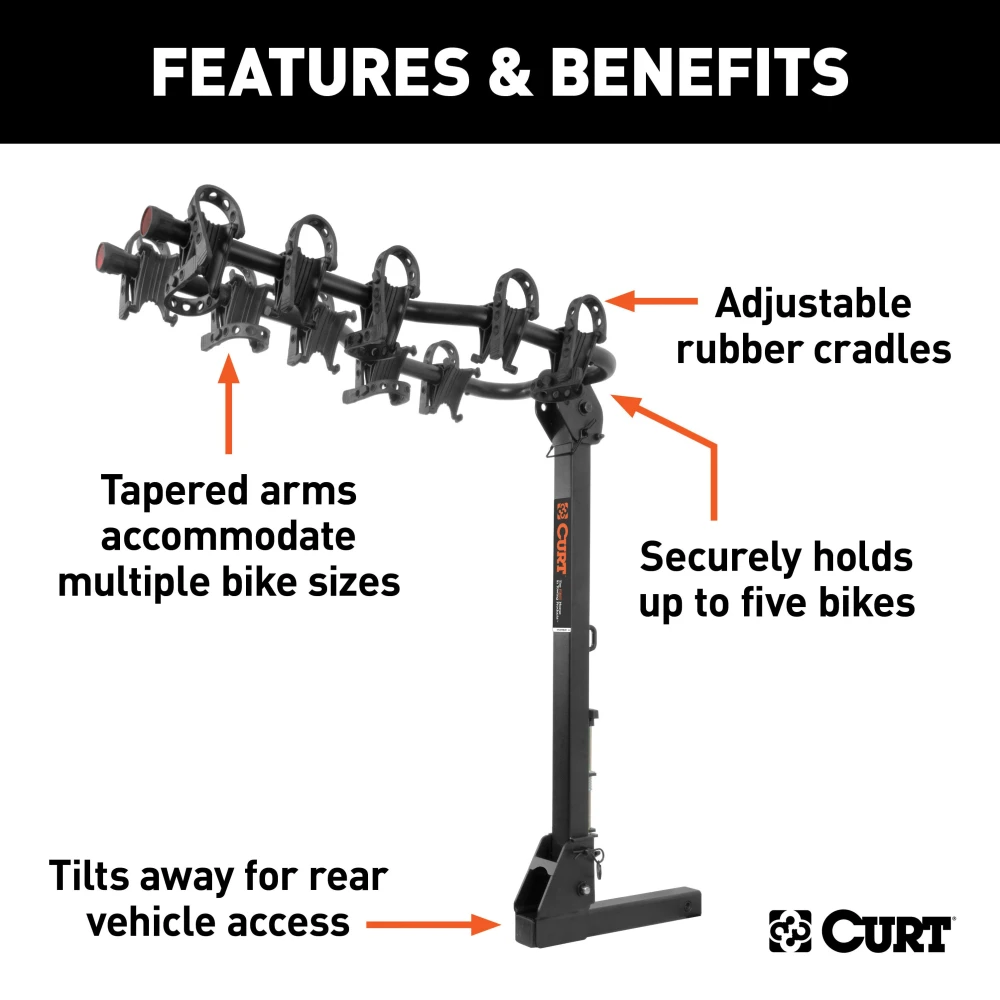

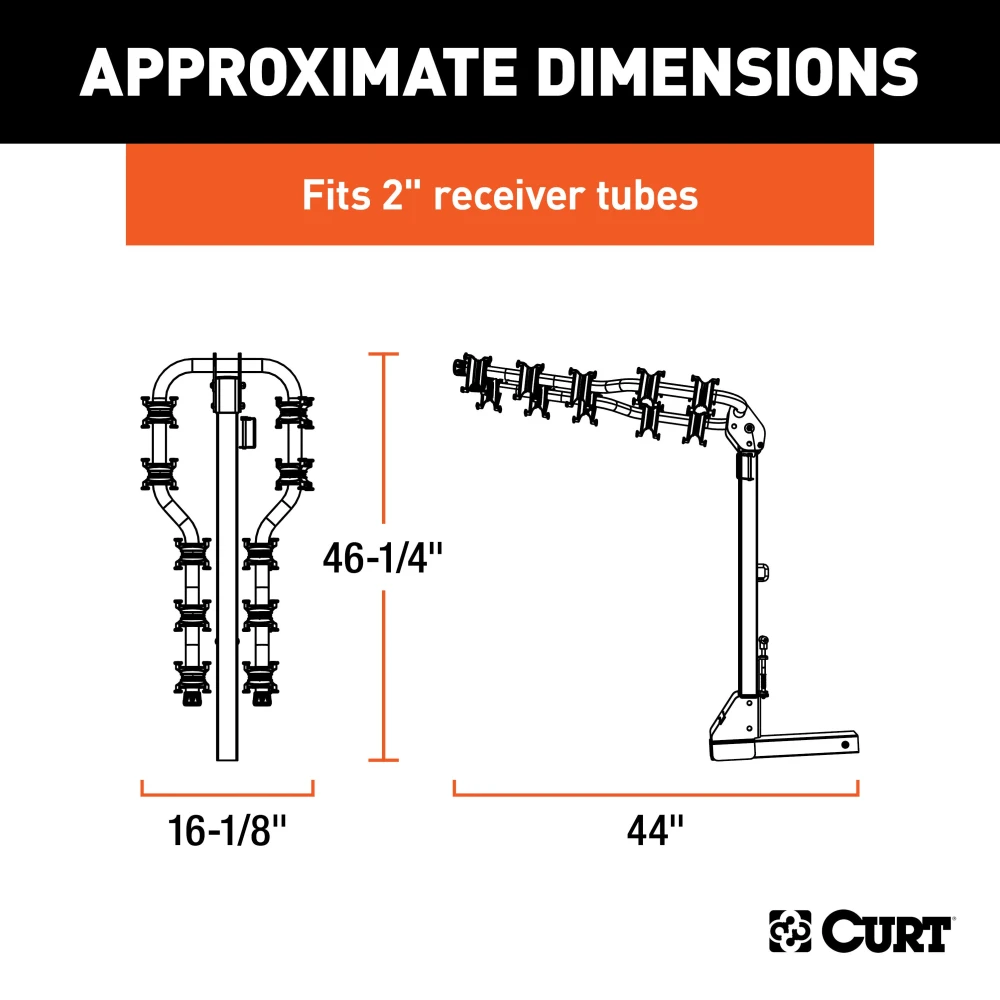

Description
Get Expert Help
CURT Premium 5-Bike Trailer Hitch Mount Rack Fits 2 Inch Receiver 18065 Install Notes
Installation Instructions for CURT 18065 Hitch-Mounted Premium Bike Rack ### Part Numbers: - 18065 ### Tools Required: - 8mm Allen Wrench - 19mm Wrench ### Step-by-Step Instructions: 1. Install the Arm Post: - Raise the arms on the arm post (#1) to the upright position and secure with the attached lynch pin. (See Figure 1-A) 2. Attach the Arm Post to the Shank: - Using the hex head bolt kit (#4), attach the bottom of the arm post (#1) to the shank (#2). Install the bolt in the bottom hole. (See Figure 1-B) - Insert the bolt that is connected to the main body through the top hole of the shank and secure it with the provided clip (#6). (See Figure 1-C) 3. Insert the Bike Rack Shank into the Vehicle Receiver Tube: - Insert the bike rack shank (#2) into the vehicle's 2" receiver tube. - Secure it with a 1/2" hex head bolt, flat washer, star washer, and clip (#5). 4. Tilt the Bike Rack for Rear Cargo Access: - At the base, remove the clip from the upper bolt holding the bike rack in the vertical position. - Remove the bolt and tilt the rack away from the vehicle to access the rear cargo area. 5. Fold the Bike Rack Arms: - At the top, pull the lynch pin that secures the arms in the outward position. - Fold the bike rack arms down to the transport position and replace the lynch pin. 6. Install the Bikes: - Install the bikes on the rack and secure them with the provided rubber bike arm straps (#3). - Be sure to secure the cross post and seat post to the rack. - When towing more than one bike, alternate the directions the bikes are facing on the rack (first bike faces right, second bike faces left, and so on). ### Parts List: - Arm Post: 1 piece - Shank (2"): 1 piece - Rubber Arm Straps (#3): 15 pieces - Hex Head Bolt Kit (#4): 1 kit (includes bolt, two washers, nut) - Anti-Rattle Bolt and Clip (#5): 1 piece - Clip (#6): 1 piece - Wrench Set (19mm): 1 set - Allen Wrench Set (8mm): 1 set ### Safety Notes: - Towing Capacity: Never exceed your vehicle manufacturer's recommended towing capacity. - Check Straps for Wear: Periodically check the straps for wear and replace them if necessary. - Not for Off-Road Use: This product is not intended for off-road use, tandems, or recumbents. - No Installation on Towed Vehicles: Do not install on a trailer or other towed vehicle. ### Maintenance: - Regularly check the tightness of all bolts and knobs to ensure the rack remains securely fastened. ### Warnings: - Towing Capacity: Never exceed your vehicle’s towing capacity or the trailer hitch capacity. - Secure the Bikes: Always make sure the bikes are securely strapped to the rack and that no parts are left unsecured.
Installation Instructions for Hitch-Mounted Premium Bike Rack
Part Numbers:
- 18065
Tools Required:
- 8mm Allen Wrench
- 19mm Wrench
Step-by-Step Instructions:
-
Install the Arm Post:
- Raise the arms on the arm post (#1) to the upright position and secure with the attached lynch pin. (See Figure 1-A)
-
Attach the Arm Post to the Shank:
- Using the hex head bolt kit (#4), attach the bottom of the arm post (#1) to the shank (#2). Install the bolt in the bottom hole. (See Figure 1-B)
- Insert the bolt that is connected to the main body through the top hole of the shank and secure it with the provided clip (#6). (See Figure 1-C)
-

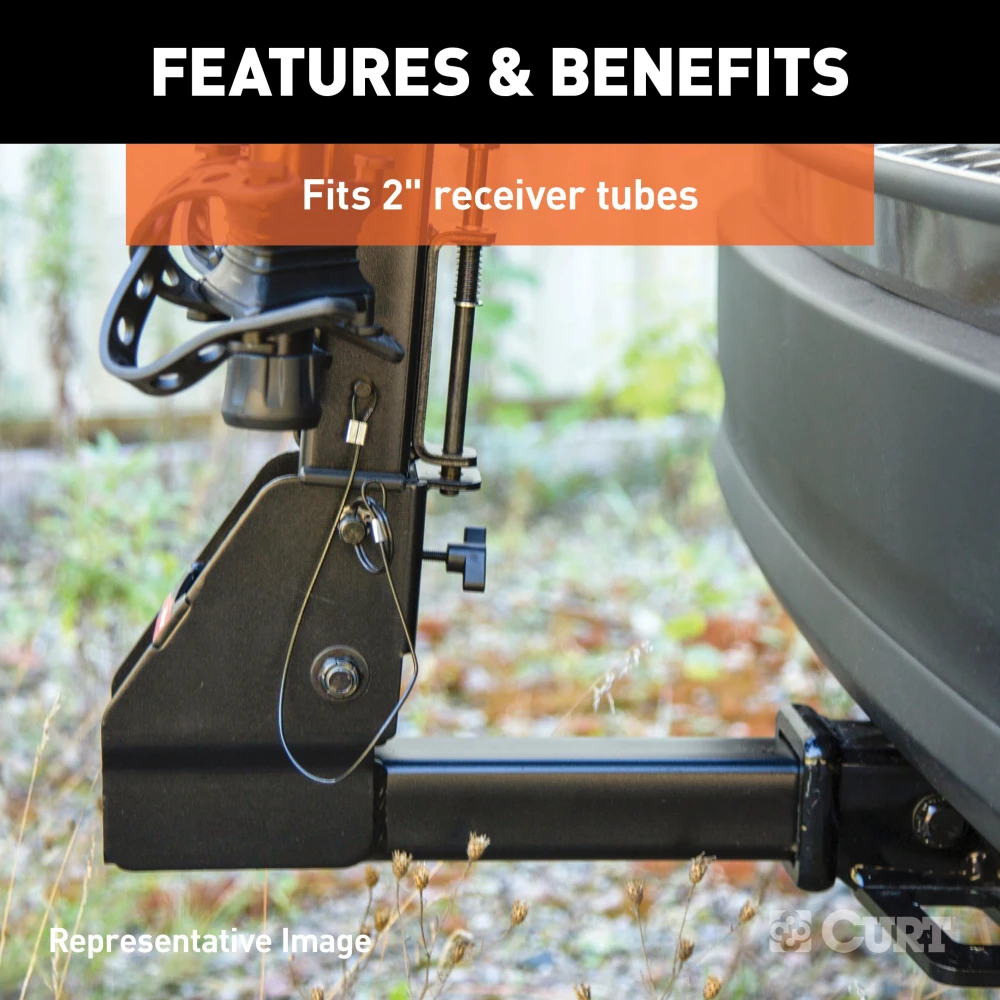

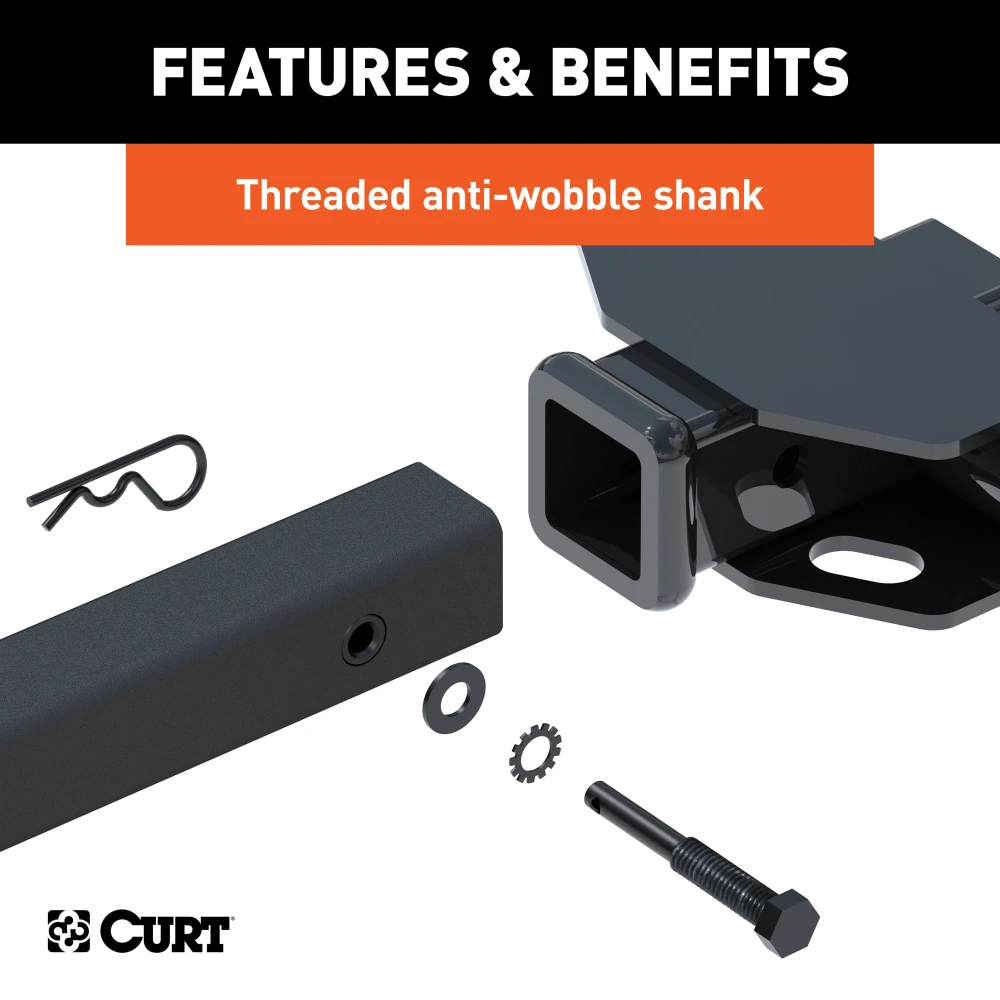

Insert the Bike Rack Shank into the Vehicle Receiver Tube:
- Insert the bike rack shank (#2) into the vehicle's 2" receiver tube.
- Secure it with a 1/2" hex head bolt, flat washer, star washer, and clip (#5).
-

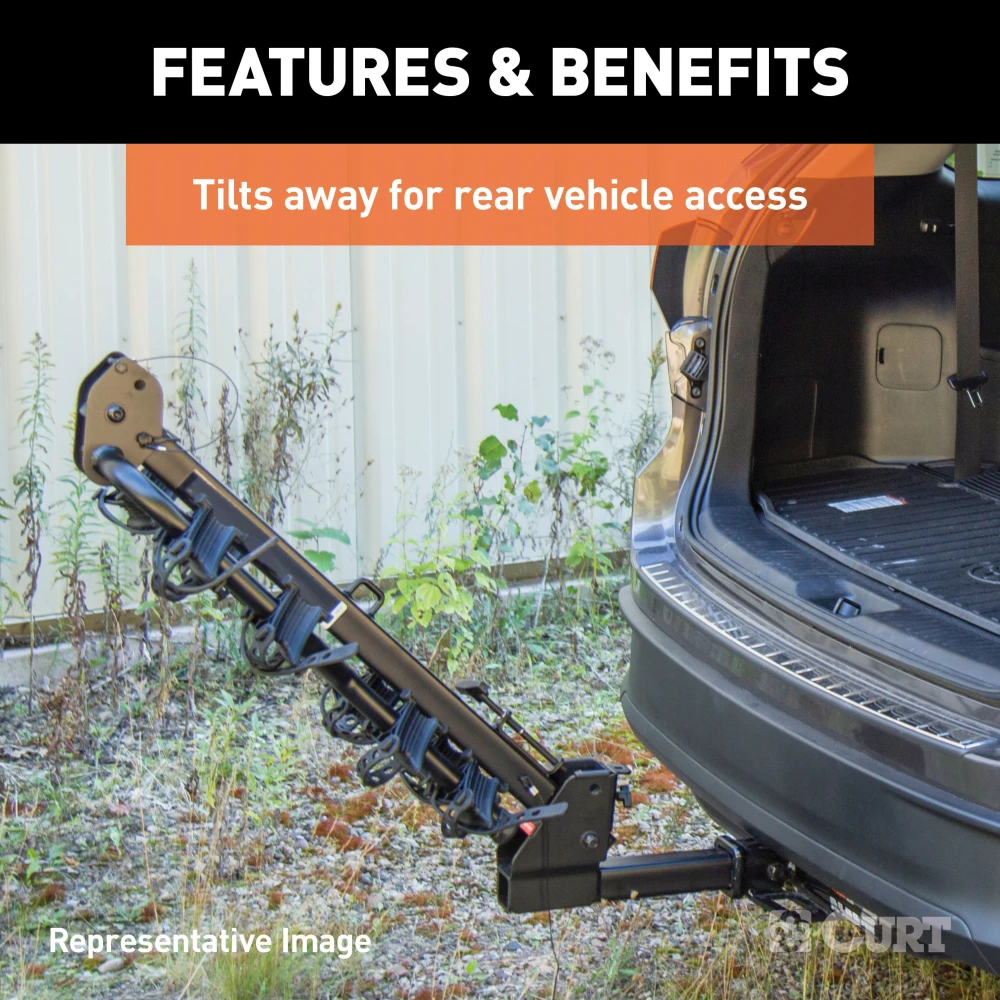

Tilt the Bike Rack for Rear Cargo Access:
- At the base, remove the clip from the upper bolt holding the bike rack in the vertical position.
- Remove the bolt and tilt the rack away from the vehicle to access the rear cargo area.
-

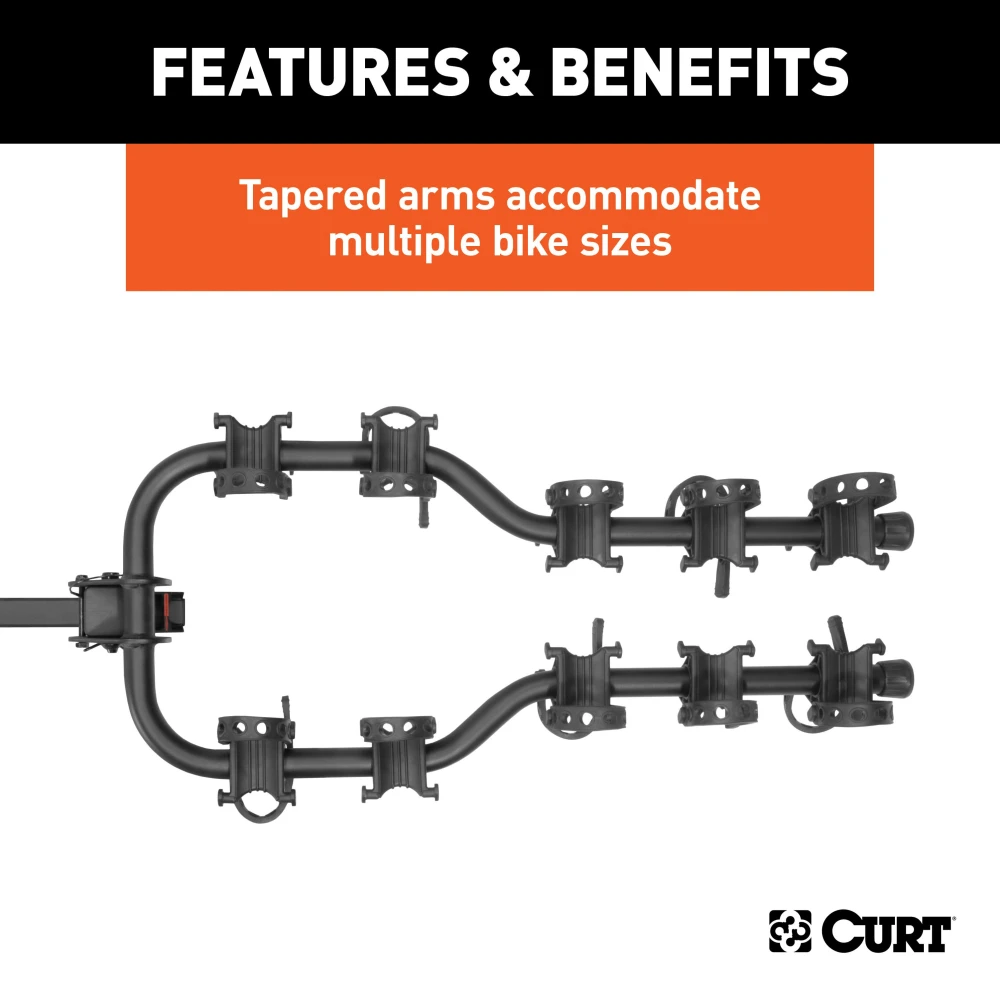

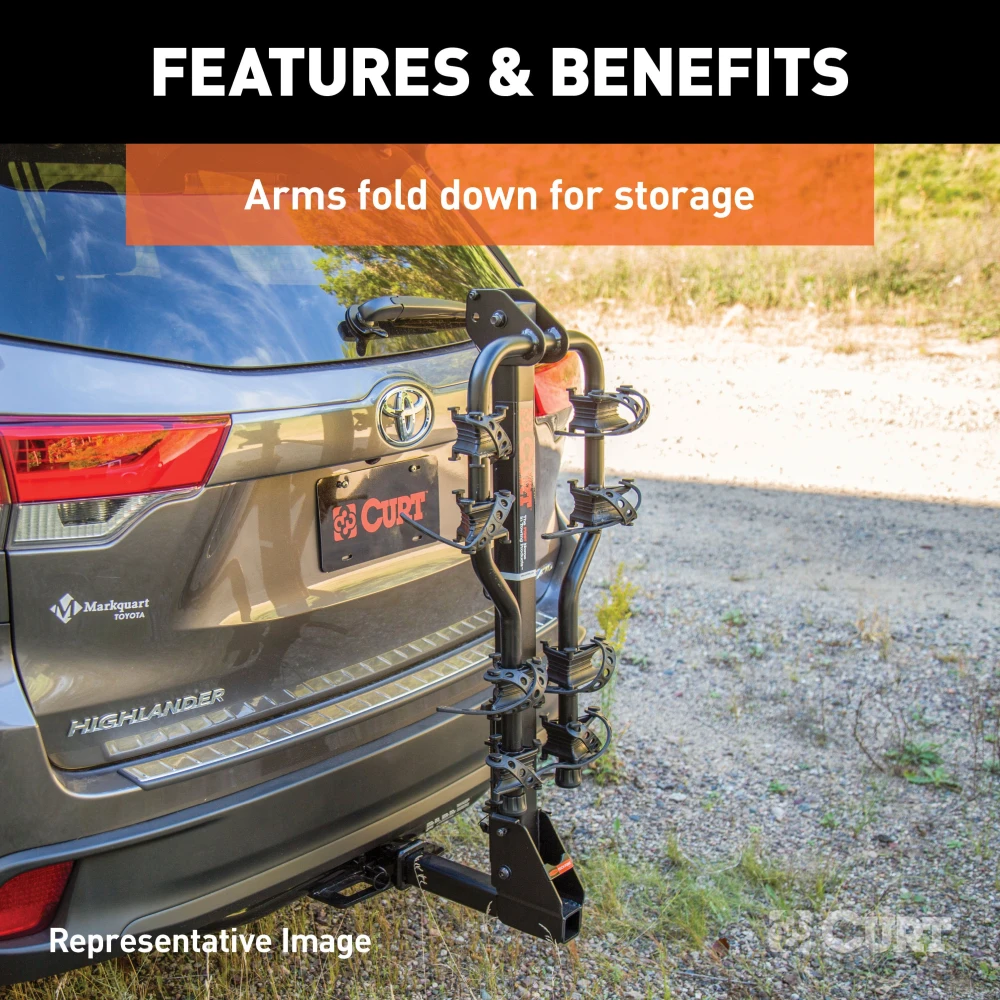

Fold the Bike Rack Arms:
- At the top, pull the lynch pin that secures the arms in the outward position.
- Fold the bike rack arms down to the transport position and replace the lynch pin.
-

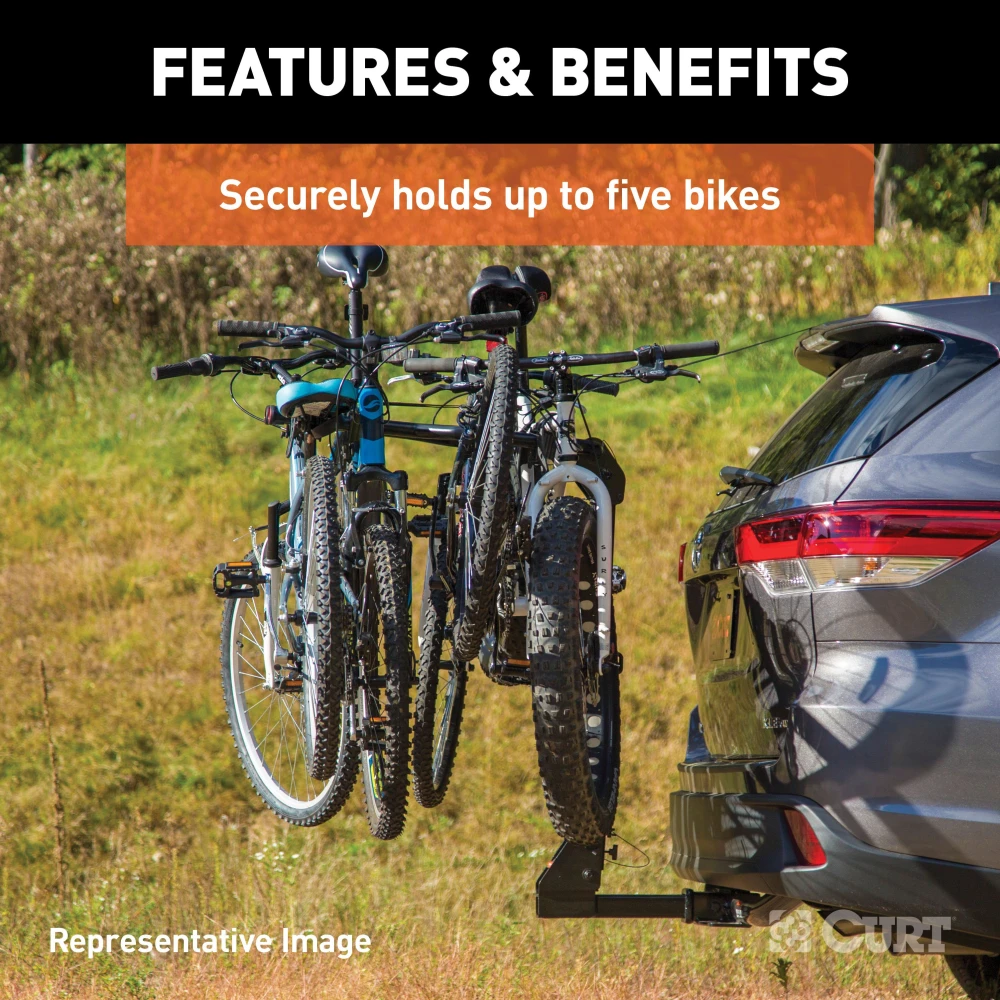

Install the Bikes:

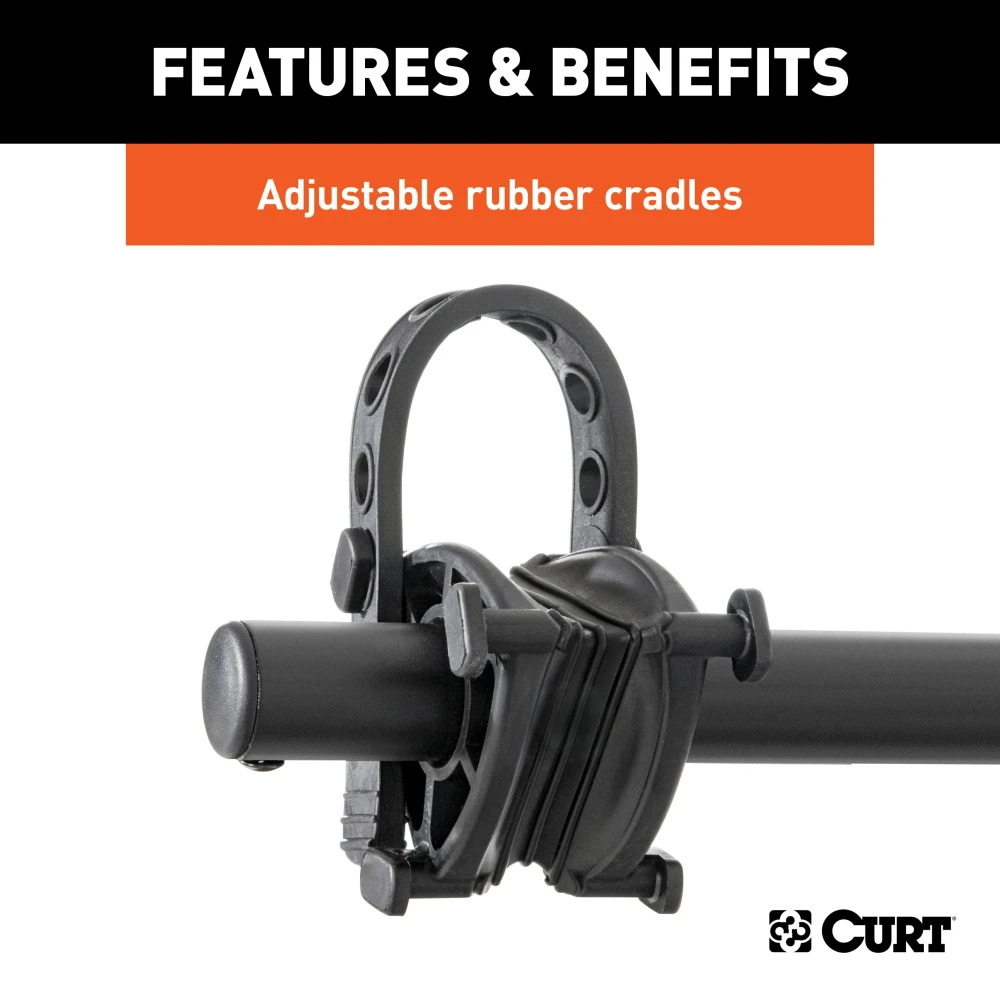

- Install the bikes on the rack and secure them with the provided rubber bike arm straps (#3).
- Be sure to secure the cross post and seat post to the rack.
- When towing more than one bike, alternate the directions the bikes are facing on the rack (first bike faces right, second bike faces left, and so on).
Parts List:
- Arm Post: 1 piece
- Shank (2"): 1 piece
- Rubber Arm Straps (#3): 15 pieces
- Hex Head Bolt Kit (#4): 1 kit (includes bolt, two washers, nut)
- Anti-Rattle Bolt and Clip (#5): 1 piece
- Clip (#6): 1 piece
- Wrench Set (19mm): 1 set
- Allen Wrench Set (8mm): 1 set
Safety Notes:
- Towing Capacity: Never exceed your vehicle manufacturer's recommended towing capacity.
- Check Straps for Wear: Periodically check the straps for wear and replace them if necessary.
- Not for Off-Road Use: This product is not intended for off-road use, tandems, or recumbents.
- No Installation on Towed Vehicles: Do not install on a trailer or other towed vehicle.
Maintenance:
- Regularly check the tightness of all bolts and knobs to ensure the rack remains securely fastened.
Warnings:
- Towing Capacity: Never exceed your vehicle’s towing capacity or the trailer hitch capacity.
- Secure the Bikes: Always make sure the bikes are securely strapped to the rack and that no parts are left unsecured.
Installation Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
