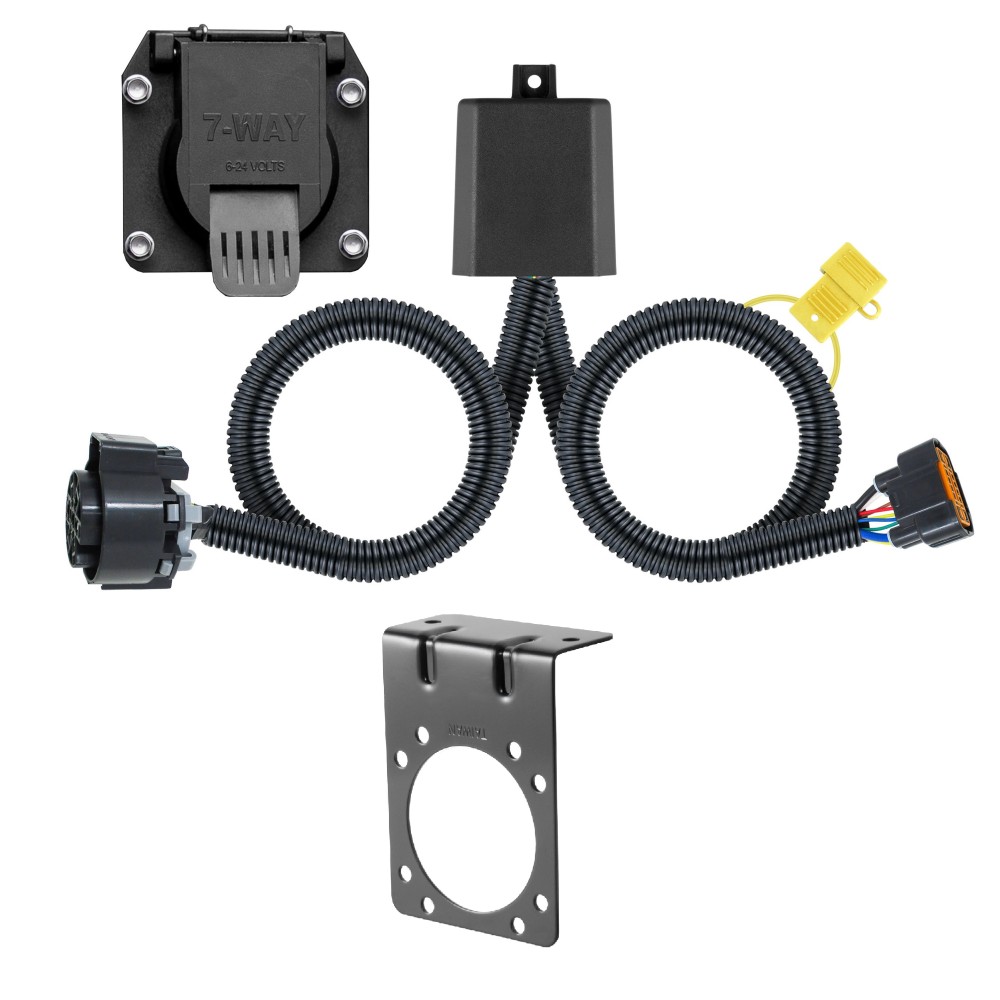

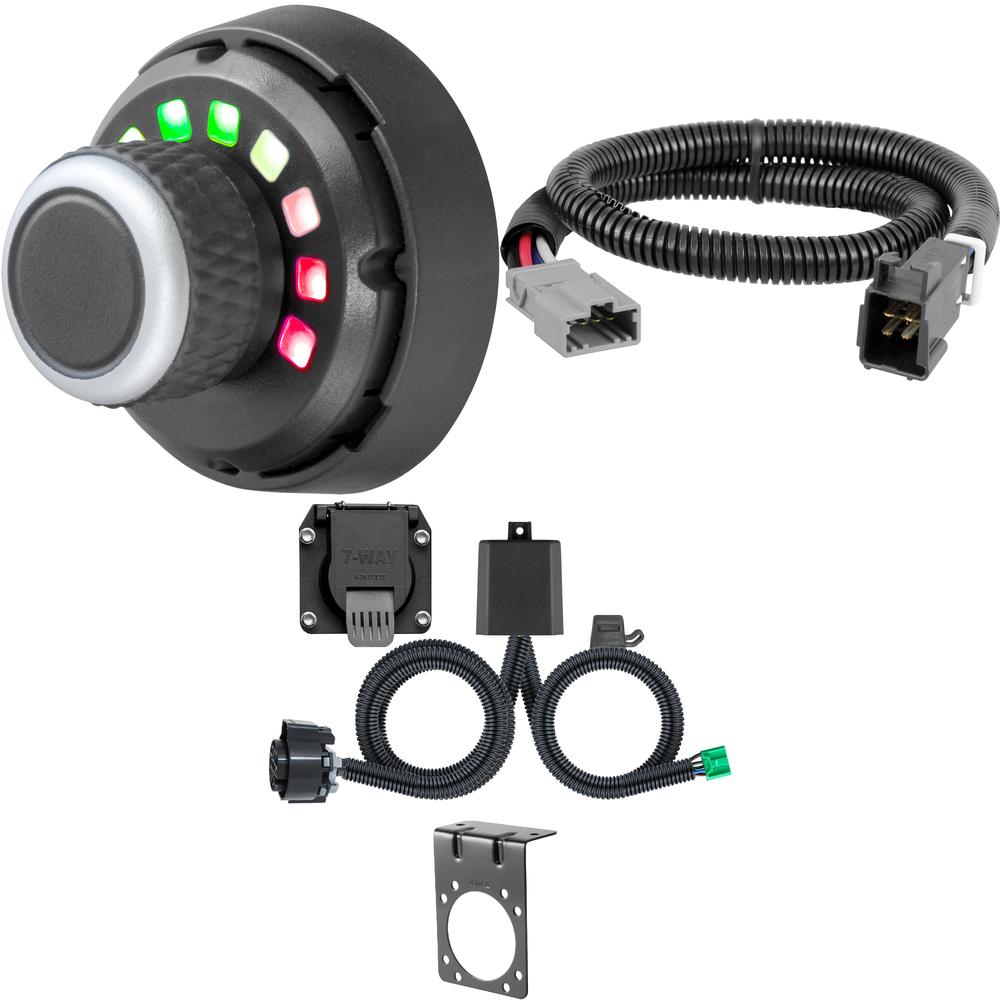

Curt Spectrum Electric Trailer Brake Control w/ 7-Way Wiring Kit For 23-25 Honda Pilot
Model: CU87HHConnector Mounting Bracket for 7-Way RV Blade (Black)
Spectrum Integrated Proportional Trailer Brake Controller
Trailer Brake Controller Harness
Installation Hardware (if required)
Installation Instructions (if required)
Installation Schematics & Diagrams (if required)
This Trailer Wiring Harness Fits The Following Vehicles:
- 2023 - 2025 Honda Pilot All Models

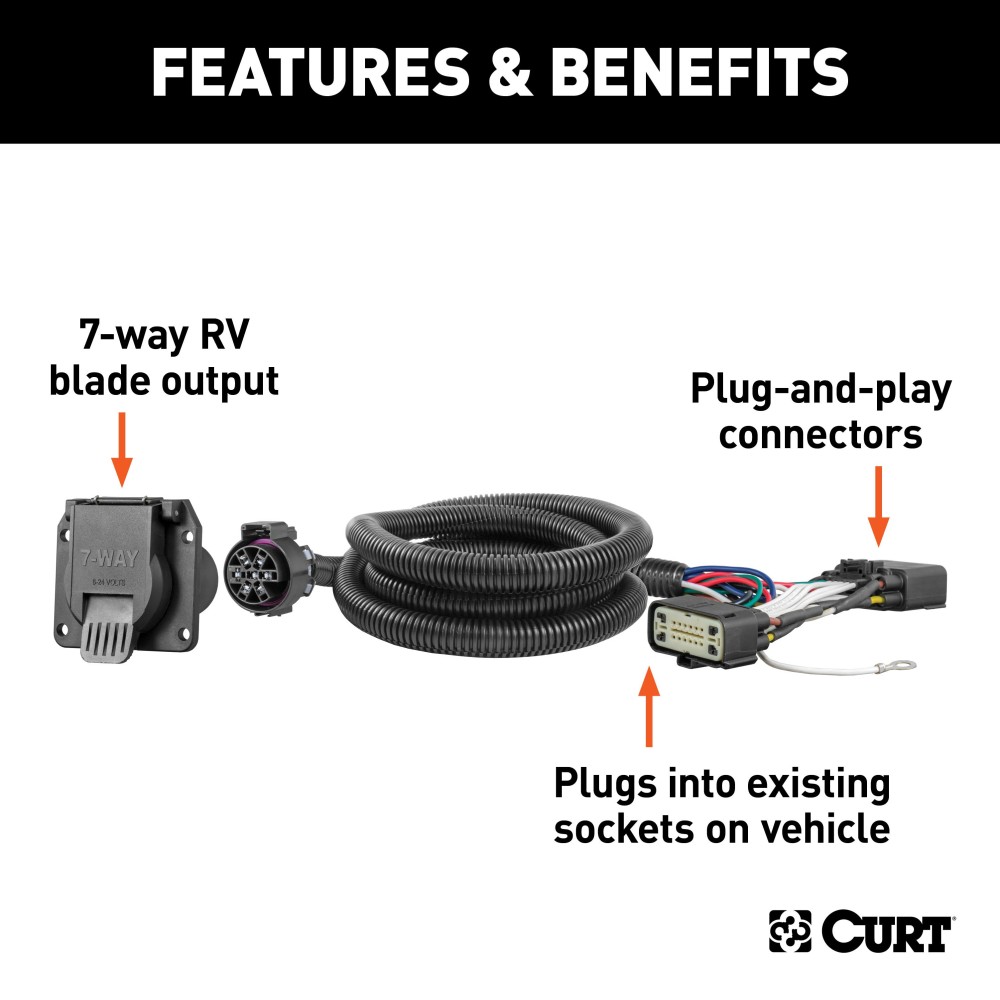

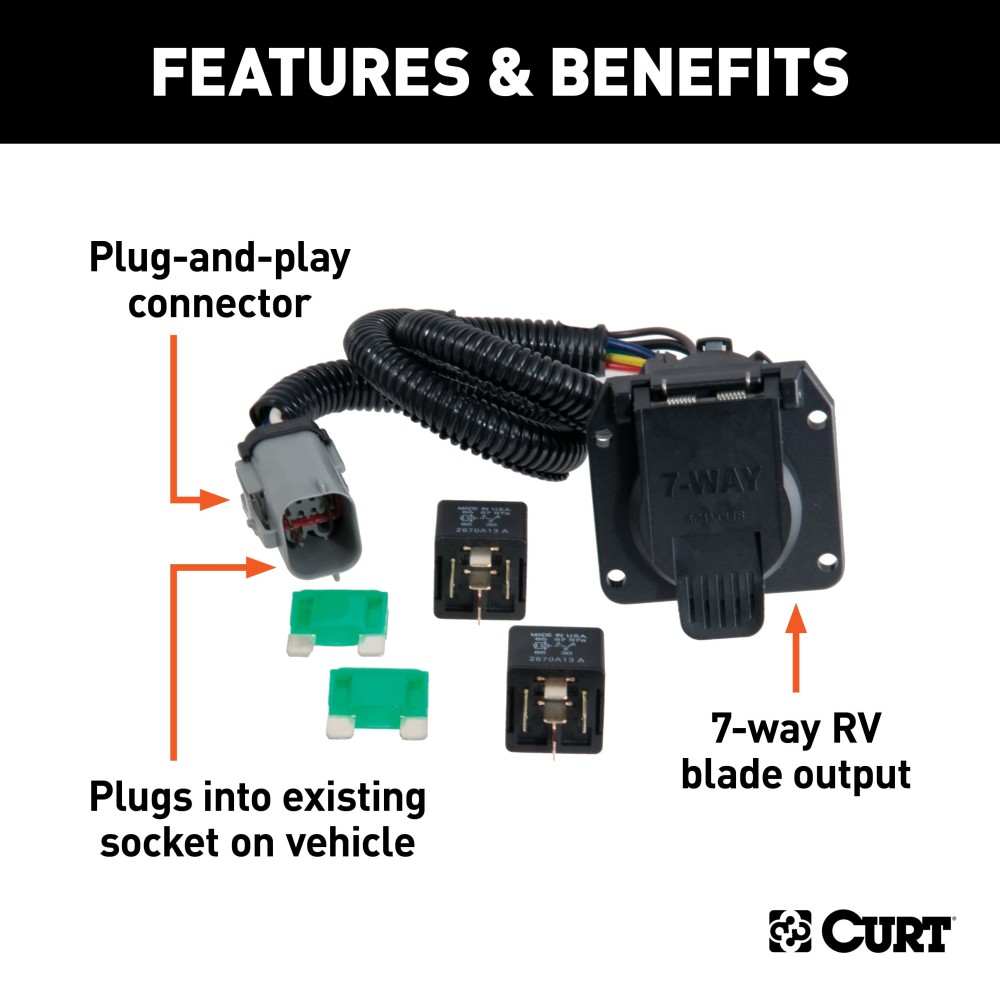

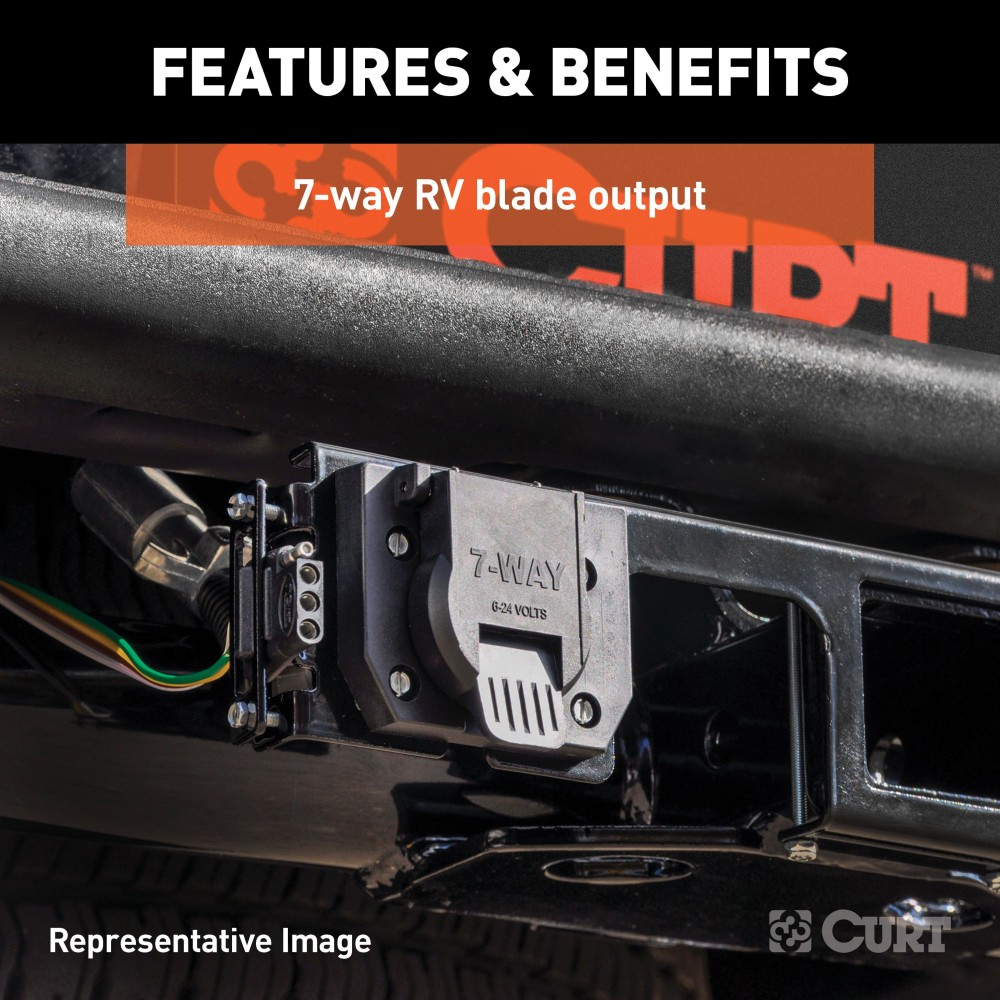

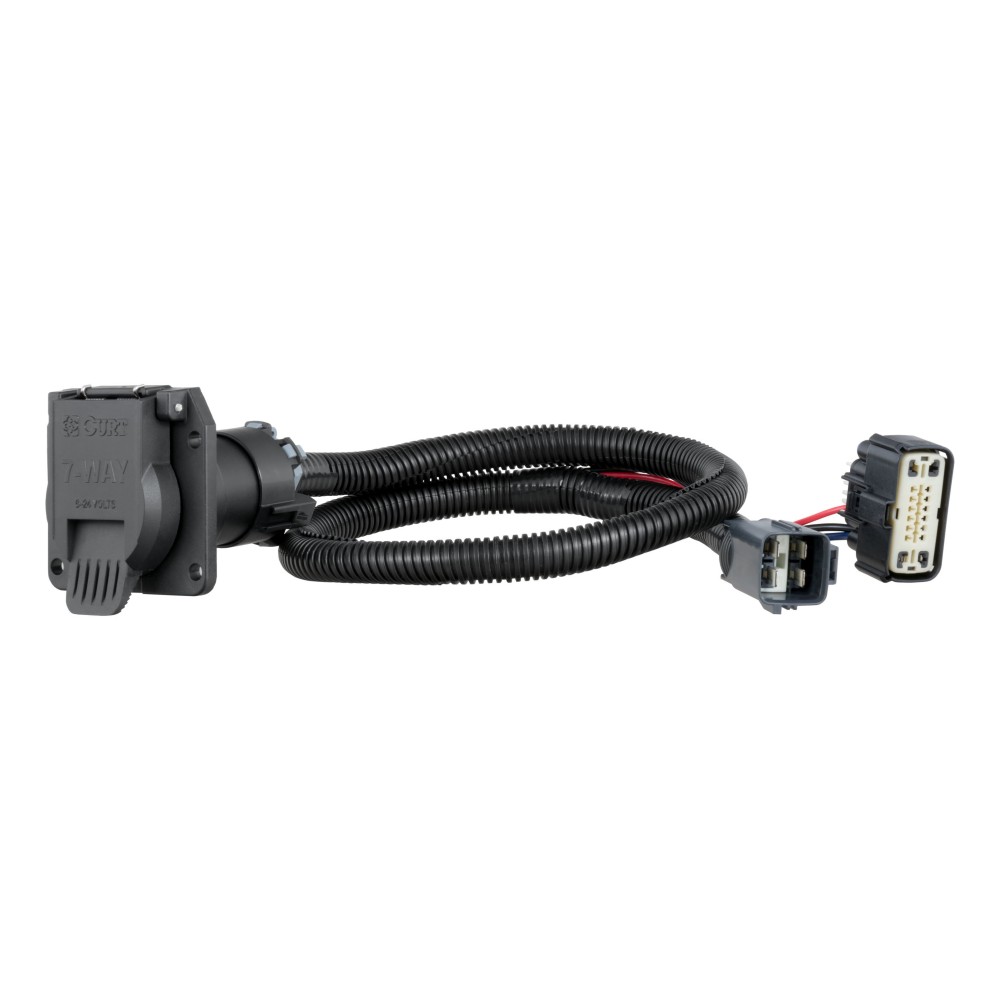

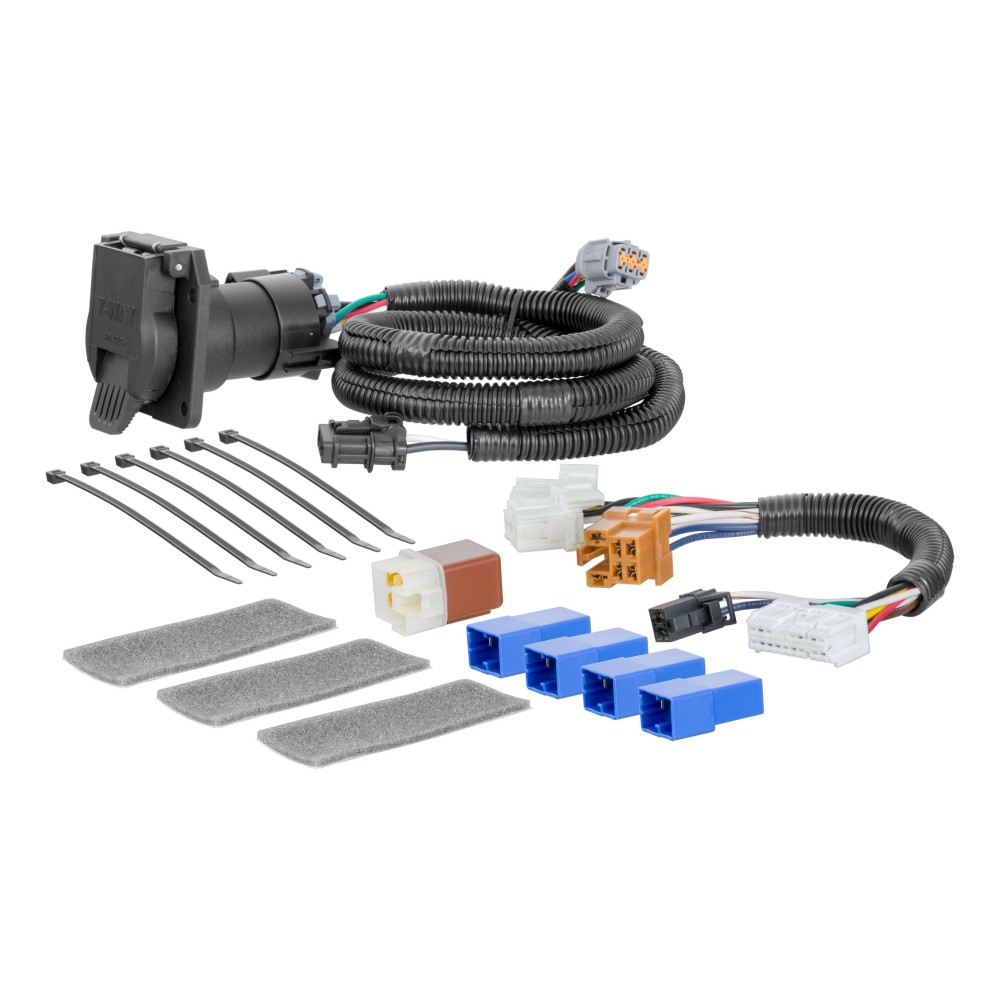

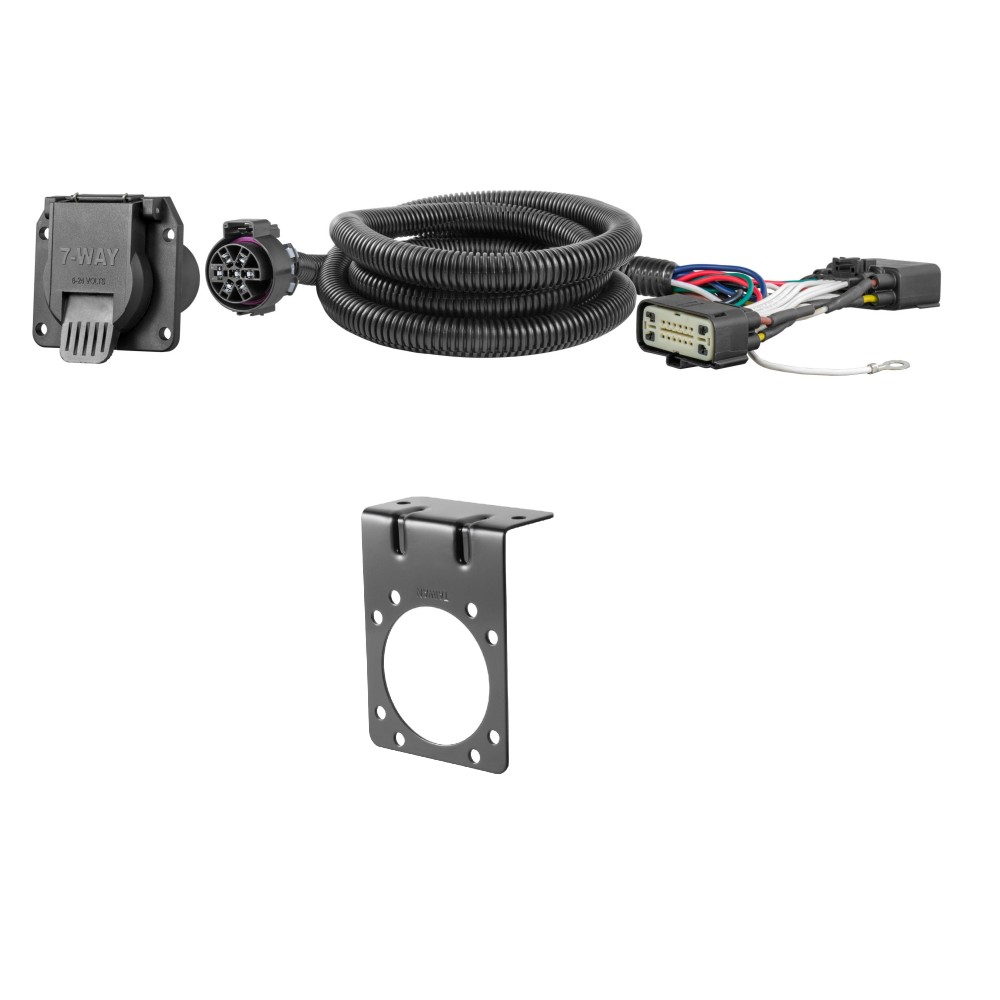

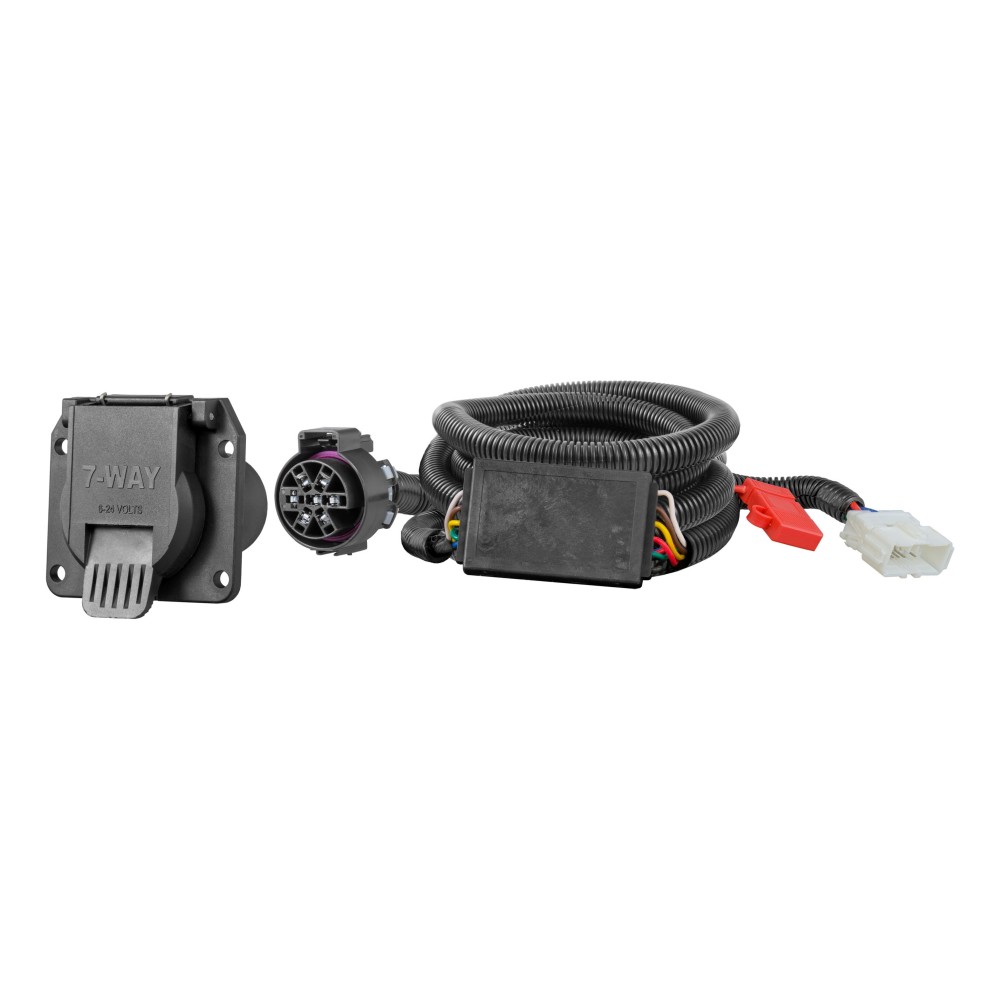

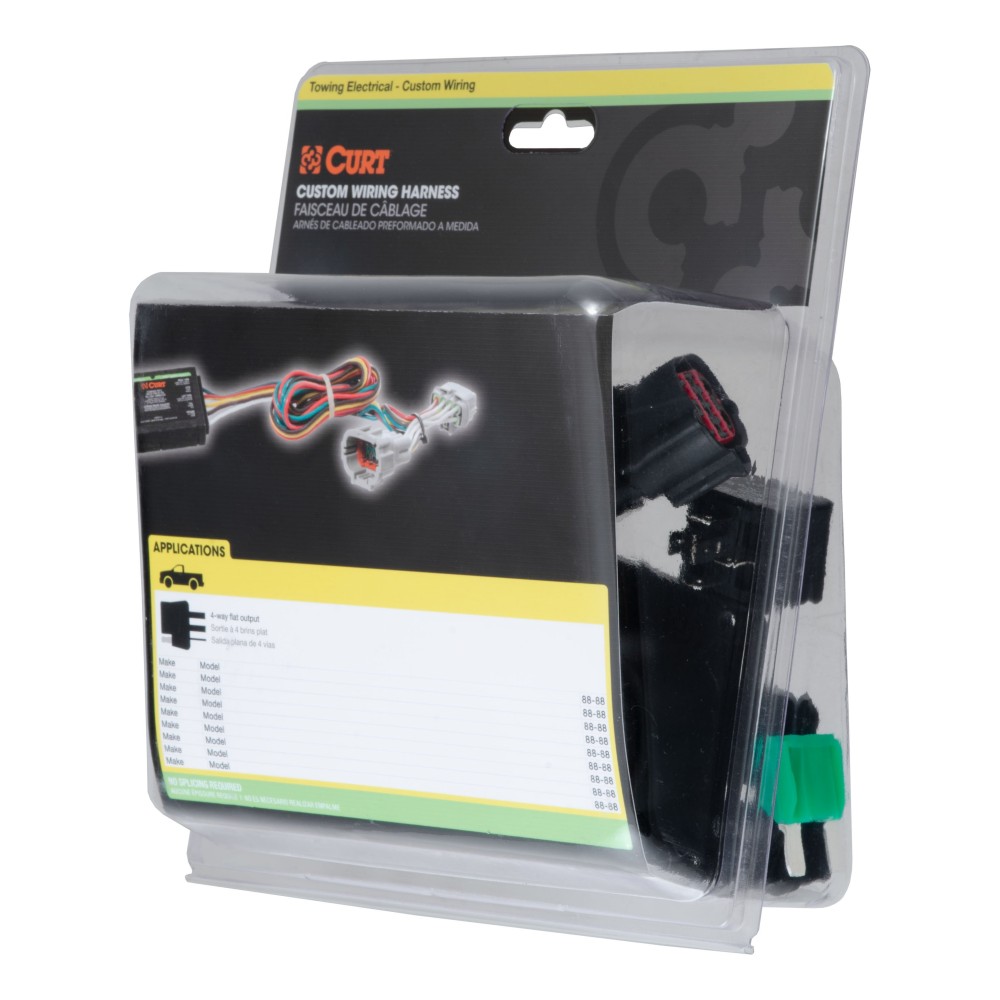

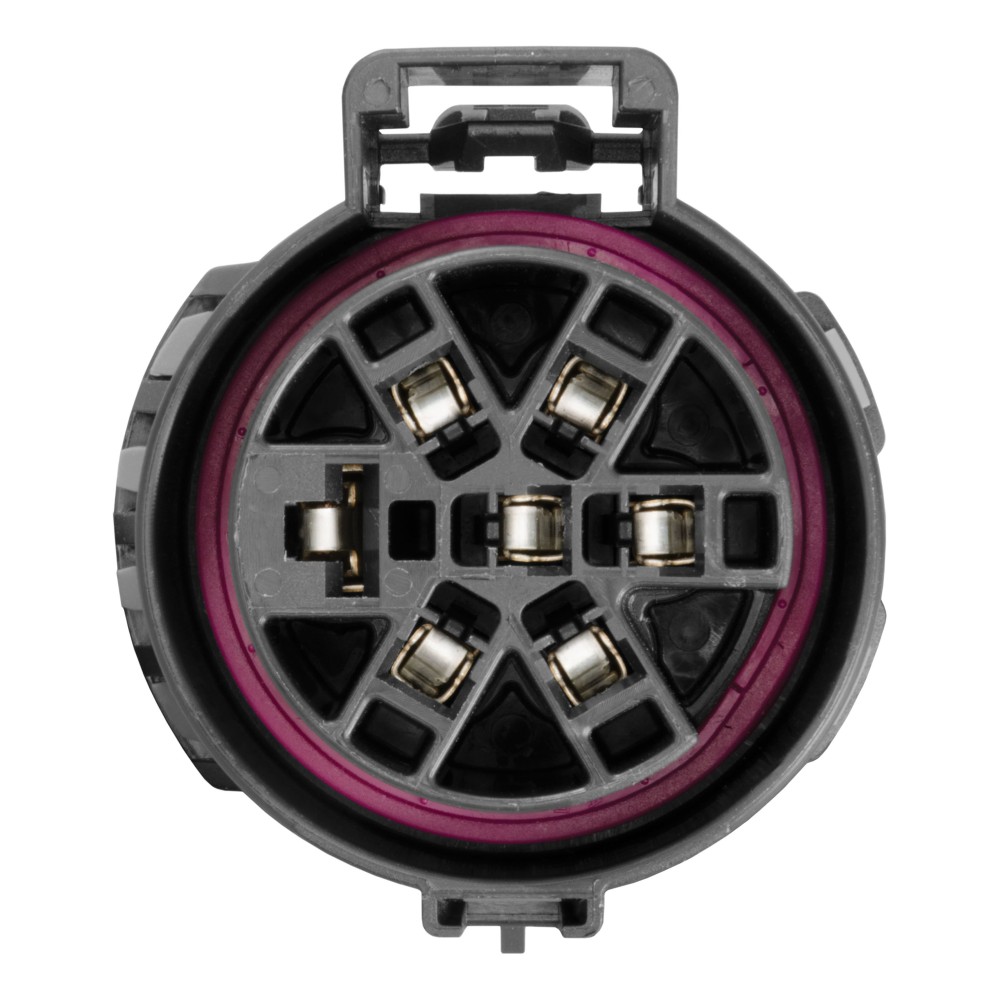

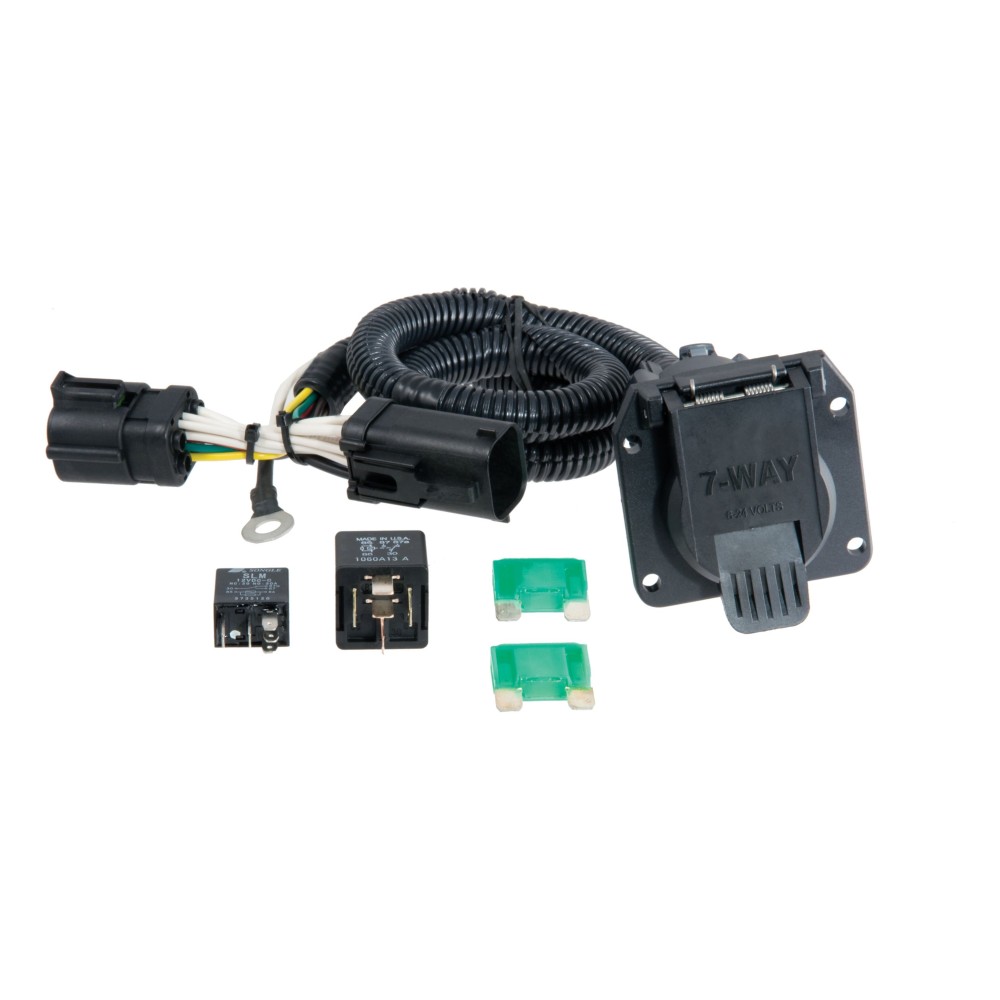

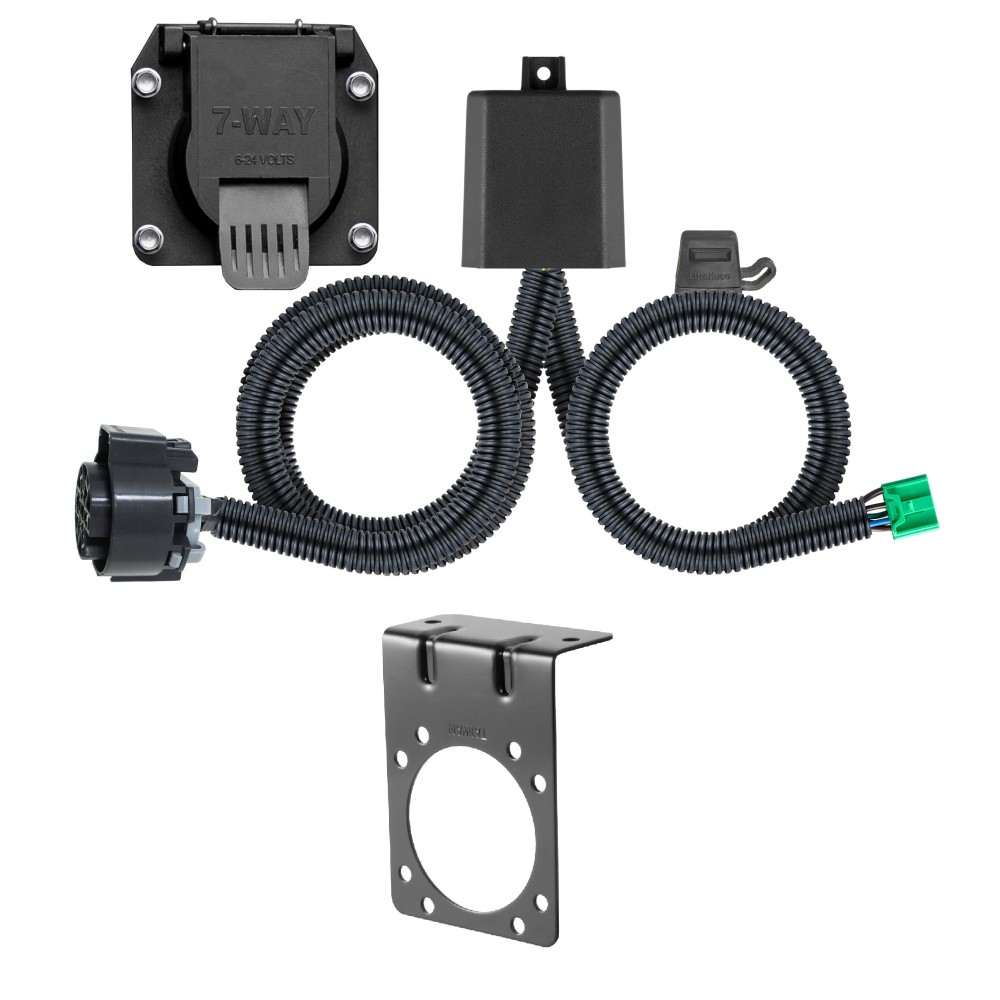

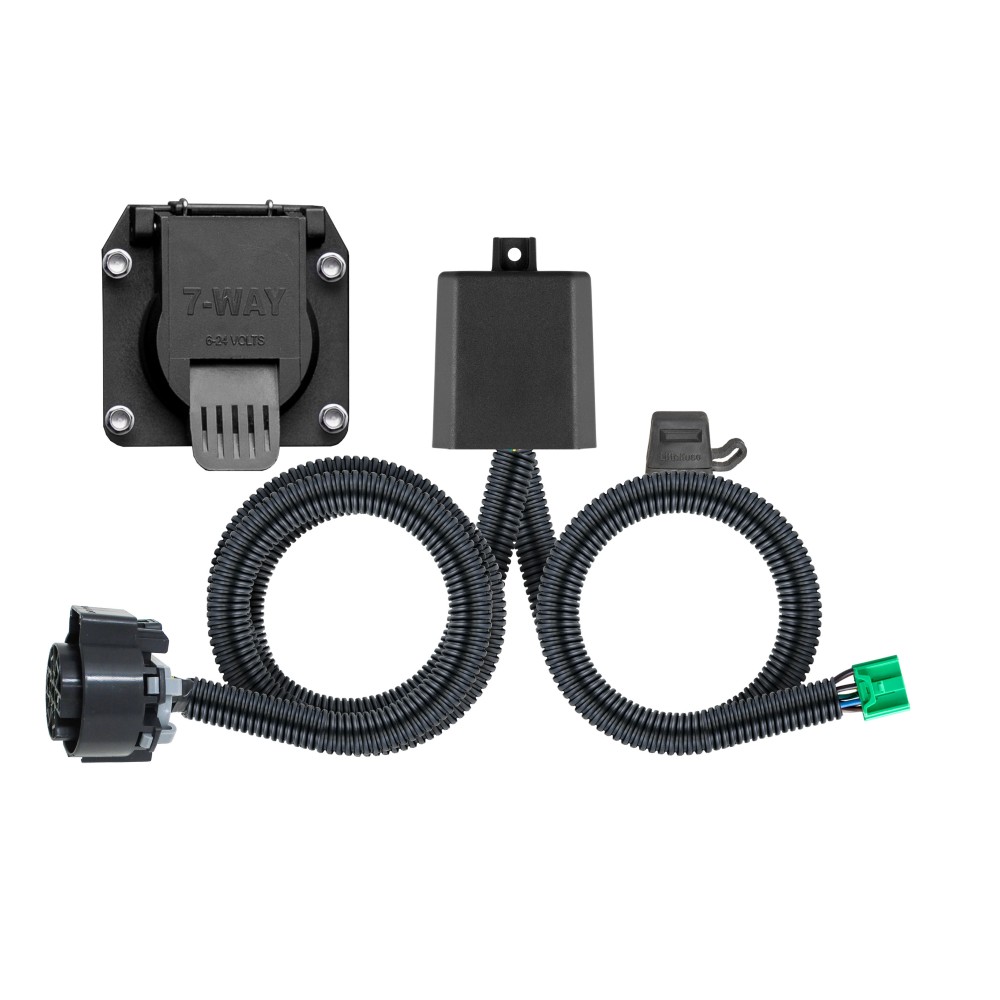

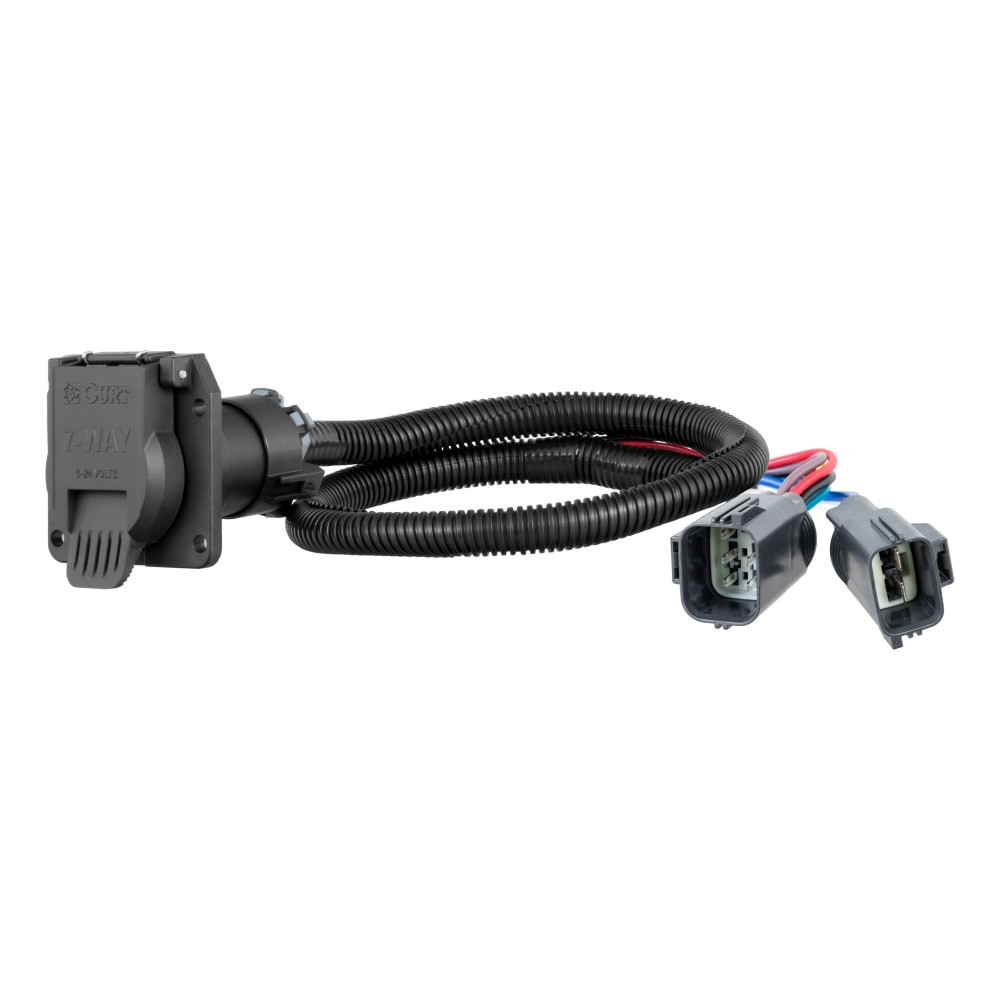

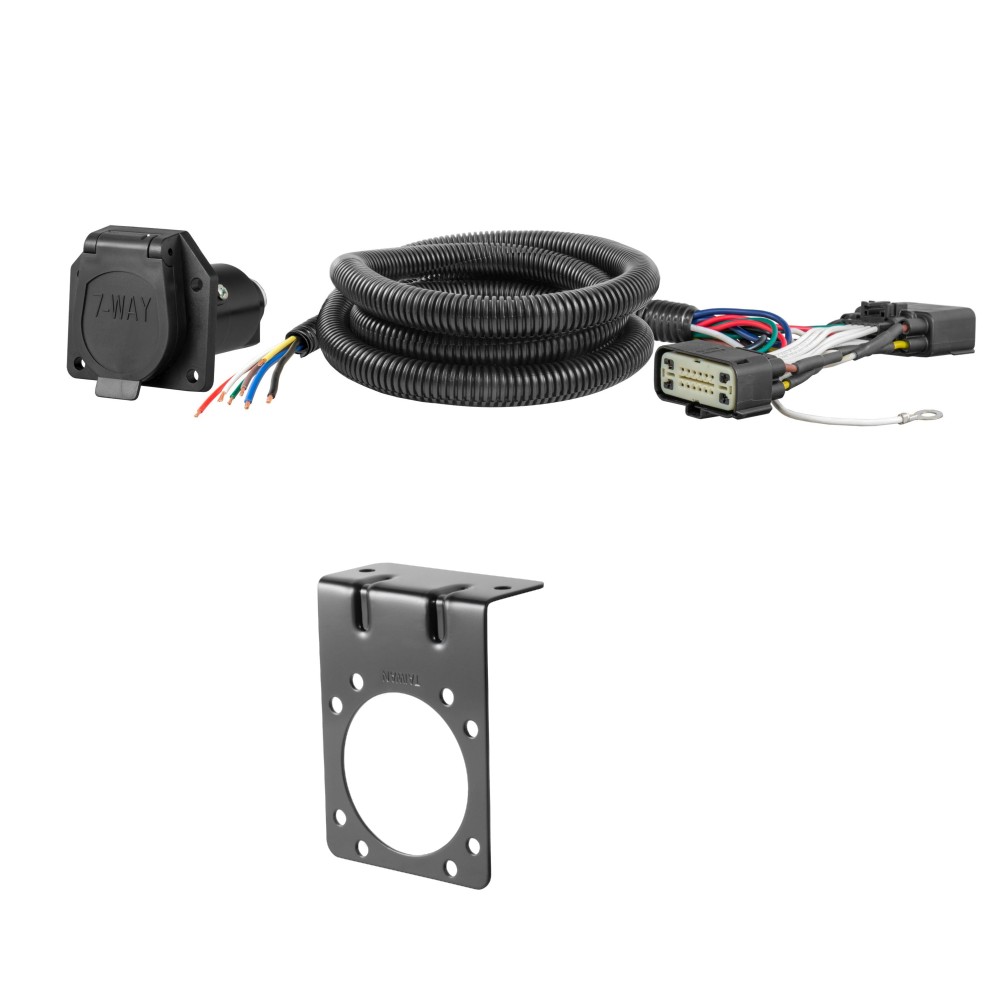

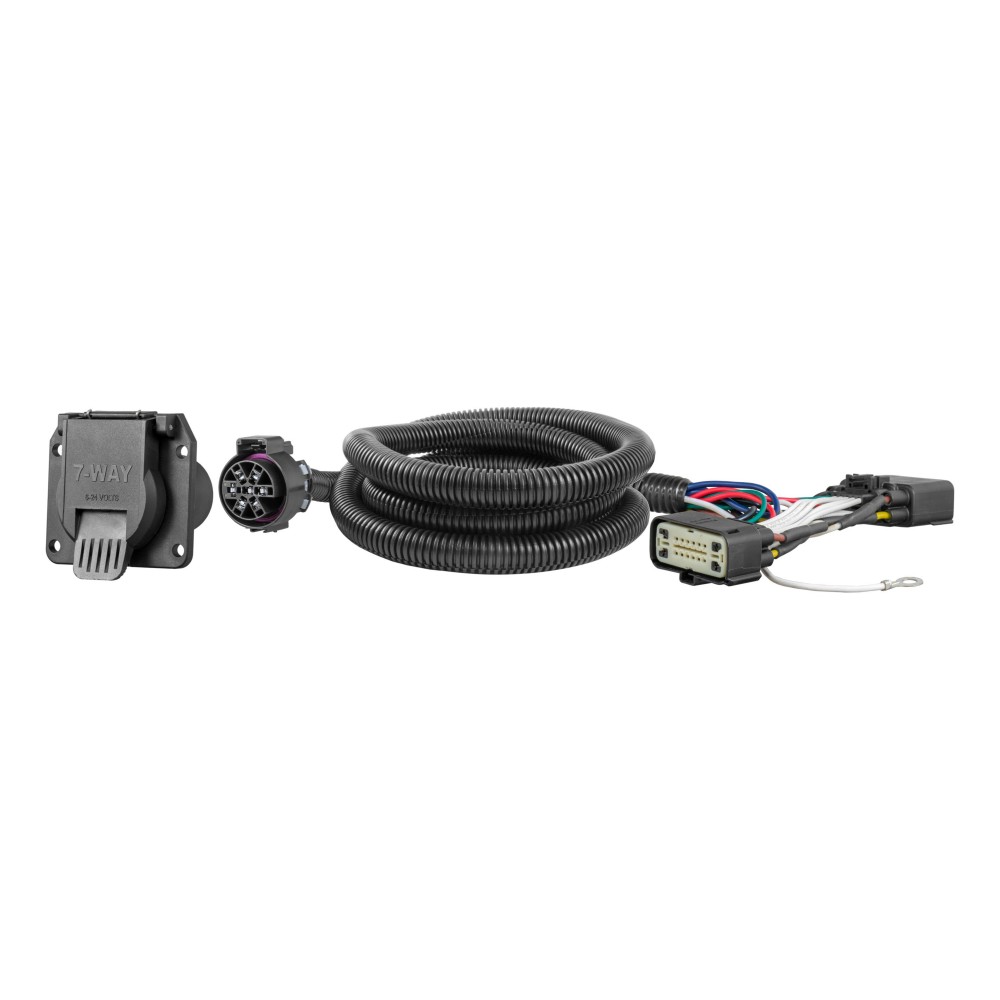

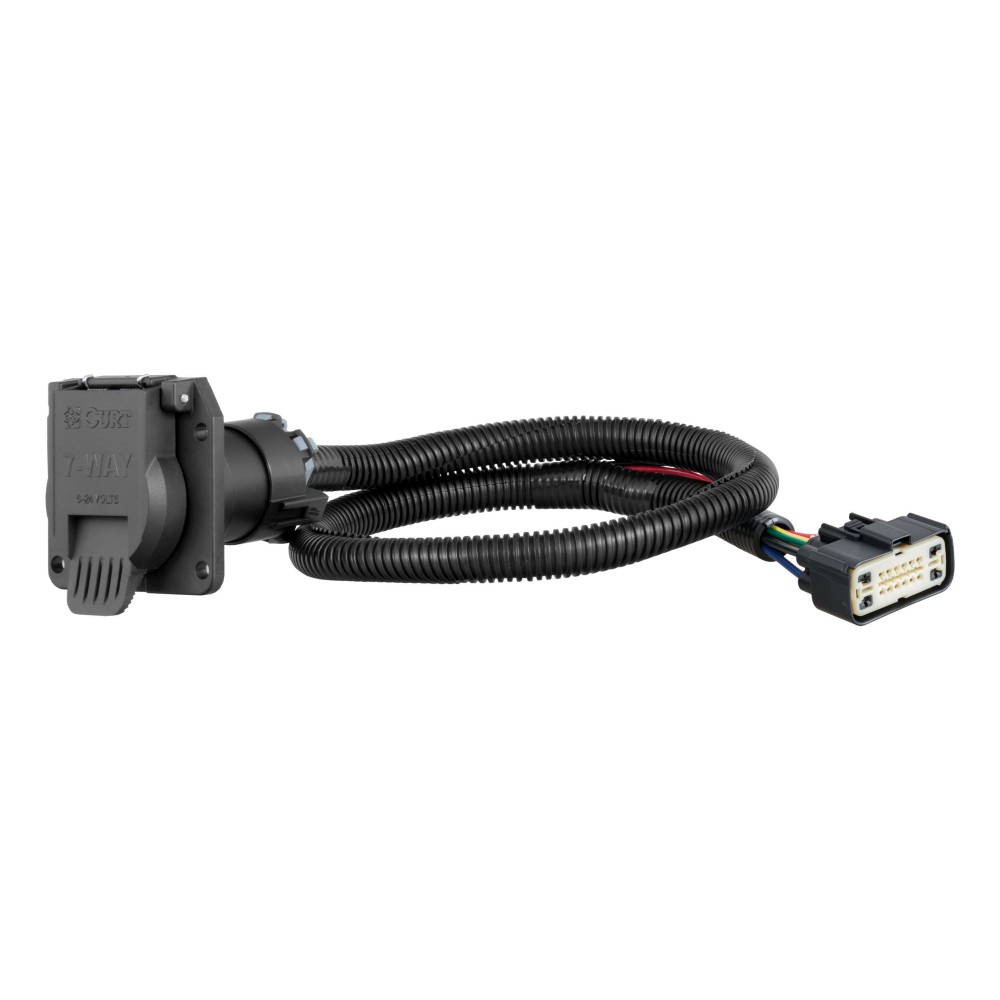

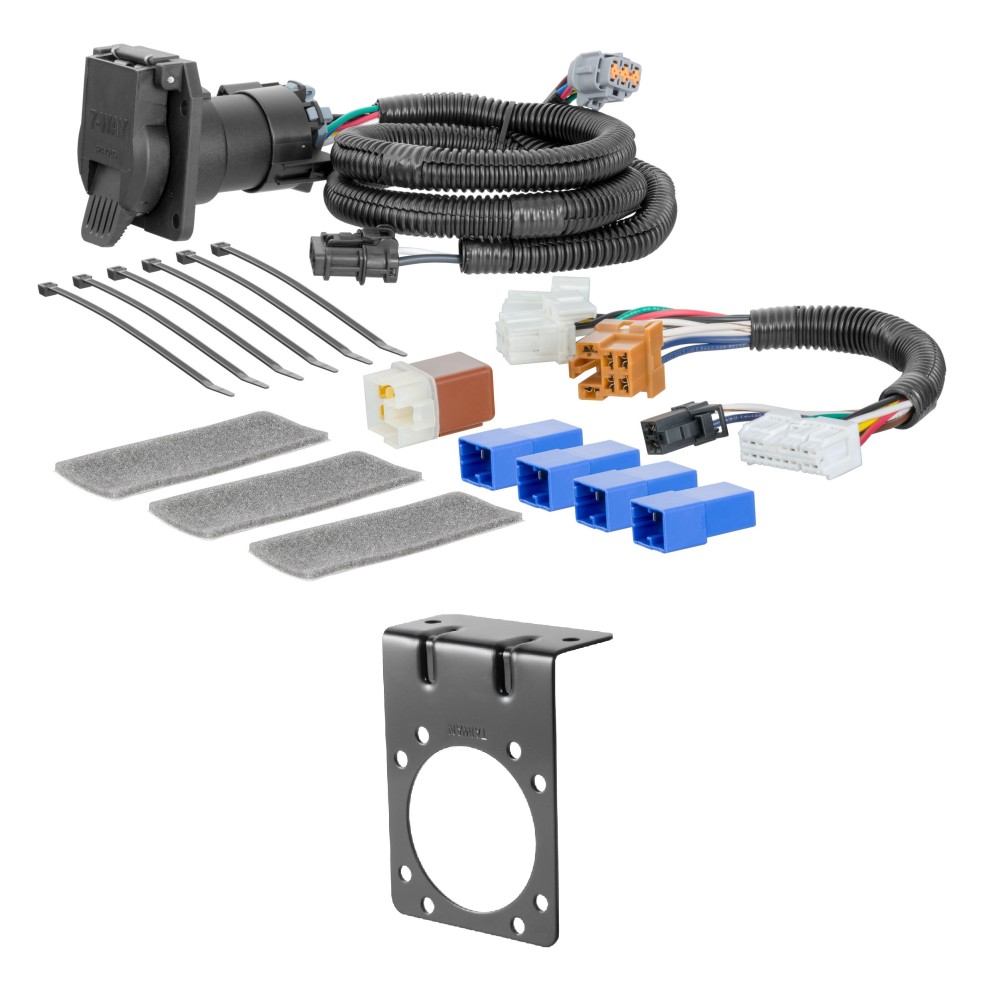

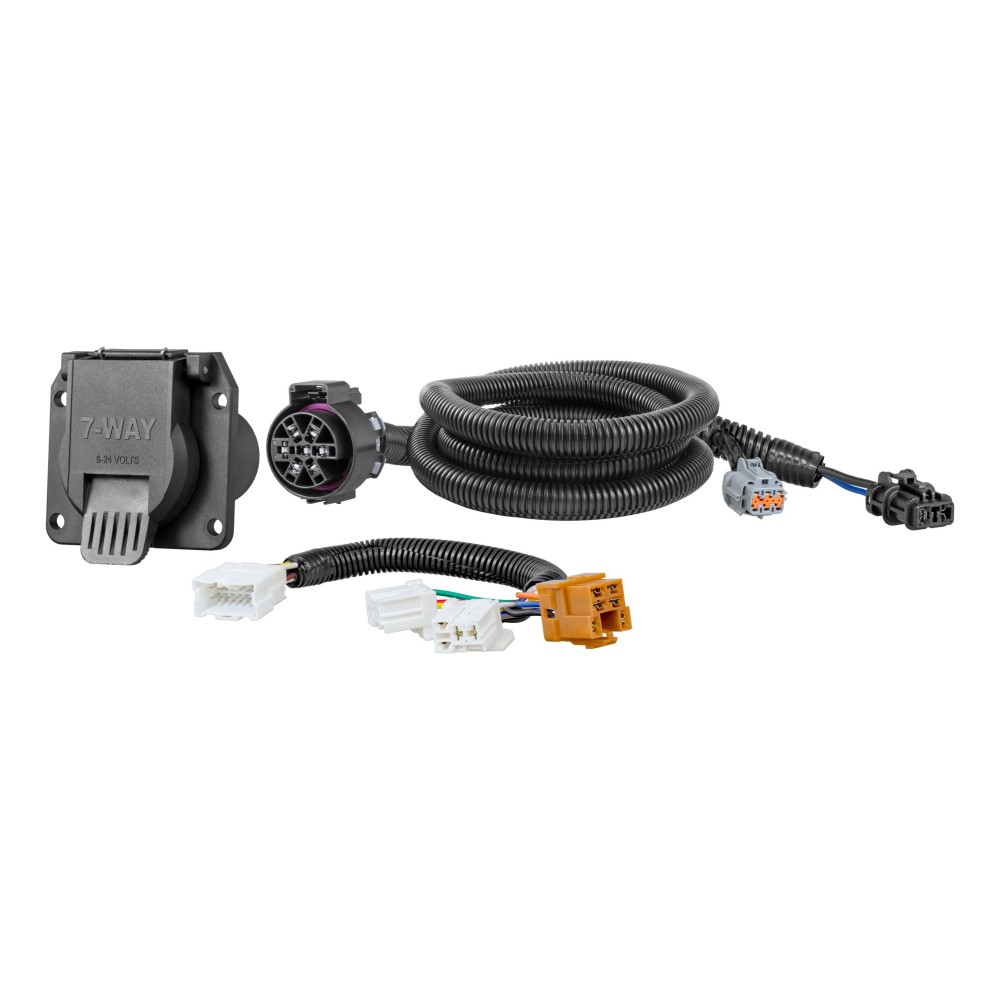

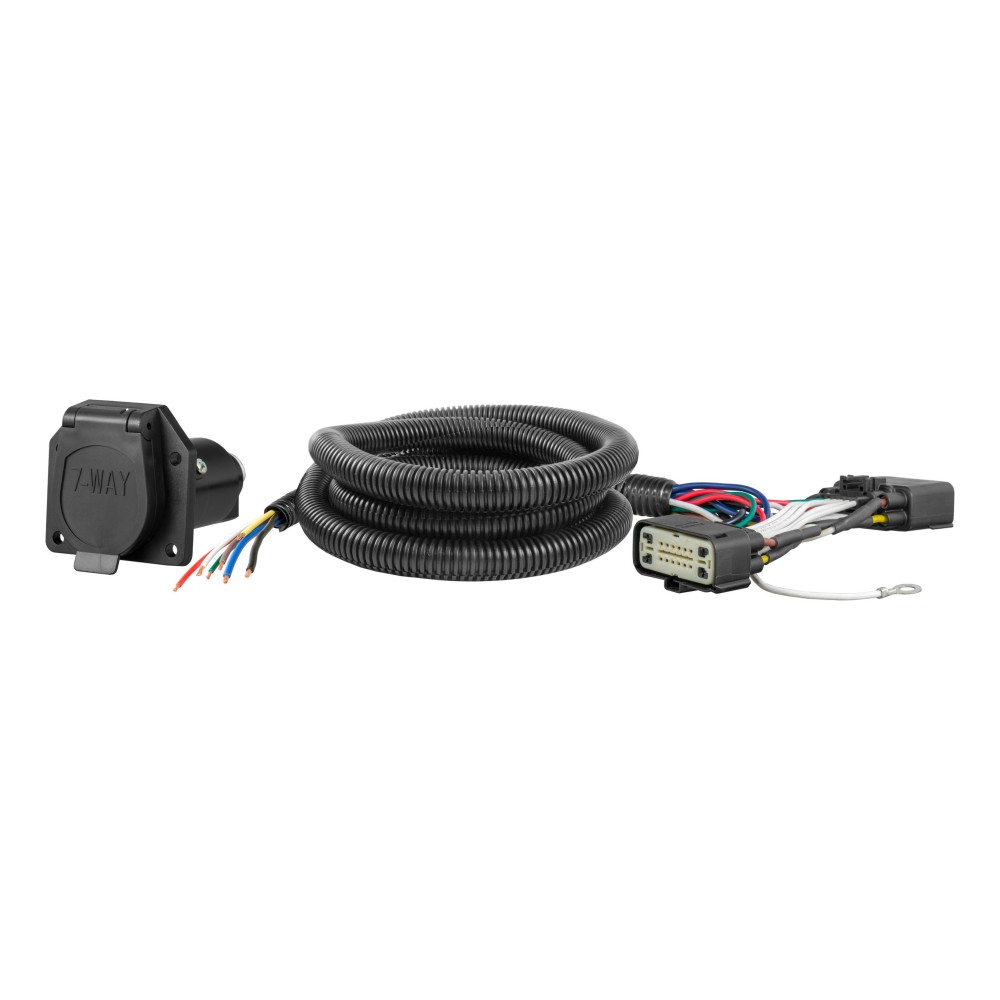

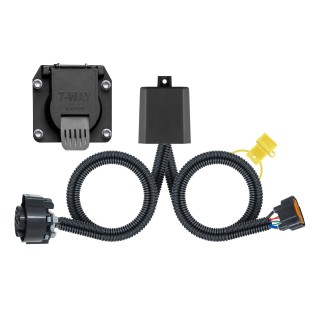

CURT 56518 Vehicle-Side Custom RV Blade 7-Pin Trailer Wiring Harness (QTY 1)
Manufactured by: Curt
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection.
This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Honda Pilot (see application info to verify fitment).
It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming.
It takes a solid connection and the right amount of power..
Features:

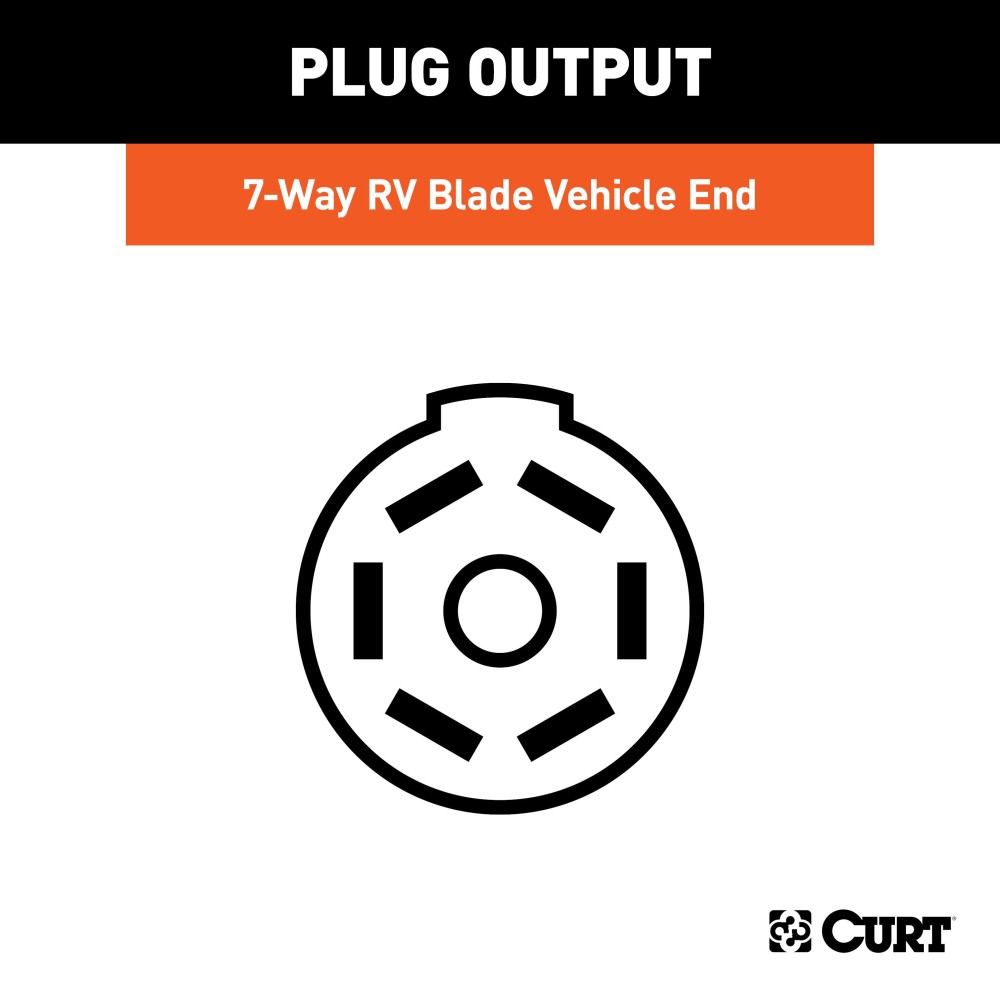

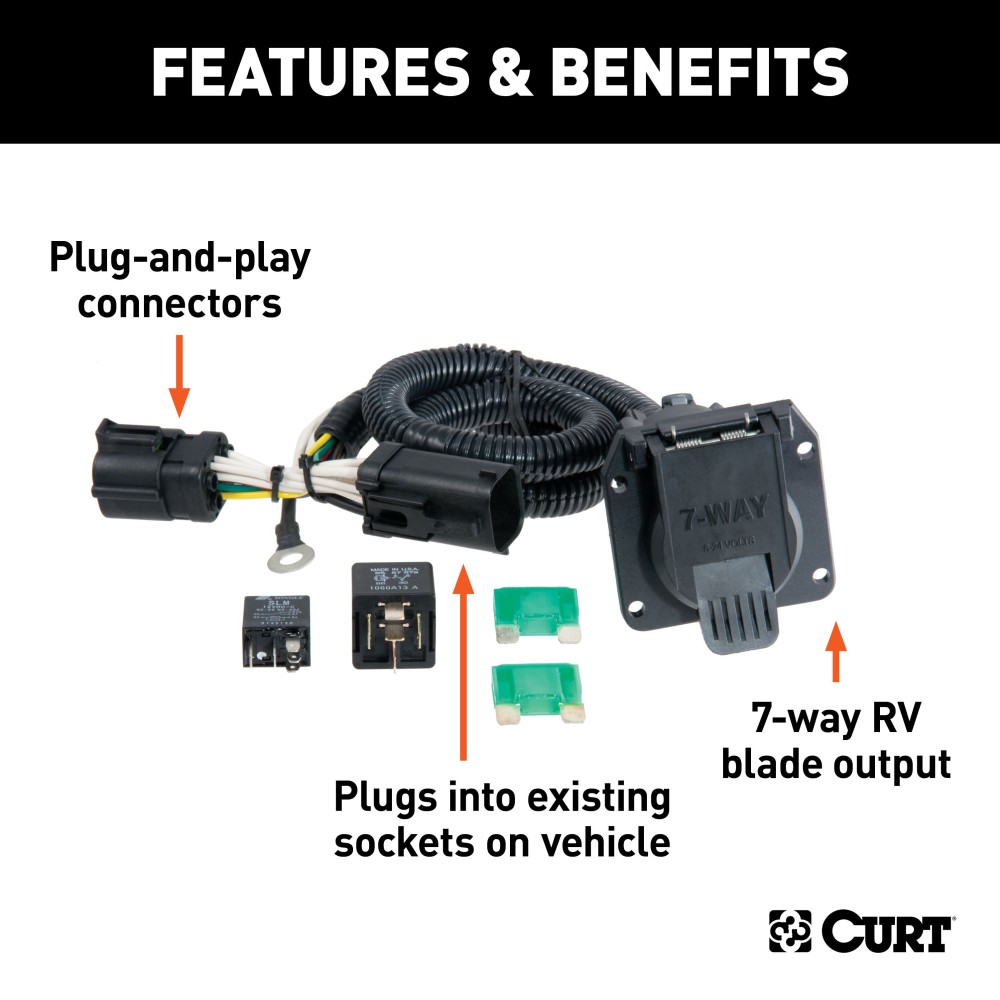

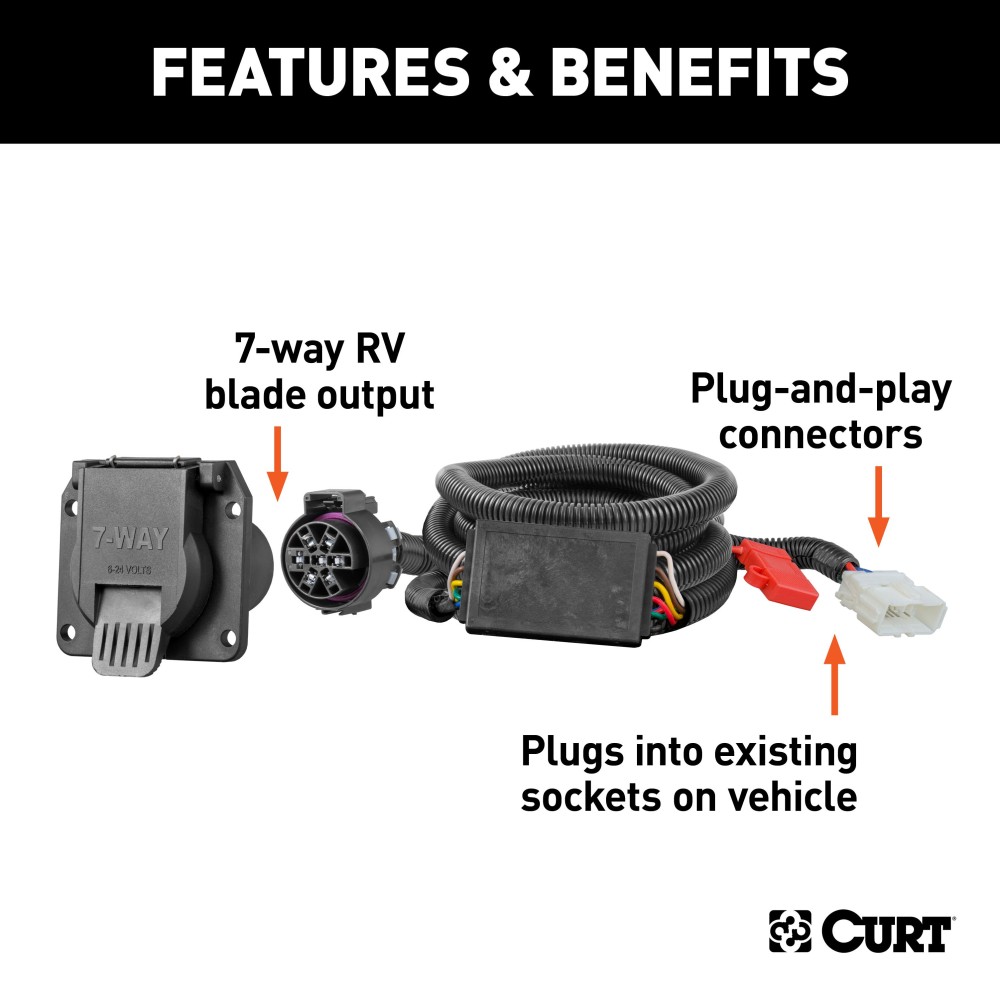

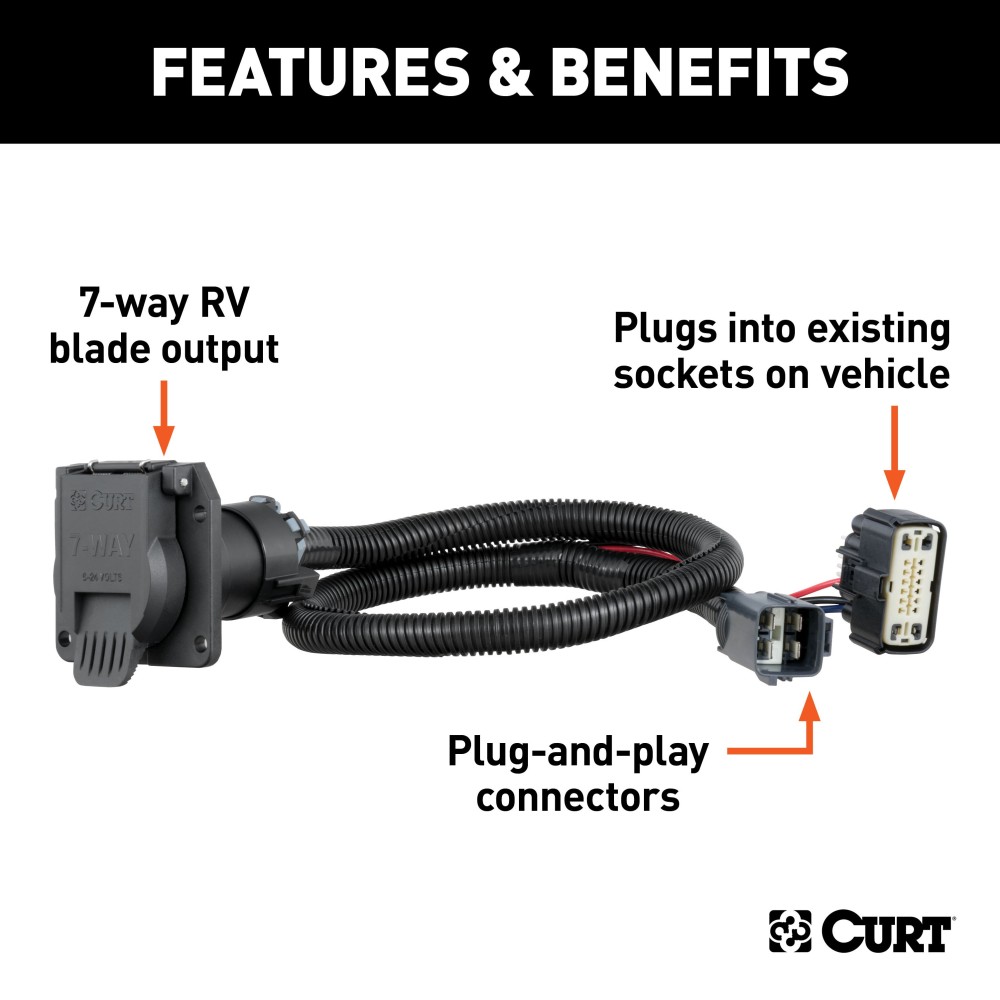

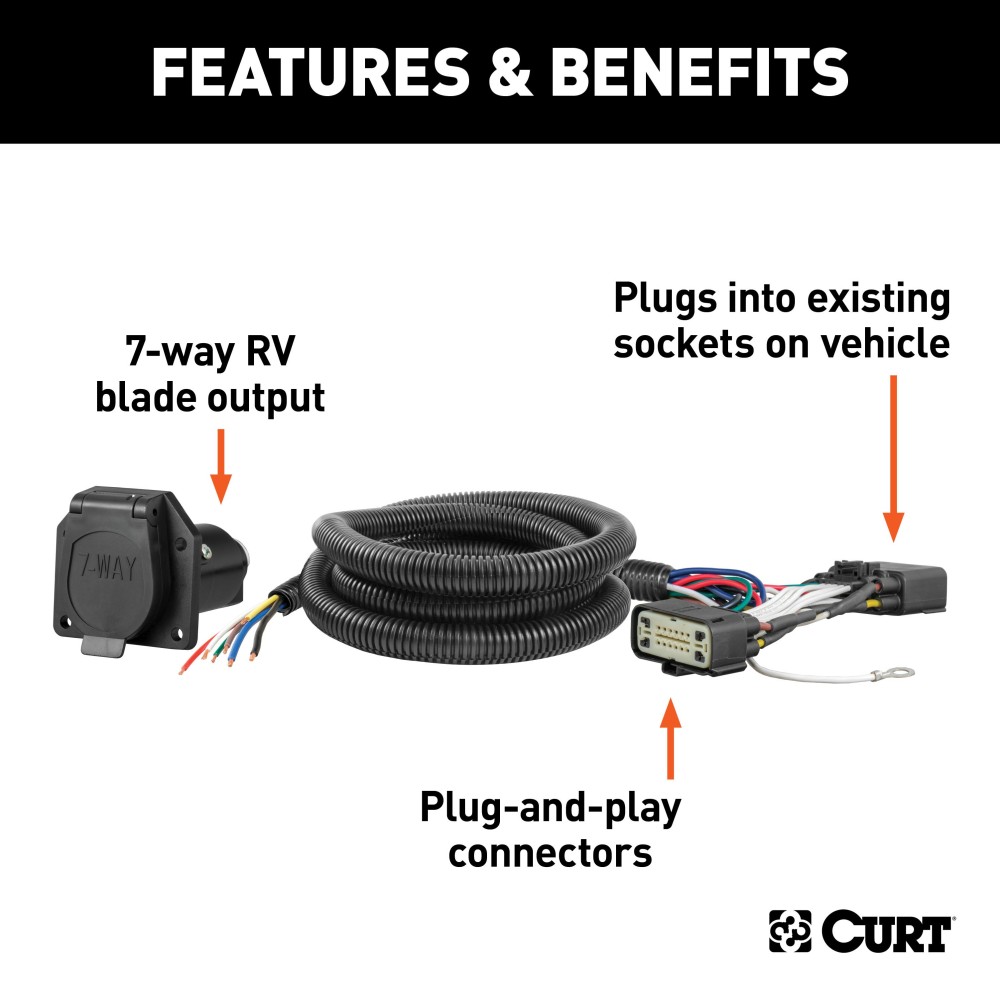

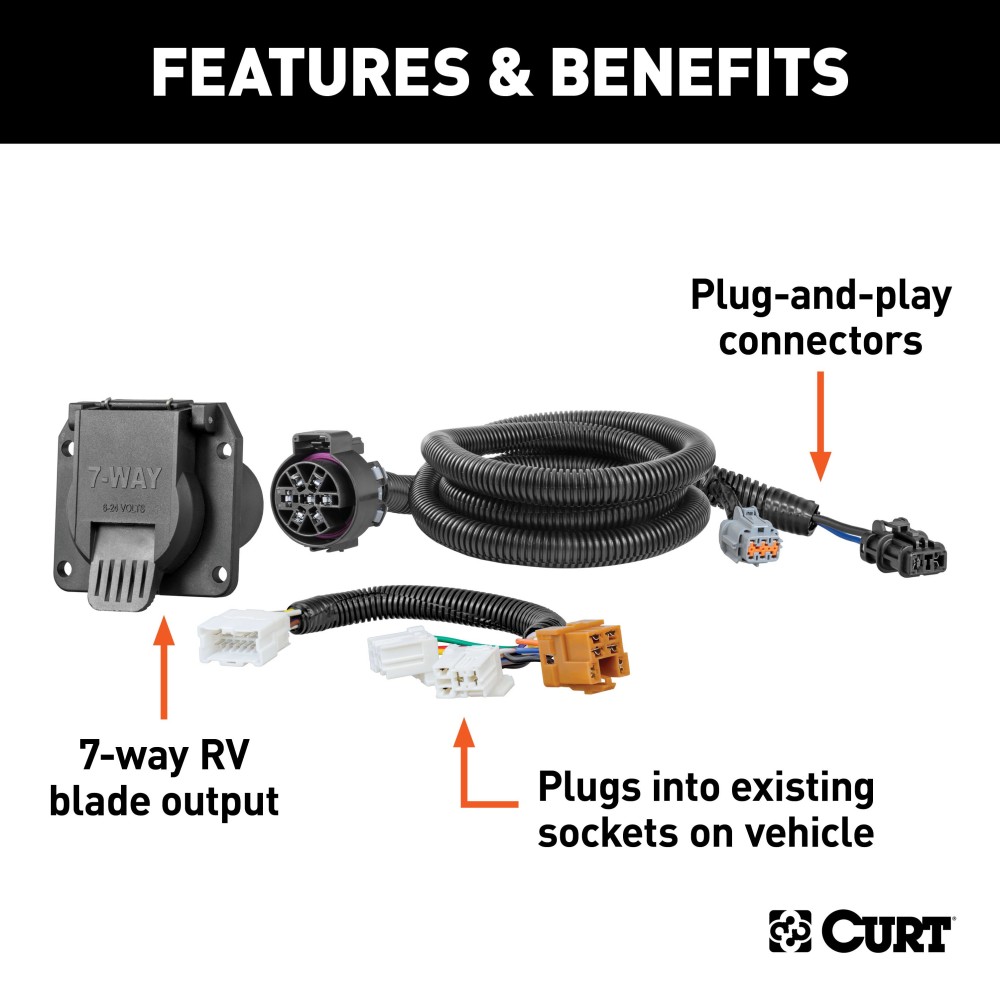

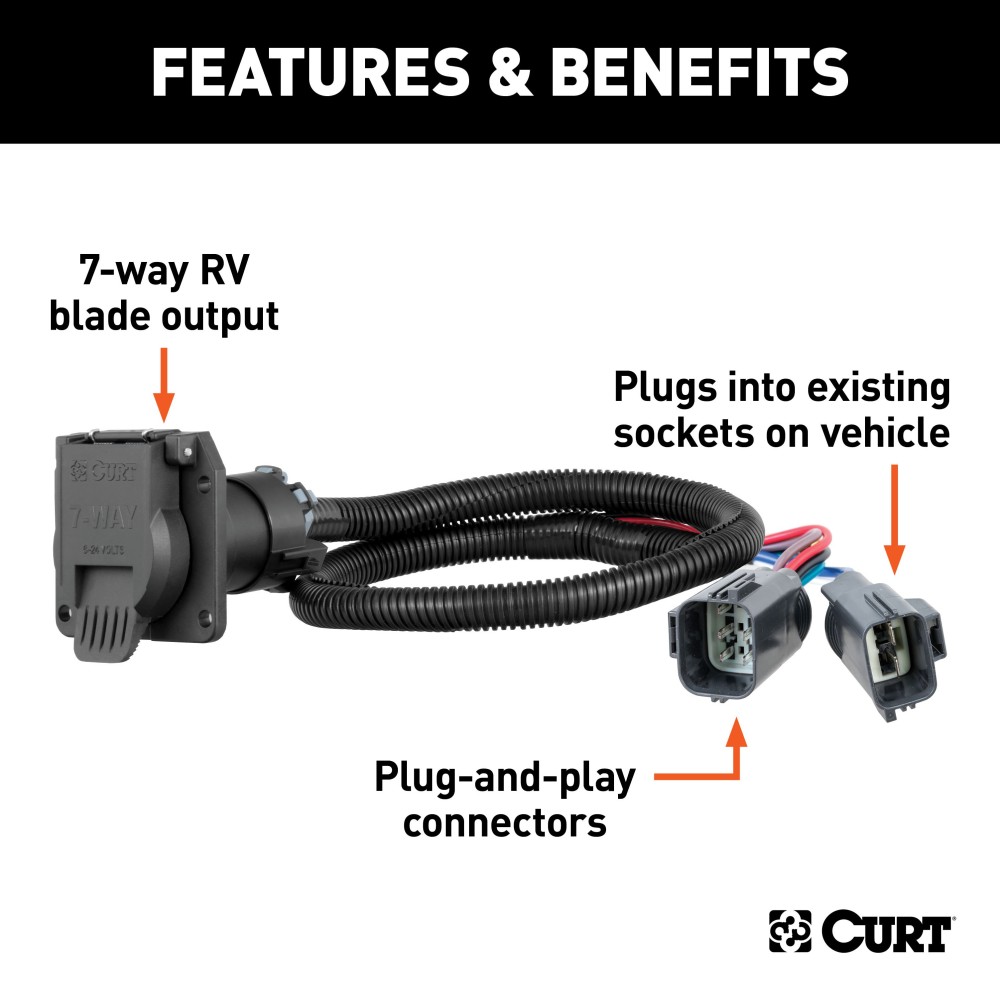

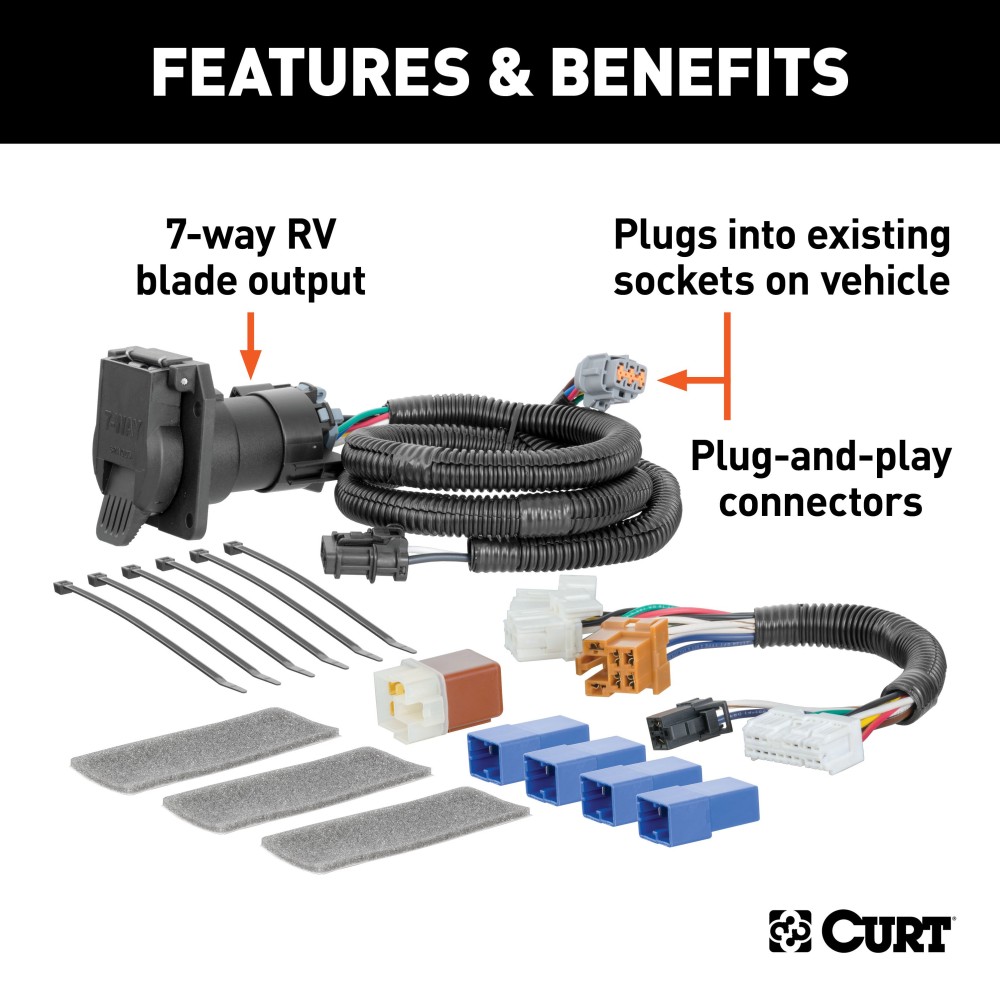

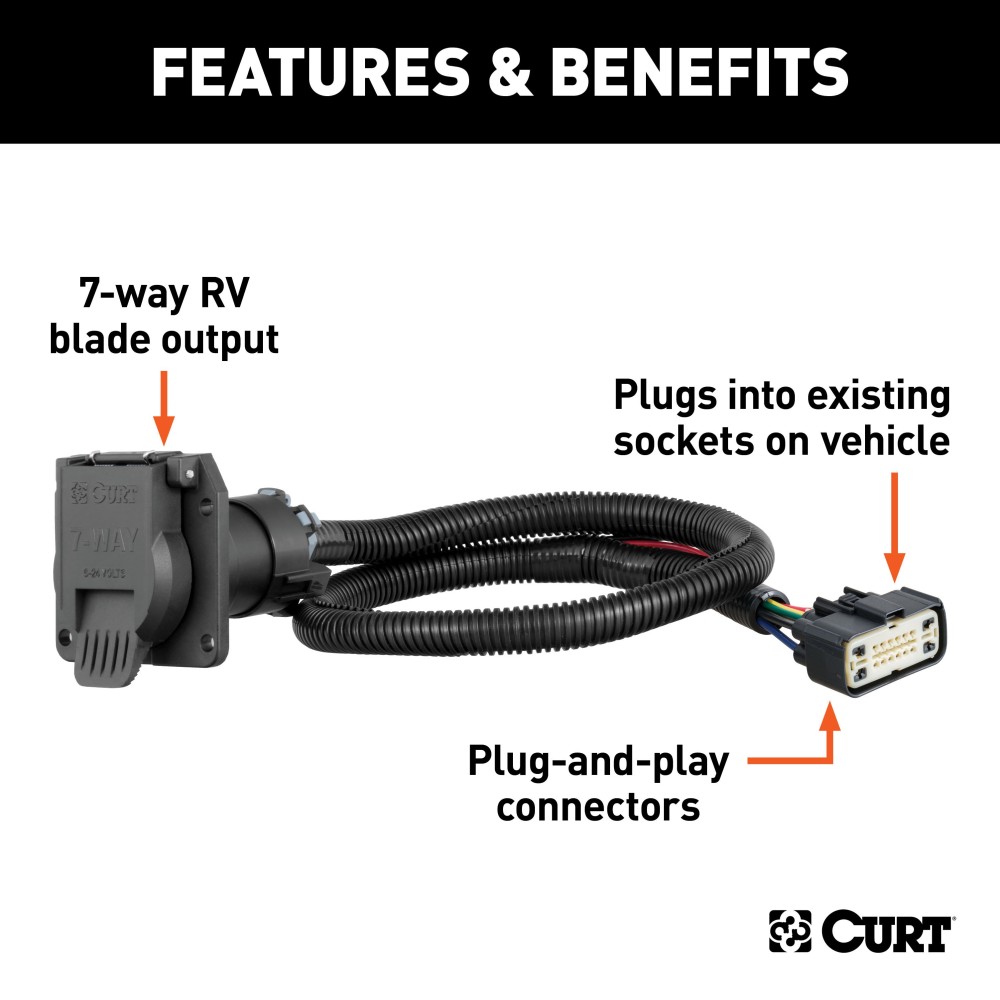

- Plugs into vehicle tail light assembly to provide a 7-way RV blade socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Spring-loaded dust cover keeps connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty

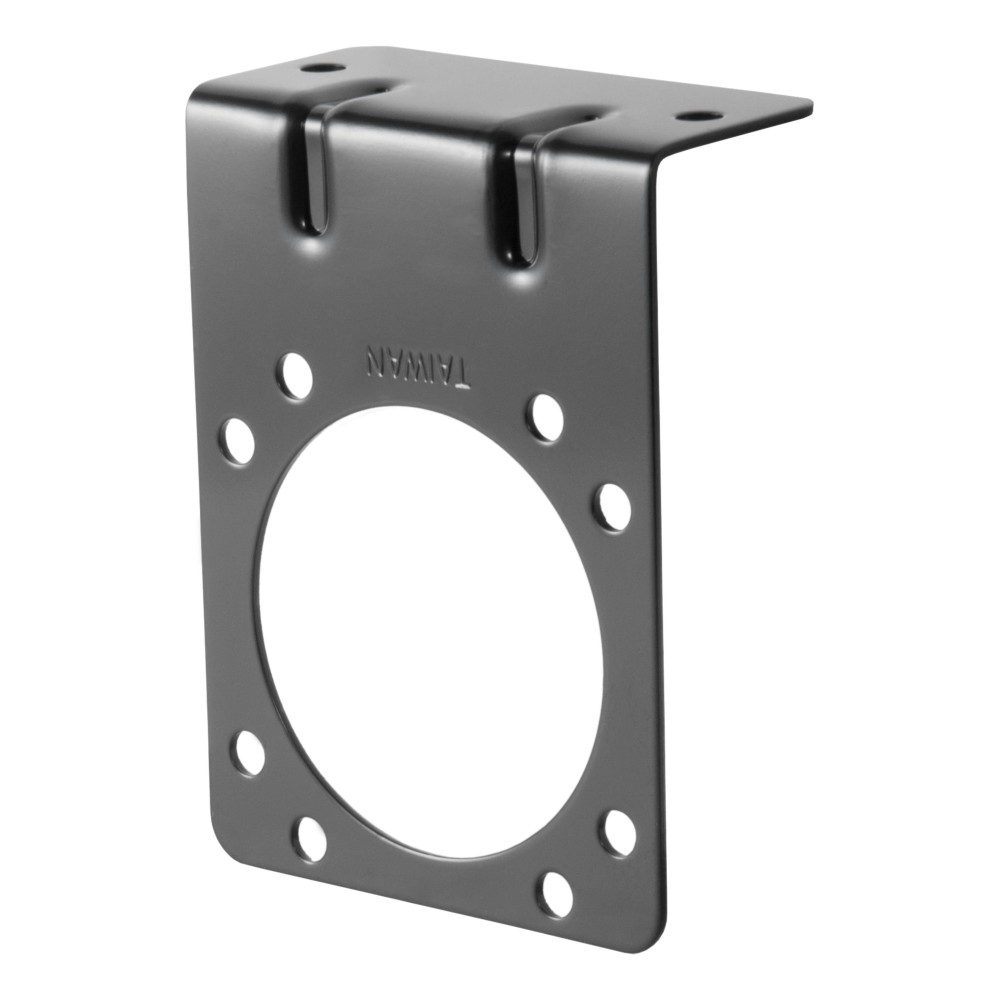

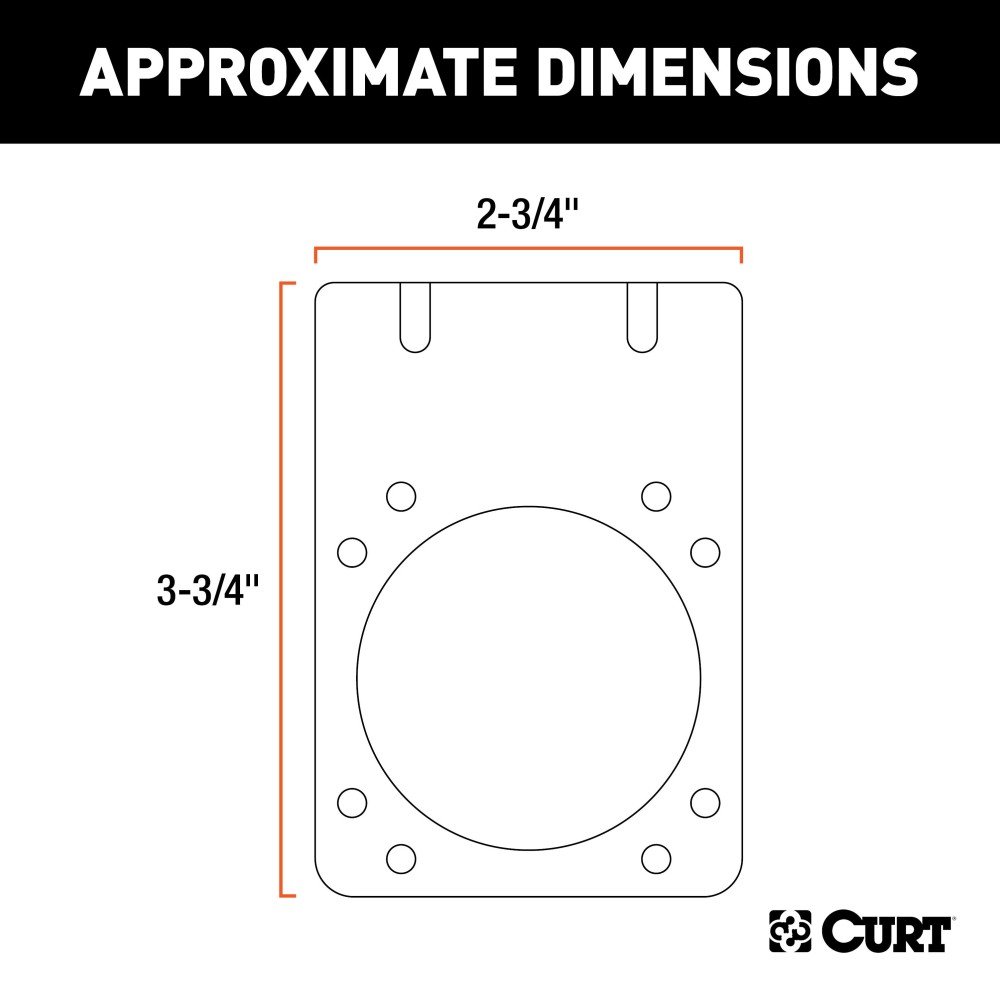

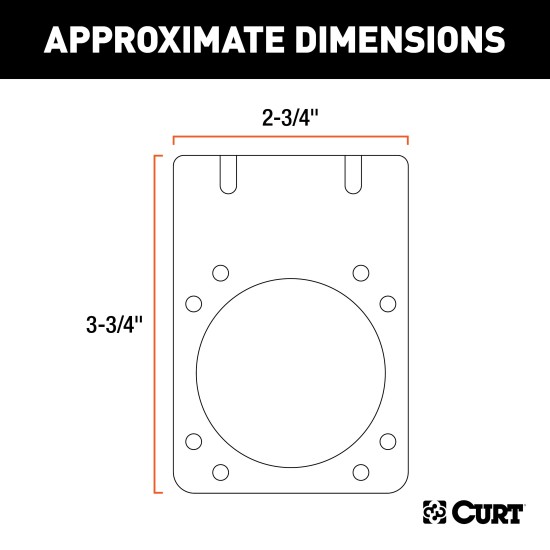

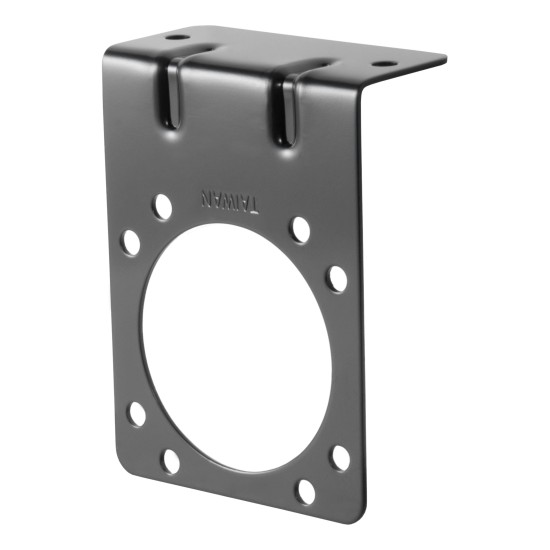

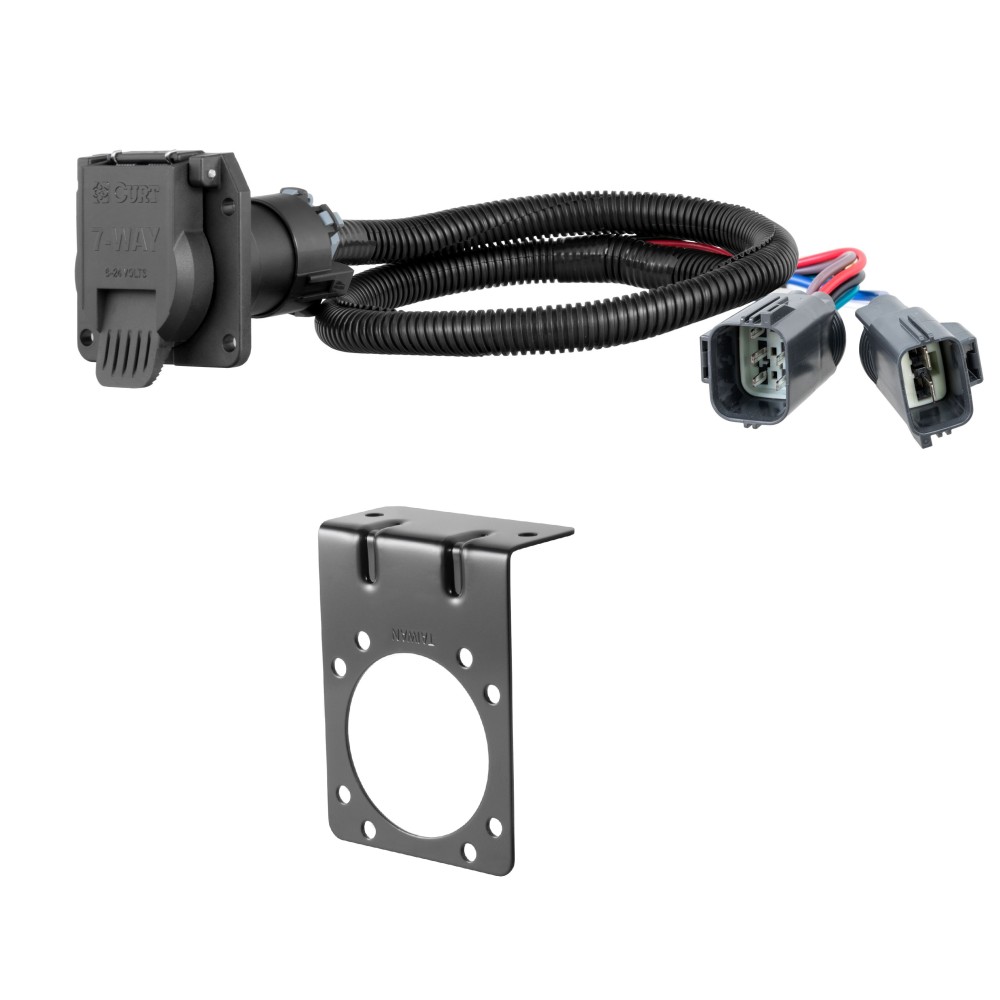

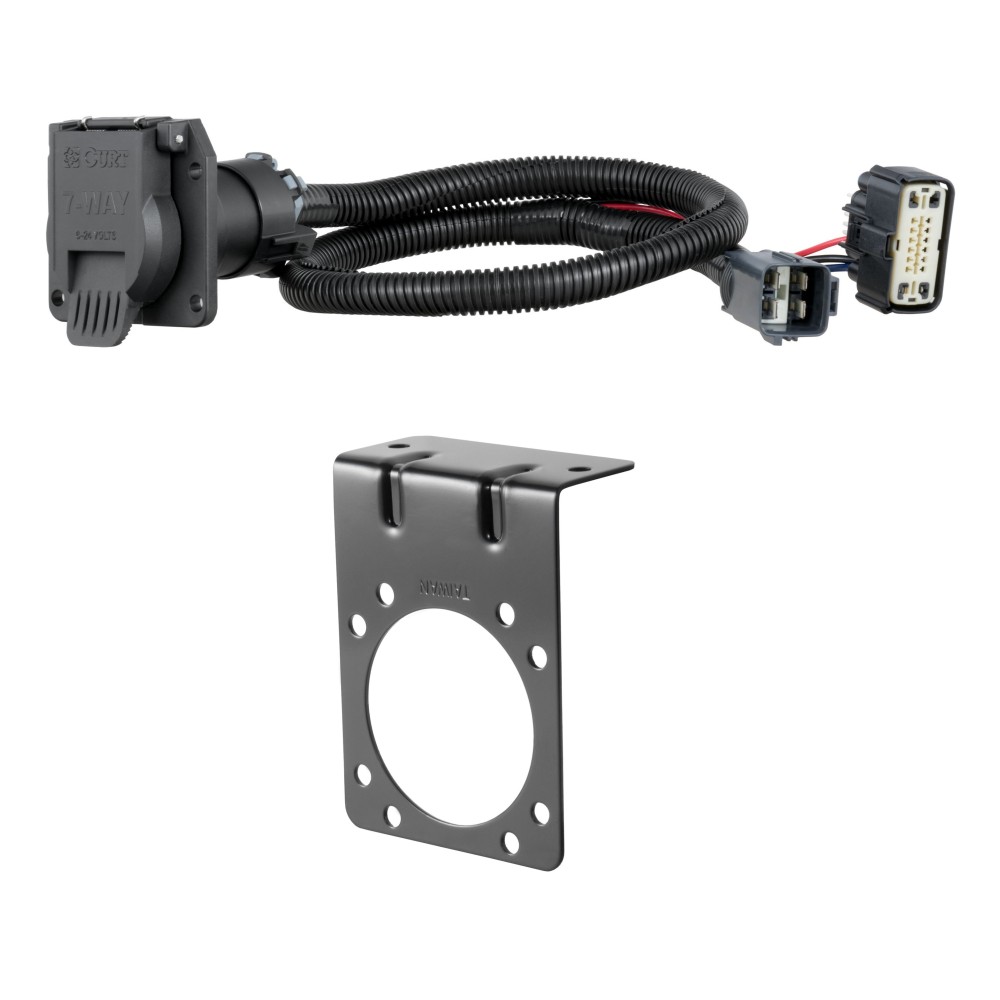

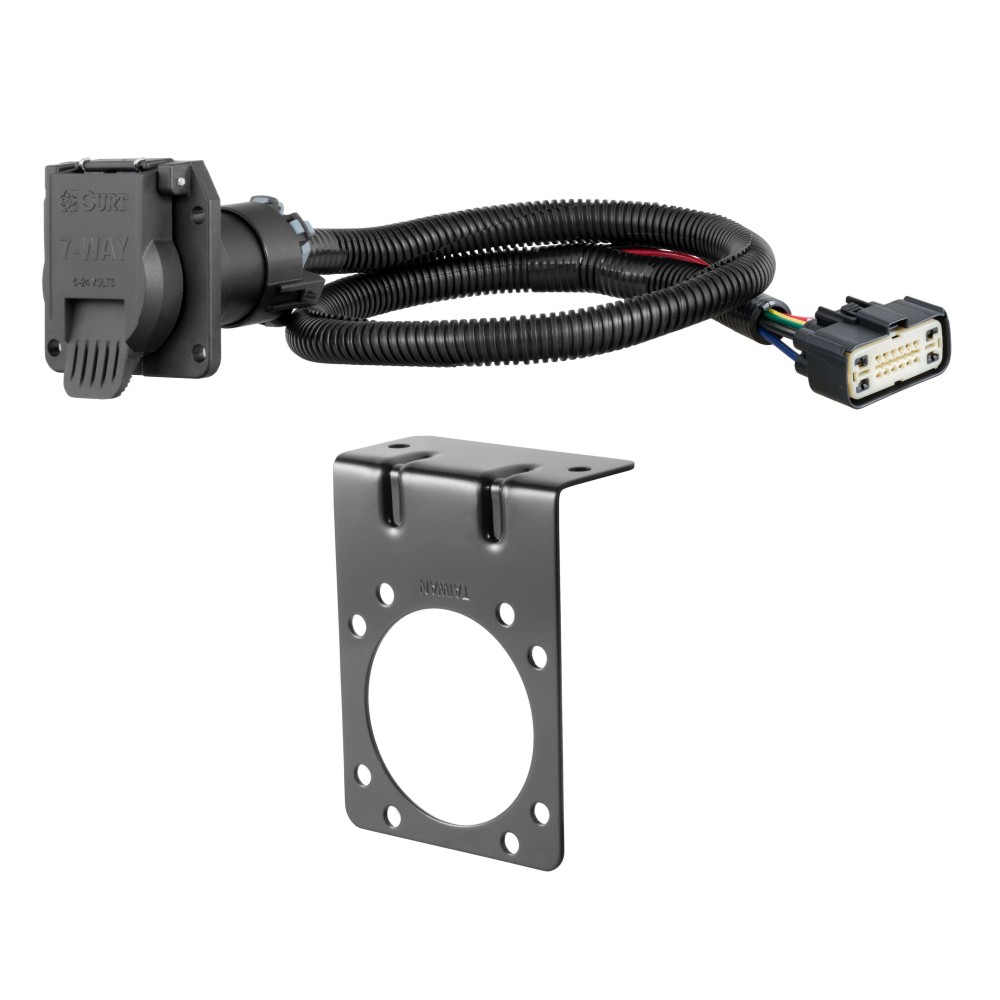

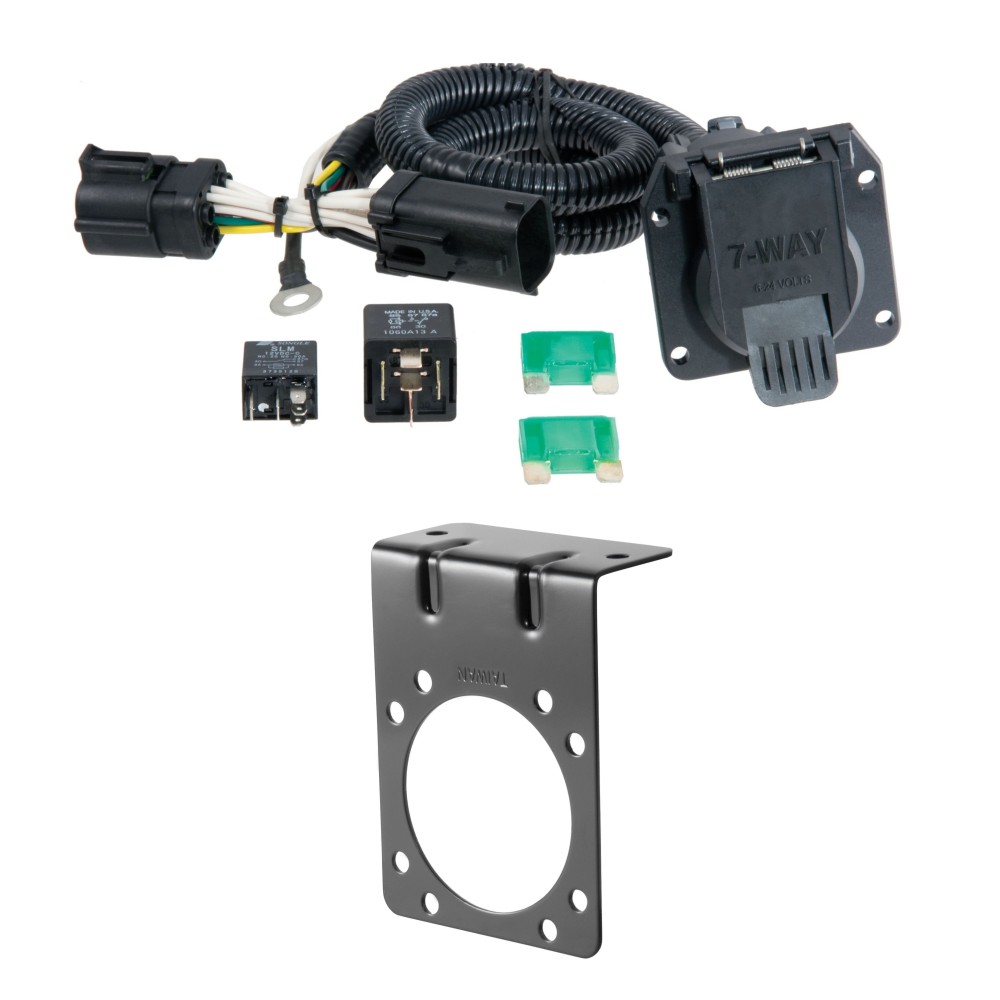

CURT 58290 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 7-Way RV Blade (QTY 1)
Manufactured by: Curt
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around They can get tangled up with cargo and even damaged.
An electrical connector left to hang off the back end of your vehicle is an even greater hazard Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 7-way RV blade socket.
It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch When it comes to plugging in your trailer lights, it pays not to skimp out CURT electrical is the smart way to ensure that your trailer lights and electrical systems are prepared for the road ahead.
Keep the power flowing, no matter where your adventures take you, with quality electrical products from CURT..

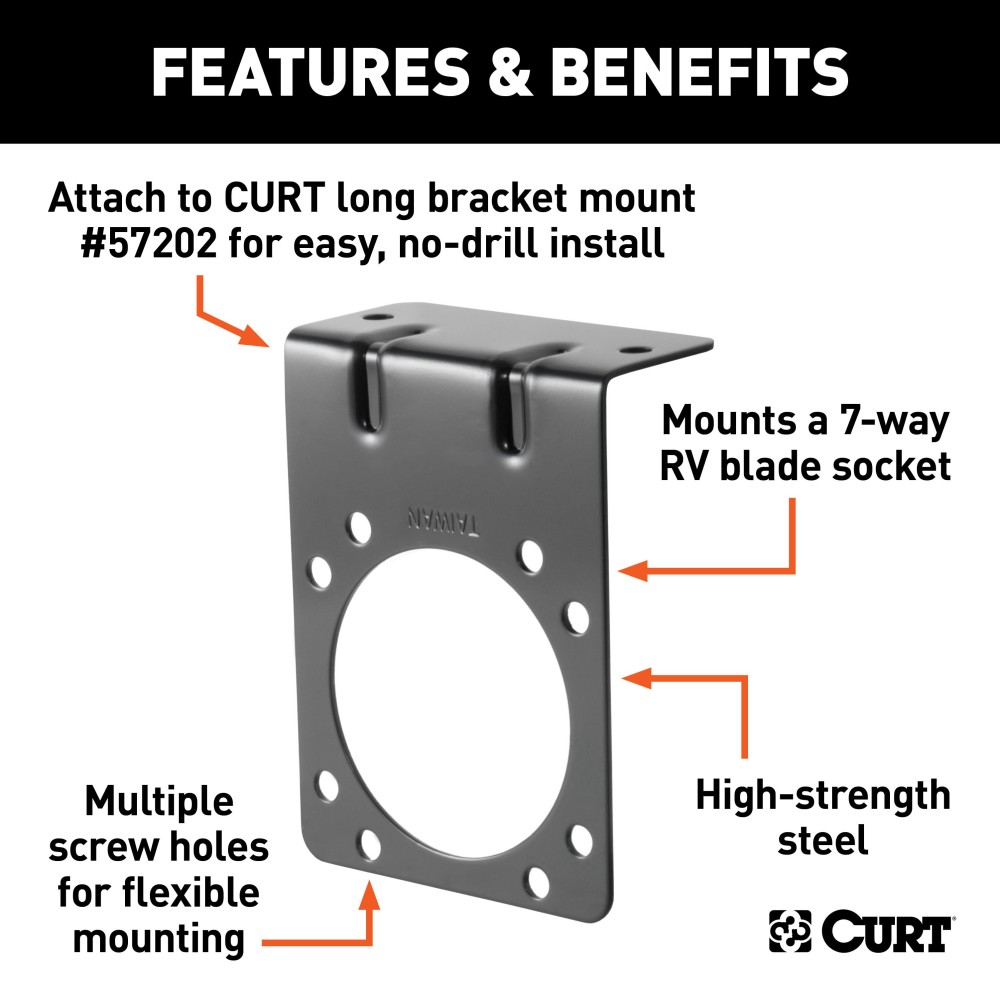

Features:
- Securely mounts 7-way RV blade connector sockets
- Allows for attachment to the vehicle or trailer hitch
- Multiple screw holes offer flexible mounting options
- Constructed from high-strength steel
- Protected by a durable gloss black finish
CURT 51170 Spectrum Original Equipment Style, Integrated Electric Trailer Brake Controller, Proportional (QTY 1)
Manufactured by: Curt

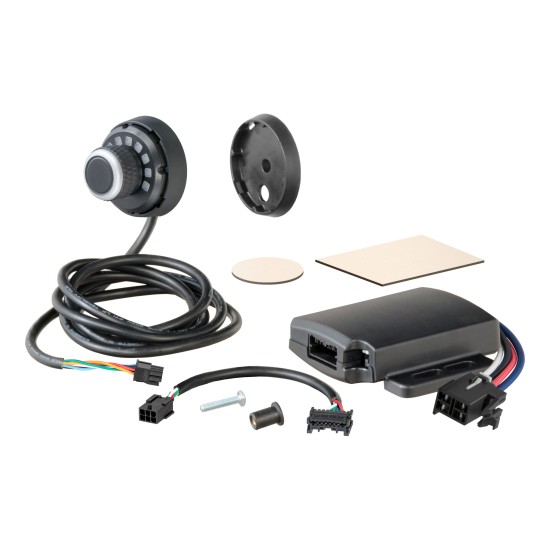

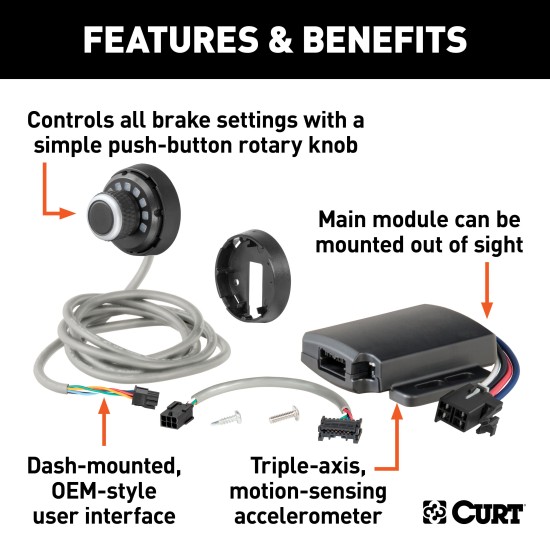

The CURT Spectrum trailer brake controller provides powerful brake operation while maintaining a clean, consistent OE look and feel on the dash of your vehicle It is comprised of a main module and a separate user interface This interface is a simple rotary knob with a push-button and ten tri-color LEDs to control and monitor all trailer brake activity.
It also features a triple-axis accelerometer for highly responsive, smooth stops on any grade The separated module and interface of the Spectrum brake controller allow it to integrate with the vehicle unlike any other The main module can be mounted behind the dash and completely out of sight.

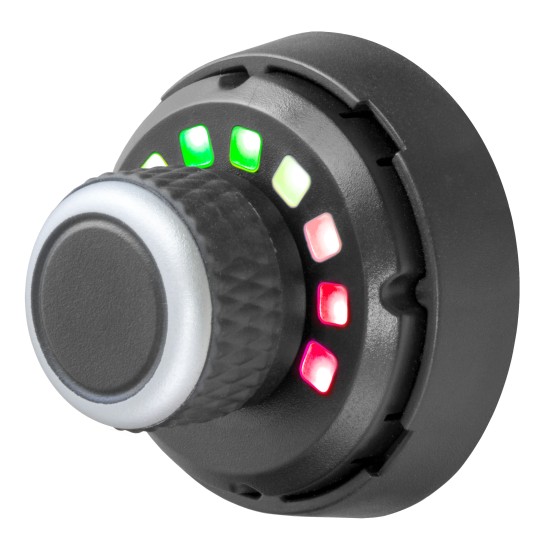

The separate rotary knob provides a sleek, subtle interface that mounts on the dash of the vehicle wherever desired It features ten LEDs with three colors each (red, green and blue) to indicate trailer brake activity and power adjustment The rotary knob and integrated push-button allow for simple and effective operation of the control settings and manual adjustment.

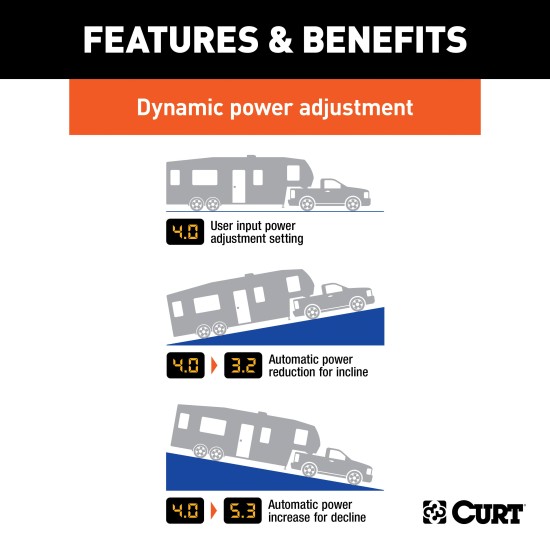

The Spectrum trailer brake controller offers superior safety and helps protect the life of your vehicle and trailer with its advanced triple-axis accelerometer This integrated circuit detects the motion of the vehicle and trailer when making stops and applies the precise amount of brake power for maximum efficiency and effectiveness The three axes of the circuit also enable the brake control to compensate when going up or down a hill.
Like most CURT brake controllers, the Spectrum installs using one of our vehicle-specific quick plug harnesses It also has automated leveling and calibration capabilities to simplify and speed up the installation process The Spectrum trailer brake controller comes with mounting hardware for a complete installation..
Features:

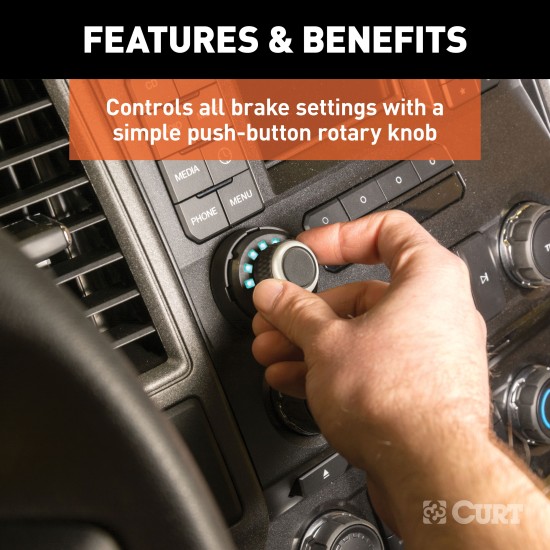

- Controls all brake settings with a simple push-button rotary knob

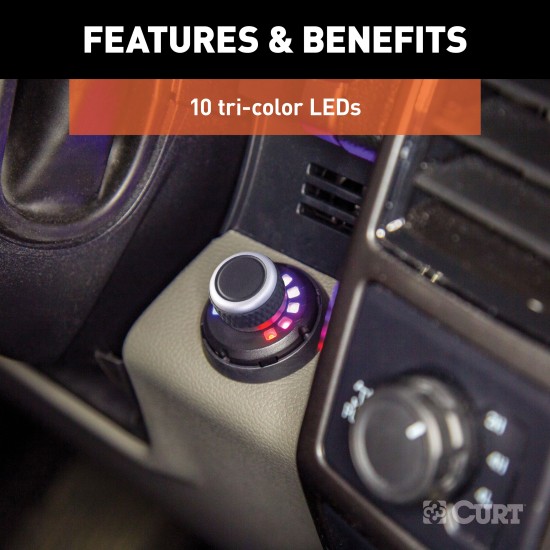

- Clean, dash-mounted, OEM-style user interface with 10 tri-color LEDs

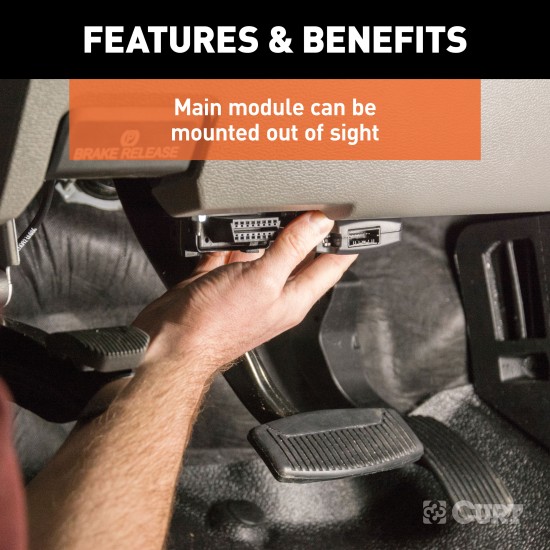

- Main module can be mounted out of sight
- Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops

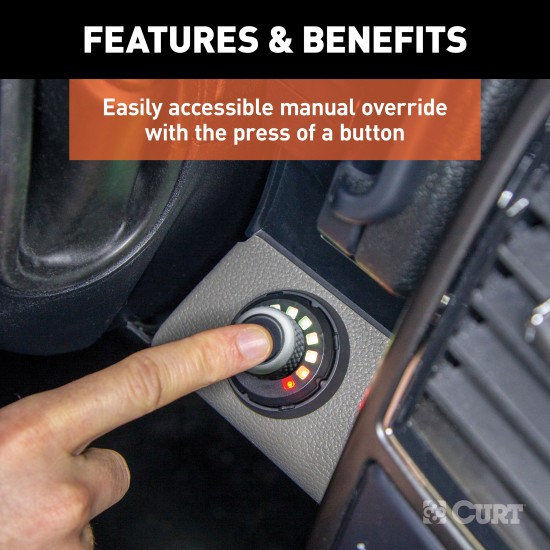

- Easily accessible manual override with the press of a button
- Features two installation options: drill mount or surface adhesive mount
- Automatic leveling and calibration eliminate setup requirements
- Plug-and-play install with vehicle-specific quick plug harness (sold separately)
- Operates 2-8 trailer brakes at a time (1-4 axles)
- Built-in reverse-polarity and short-circuit protection
- Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
- Tow vehicle 'low voltage' and trailer disconnect indicators
- Limited lifetime warranty

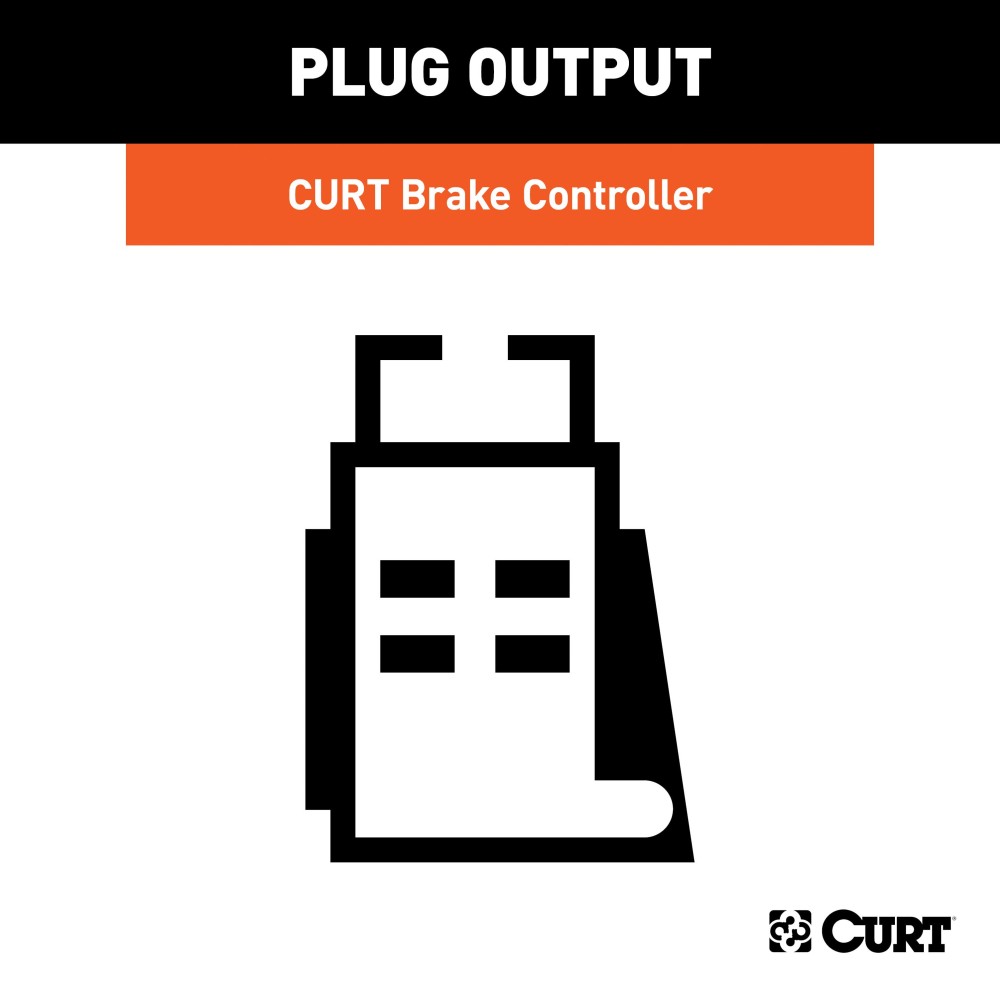

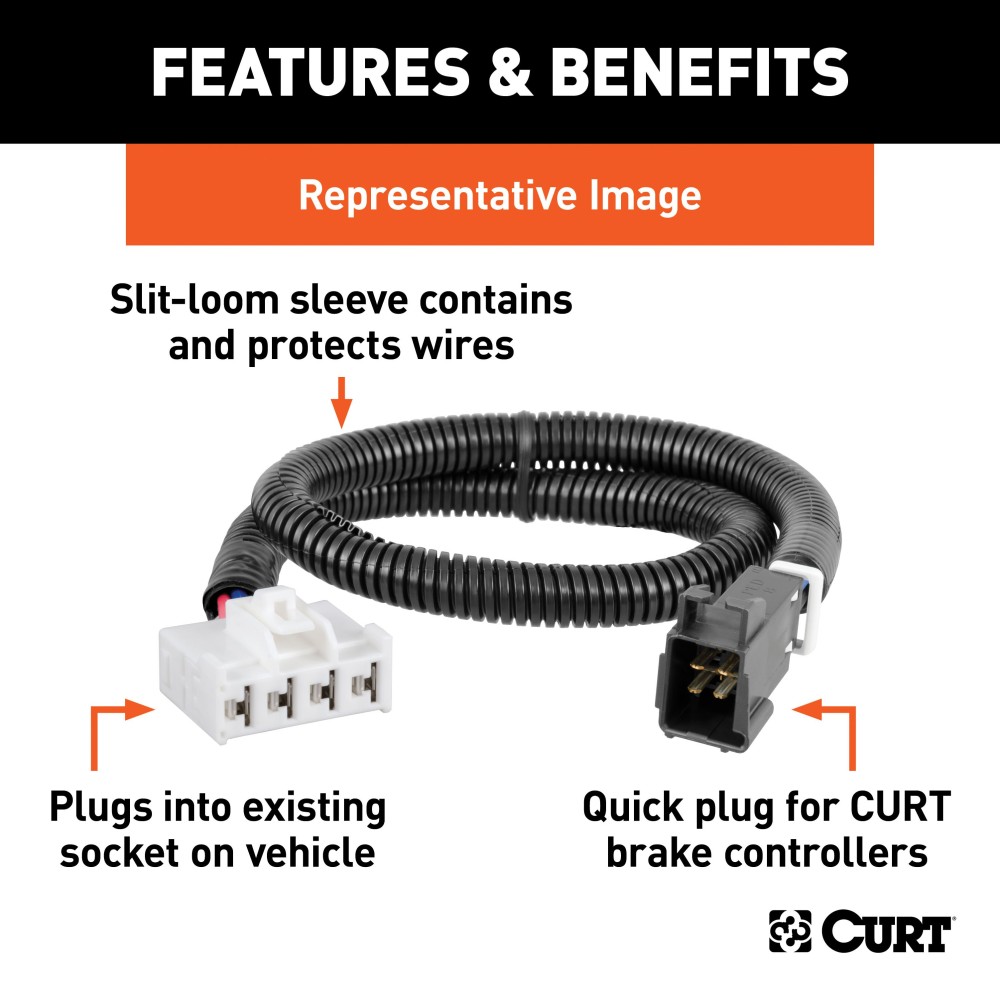

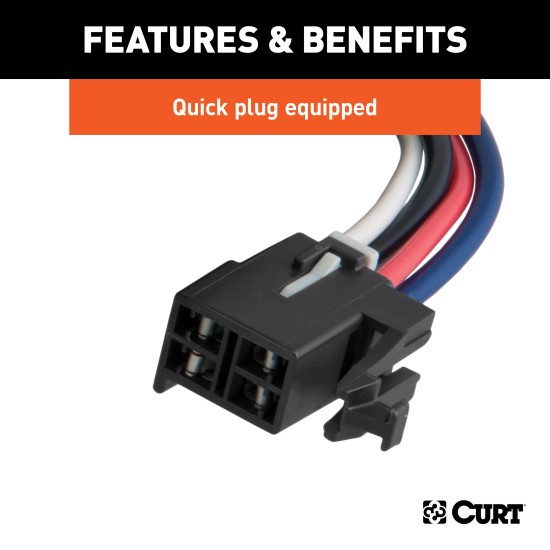

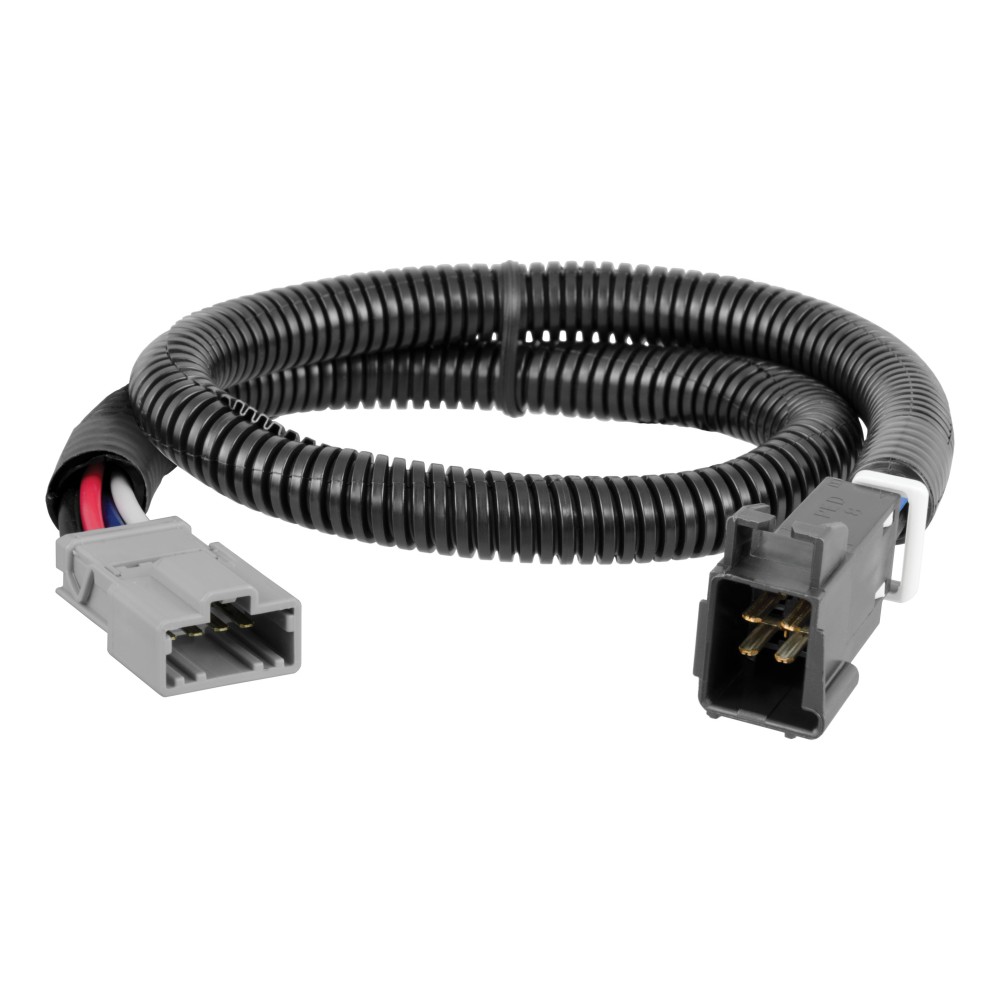

CURT 51392 Quick Plug Electric Trailer Brake Controller Wiring Harness (QTY 1)
Manufactured by: Curt
A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle’s factory brake controller socket The other end plugs into your CURT trailer brake controller.
Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation This particular brake controller harness fits certain years of the Honda Passport, Pilot and Ridgeline (see application info to verify fitment) CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation.
They're also great for towing all types of trailers with electric brakes For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long It also features a slit loom sleeve to keep the wires protected against crushing and abrasions.

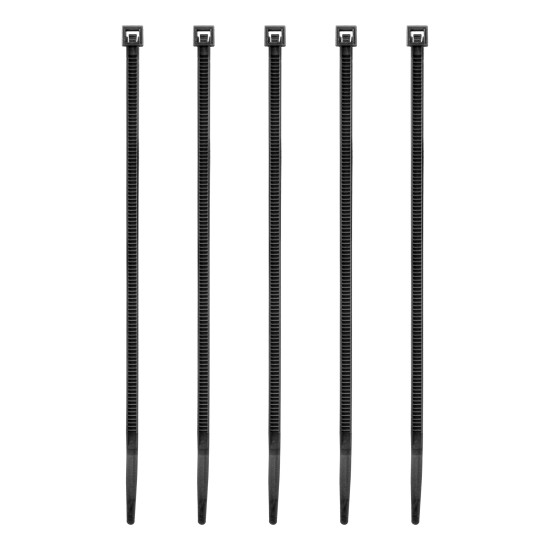

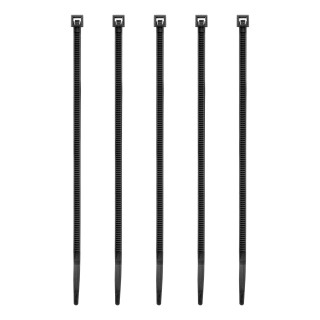

CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight..
Features:
- Allows a CURT trailer brake controller to be plugged into OEM socket
- Quick plug harness installs with plug-and-play convenience
- Wire colors match standard brake controller harnesses
- Includes 24" of 12 gauge wire for flexible installation
- Slit-loom sleeve keeps wires contained and protected
List of Fitment Years:
2025, 2024, 2023$406 53 $446.80 9% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$446.80 $406 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: CU87HH
- Includes: Trailer Wiring 7-Way Plug w/ Bracket, Spectrum Brake Control
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
