Front Mount Trailer Tow Hitch Hardware Fastener Kit For 84‑01 Jeep Cherokee 84‑90 Wagoneer Comanche
Model: HWKIT3(65009F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1984 - 2001 Jeep, Cherokee, Downsize
1984 - 1990 Jeep, Wagoneer, All Styles
1986 - 1992 Jeep, Comanche, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65009
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(65009F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
1984 - 2001 Jeep, Cherokee, Downsize
1984 - 1990 Jeep, Wagoneer, All Styles
1986 - 1992 Jeep, Comanche, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65009
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Get Expert Help
Front Mount Trailer Tow Hitch Hardware Fastener Kit For 84-01 Jeep Cherokee 84-90 Wagoneer Comanche Install Notes
Installation Instructions for Jeep Cherokee, Comanche, and Wagoneer (Downsize)
Part Numbers:
- 65009
Tools Required:
- 15mm Wrench
- 7/8" Wrench
- Torque Wrench
- Drill with 1/2" Drill Bit
- Hammer

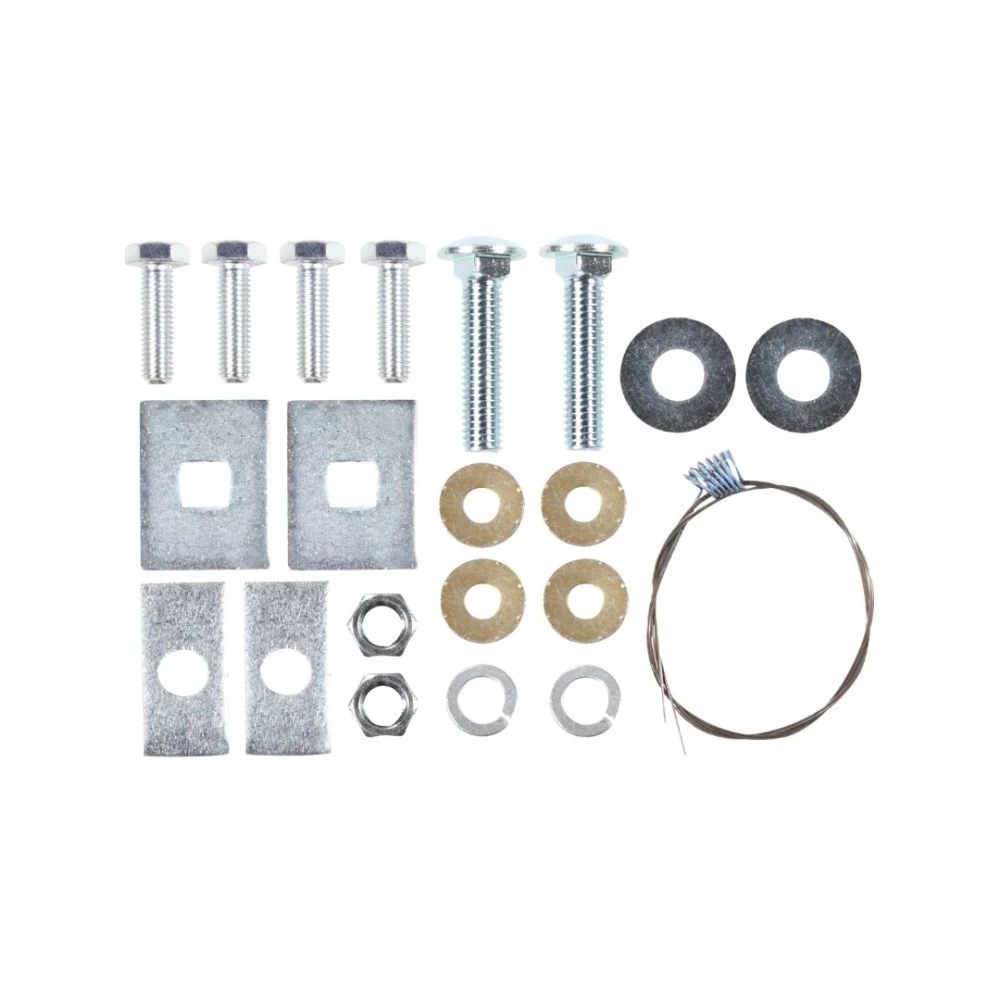

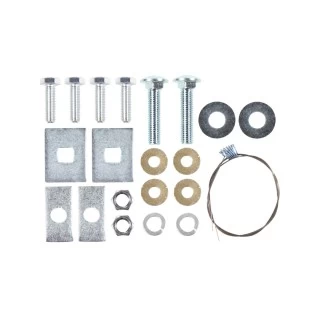

Parts List:
- (2) 1/2"-13 x 2-1/4" Carriage Bolts
- (2) 1-1/2" x 2" x 1/4" Spacers
- (2) 1" x 2" x 7/16" Spacers
- (2) 1/2" Hex Nuts
- (2) 1/2" Lock Washers
- (2) 1/2" Flat Washers
- (4) M10 x 1.50 x 35 Hex Bolts
- (4) 3/8" Conical Washers
- (2) Fishwire Tools
Step-by-Step Instructions:
-
Remove Steel Skid Shield (If Present):
- If the vehicle has a steel skid shield, remove it and return it to the vehicle owner.
-
Remove or Trim Lower Fascia:
- Remove the lower fascia or trim it to clear the front-mounted receiver.
- Consult the vehicle owner before trimming.
-
Lower the Sway Bar Brackets:
- Loosen and lower the sway bar brackets on each frame rail to allow installation.
-
Raise Hitch into Position:
- Position the receiver hitch on the frame, ensuring alignment with the mounting holes.
- Loosely reinstall the sway bar brackets with the hitch in place.
-
Flatten Frame Lip (If Necessary):
- Flatten the lip on the underside of the frame rail to allow proper installation of the spacers and bolts.
-
Drill Frame Holes:
- Using the hitch as a template, drill a 1/2" hole into the vehicle’s frame rail where indicated.
-
Fishwire Carriage Bolts and Spacers:
- Use the supplied fishwire tools to feed the 1/2"-13 carriage bolts and spacers through the slot at the end of the frame rail and into the drilled hole.
- Secure the bolts with the supplied 1/2" hex nuts and lock washers.
-
Torque Fasteners:
- Torque all 1/2"-13 fasteners to 75 ft-lbs (102 N-m).
- Torque all M10 fasteners to 42 ft-lbs (57 N-m).
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle body to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 300 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Follow all safety precautions when working beneath the vehicle, including wearing eye protection.
- This product complies with SAE J684 and VESC Regulation V-5 standards.
- For installation questions, contact Technical Support.
End of Instructions
Installation Instructions for Jeep Cherokee, Comanche, and Wagoneer (Downsize)
Part Numbers:
- 65009
Tools Required:
- 15mm Wrench
- 7/8" Wrench
- Torque Wrench
- Drill with 1/2" Drill Bit
- Hammer
Parts List:
- (2) 1/2"-13 x 2-1/4" Carriage Bolts
- (2) 1-1/2" x 2" x 1/4" Spacers
- (2) 1" x 2" x 7/16" Spacers
- (2) 1/2" Hex Nuts
- (2) 1/2" Lock Washers
- (2) 1/2" Flat Washers
- (4) M10 x 1.50 x 35 Hex Bolts
- (4) 3/8" Conical Washers
- (2) Fishwire Tools
Step-by-Step Instructions:
-
Remove Steel Skid Shield (If Present):
- If the vehicle has a steel skid shield, remove it and return it to the vehicle owner.
-
Remove or Trim Lower Fascia:
- Remove the lower fascia or trim it to clear the front-mounted receiver.
- Consult the vehicle owner before trimming.
-
Lower the Sway Bar Brackets:
- Loosen and lower the sway bar brackets on each frame rail to allow installation.
-
Raise Hitch into Position:
- Position the receiver hitch on the frame, ensuring alignment with the mounting holes.
- Loosely reinstall the sway bar brackets with the hitch in place.
-
Flatten Frame Lip (If Necessary):
- Flatten the lip on the underside of the frame rail to allow proper installation of the spacers and bolts.
-
Drill Frame Holes:
- Using the hitch as a template, drill a 1/2" hole into the vehicle’s frame rail where indicated.
-
Fishwire Carriage Bolts and Spacers:
- Use the supplied fishwire tools to feed the 1/2"-13 carriage bolts and spacers through the slot at the end of the frame rail and into the drilled hole.
- Secure the bolts with the supplied 1/2" hex nuts and lock washers.
-
Torque Fasteners:
- Torque all 1/2"-13 fasteners to 75 ft-lbs (102 N-m).
- Torque all M10 fasteners to 42 ft-lbs (57 N-m).
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in the vehicle body to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 300 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
