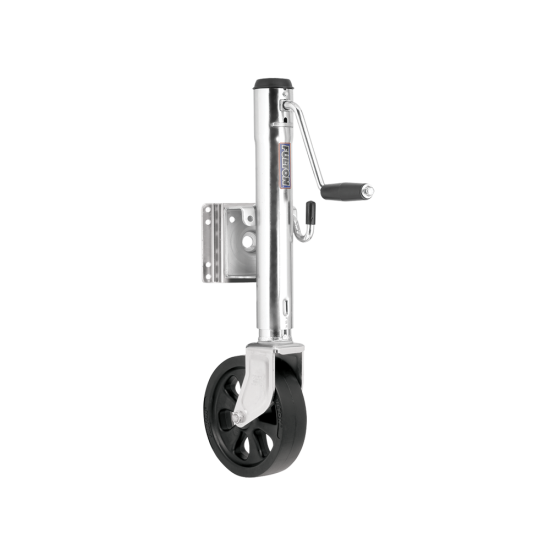

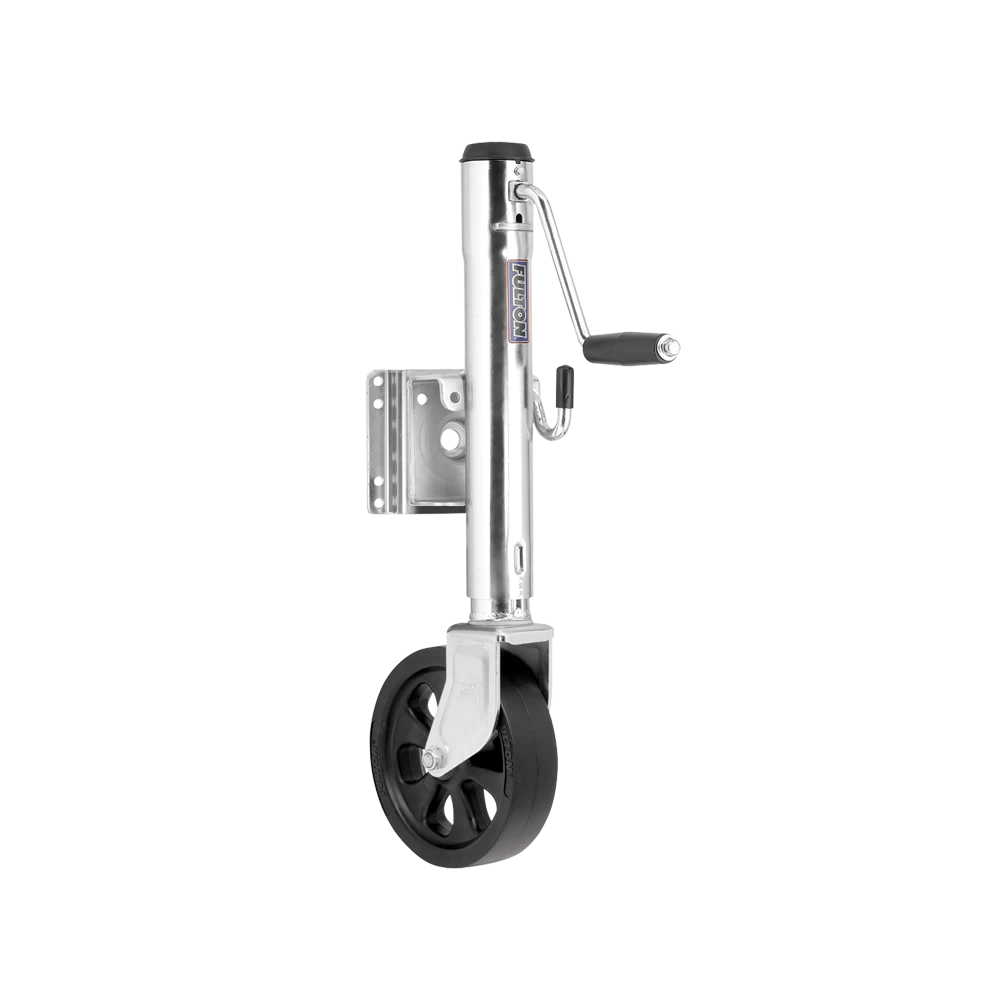

Fulton 1500 lbs Trailer Jack 8 Inch Spoked Wheel Zinc Bolt‑Thru Swivel 12" Lift Corrosion Resistant Bolt‑On for Marine Boat and Recreational Applications 600 Hour Salt Spray Testing
Model: XP15L 0101Fulton Marine and Recreational Fixed Mount Trailer Jack (Bolt-On Hardware Included)
Designed for marine and utility trailers, the Fulton brand presents its durable and reliable fixed mount trailer jack. With part numbers HD25000101 and 35SM28FZ, this bolt-on jack is time-tested and proven in various applications. It fits trailer frames up to 3"x5", providing a robust lifting solution with all necessary mounting hardware included for easy installation.
Specifications:
- Compatible with 3"x3", 3"x4", and 3"x5" trailer frames, offering versatile fit options.
- Lift Capacity: 2,500 lbs, suitable for trailers within the 2001-3000 lbs weight range.
- Total Travel/Lift of 28", including a 15" drop leg travel for extended reach and functionality.
- Retracted Bracket Height: 7" and Extended Bracket Height: 35.5", providing ample lifting range.
- Clearance: 19.25" from bracket to top, ensuring sufficient space for operation.
- Heavy-duty Z-Max 600 zinc finish for maximum corrosion resistance.
- Includes a heavy-duty square drop leg jack with a 3.8" x 7.5" footplate, enhancing stability and support.
- 5-Year limited warranty, offering peace of mind and reliability.
This jack's bolt-on design ensures a secure and straightforward installation, making it an ideal choice for a wide range of trailers, including utility, enclosed cargo, construction, horse, livestock, agricultural, and industrial applications. Its robust construction and thoughtful design ensure long-lasting performance and ease of use.
$132 99 $170.18 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$170.18 $132 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $33.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: XP15L 0101
- Includes: 1500 lbs Jack
Description
Get Expert Help
Fulton 1500 lbs Trailer Jack 8 Inch Spoked Wheel Zinc Bolt-Thru Swivel 12" Lift Corrosion Resistant Bolt-On for Marine Boat and Recreational Applications 600 Hour Salt Spray Testing Install Notes
Installation Instructions for Tongue Jacks
General Installation Notes:
- Ensure there is no interference from the tow vehicle, tongue, ground, or other mounted accessories while stationary or in motion.
- Verify proper clearance in all positions, including handle swing and swivel positions, before and after installation.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Position the mounting bracket below the tongue with the flat surface against it.
- Secure with locknuts, and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Ensure the correct mounting hole pattern for your tongue size. The gap between the mounting bolts and the tongue should not exceed 1/16".
- Place the jack against the tongue and position the mounting straps on the opposite side of the tongue.
- Insert four bolts through the mounting bracket and straps. The upper bolts should rest on the tongue top, and the lower bolts should be less than 1/16" from the bottom.
- Secure with locknuts, and torque to 25 ft-lbs.
Snap Ring/Bolt-Through Instructions:
- Snap Ring Models: Place the jack bracket over the mount and fully seat the snap ring into the groove.
- Bolt-Through Models: Insert the jack bracket into the recessed opening on the mount. Tighten the locknut until there is minimal movement in the bushing.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- All welding must be performed by an AWS-certified welder.
- Align the jack and foot with the coupler before welding using a 3/16" fillet weld.
- Use three 3/8"-16 grade-5 bolts with washers for bolt-on applications and torque to 15-20 ft-lbs.
- Weld the recommended support plate to the bottom of the trailer frame with a 3/16" fillet weld if required.
Direct-Mount Instructions:
- Position the jack at the desired location and weld 1" at two points on both sides using a 3/16" fillet weld.
Maintenance:
- Lubricate internal gearing and bushings with automotive grease annually.
- Apply lightweight oil to all moving components such as handles and screw stems.
- Flush the jack assembly with fresh water in marine environments and apply fresh lubricant.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Do not exceed the rated capacity of the jack, footplate, or caster wheel.
- Avoid side forces, which may cause jack failure.
- Replace damaged or worn parts before use.
- Do not adjust the drop foot or leg while under load.
Warranty Information:
- Coverage: 5 years for supported products; 1 year for select products.
- Exclusions: Normal wear, misuse, overloading, improper installation, and modifications.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
