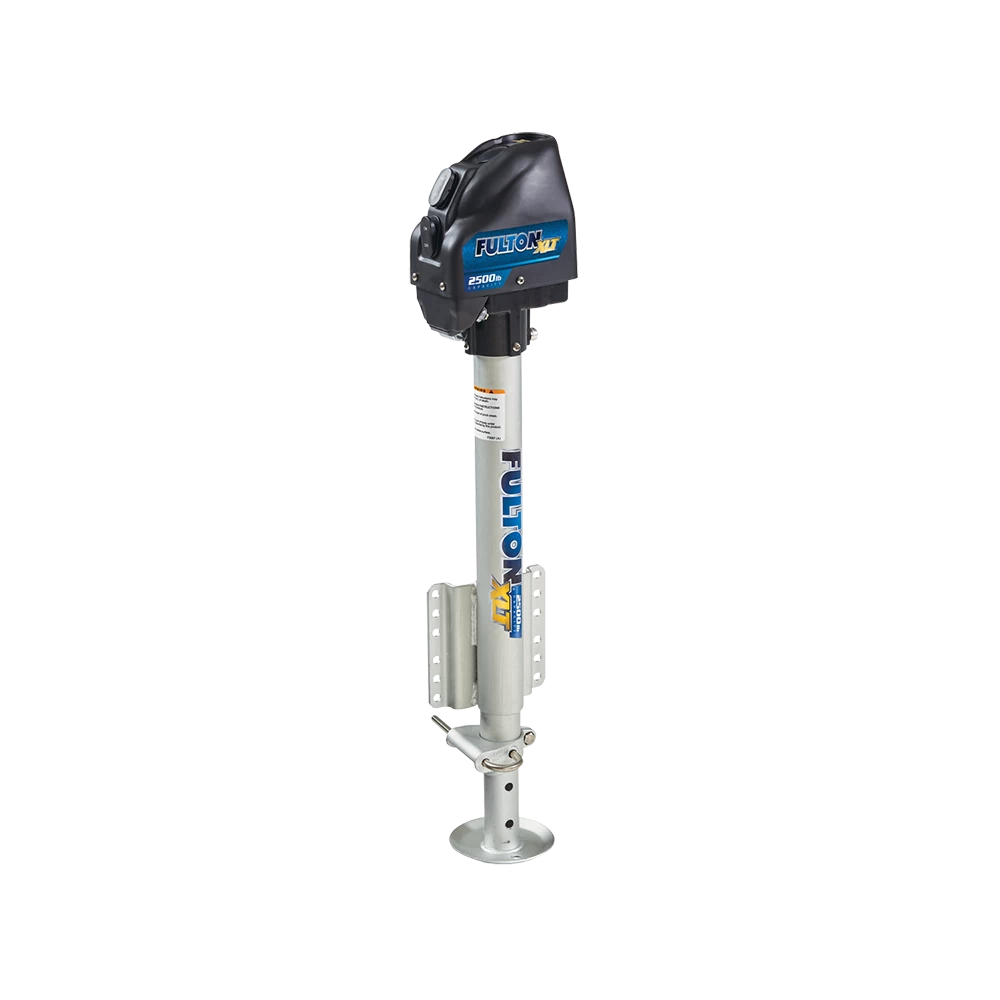

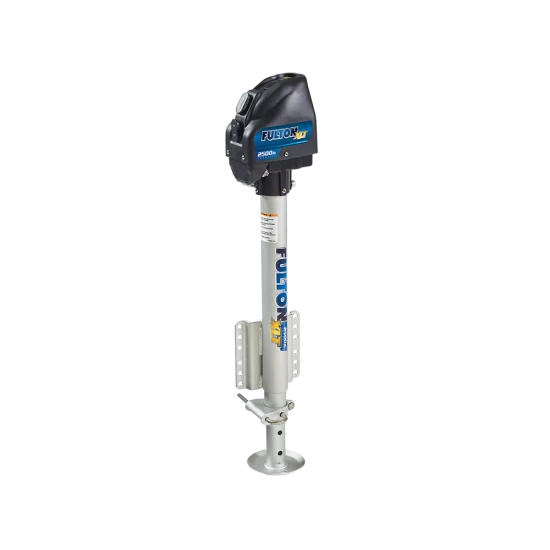

Fulton XLT Electric Boat Trailer Jack 2500 lbs Sharkskin Finish Spring Return Drop Leg Powered Marine Lift Fits up to 5" Tongues
Model: 141401XLT™ POWERED MARINE JACK
The XLT™ Powered Marine Jack is designed for ultimate convenience and durability, making it the perfect addition to your boat, utility, or landscape trailer. With a weight capacity of 2001-3000 lbs, this bolt-on jack features an electric lift style with a static and lift capacity of 2500 lbs, ensuring easy and reliable operation.
- Patented spring-loaded drop leg pull pin positions quickly with 22 in total travel, offering an extended height of 31.75" and a retracted height of 9.75" for versatile use.
- Powered through 7-way or dedicated 12V DC battery, featuring an electric lift capacity of 2500 lbs for effortless lifting.
- Equipped with front and rear facing LED lights, enhancing visibility in low light conditions.
- Boasts a corrosion-resistant stainless steel internal ACME screw and premium Sharkskin™ finish for maximum durability, especially in salt water environments.

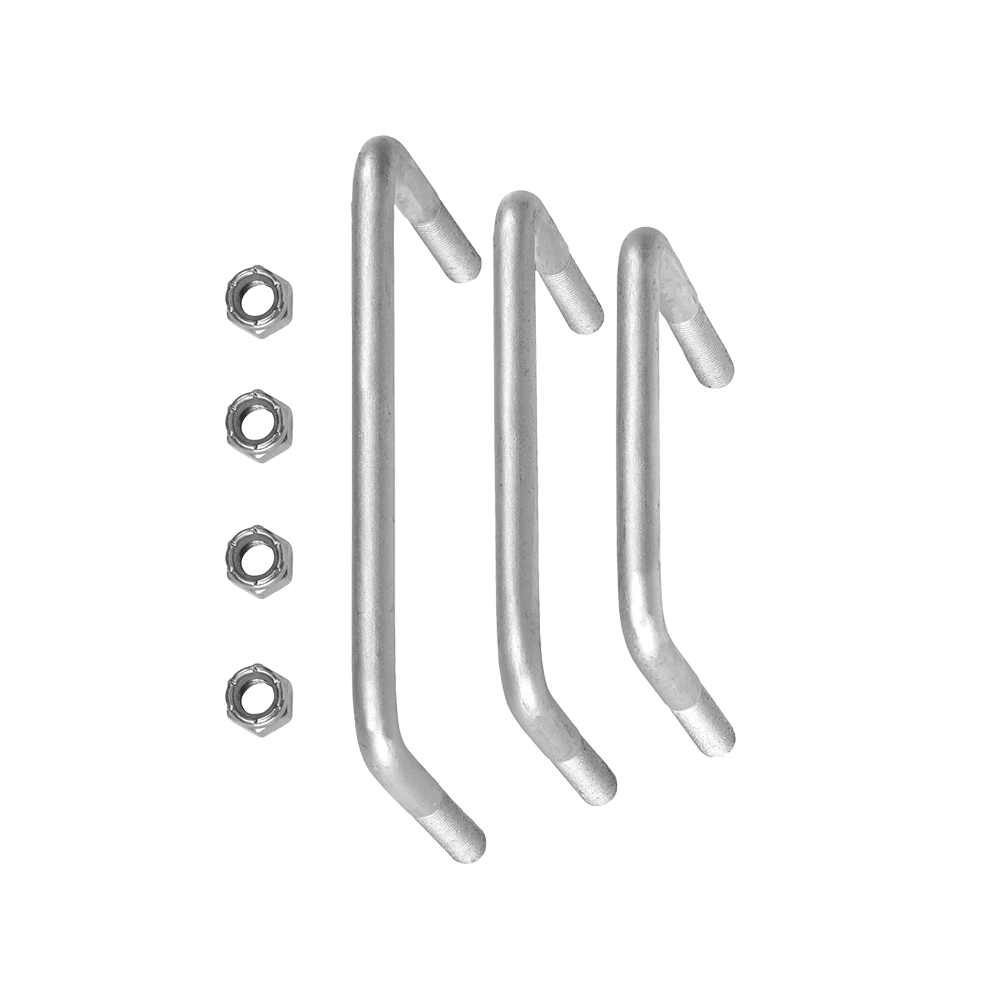

- Easy installation with included mounting hardware for up to 5 in high trailer tongues. Manual override available using standard tools in case of power loss.
Specifications include:
- Jack Style: Bolt-On
- Travel: 22"
- Retracted Height: 9.75"
- Extended Height: 31.75"
- Clearance: 21"
- Finish: Sharkskin
- Inner Tubing Diameter: 2"
- Outer Tubing Diameter: 2.25"
- Leg: Drop Leg
- Foot: Footplate
- Jack Shape: Round
- Spring Return: Yes
Enhance your towing experience with the Fulton® XLT™ powered marine winch (#500620 and #500621) - SOLD SEPARATELY.
For inquiries or to order, call us now at 877-869-6690.
$427 49 $625.00 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$625.00 $427 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $106.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: 141401
- Includes: Electric Jack
Description
Get Expert Help
Fulton XLT Electric Boat Trailer Jack 2500 lbs Sharkskin Finish Spring Return Drop Leg Powered Marine Lift Fits up to 5" Tongues Install Notes
Installation Instructions for XLT Powered Marine Jack
Tools Required:
- Ratchet
- 9/16” socket
- Torque wrench
Step-by-Step Instructions:
General Installation Notes:
- Attach the trailer to the tow vehicle. Use the vehicle’s parking brake and chock the trailer wheels.
- Disconnect the trailer battery ground cable before starting installation.
- Ensure proper clearance and alignment of the jack with the trailer tongue and other components.
Installation Instructions:
- Place the jack against the trailer tongue and align the mounting holes with the bolt-on brackets.
- Secure the jack using the supplied bolts and locknuts:
- Ensure a gap no greater than 1/16" between the mounting bolts and the tongue.
- Torque the bolts to 25 ft-lbs.
- Route the black and white wire leads from the jack to the trailer battery:
- Use cable ties or equivalent to secure the wiring along the trailer frame.
- Connect the black wire to the battery’s positive (+) terminal.
- Connect the white wire to the battery’s negative (-) terminal.
- Reconnect the trailer battery ground cable.
- Test the installation:

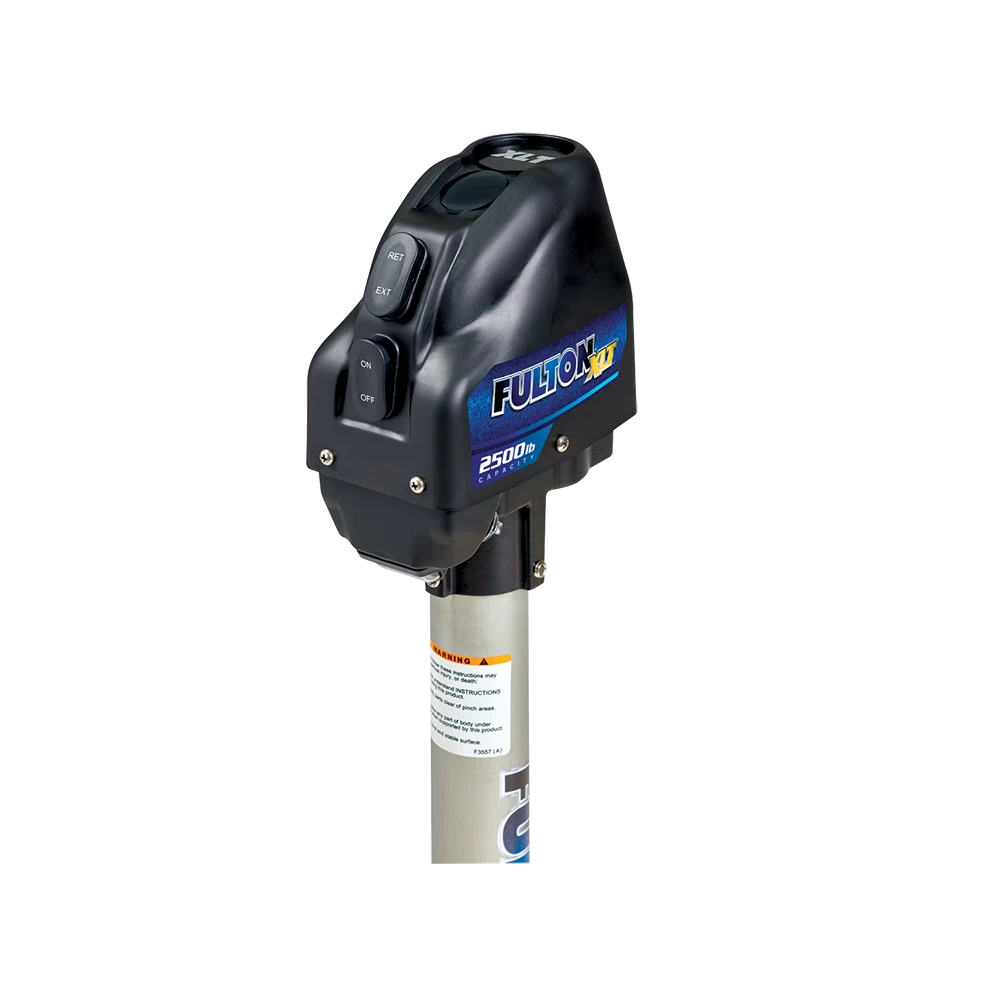

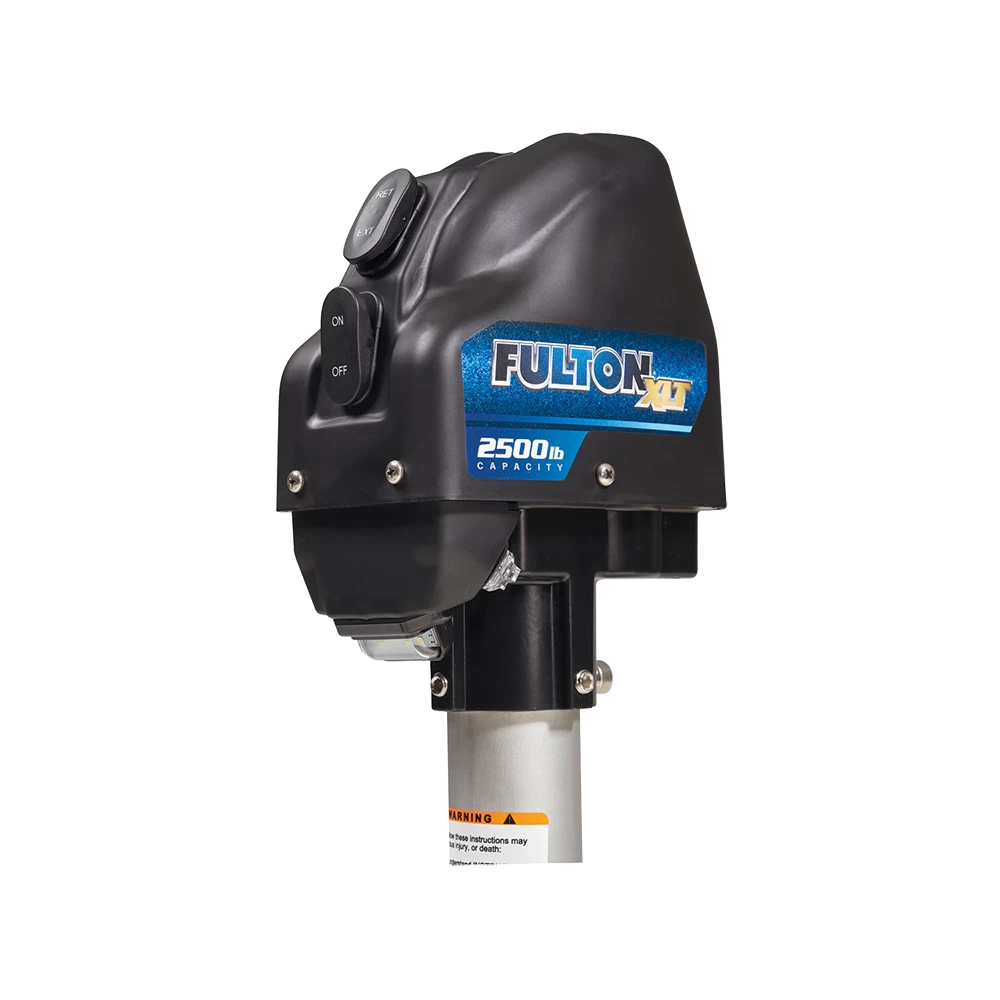

- Press the “EXT” switch to extend the jack.
- Press the “RET” switch to retract the jack.
- Test the LED light using the light switch under the jack's cover.

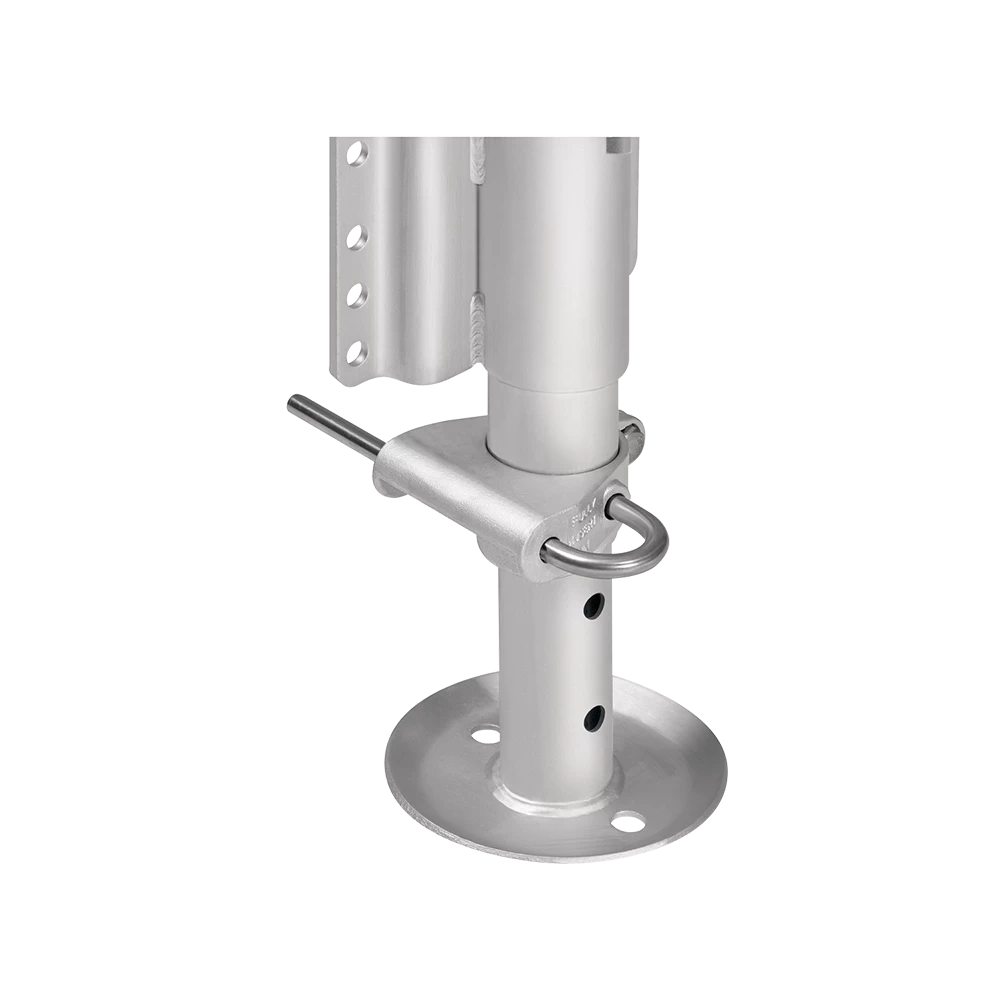

Plunger Pin Kit Assembly:
- Remove the lynch pin and drop leg from the jack assembly.
- Align the grooves on the jack tube with the plunger pin assembly and slide the pin onto the jack.
- Tighten the plunger pin assembly clamp to 15-20 ft-lbs of torque.
- Install the drop leg and secure it using the plunger pin.
Operation:
- To extend the jack:
- Press the “EXT” switch.
- Adjust the drop leg to the desired height and secure it with the lynch pin.
- To retract the jack:
- Press the “RET” switch.
- Fully retract the jack, ensuring the coupler engages properly.
- In case of power failure:
- Remove the cap on the jack top.
- Use a 9/16” socket with a ratchet wrench to manually raise or lower the jack.
Maintenance:
- Ensure the jack motor remains sealed and maintenance-free.
- Maintain the electrical system, including keeping the battery fully charged.
- Check all connections for tightness and corrosion. Ensure proper grounding.
- Periodically oil the plunger pin assembly and inspect moving parts for wear.
Safety Notes:
- Do not exceed the rated capacity of the jack.
- Always retract the jack fully before towing.
- Avoid applying side forces during operation.
- Replace damaged or worn parts immediately.
- Keep bystanders, especially children, clear during operation.
Warranty Information:
- Coverage: Protects against material defects in workmanship and materials under normal use.
- Exclusions: Normal wear, misuse, improper installation, and unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
