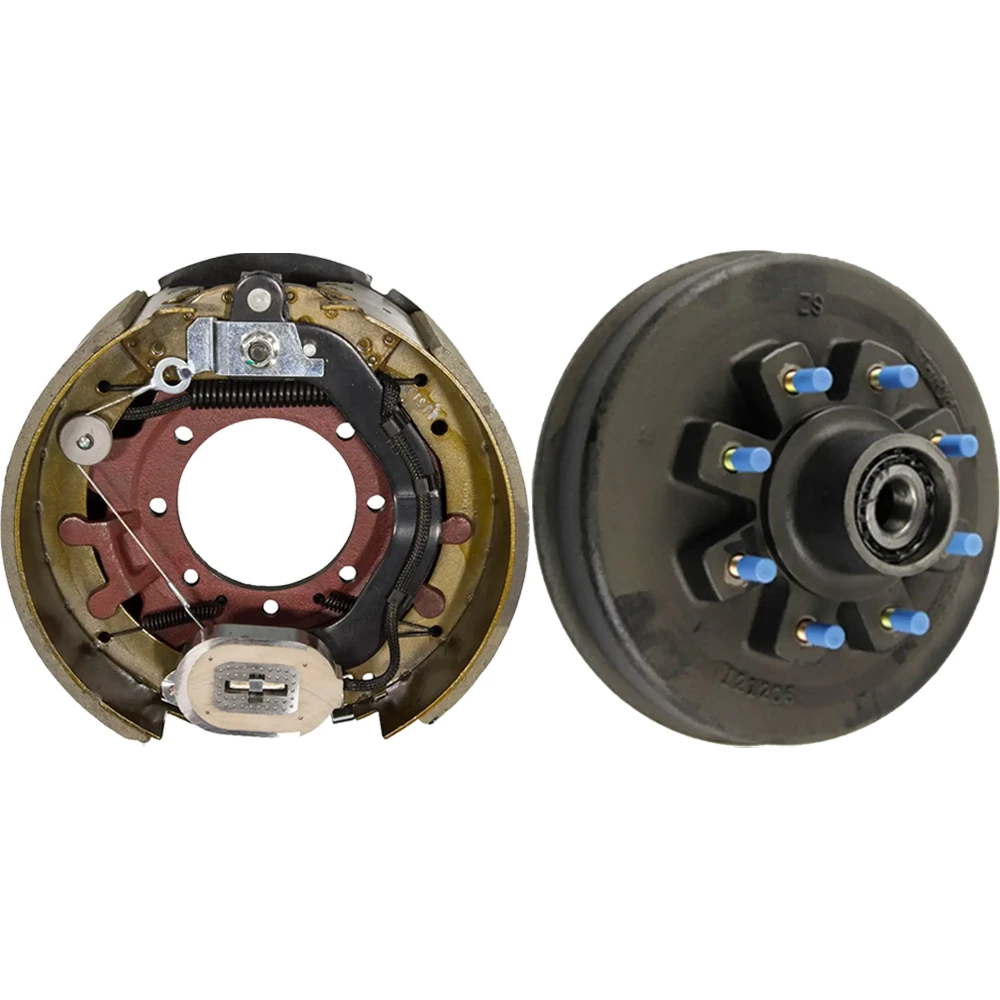

Lippert 16K LH 12-1/4 × 5 7-Bolt Electric Brake & Threaded Hub, 8 on 275 mm, M22 Studs – No Drum – Dexter/AL-KO/Rockwell Compatible
Model: LP778HBALippert 16K Left-Hand Electric Brake & Threaded Hub Bundle
Refresh your heavy-duty trailer axle with this genuine Lippert kit. It pairs a forward self-adjusting 12-1/4" × 5" driver-side electric brake with a durable threaded brake hub so you get shorter stopping distances, easy installation, and dependable performance on 16,000-lb axles. Outboard brake drum is a separate part and is not included.
Bundle Contents:

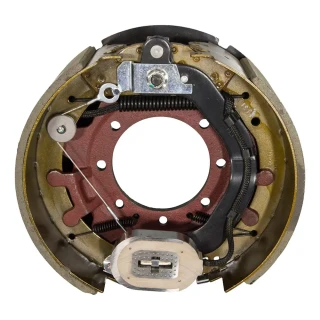

- QTY (1): Forward Self-Adjusting Brake – 12-1/4" × 5", Driver-Side, 12-16K, 7-Bolt
- Genuine Lippert replacement assembly
- Dexter Compatible Part Number: K23-442-00 | 023-442-00
- Self-adjusts on every forward stop (up to 50 % better braking distance)
- Fits 12,000 – 16,000 lb axles
- Seven-bolt mounting flange (hardware not included)
- Electric actuation — no hydraulic lines to service
- Universally compatible with Dexter, AL-KO & Rockwell

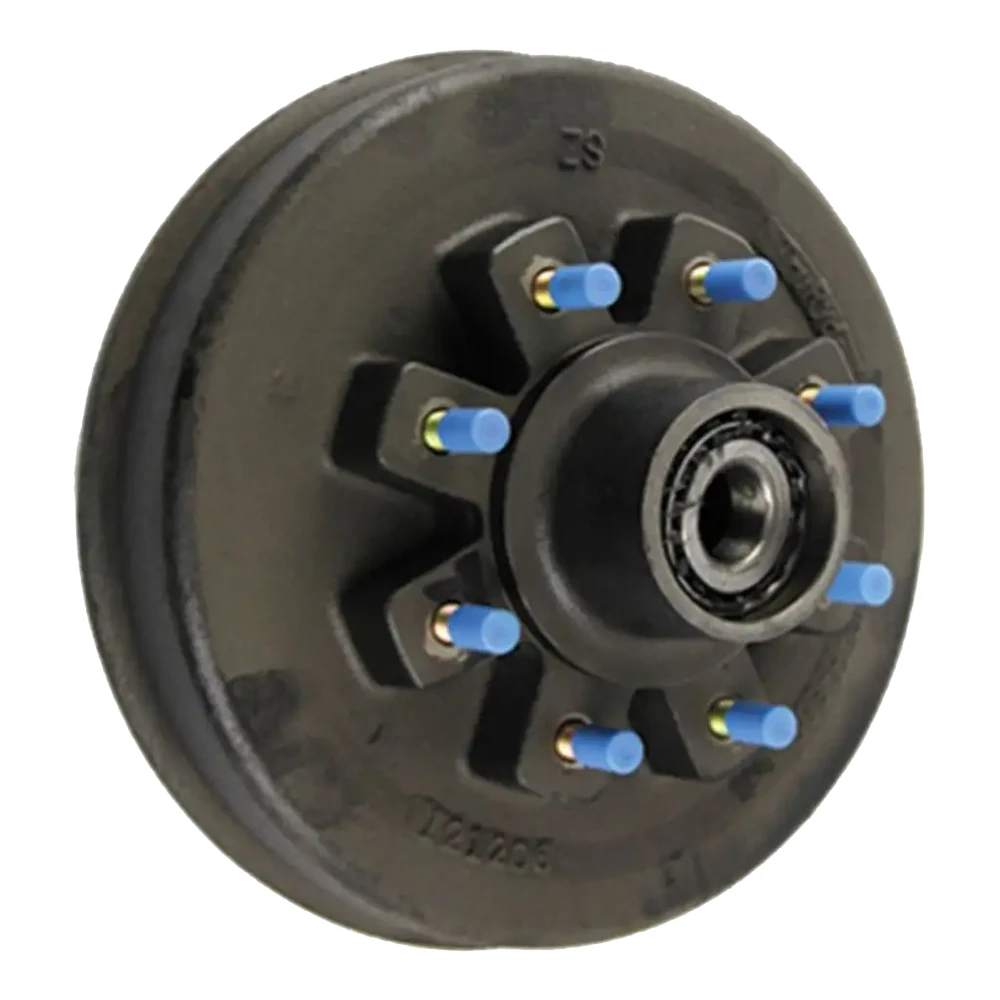

- QTY (1): 12-1/4" Threaded Trailer Brake Hub – 16K, 8 on 275 mm, M22 Studs (Hub Only)
- Outboard drum design for 12-1/4" × 5" drums (drum not included)
- 8 on 275 mm bolt circle — fits 17-1/2" wheels
- Races and M22 wheel studs come pre-installed
- Accepts Valcrum threaded oil caps (sold separately)
- Durable cast-iron construction backed by 1-year warranty
- Compatible with Lippert, Dexter, AL-KO & Rockwell systems
Required to Complete Installation (Sold Separately):
- 12-1/4" × 5" outboard brake drum, 8 on 275 mm
- Inner & outer bearings matched to your spindle, unitized oil seal
- Threaded oil cap (Valcrum compatible), spindle hardware as required
- Approved hub oil and fill tools per axle manufacturer’s procedure
Always verify axle rating, mounting pattern, and wheel size before ordering, and perform routine inspections and lubrication per manufacturer guidelines.
| Specifications | |
|---|---|
| Kit Type | Electric Brake & Threaded Hub Kit (No Drum) |
| Axle Rating | 16,000 lbs |
| Brake Drum Dimensions | 12-1/4" × 5" |
| Brake Location | Left / Driver-Side |
| Brake Mounting Pattern | 7-Bolt |
| Hub Type | Threaded Hub (hub-only); outboard drum required; races & studs installed |
| Hub Bolt Pattern | 8 on 275 mm |
| Stud Size | M22 × 1.5 |
| Wheel Size Compatibility | 17-1/2" wheel |
| Compatible Brands | Lippert, Dexter, AL-KO, Rockwell |
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
$608 99 $645.90 6% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$645.90 $608 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP778HBA
- Includes: Left Forward Self-Adjusting Brake Assembly, Threaded Brake Hub
