Lippert 16K Tandem Axle Electric Brake & 8-on-275 Hub/Drum Kit – 12-1/4″ × 5″ – Dexter / Al-Ko / Rockwell Compatible
Model: LP110HBALippert 16K Tandem Axle Electric Brake & 8-on-275 Hub/Drum Kit – 12-1/4″ × 5″
Upgrade the stopping power on heavy-duty tandem-axle trailers with this complete Lippert bundle. Four forward-self-adjusting 12-1/4″ × 5″ electric brake assemblies pair with matching 8-on-275 mm hub/drums to create a ready-to-install solution for 16,000-lb axles. Pre-installed races, standard 22 mm studs, and automatic adjustment reduce install time and future maintenance.

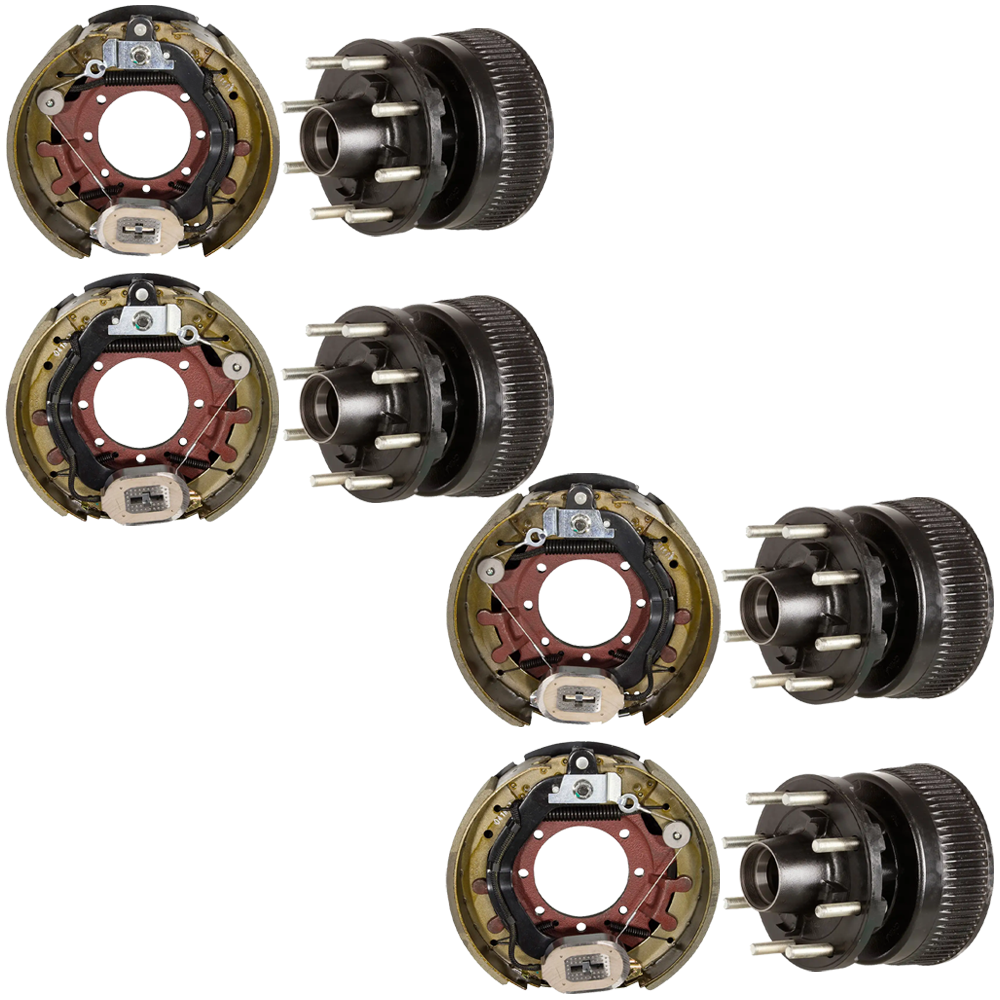

Bundle Contents:
- QTY (2): Forward Self-Adjusting Electric Brake Assembly – Driver/Left, 12-1/4″ × 5″, 12-16K, 7-Bolt
- Self-adjusts on every forward stop for up to 50 % shorter braking distance
- Fits 7-bolt mounting flange; replaces Lippert or Dexter
- Rated for 12K-16K axles; electric actuator sold separately
- Genuine Lippert OE quality
- QTY (2): Forward Self-Adjusting Electric Brake Assembly – Passenger/Right, 12-1/4″ × 5″, 12-16K, 7-Bolt
- Identical performance and fit as driver-side unit
- Automatic shoe adjustment extends service intervals
- Interchanges with Dexter, Al-Ko, Quality, Rockwell
- Mounts with supplied 7-bolt pattern

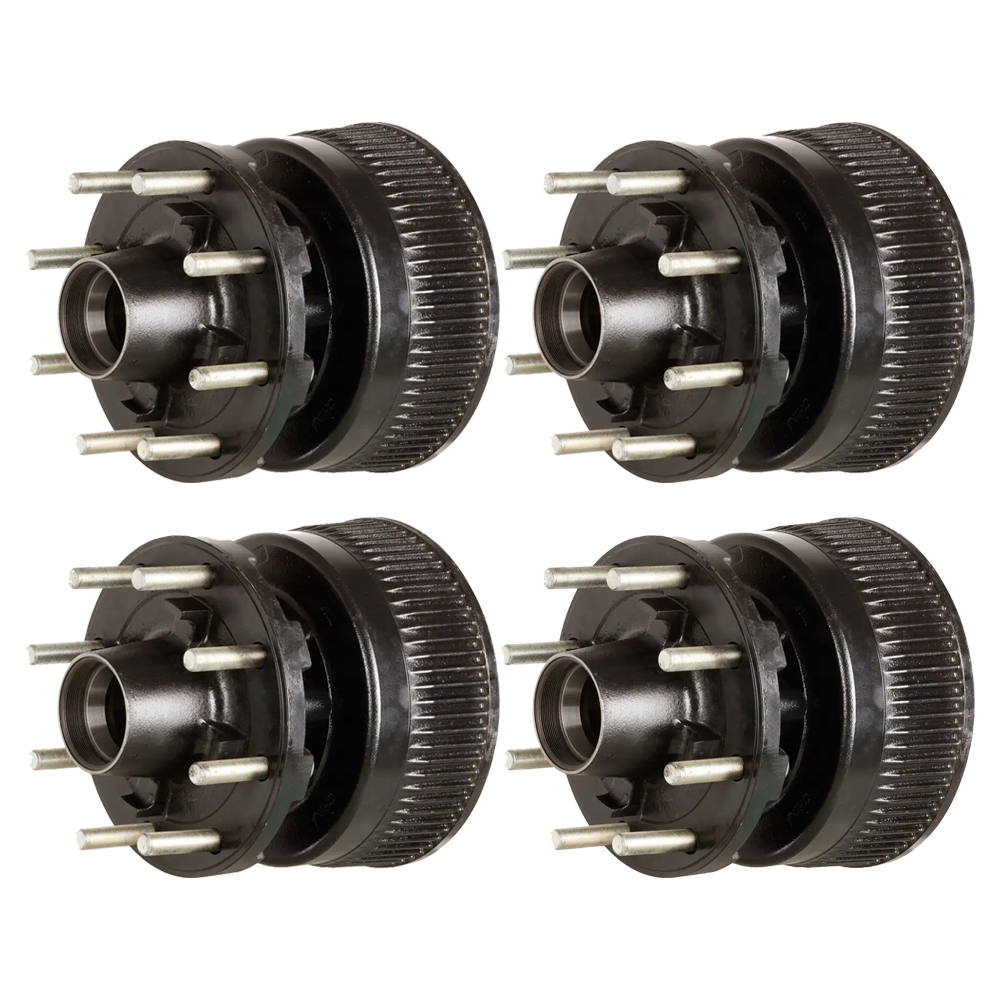

- QTY (4): Lippert Hub/Drum Assembly – 8 on 275 mm, 22 mm Stud, for 16K Axle
- 8 on 275 mm bolt circle, 221 mm pilot; 22 mm studs installed
- CNC-machined grey-iron drum mates with 12-1/4″ × 5″ shoes
- Includes bearing races & studs; ready for seals & bearings
- One-year limited warranty from Lippert
Please verify original equipment numbers before installation and inspect brakes regularly to ensure safe operation.
| Specifications: | |
|---|---|
| Kit Type | Complete Electric Brake & Hub/Drum Kit |
| Axle Rating | 16,000 lb Tandem (4 wheel-ends) |
| Brake Drum Dimensions | 12-1/4″ × 5″ |
| Brake Mounting Pattern | 7-Bolt |
| Hub Bolt Pattern | 8 on 275 mm, 221 mm pilot |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 22 mm |
| Type of Adjustment | Forward Self-Adjusting Electric |
| Brake Location | Driver & Passenger Side (Tandem Axle) |
| Wheel Size Compatibility | 17.5″ Dual |
| Cross-Compatibility | Lippert, Dexter, Al-Ko, Quality, Rockwell |
