Lippert 16K Triple-Axle Electric Brake & 8-on-275 Hub/Drum Kit — 12-1/4″ × 5″ Self-Adjusting Assemblies (Dexter, Al-Ko, Rockwell Compatible) – 6 Wheel-Ends
Model: LP111HBALippert 16K Triple-Axle Electric Brake & Hub/Drum Bundle
Outfit every wheel-end of your heavy-duty trailer with one comprehensive package. This Lippert bundle pairs forward self-adjusting 12-1/4″ × 5″ electric brakes with rugged 8-on-275 mm hub/drums for all three axles. Rated for 16,000-lb axles and cross-compatible with Dexter, Al-Ko and Rockwell, it delivers powerful, consistent stopping and longer service life with less maintenance.

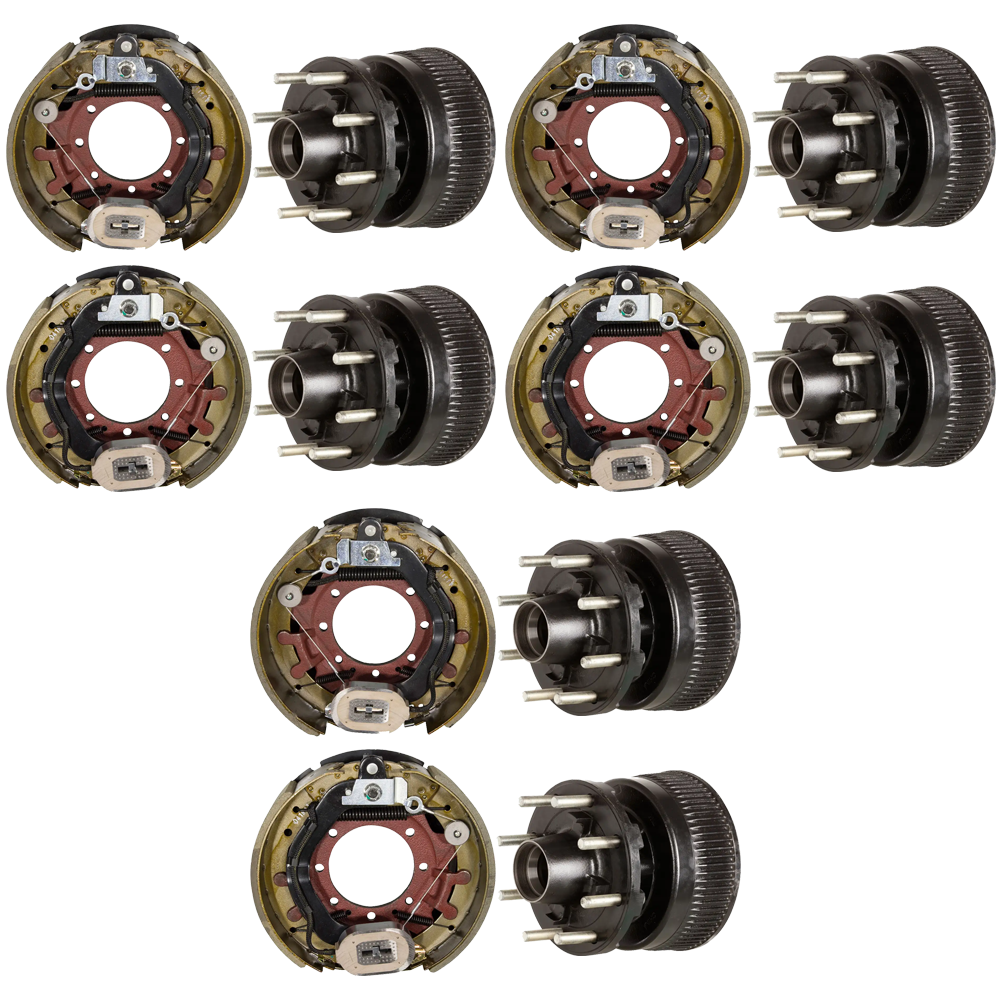

Bundle Contents:

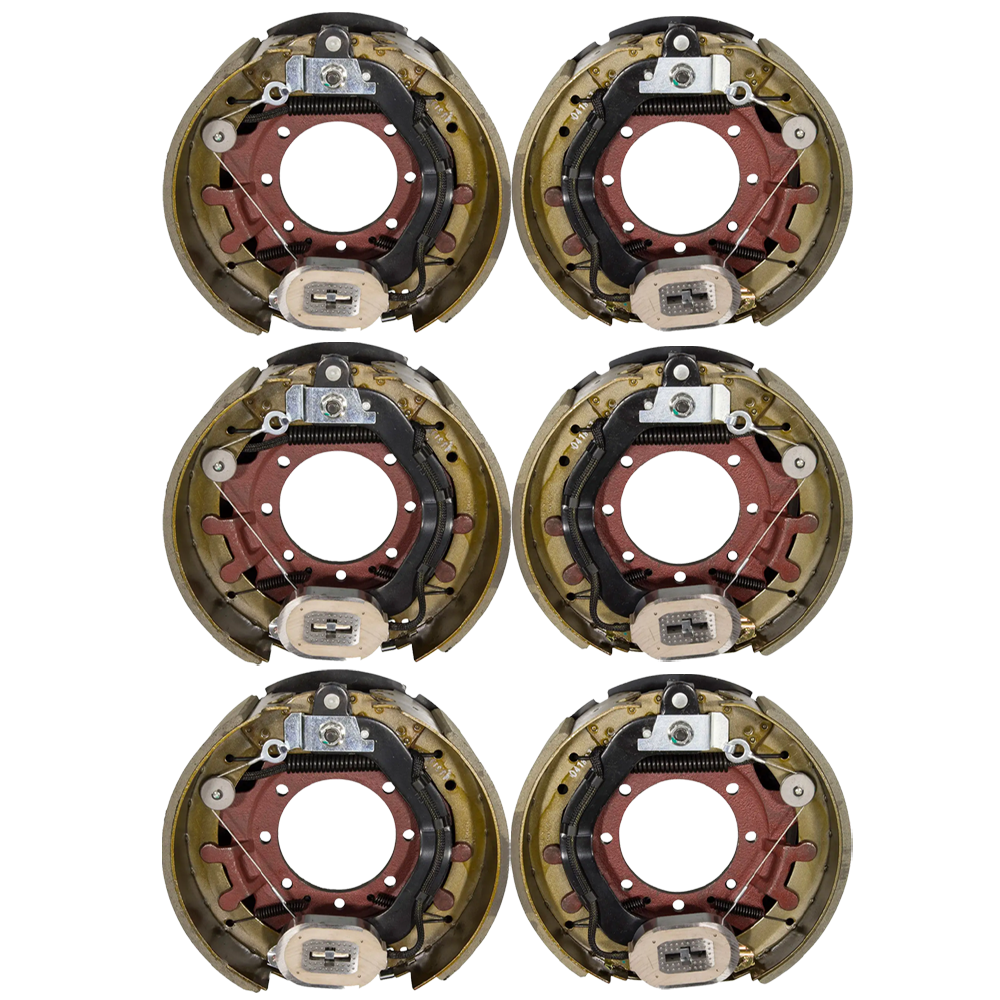

- QTY (3): Forward Self-Adjusting Electric Brake Assembly — Driver-Side, 12-1/4″ × 5″, 7-Bolt
- Fits 12K–16K Lippert, Dexter, Al-Ko & Rockwell axles
- Forward self-adjusting design shortens stopping distance
- 7-bolt brake flange; electric actuation (magnet sold separately)
- Genuine Lippert OE replacement
- QTY (3): Forward Self-Adjusting Electric Brake Assembly — Passenger-Side, 12-1/4″ × 5″, 7-Bolt
- Right-hand mirror assembly for 12K–16K axles
- Self-adjusts on every forward stop for even wear
- No hydraulic lines—simple bolt-on electric setup
- Backed by Lippert quality & support

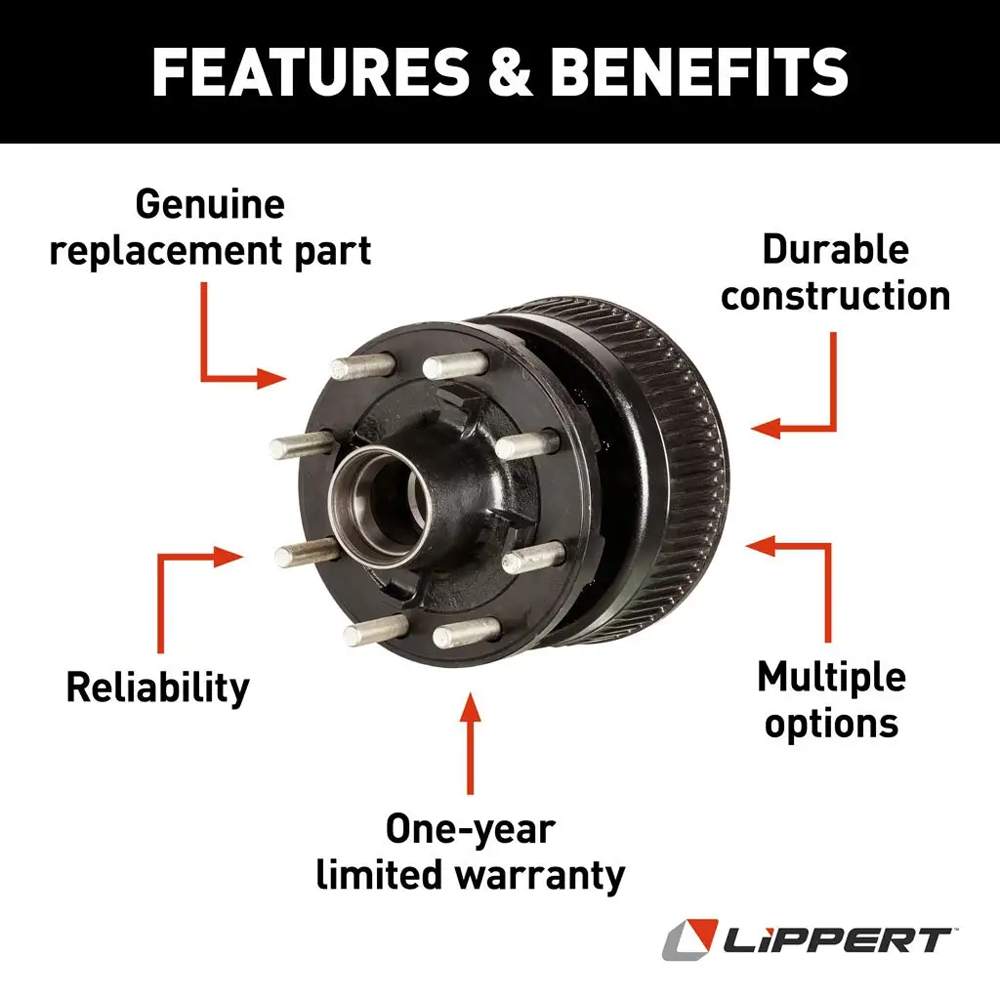

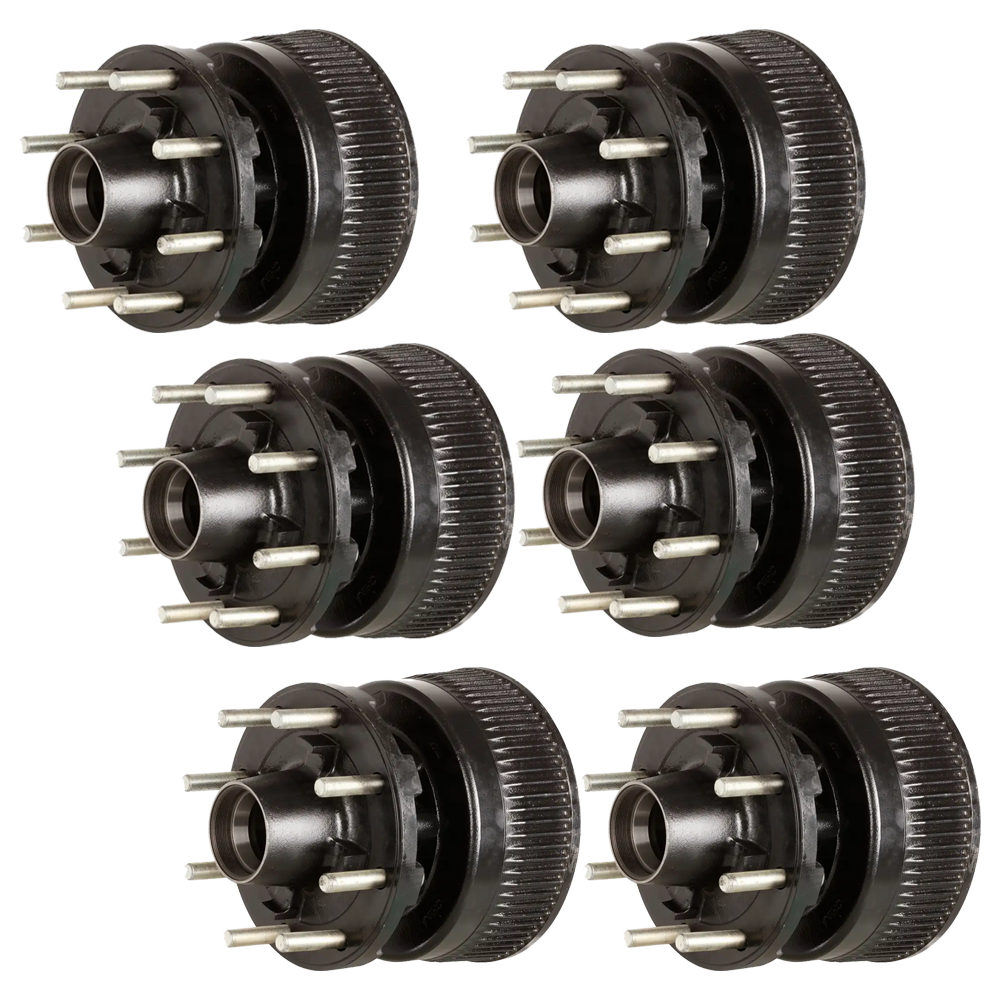

- QTY (6): Brake Drum Hub Assembly — 8 on 275 mm, 22 mm Stud, 16K Axle
- Grey-iron drum 12-1/4″ × 5″ with races pre-installed
- 8-lug on 275 mm bolt circle, 221 mm hub pilot
- 22 mm wheel studs; fits 17.5″ dual wheels
- Limited 1-year Lippert warranty
Verify your original equipment, torque specs and bearing sizes, and perform routine brake and hub inspections to maximize safety and longevity.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple-Axle Electric Brake & Hub Kit |
| Axle Rating | 16,000 lbs per axle |
| Brake Drum Dimensions | 12-1/4″ × 5″ |
| Brake Mounting Pattern | 7-bolt brake flange |
| Hub Bolt Pattern | 8 on 275 mm (221 mm pilot) |
| Hub Type | Hub with integrated drum |
| Stud Size | 22 mm |
| Type of Adjustment | Forward self-adjusting electric |
| Brake Location | Driver & passenger sides (left/right) |
| Wheel Size Compatibility | 17-1/2″ dual wheels |
| Number of Wheel-Ends | 6 (triple axle) |
| Compatibility | Lippert, Dexter, Al-Ko, Rockwell 16K axles |
$3,880 99 $4,349.40 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$4,349.40 $3,880 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP111HBA
- Includes: Left Self-Adjusting Brakes (x3), Right Self-Adjusting Brakes (x3), Threaded Brake Hub Assembly (x6)
