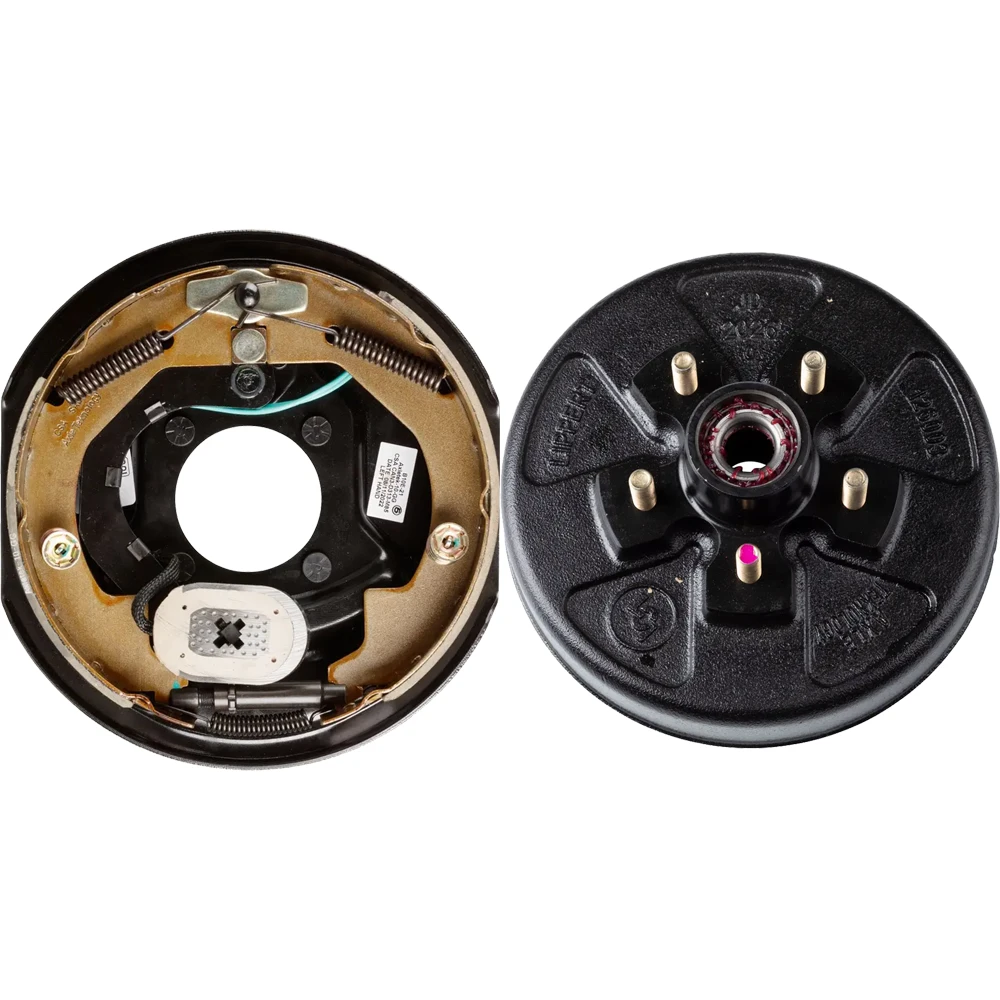

Lippert 3,500-lb 10″ × 2.25″ LH Manual-Adjust Electric Brake & 5-on-4.5 Drum Hub Bundle – Dexter / Al-Ko / Quality Compatible
Model: LP125HBALippert 10″ × 2.25″ Manual-Adjust Electric Brake & Drum Hub Bundle – 3,500-lb Axle
Restore confident braking on your 3,500-lb trailer axle with this genuine Lippert bundle. It pairs a left-hand manual-adjust electric brake assembly with a factory-greased 5-on-4.5 drum hub for a complete, DIY-friendly upgrade that’s compatible with popular Dexter, Al-Ko, and Quality axle setups.
Bundle Contents:

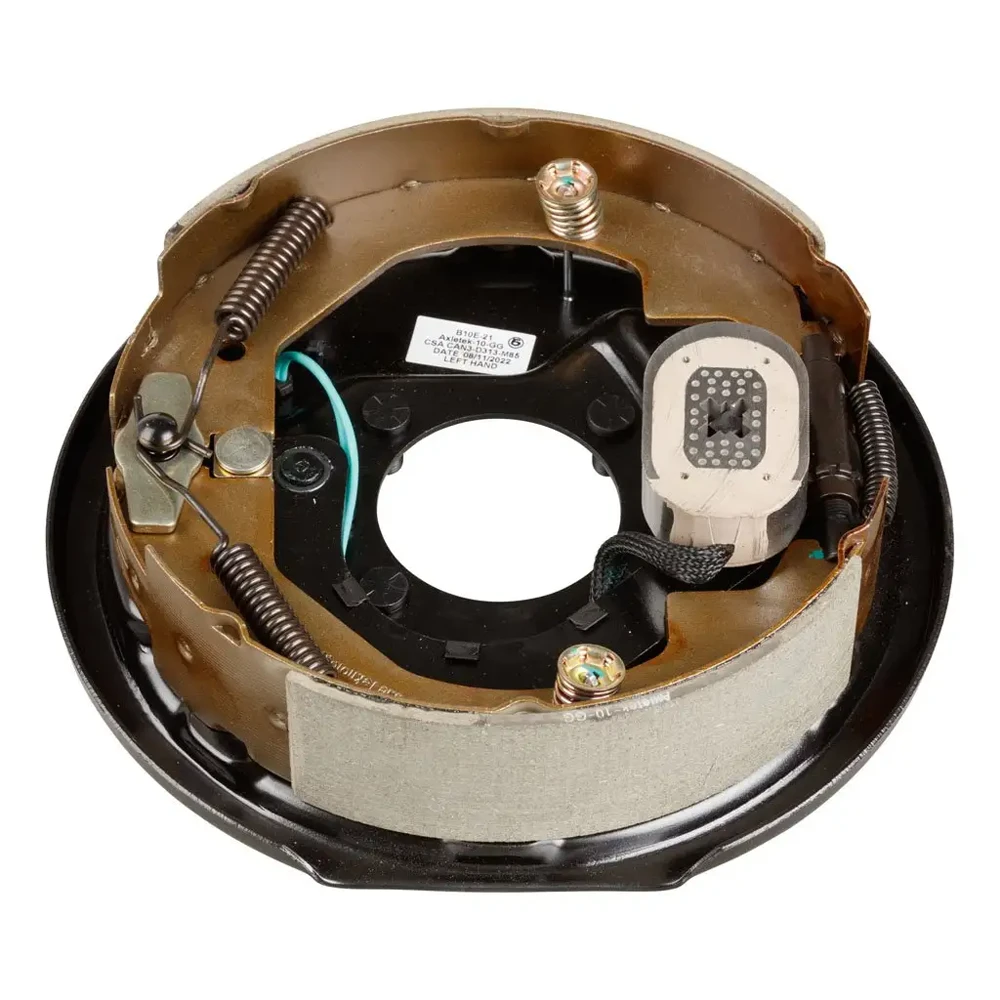

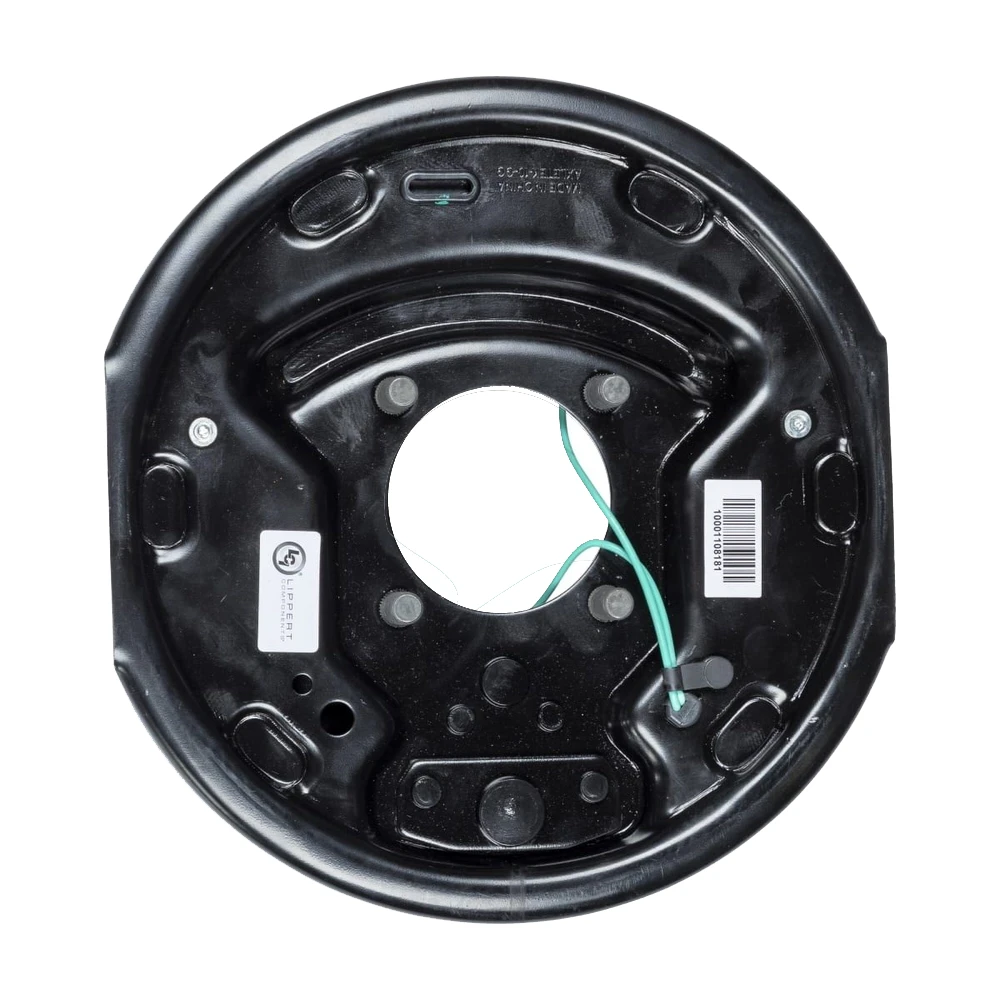

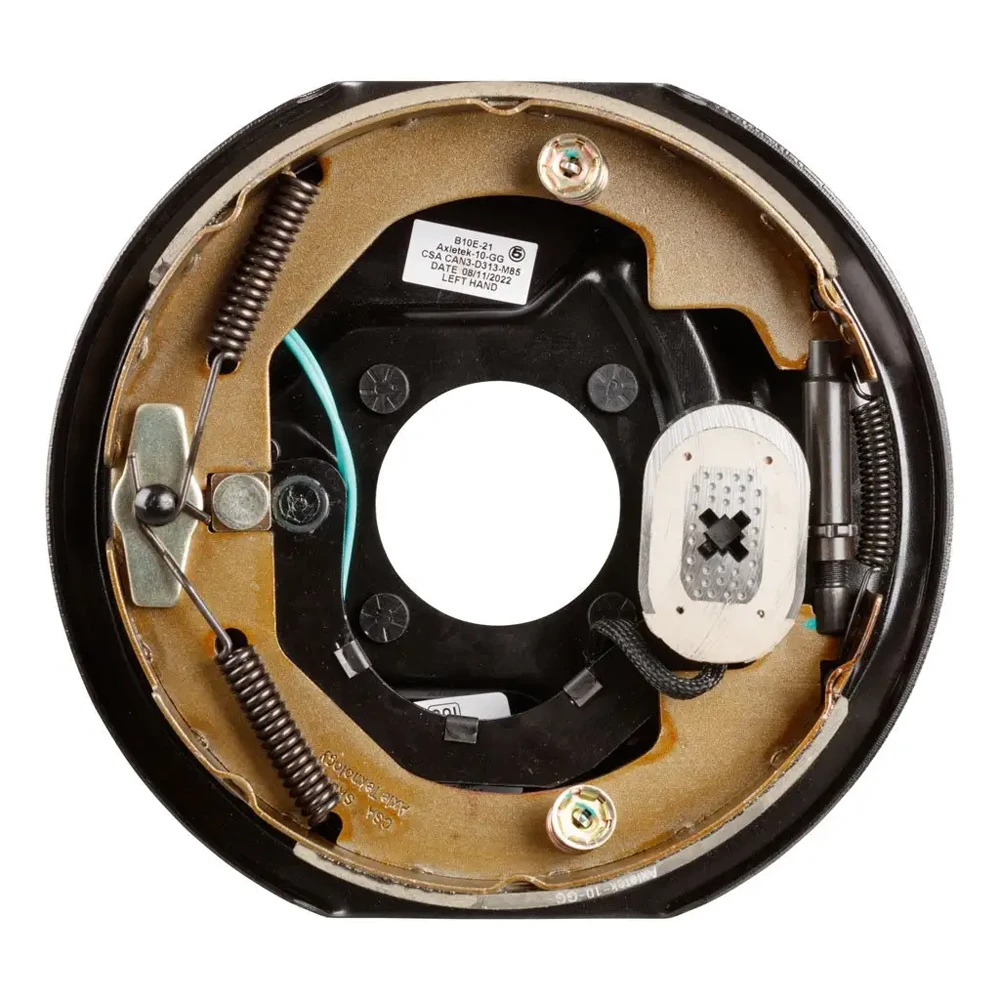

- QTY (1): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Left-Hand)
- Genuine Lippert replacement electric brake
- Left-hand (road-side) manual-adjust design
- 10″ × 2.25″ shoes for 3,500-lb axles
- Dexter compatible P/N K23-026-00 | 023-026-00
- Four-bolt mounting flange
- Simpler install vs. hydraulic systems
- 1-year limited warranty

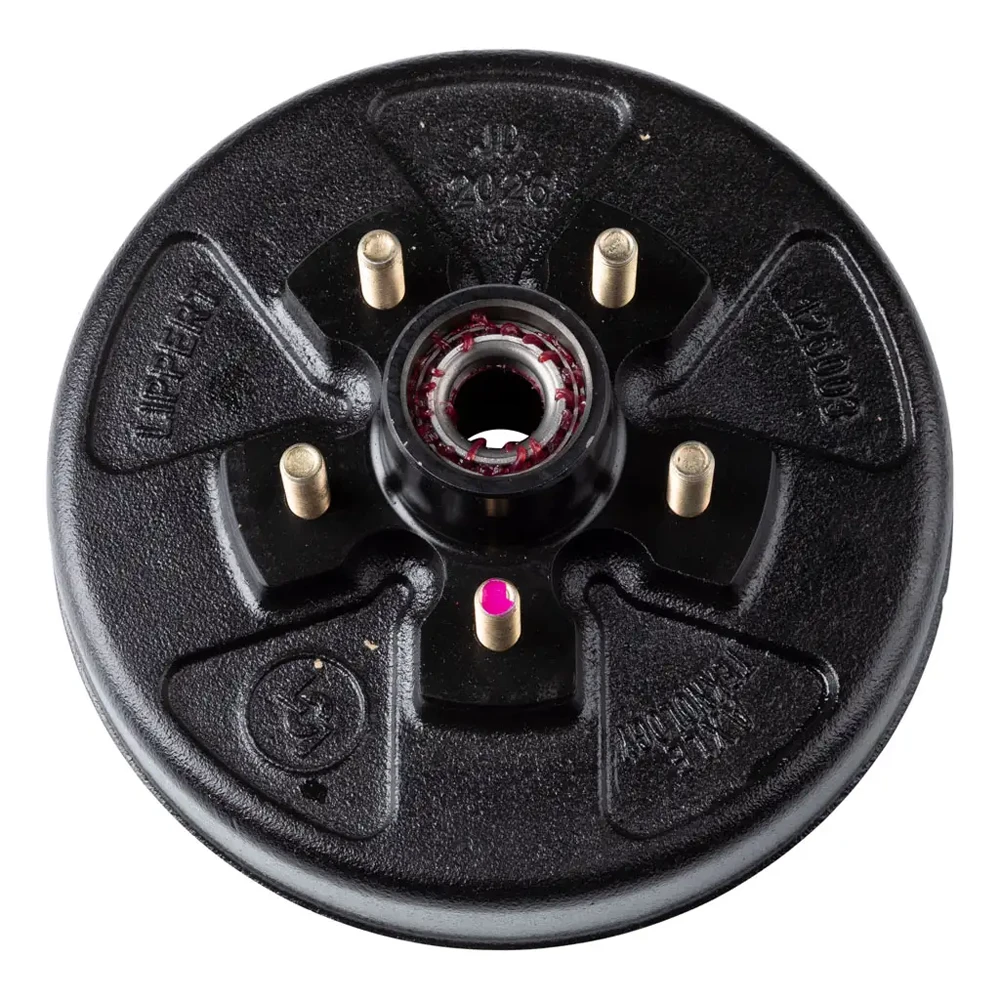

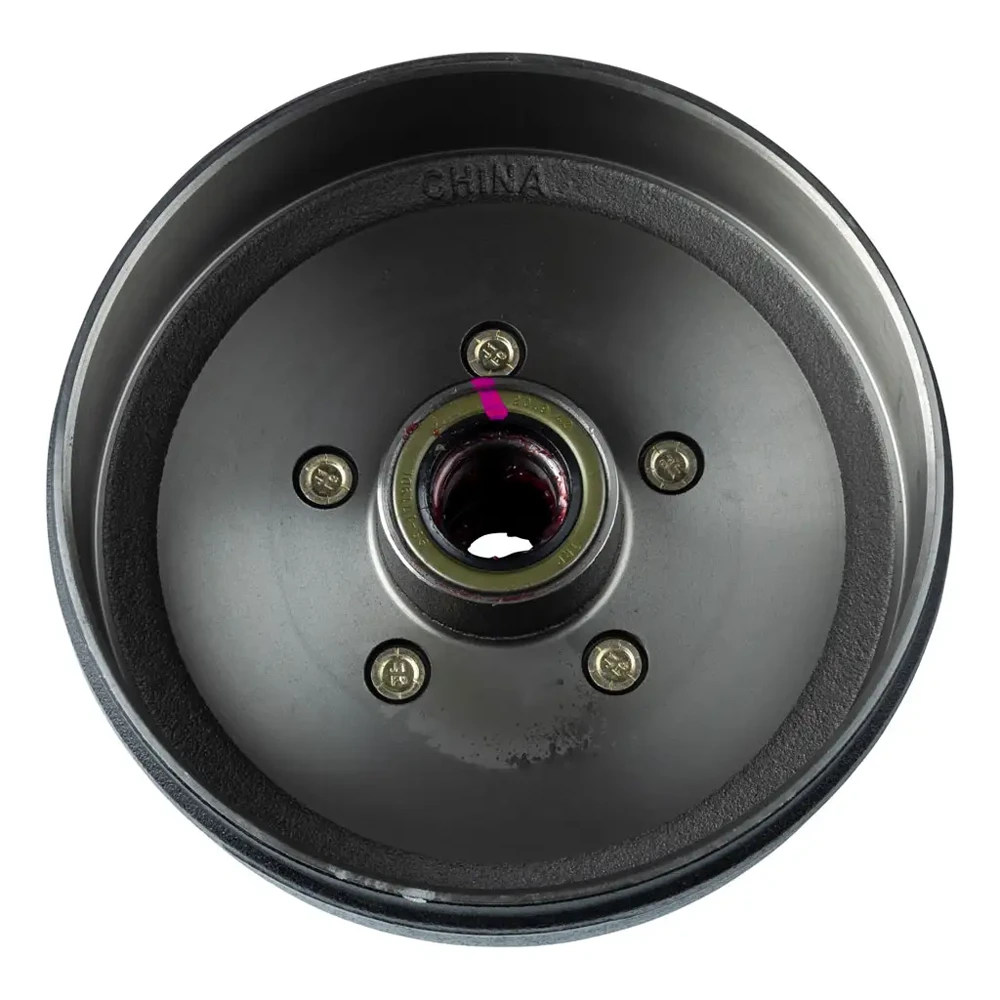

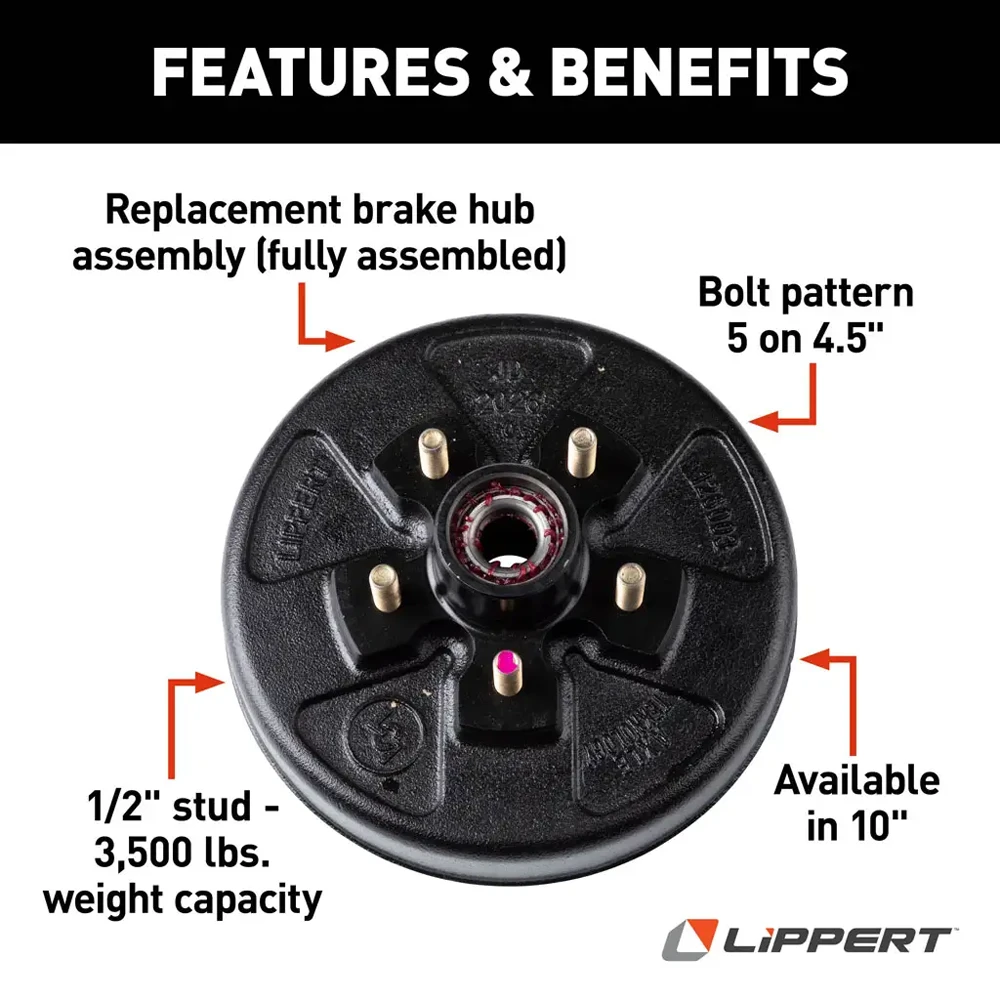

- QTY (1): Lippert 10″ Drum Hub Assembly for 3,500-lb Axle – 5 on 4.5″, 1/2″ Stud
- Cast-iron hub/drum rated for 3,500 lbs
- 5 on 4.5″ bolt pattern with 1/2″ studs
- Pre-installed bearing cones, seal & grease
- Fits 13″–15″ wheels
- 1-year limited warranty
Always confirm axle specs, brake size, bolt pattern, and flange style with your original equipment, and perform regular inspections and adjustments to ensure safe towing.
| Specifications: | |
|---|---|
| Kit Type | Electric Brake & Drum Hub Bundle |
| Brand | Lippert |
| Axle Rating | 3,500 lbs |
| Brake Drum Dimensions | 10″ × 2.25″ |
| Brake Mounting Pattern | 4-bolt brake flange |
| Hub Bolt Pattern | 5 on 4.5″ |
| Hub Type | Integrated Drum & Hub |
| Stud Size | 1/2″ |
| Type of Adjustment | Manual Adjust |
| Brake Location | Left-Hand (Road Side) |
| Wheel Size Compatibility | 13″ – 15″ |
| Warranty | 1-Year Limited |
$203 99 $228.90 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$228.90 $203 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP125HBA
- Includes: Left Electric Brake Assembly, Brake Drum Hub Assembly
