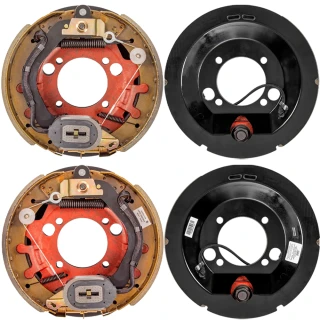

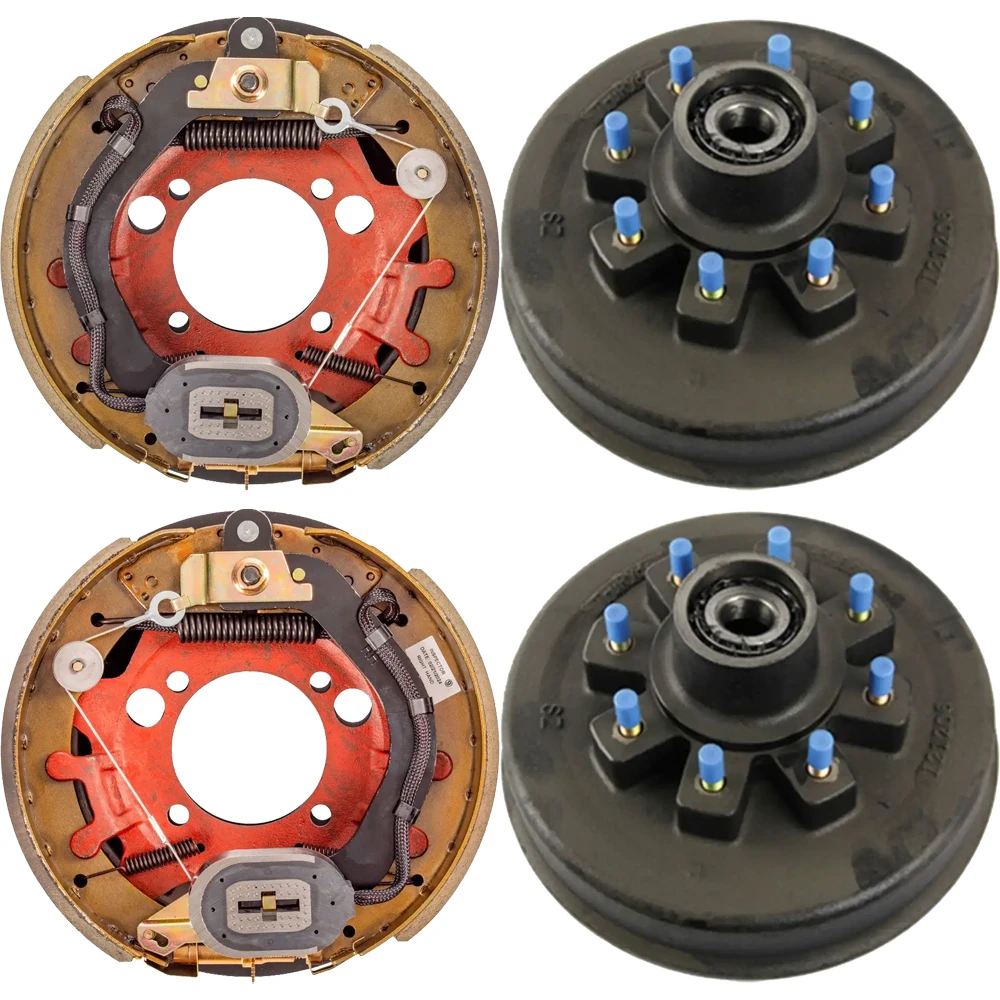

Lippert 8K 12.25 × 3.38 Self-Adjust Electric Brake & 8-on-6.5 Grease Hub Kit – Dexter, Al-Ko, Rockwell Compatible
Model: LP738HBALippert 8K Electric Brake & Grease Hub Kit – Complete Single-Axle Solution
Restore reliable stopping power on your heavy-duty trailer with this all-in-one Lippert bundle. It couples left- and right-hand, forward self-adjusting 12.25″ × 3.38″ electric brakes with two pre-greased 8-on-6.5 hubs, giving you everything required to service an 8,000-lb axle in one convenient package.
Bundle Contents:

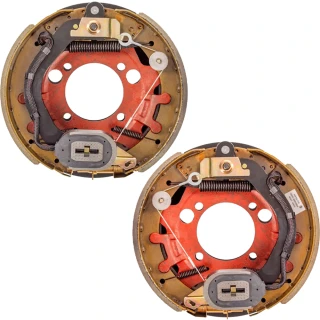

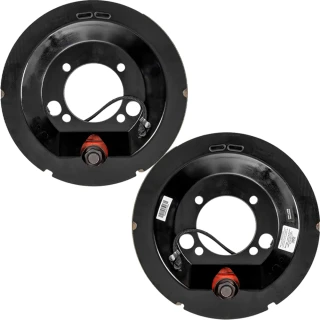

- QTY (1): Lippert 12.25″ × 3.38″ Electric Brake Assembly – Left Side
- Self-adjusting—no manual tweaks after break-in
- Road-side (driver) installation
- Rated for 8,000 lb axles
- Four-bolt mounting flange
- Fits 16″–17.5″ wheels
- Dexter Compatible Part Number: K23-434-00 / 023-434-00
- New electric drum brakes require break-in for full performance
- QTY (1): Lippert 12.25″ × 3.38″ Electric Brake Assembly – Right Side
- Forward self-adjusting configuration
- Curb-side (passenger) installation
- For 8,000 lb axles
- Four-bolt mounting flange
- Fits 16″–17.5″ wheels
- Dexter Compatible Part Number: K23-435-00 / 023-435-00
- Requires break-in for peak efficiency

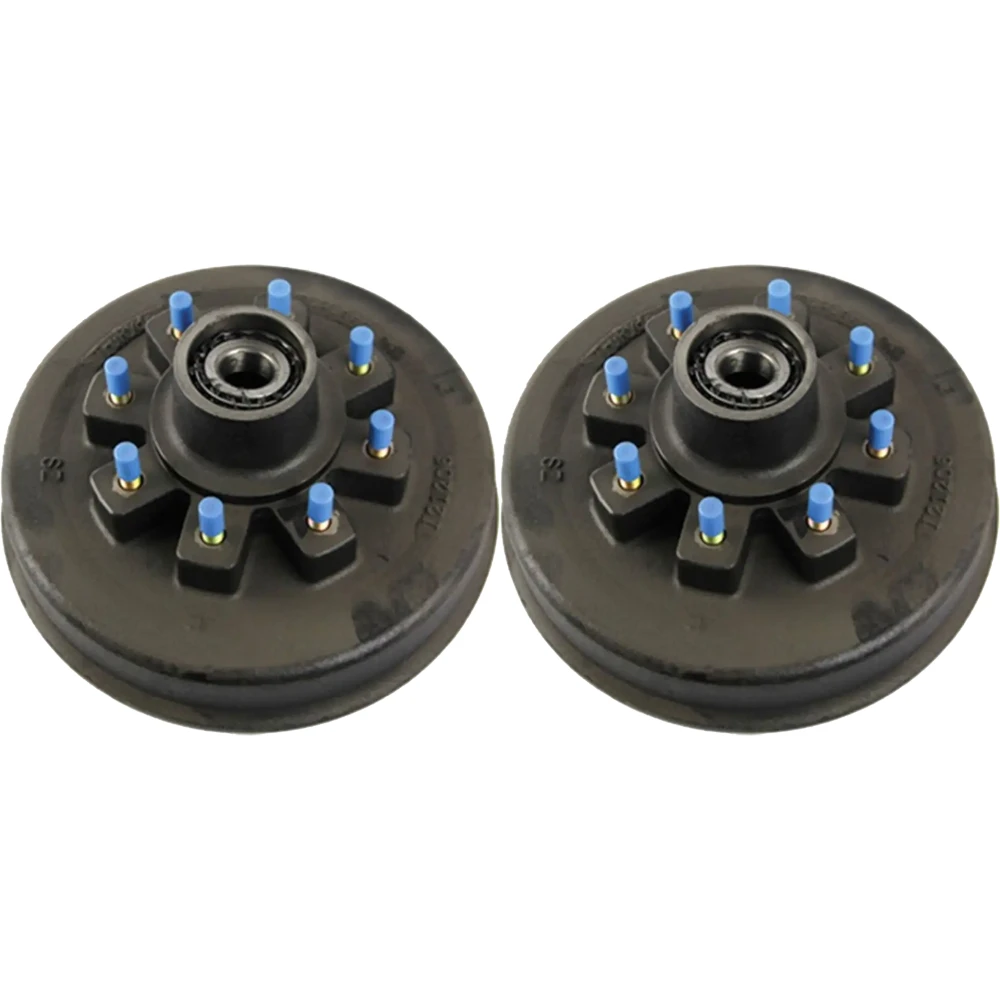

- QTY (2): Lippert Grease Hub Assembly – 8 on 6.5″, 5/8″ Stud, 8,000 lb
- Bearing cones, seal & grease pre-installed for quick setup
- Solid-iron hub with integrated drum
- 8 on 6.5″ bolt pattern, 5/8″ studs
- Fits 16″–17″ wheels
- 1-year Lippert warranty
Always verify your original equipment specifications before installation and perform regular brake inspections for safe towing.
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications: | |
|---|---|
| Kit Type | Complete Electric Brake & Grease Hub Kit |
| Axle Rating | 8,000 lbs |
| Brake Drum Dimensions | 12.25″ × 3.38″ |
| Brake Mounting Pattern | 4-bolt flange |
| Hub Bolt Pattern | 8 on 6.5″ |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 5/8″ |
| Type of Adjustment | Forward Self-Adjusting |
| Brake Location | Left & Right Assemblies (Single Axle) |
| Wheel Size Compatibility | Brakes — 16″–17.5″ / Hubs — 16″–17″ |
