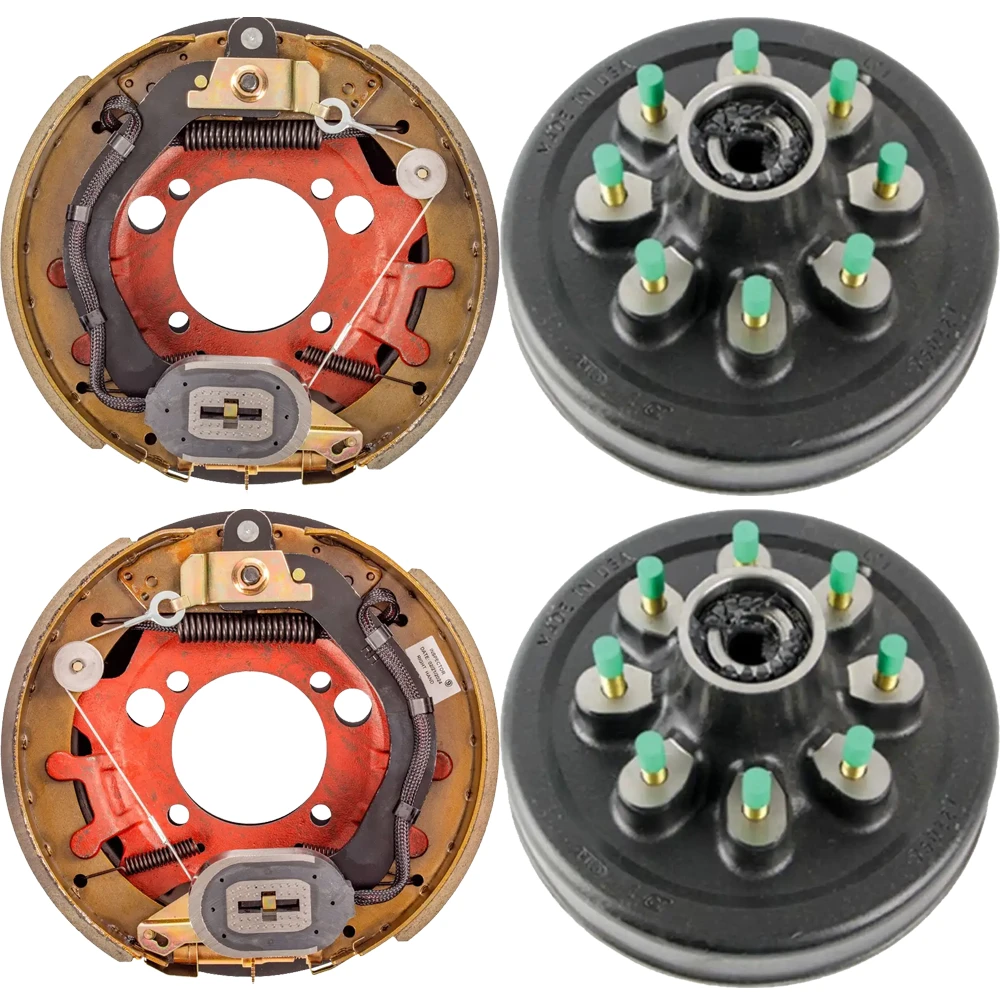

Lippert 8K 12.25″ × 3.38″ Self-Adjust Electric Brake Assemblies & 8-on-6.5 Threaded Hubs Kit, 9/16″ Studs – Dexter, Alko, Rockwell Compatible
Model: LP732HBALippert 8K Electric Brake & Threaded Hub Bundle
Service or upgrade your single 8,000-lb axle with this matched Lippert package. It pairs self-adjusting 12.25″ × 3.38″ electric brake assemblies for both sides with two rugged threaded hubs featuring the popular 8-on-6.5 bolt circle and 9/16″ studs—delivering smoother stops, easier installs, and long-term reliability.
Bundle Contents:
- QTY (1): Lippert 12.25″ × 3.38″ 8K Electric Brake Assembly – Left (Driver)
- Self-adjusting electric drum brake with park function
- Designed for left-hand (roadside) mounting; 4-bolt flange
- Fits 16″–17.5″ wheels on 8K axles
- Dexter compatible P/N: K23-434-00 | 023-434-00
- DIY friendly—initial break-in required for full power
- QTY (1): Lippert 12.25″ × 3.38″ 8K Electric Brake Assembly – Right (Passenger)
- Self-adjusting electric drum brake with park function
- Right-hand (curb-side) installation; 4-bolt flange
- Fits 16″–17.5″ wheels on 8K axles
- Dexter compatible P/N: K23-435-00 | 023-435-00
- New linings bed-in after several stops

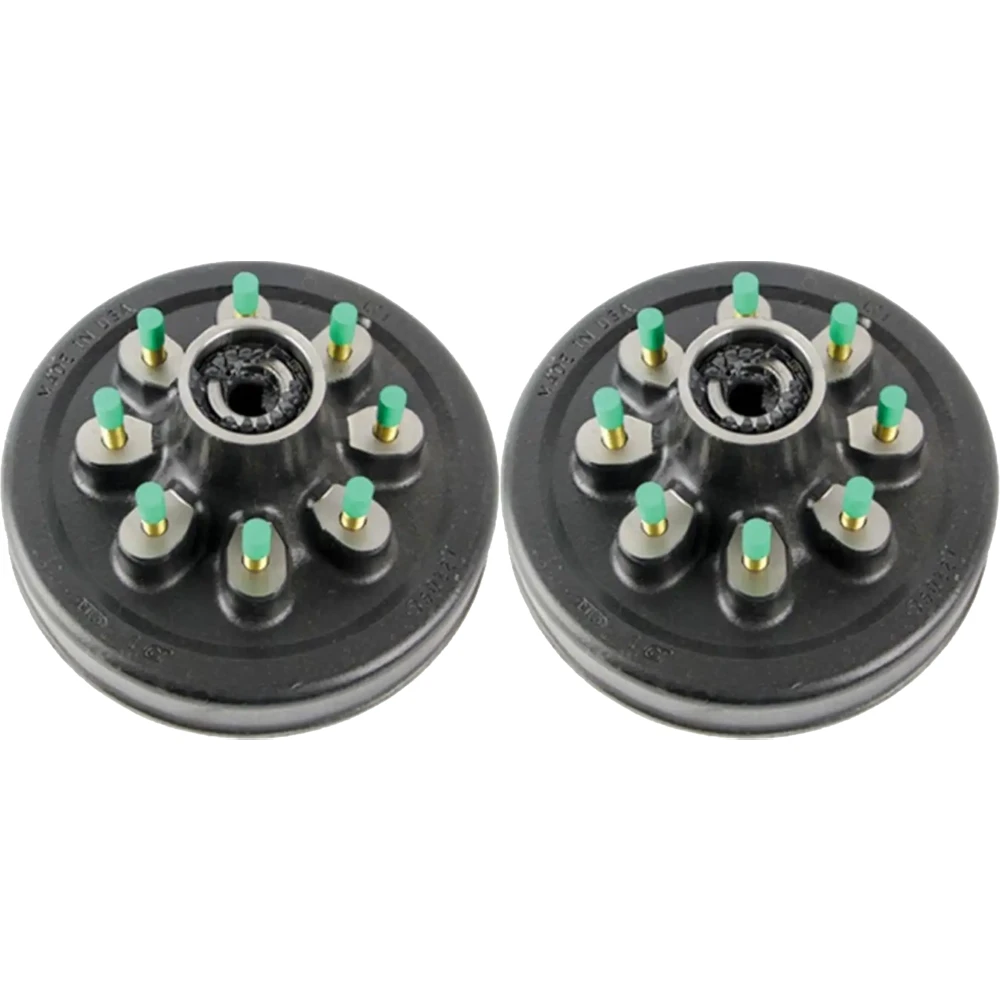

- QTY (2): 12-1/4″ Threaded Brake Hub – 8K, 8-on-6.5, 9/16″ Studs (HUB ONLY)
- Threaded cast-iron hub/drum accepts electric or hydraulic brakes
- Pre-installed races & 9/16″ wheel studs — bearings/seals sold separately
- 8-on-6.5 bolt circle; accepts Valcrum threaded caps
- Universal fit—Dexter, Lippert, Al-Ko, Rockwell & more
- Backed by 1-year Lippert warranty
Always verify axle rating, brake flange pattern, and wheel size before ordering, and perform routine maintenance for maximum safety and service life.
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications: | |
|---|---|
| Kit Type | Complete Single-Axle Electric Brake & Threaded Hub Kit |
| Axle Rating | 8,000 lbs |
| Brake Drum Dimensions | 12.25″ × 3.38″ |
| Brake Mounting Pattern | 4-bolt brake flange |
| Hub Bolt Pattern | 8-on-6.5 |
| Hub Type | Threaded cast-iron hub with integrated drum |
| Stud Size | 9/16″ |
| Type of Adjustment | Forward self-adjusting |
| Brake Location | Left (roadside) & Right (curb-side) assemblies |
| Wheel Size Compatibility | 16″ – 17.5″ wheels (brakes & hubs) |
$545 99 $661.80 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$661.80 $545 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP732HBA
- Includes: Left Forward Self-Adjusting Brake Assembly, Right Forward Self-Adjusting Brake Assembly, Brake Drum Hub (x2)
