Lippert Tandem Axle 3,500 lb 1.75" Tube Suspension Kit, 4,000 lb Leaf (24‑7/8"), Tall Equalizer – Hangers & Hardware Included, Dexter/Alko/Rockwell Compatible
Model: LP125ASKLippert Tandem Axle 3,500 lb 1.75" Tube Suspension Kit with 4,000 lb (24‑7/8") Leaf Springs & Tall Equalizer
Enjoy a smoother, more reliable ride with our Lippert Tandem Axle Suspension Kit. This all-in-one bundle includes hangers, hardware, tall equalizer, and heavy-duty leaf springs designed for 3,500 lb axle ratings and 1.75" axle tubes. It’s also compatible with Dexter, Alko, Rockwell, and Quality Axles.

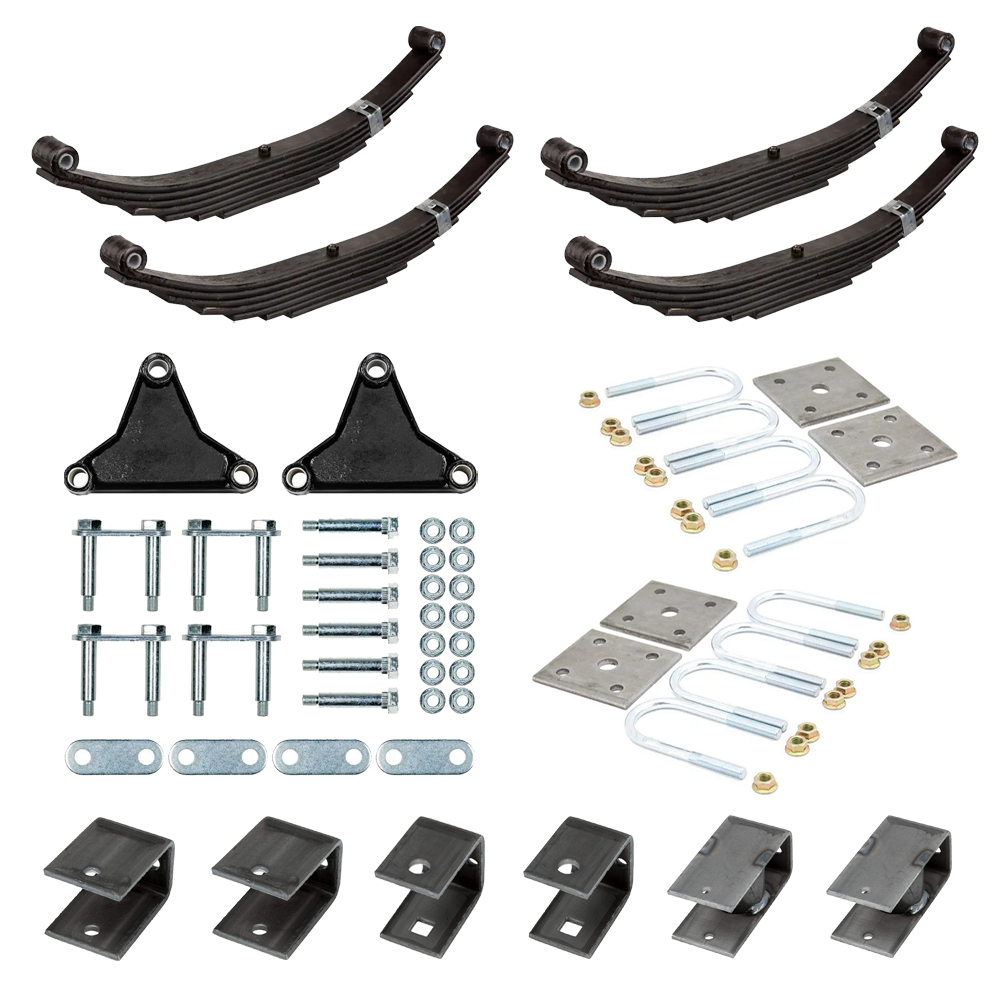

Bundle Contents:

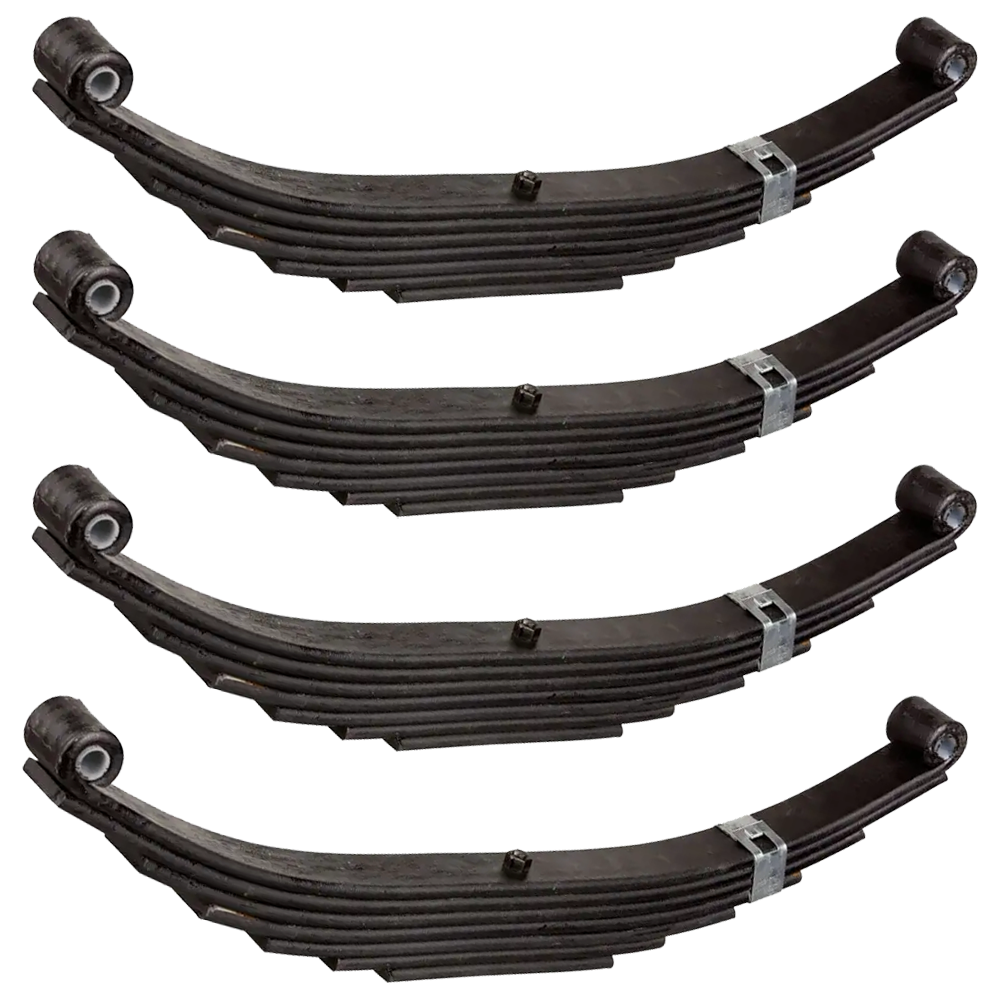

- QTY (4): 4,000 lb Leaf Springs (24‑7/8" length, 7 leaves, 1‑3/4" width)
- 4,000 lb capacity per spring
- 7 leaves for added support
- 24‑7/8" eye-to-eye length (unloaded); 26" loaded
- Arch height: 3‑1/4" (unloaded), 1‑3/4" (loaded)
- 9/16" spring eye diameter

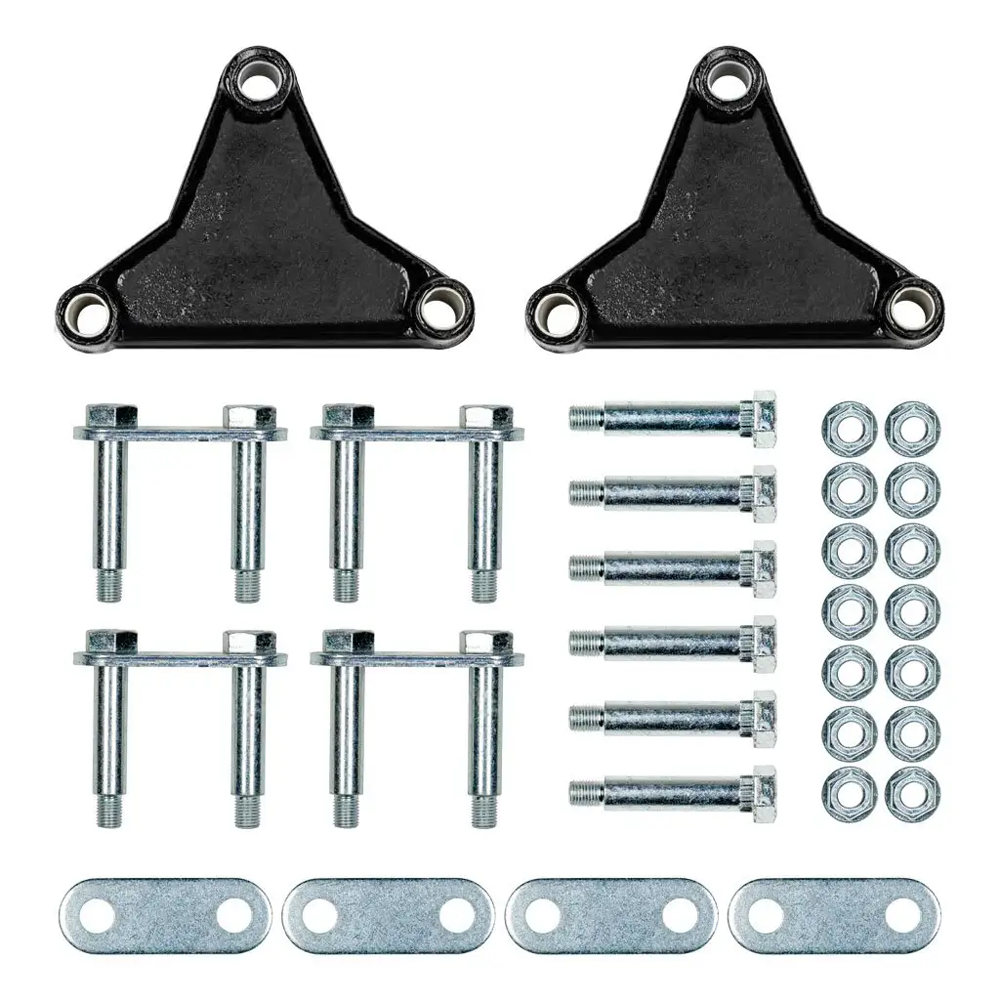

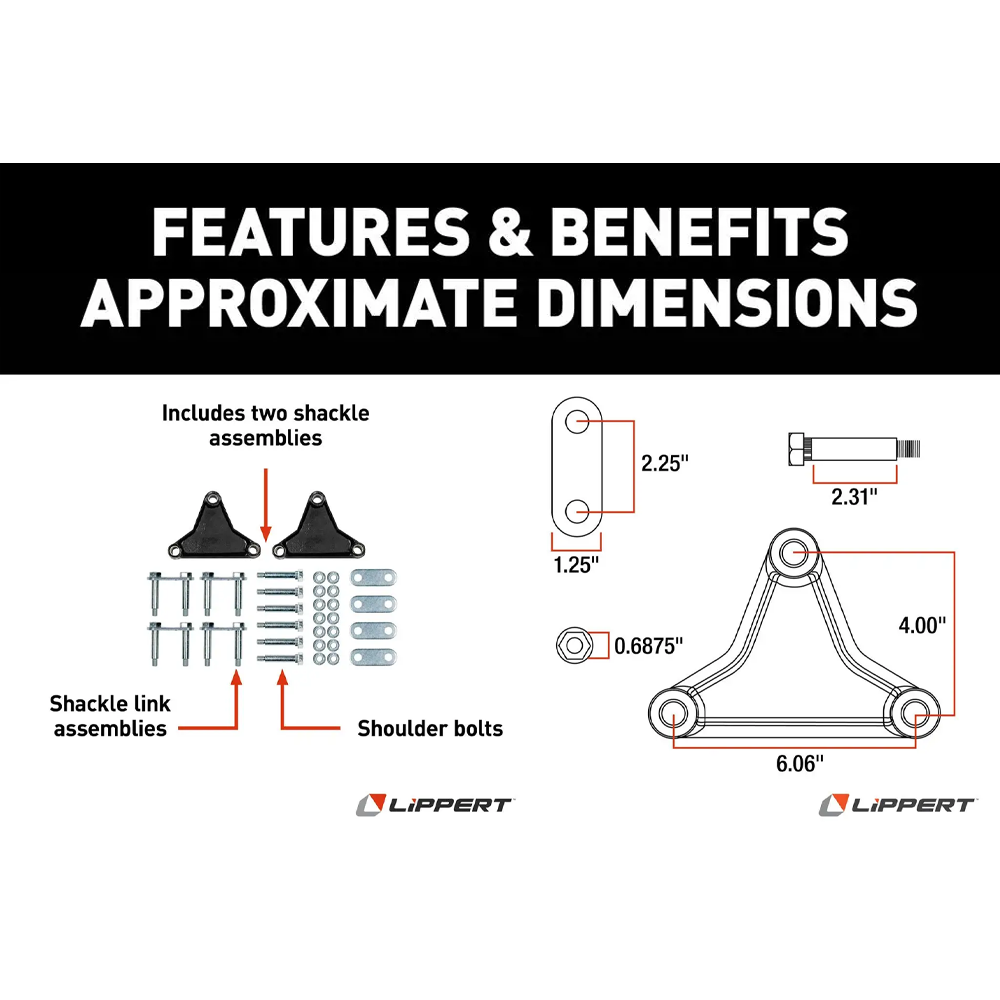

- QTY (1): Lippert Trailer Axle AP Kit for Double-Eye Tandem Axles – Tall Equalizer
- Equalizer Reference: EQ-310
- Equalizer Bolt Qty: 3 (2.88" length)
- Shackle Assembly Qty: 4 (2.25" length)
- Shackle Plate Qty: 4 (2.25" length)
- Shackle Bolt Qty: 6 (2.88" length)
- Equalizer Nut Qty: 2 (7/16"-20 thread)
- Lock Nut Qty: 14 (7/16"-20 thread)

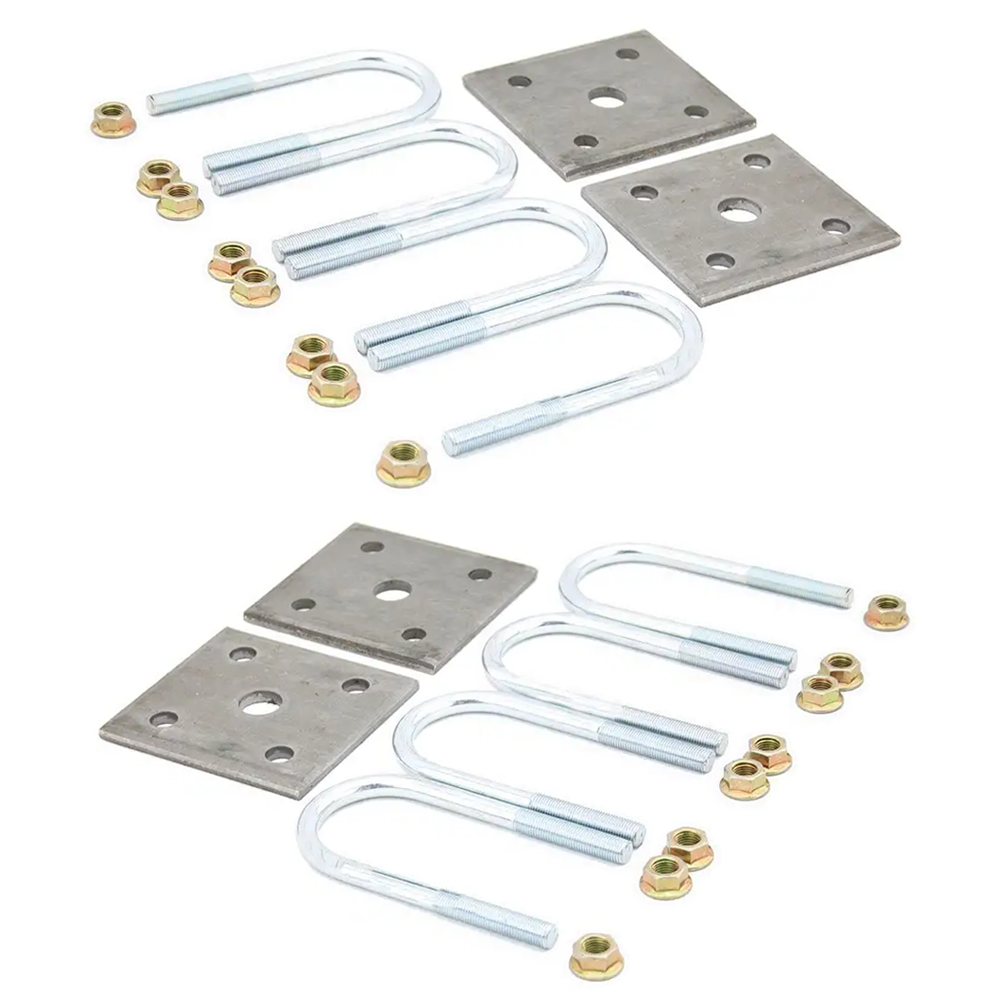

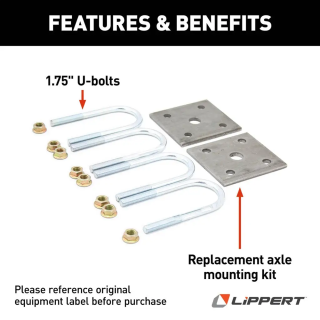

- QTY (2): Axle Mounting Kit – 1.75" Tube
- Replacement axle mounting kits with U-bolts
- Designed to fit 1.75" axle tubes

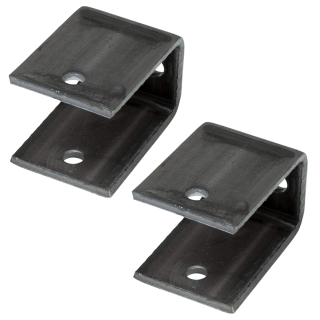

- QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
- Distance to hole: 3‑9/16" on-center
- Hole size: 9/16"
- Helps secure and position front portion of the axle
- QTY (2): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
- Distance to hole: 3‑5/16"
- Hole size: 7/8"
- Stabilizes axle alignment for tandem setups

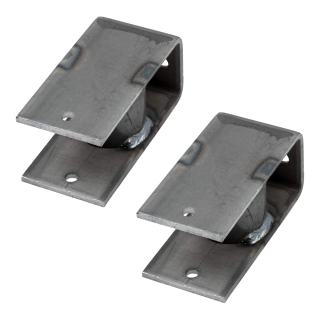

- QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
- Distance to hole: 4"
- Hole size: 5/16"
- Secures rear portion of the axle
Before installing, verify all existing components match the included parts and specifications. Proper maintenance and inspection of your trailer’s suspension system will help ensure safe and dependable towing for years to come.
| Specifications: | |
|---|---|
| Kit Type | Tandem Axle Suspension Kit |
| Axle Rating | 3,500 lb |
| Leaf Spring Capacity | 4,000 lb Each |
| Number of Leaves per Spring | 7 |
| Leaf Spring Width | 1‑3/4" |
| Unloaded Eye-to-Eye Length | 24‑7/8" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3‑1/4" |
| Arch Height Loaded | 1‑3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 1.75" |
| Equalizer Type | Tall |
| Axle Configuration | Tandem |
$536 99 $745.35 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$745.35 $536 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP125ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
