Lippert Tandem Axle Suspension Kit – 3,500‑lb, 3″ Tube, 3,000‑lb 26″ Leaf Springs, Tall Equalizer with Hangers & Hardware – Dexter, Alko, Rockwell, Quality Axles Compatible
Model: LP63ASKLippert Tandem Axle Suspension Kit – 3,500‑lb, 3″ Tube, 3,000‑lb 26″ Leaf Springs, Tall Equalizer

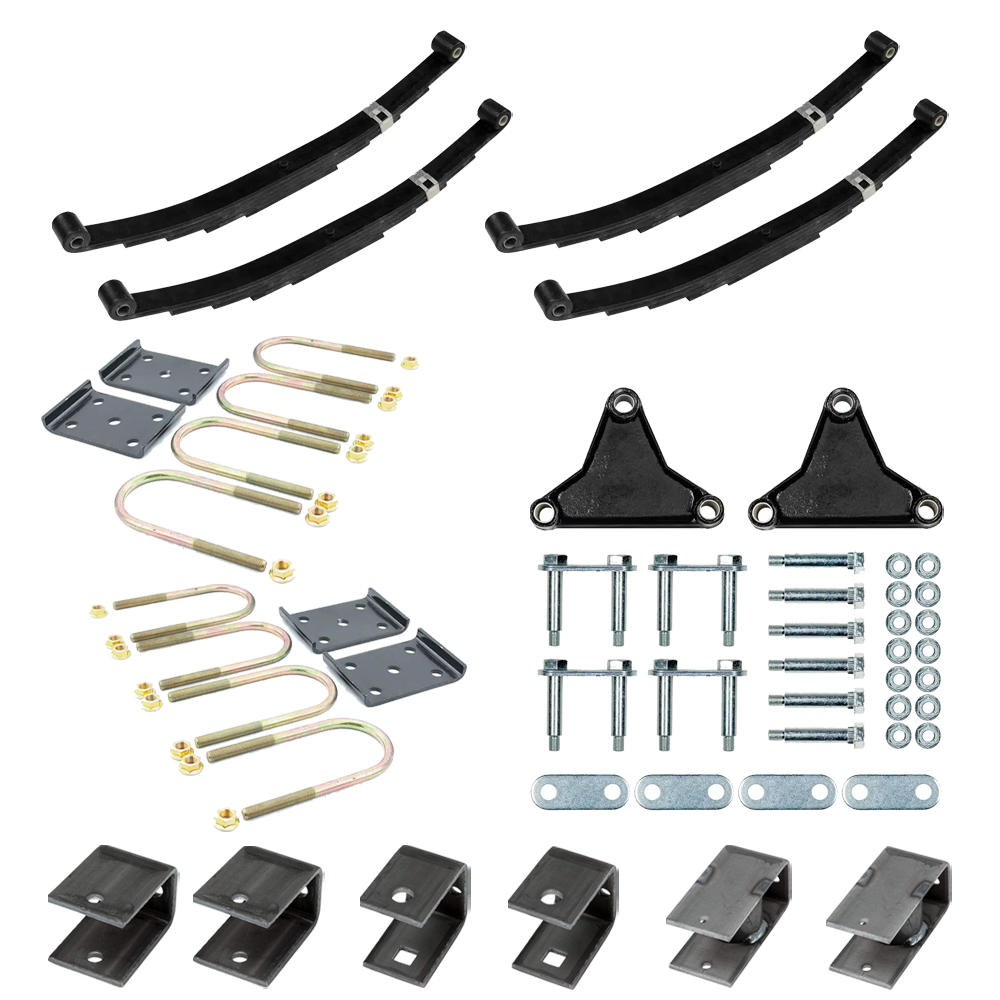

This all-in-one Lippert suspension kit is designed for 3,500-lb tandem axles with 3″ tubes. It features four 3,000-lb leaf springs (26″ loaded length), a tall Lippert EQ-310 equalizer kit (with all bolts, nuts, and shackle assemblies), plus front, center, and rear hangers. Enjoy a smoother ride, consistent towing performance, and compatibility with Dexter, Alko, Rockwell, and Quality Axles.
Bundle Contents:
- QTY (4): Lippert Double-Eye Leaf Springs (3,000‑lb each)
- 1-3/4″ width, 5-leaf design
- 25-1/4″ unloaded / 26″ loaded eye-to-eye length
- 9/16″ eye diameter
- Compatible with Dexter, Alko, and more
- QTY (1): Lippert Tall Equalizer Kit (EQ‑310)
- Perfect for 2K–7K double-eye tandem axles
- Equalizer Reference: EQ‑310
- Contents & Quantities:
- QTY (3) Equalizer Bolts (2.88″ length)
- QTY (4) Shackle Assemblies (2.25″ length)
- QTY (4) Shackle Plates (2.25″ length)
- QTY (6) Shackle Bolts (2.88″ length)
- QTY (2) Equalizer Nuts (7/16″‑20 thread)
- QTY (14) Lock Nuts (7/16″‑20 thread)
- Engineered for a smoother ride and easy installation

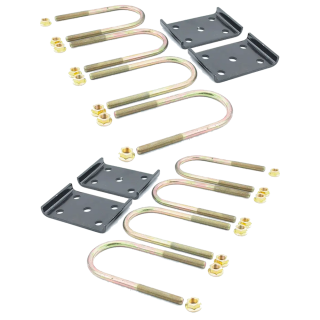

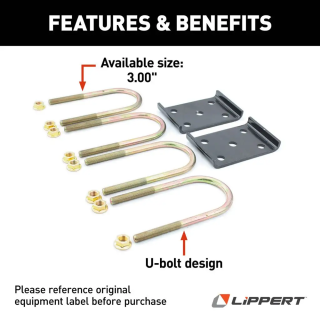

- QTY (2): Lippert Axle Mounting Kit – 3″ Tube
- U-bolt design, built for 3″ trailer axle tubes
- Direct replacement for quick and secure mounting
- QTY (2): Front Trailer Axle Hanger
- Length: 4-5/16″
- Width: 2-3/16″
- Hole size: 9/16″
- Distance to hole: 3-9/16″ on-center
- Welded to chassis for axle alignment
- QTY (2): Center Trailer Axle Hanger
- Length: 4-1/2″
- Width: 3-1/8″
- Hole size: 7/8″
- Distance to hole: 3-5/16″
- Designed for tandem axle suspension
- QTY (2): Rear Trailer Axle Hanger
- Length: 6″
- Width: 2-1/4″
- Hole size: 5/16″
- Distance to hole: 4″
- Welded to chassis for optimal rear axle support
Always verify your trailer’s original specifications to ensure proper fit. Regular maintenance of suspension components is critical for safe, reliable towing.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem Axle Suspension Kit |
| Axle Rating | 3,500 lbs |
| Leaf Spring Length | 25-1/4″ unloaded / 26″ loaded |
| Leaf Spring Capacity | 3,000 lbs each |
| Axle Tube Diameter | 3″ |
| Equalizer Type | Tall Lippert EQ‑310 |
| Axle Configuration | Tandem |
$512 99 $699.35 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$699.35 $512 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP63ASK
- Includes: Double-Eye Leaf Spring (x4), Suspension Kit, Axle Mounting Kit (x2), Front Axle Hanger (x2), Center Axle Hanger (x2), Rear Axle Hanger (x2)
