Lippert Triple Axle Suspension Kit – 3" Tube – 33" Spacing – 3,000-lb (Per Spring), 25-1/4" Unloaded Leaf, Standard Equalizer, Hangers & Hardware – Dexter, Alko, Lippert, Rockwell, Quality Axles
Model: LP165ASKLippert Triple Axle Suspension Kit – 3" Tube – 33" Spacing – 3,000-lb (Per Spring) – 25-1/4" Unloaded Leaf – Standard Equalizer – Hangers & Hardware
Upgrade your trailer’s ride quality with this complete Lippert Triple Axle Suspension Kit. Engineered for 3" axle tubes with 33" spacing, each leaf spring supports up to 3,000 lbs (unloaded length 25-1/4"). This kit includes standard equalizers, premium-grade hangers, and hardware to ensure safe, reliable performance. Designed to be compatible with Dexter, Alko, Lippert, Rockwell, and Quality Axles, it’s the perfect solution for heavy-duty applications.

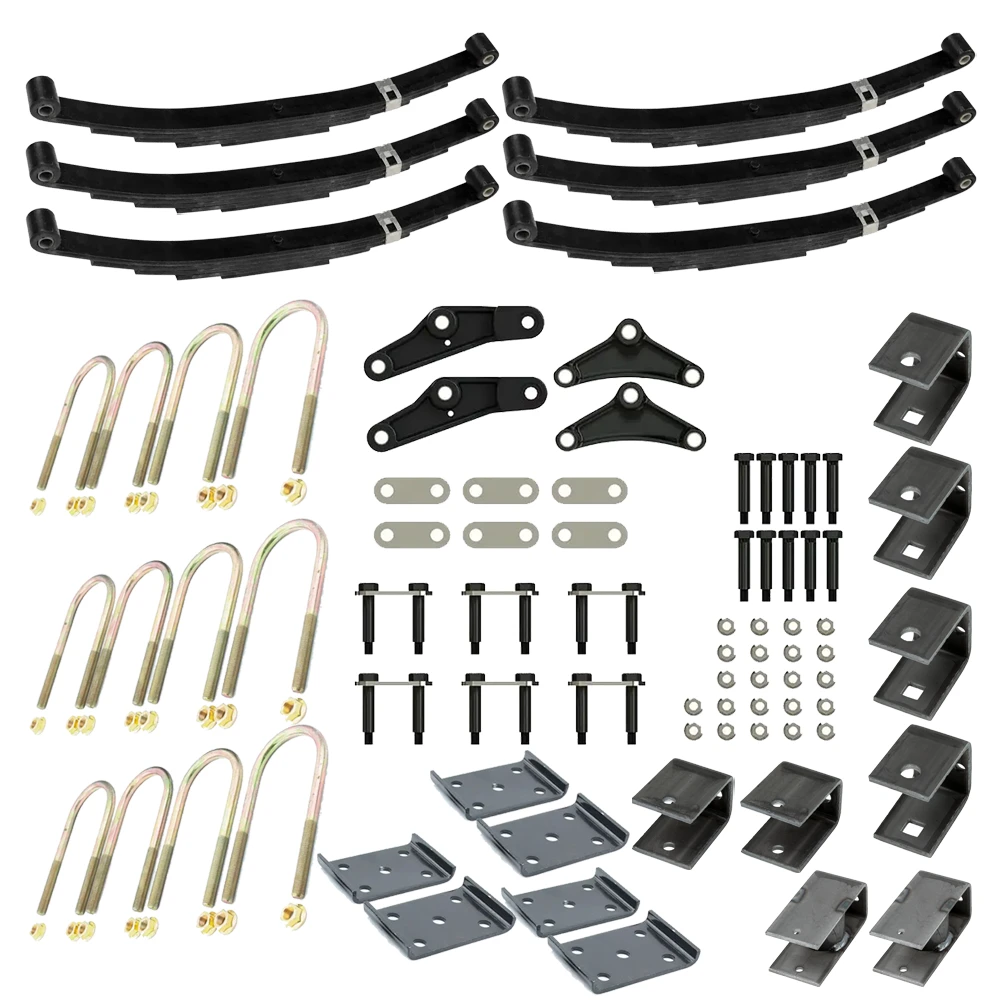

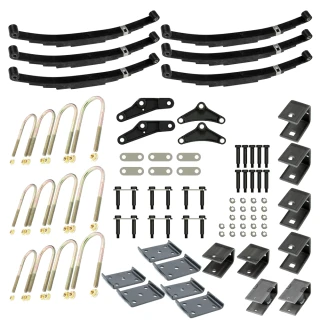

Bundle Contents:

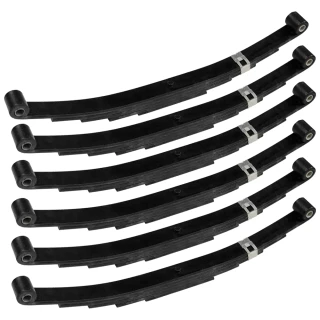

- QTY (6): Trailer Double-Eye Spring – 3,000-lb, 5-Leaf, 1-3/4" Wide x 25-1/4" Unloaded Length
- 3,000-lb capacity per spring
- 5-leaf design; 1-3/4" width
- Unloaded eye-to-eye: 25-1/4"; Loaded eye-to-eye: 26"
- Arch height unloaded: 3-1/8"; loaded: 1-3/4"
- Eye diameter: 9/16" (Industry number: SW-5)
- Universally compatible with Dexter, Alko, Lippert, Rockwell, Quality Axles

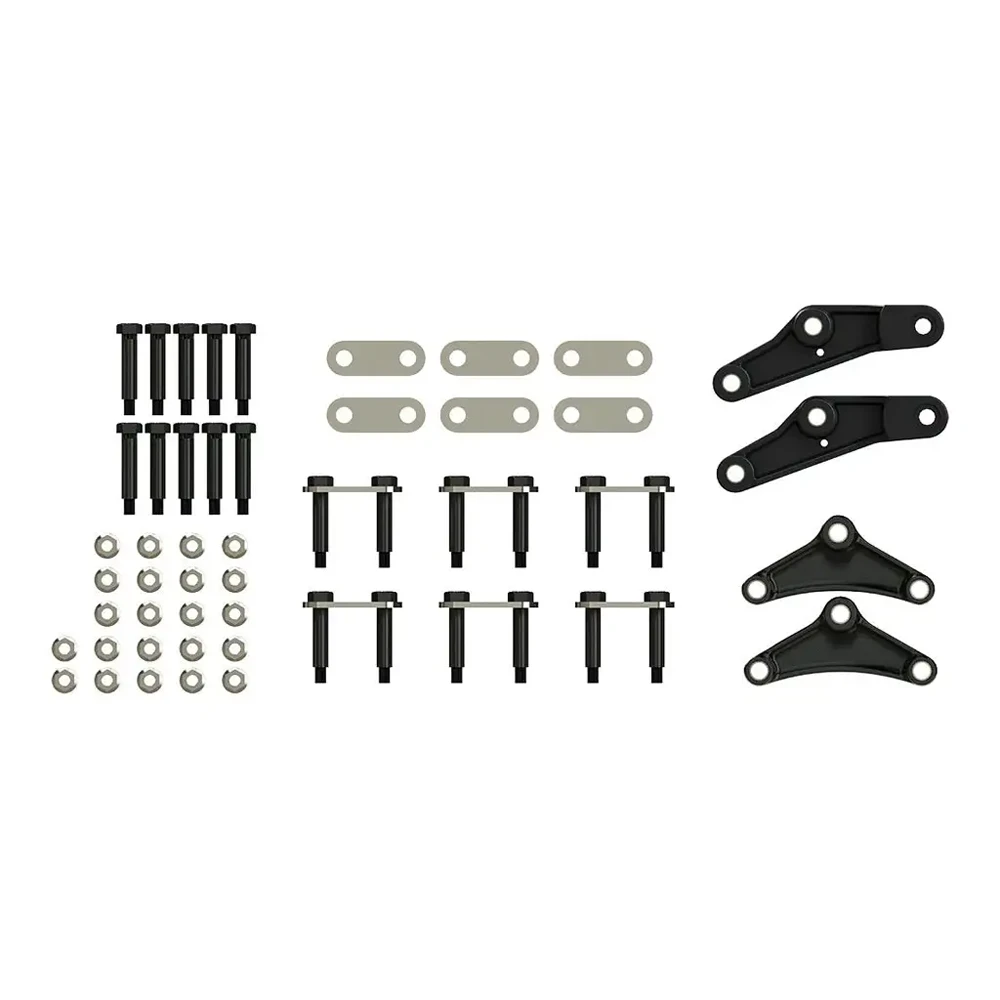

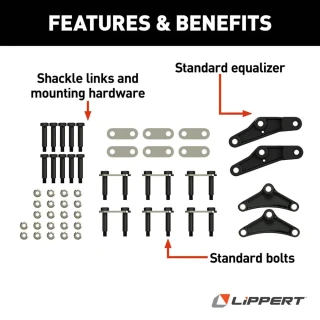

- QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
- Complete triple axle AP kit with shackle links, mounting hardware, and standard equalizers
- Exact-match replacement for straightforward installation
- Dexter Compatible Part Number: A/P-335-00

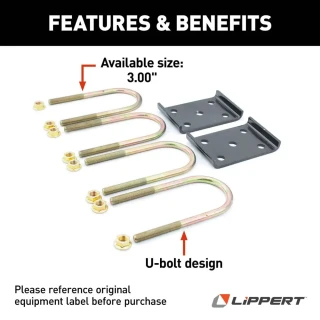

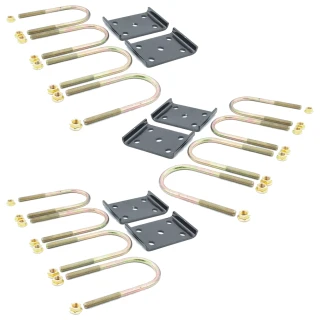

- QTY (3): Lippert Axle Mounting Kit – 3" Tube
- Replacement U-bolt mounting kits for 3" axle tubes
- Installs just like the original equipment
- Ensures secure axle attachment

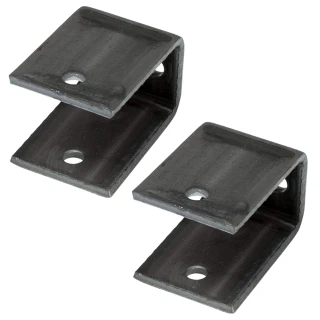

- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200–8,000-lb Axle Rating
- Length: 4-5/16"; Width: 2-3/16"; Hole size: 9/16"
- Distance to hole (on-center): 3-9/16"
- Welds to chassis to support the front axle position
- Dexter Compatible Part Number: 028-001-00

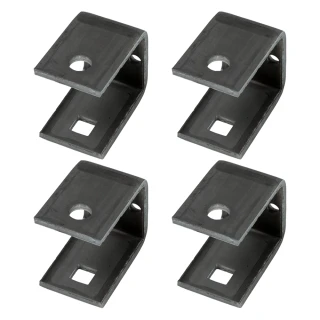

- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200–8,000-lb Axle Rating
- Length: 4-1/2"; Width: 3-1/8"; Hole size: 7/8"
- Distance to hole: 3-5/16"
- Designed for the center pivot in triple axle setups
- Dexter Compatible Part Number: 029-001-00
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200–8,000-lb Axle Rating
- Length: 6"; Width: 2-1/4"; Hole size: 5/16"
- Distance to hole: 4"
- Welds to chassis to support the rear axle position
- Dexter Compatible Part Number: 030-028-00
Always verify your axle spacing and spring measurements before installation. Conduct regular inspection and maintenance to ensure continued performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension Kit |
| Axle Rating | Up to 3,000 lbs per spring |
| Leaf Spring Capacity | 3,000 lbs |
| Number of Leaves per Spring | 5 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 25-1/4" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/8" |
| Arch Height Loaded | 1-3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 3" |
| Equalizer Type | Standard Equalizer |
| Axle Configuration | Triple Axle |
$702 99 $874.15 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$874.15 $702 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: LIPPERT
- Model: LP165ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
