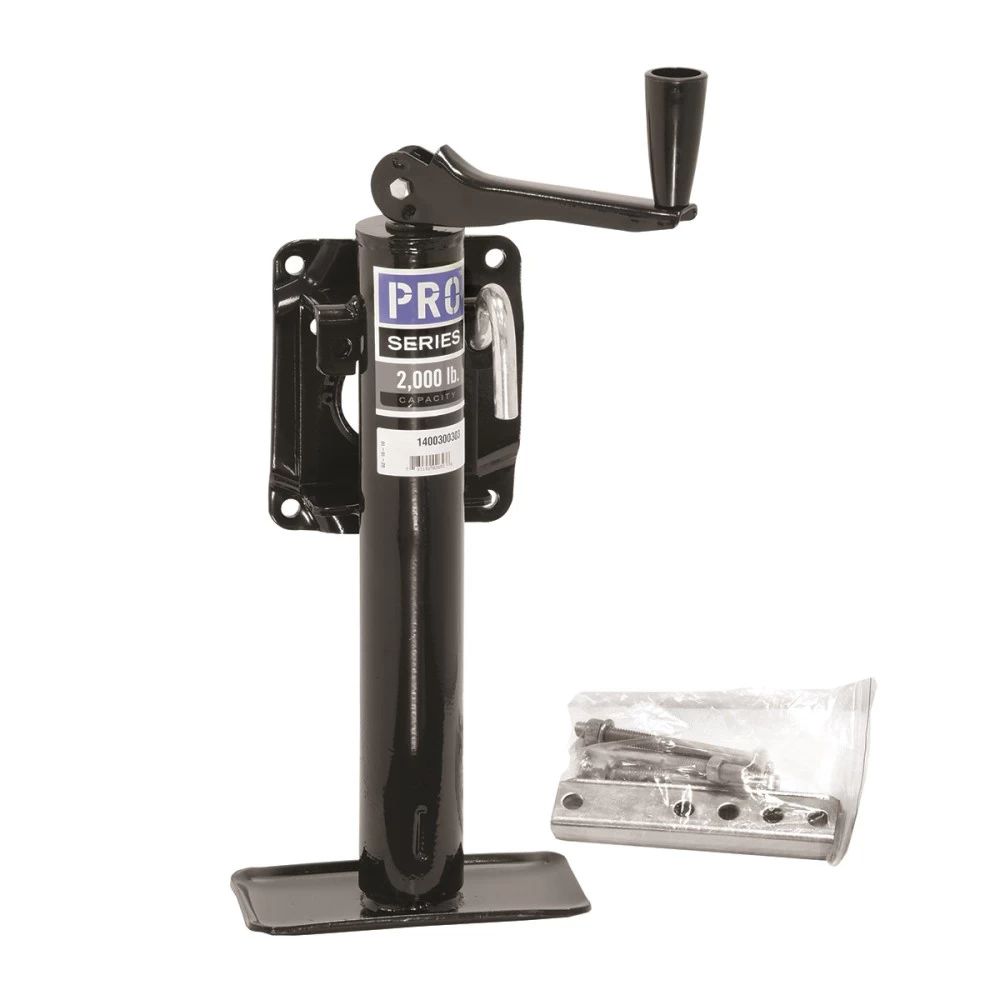

Pro Series 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Bolt-on Topwind 10" Lift

Pro Series 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Bolt-on Topwind 10" Lift
Pro Series 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Bolt-on Topwind 10" Lift
$56.10
  • Stock: In Stock
  • Manufacturer: Pro Series
  • Model: 1400300303 '*

Applies to this product only

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and clear zinc inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 2,000 lbs.

  • Retracted Bracket Height: 11.00" from bracket to bottom

  • Extended Bracket Height: 21.00"

  • Travel/Lift: 10"

  • Clearance: 4.00" from bracket to top

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

  • Footplate included

  • Fits up to 3x4 tongues

  • Necessary mounting hardware is included

Specification
Jack Style Snap Ring
Finish Black
Static Capacity 2000
Lift Capacity 2000
Lift Style Topwind
Travel 10"
Retracted 11.00"
Extended 21.00"
Clearance 4.00"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot Foot or Wheel Option
Jack Shape Round
Description Facts Mounting Hardware Included
