Pro Series Standard Brake Winch 1,000 Lbs. Cable Only Boat Lift Trailer Grain Auger Manual Forklift Hoist

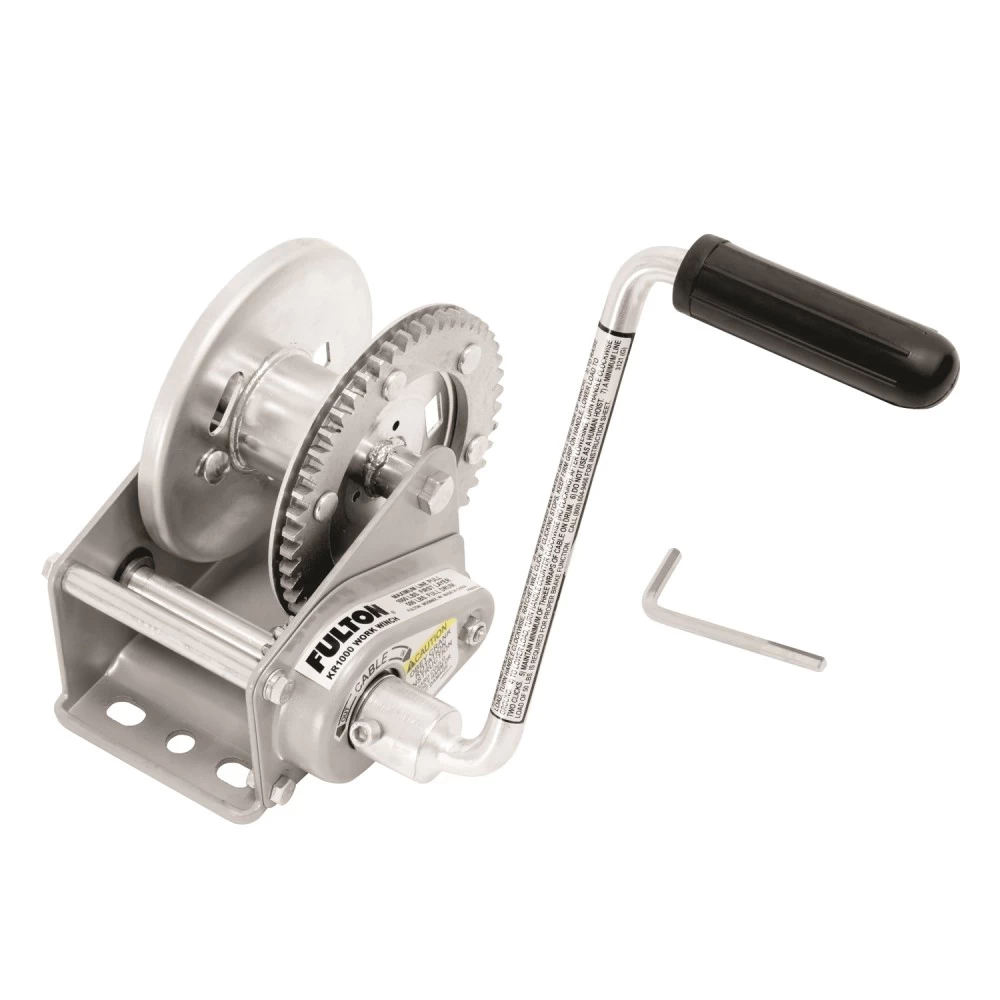

Model: KR10000301Brake Winch, 1000 lbs., Standard Series
Pro Series self-activating automatic brake winches hold the load securely when the crank handle is released. Popular applications include construction light towers, grain augers,
manual fork lifts, and boat lifts. Enlarged drum size to maximize cable life. Comes with Solid Gear construction, and covered braking system.
1 year limited warranty
Winch Identifier| Part Number | KR10000301 |
| 1st Layer | 1,000 lbs. 454 kg |
| Full Drum | 500 lbs. 227 kg |
Max. Cable Size Data
(7 x 19 Galvanized Aircraft Cable)
| Diameter | 7/32" (5.5 mm) |
| Drum Storage |
50 ft. 15 m |
Mechanical Data
| Gear Ratio | 3.5:1 |
| Handle Length |
8" 20.3 cm |
| Minimum Load Requirement |
50 lbs 22.67 kg |
| Cable Included |
NO |
| Installation Instructions |  |
$102 79 $114.58 10% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$114.58 $102 79
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $25.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: KR10000301
- UPC: 783192019653
- Includes: Standard Brake Winch
Description
Brake Winch, 1000 lbs., Standard Series
Pro Series self-activating automatic brake winches hold the load securely when the crank handle is released. Popular applications include construction light towers, grain augers,
manual fork lifts, and boat lifts. Enlarged drum size to maximize cable life. Comes with Solid Gear construction, and covered braking system.
1 year limited warranty
Winch Identifier| Part Number | KR10000301 |
| 1st Layer | 1,000 lbs. 454 kg |
| Full Drum | 500 lbs. 227 kg |
Max. Cable Size Data
(7 x 19 Galvanized Aircraft Cable)
| Diameter | 7/32" (5.5 mm) |
| Drum Storage |
50 ft. 15 m |
Mechanical Data
| Gear Ratio | 3.5:1 |
| Handle Length |
8" 20.3 cm |
| Minimum Load Requirement |
50 lbs 22.67 kg |
| Cable Included |
NO |
| Installation Instructions | |
Get Expert Help
Pro Series Standard Brake Winch 1,000 Lbs. Cable Only Boat Lift Trailer Grain Auger Manual Forklift Hoist Install Notes
Installation Instructions for KR Series Work Winches
Part Numbers:
- KR1000
- KR1500
Tools Required:
- Wrench (provided with the product)
Step-by-Step Instructions:
Handle Attachment and Winch Mounting:
- Insert the handle onto the hexagon end of the input shaft. Align screw holes with drive shaft indents and tighten the set screws using the provided wrench.
- Note: Do not remove or adjust any hardware on the input shaft except for the handle, as this is critical to the braking system.
- Mount the winch onto a structure capable of supporting at least three times the load. Ensure the mounting surface equals or exceeds the winch frame footprint.
- Use three grade-5 bolts (3/8” diameter), flat washers, and locknuts. Torque to 30 ft-lbs.
- Note: Use the outermost slots at the end opposite the line pull direction. If using the center slot, place a large flat washer for stability.
Cable Attachment to Drum:
- Feed the cable over the top of the drum and through the drum's side slot. Loop the cable through one side of the clamp and back into the other side.
- Tighten the clamp nut to hold the cable securely (approximately 20–30 in-lbs). Replace the clamp each time the cable is replaced.
- Ensure the cable pulls straight off the winch without angling to avoid rubbing against drum sides. Neatly wrap the cable to prevent kinking or fraying.
Operation:
- To Pull Cable In or Raise Load:
- Turn the handle clockwise as per the "Cable In/Cable Out" decal.
- Ensure a loud clicking sound from the ratchet while lifting.
- To Let Cable Out or Lower Load:
- Turn the handle counterclockwise. No clicking will be heard due to the brake system activation.
Maintenance:
- Apply automotive grease to gear teeth and the drum bearing's outer diameter.
- Lubricate ratchet pawl pivot, bushings, and pinion threads with engine oil.
- Inspect brake friction disks. Replace if worn below 1/16", cracked, or broken.
- Check for proper ratchet operation during each use. Replace damaged components immediately if the ratchet sound is absent.
- Ensure fasteners are securely tightened before every use.
- Warning: Do not oil or grease the brake mechanism.
Safety Notes:
- Never exceed the winch's rated capacity (marked on the frame).
- Maintain at least three complete wraps of cable or layers of strap on the drum.
- Inspect cables and attachments before each use; replace if damaged.
- Always hear a loud clicking from the ratchet when lifting the load.
- Do not leave the winch unattended while supporting a load.
Specifications:
| Model | Capacity (First Layer) | Capacity (Full Drum) | Gear Ratio | Handle Length | Cable Storage |
|---|---|---|---|---|---|
| KR1000 | 1000 lbs | 500 lbs | 3.5:1 | 8" | 7/32" x 50 FT |
| KR1500 | 1500 lbs | 700 lbs | 5.1:1 | 8" | 7/32" x 50 FT |
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Coverage: 3 years limited warranty against material defects or workmanship issues.
- Exclusions: Normal wear, abuse, improper installation, and unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help.
You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
