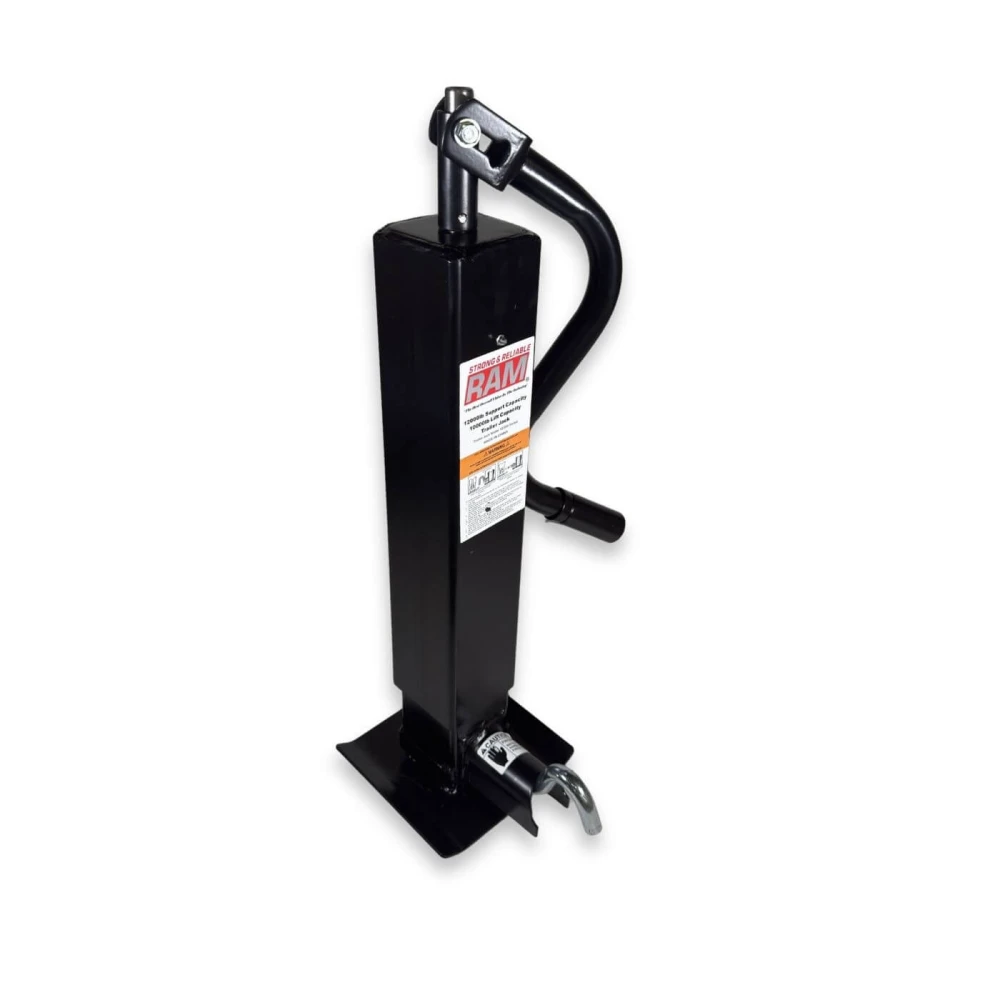

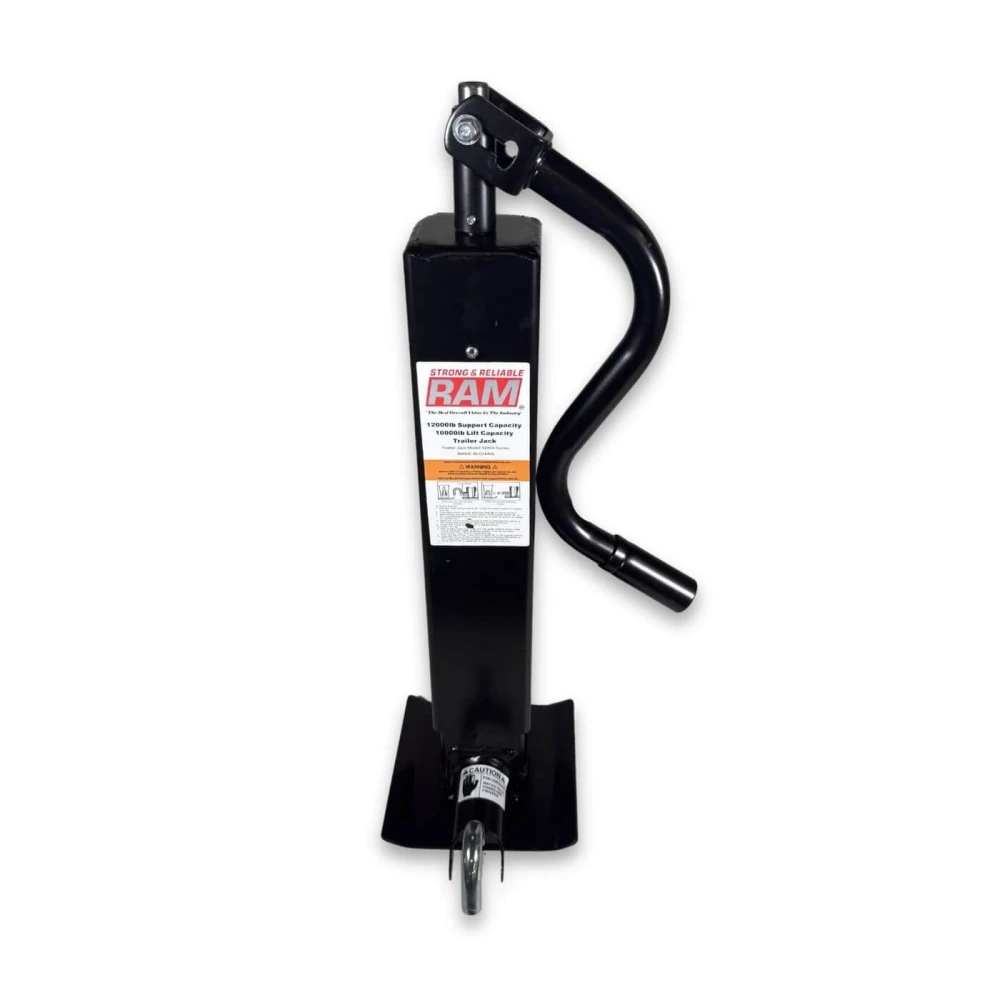

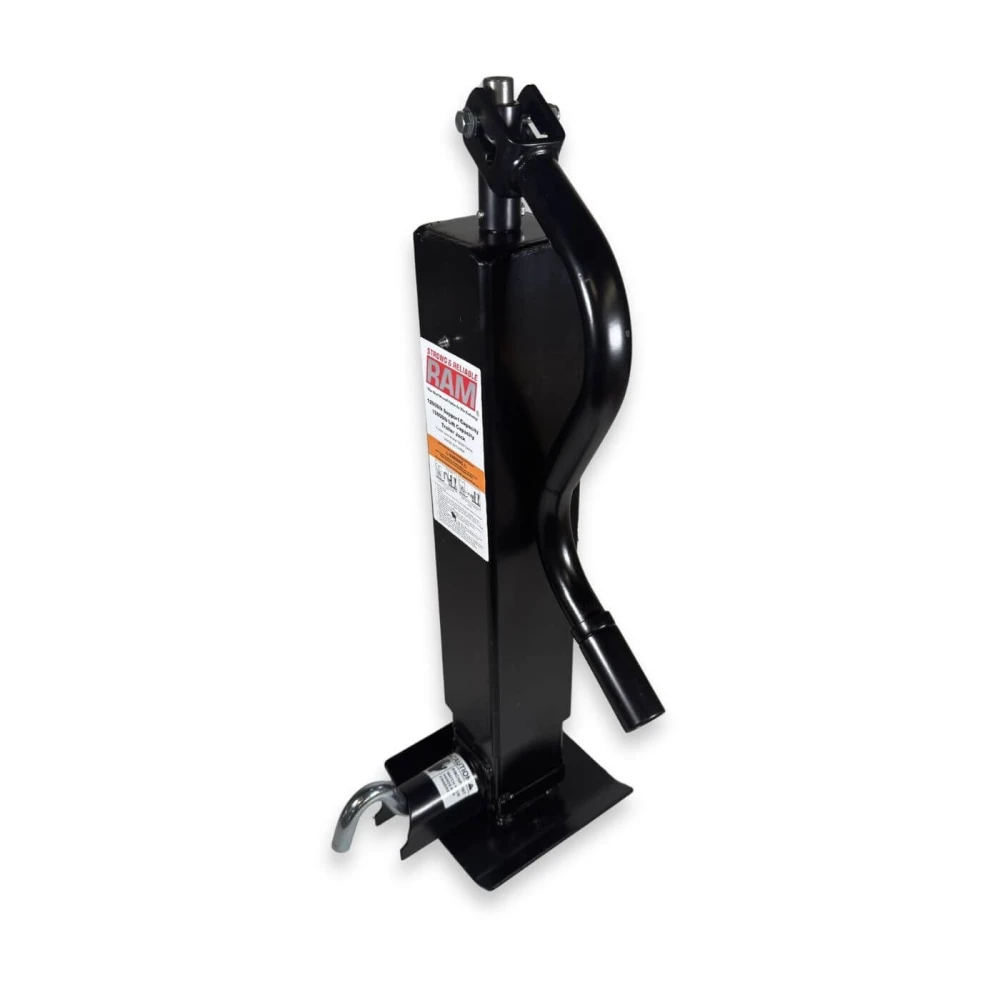

RAM Direct Weld Heavy Duty Square Trailer Jack, Topwind, 12,000 lb Support, 10,000 lb Lift, 12.5 in Travel, Black, TJD-12000TWSP-R

Model: RJ12KW1T

RAM Direct Weld Heavy Duty Square Trailer Jack, Topwind, 12,000 lb Support, 10,000 lb Lift, Black

Built for demanding trailer applications, this direct weld single-speed top wind jack delivers dependable heavy-duty lifting with a 12,000 lb support capacity and 10,000 lb lift rating. The spring-return drop leg, durable black finish, and compact 26-inch retracted height help make setup, storage, and height adjustment straightforward.

  • 12,000 lb support capacity
  • 10,000 lb lift capacity
  • 12.5 in travel
  • Direct weld mount
  • Topwind handle crank

Product Contents

  • RAM Direct Weld Heavy Duty Square Trailer Jack, TJD-12000TWSP-R
    Topwind single speed Spring-return handle Handle clip included Mounting hardware included

Why This Jack Works Well

Recommendation: Choose this jack when you need a strong manual lift solution for heavy trailers and want quick, controlled height adjustment with a stable square-tube design. The 8 in x 8 in welded drop leg sand foot, grease zerk, and right-side pin position support practical daily use on demanding setups.

Specifications

BrandRAM Direct
Part NumberTJD-12000TWSP-R
Mounting StyleDirect Weld
Lift MechanismTopwind Handle Crank
Support Capacity12,000 lb
Lift Capacity10,000 lb
Travel12.5 in

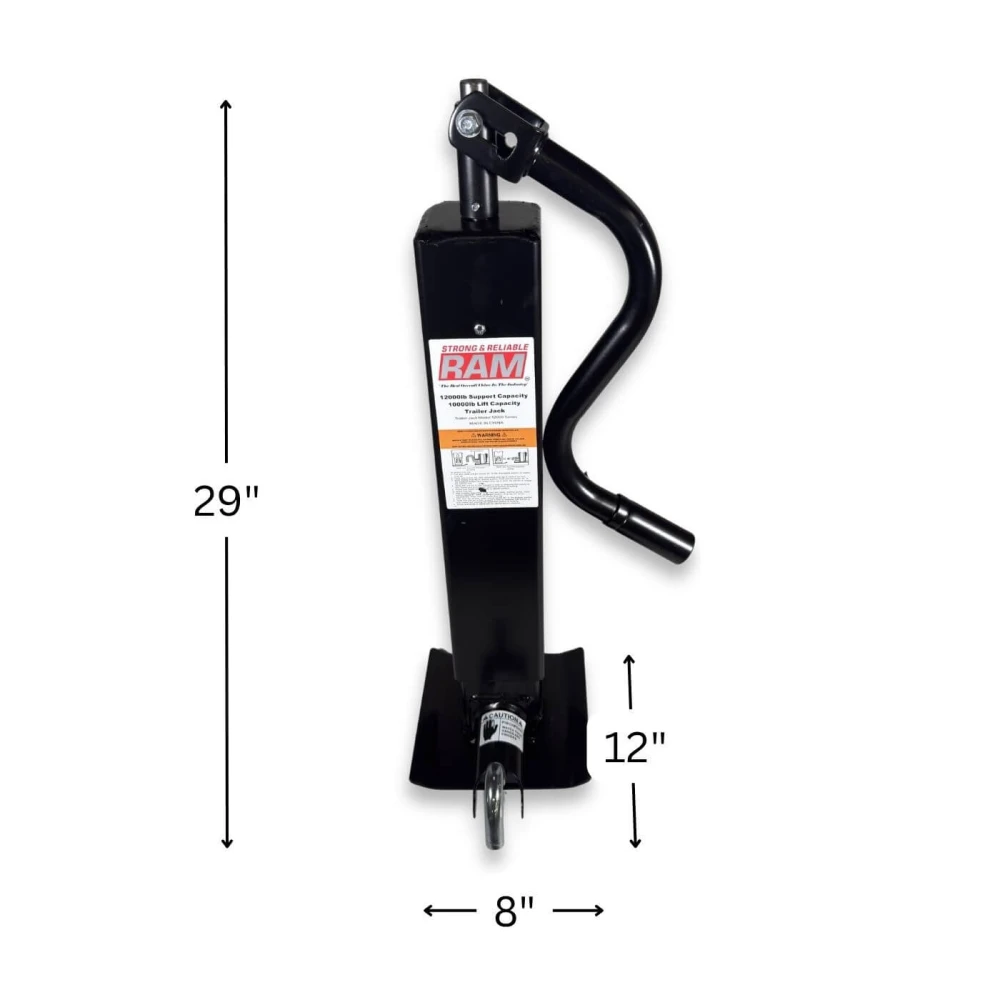

Retracted Height26 in
Drop Leg Adjustment13.75 in
Outer Tube4 in Square
Foot8 in x 8 in Welded Sand Foot
FinishBlack Exterior Coating
Jack StyleSquare, Non-Swivel, Manual Lift
Jack Leg StyleDrop Leg Spring Return
Pin PositionRight Side

Need help choosing the right trailer jack? Call us at 877-869-6690 for expert assistance and fast ordering support.

$204 99

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$204 99

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

You are in!

We will alert you the moment it is back.

Product

Don't Miss the Next Restock!

We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.

Product: Selected Item
Call us at 877-869-6690.

Product Details

  • Brand: RAM
  • Model: RJ12KW1T

Default
Jack Mounting Style Direct Weld HD Jack
Jack Groups Heavy Duty Trailers
Weight Capacity 10001 Pounds or Greater
Jack Style Direct Weld HD
Lift Mechanism Topwind Handle Crank
Jack Travel Range 12.5 Inch Lift
Jack Finish Black Powdercoat
Jack Static Load Capacity 12000 LB Static Capacity
Jack Lifting Load Capacity 10000 LB Lift Capacity
Jack Foot Type Footplate
Jack Leg Style Drop Leg Spring Return
Jack Swivel Type Non Swivel
Jack Outer Tube Diameter 4 Inch Outer Tube
Jack Shape Square Jack
Electric Lift Manual Lift
Custom Bundle Yes

Be the first to ask a question.

Write a review

Note: HTML is not translated!
Rating
Bad Good

Description

RAM Direct Weld Heavy Duty Square Trailer Jack, Topwind, 12,000 lb Support, 10,000 lb Lift, Black

Built for demanding trailer applications, this direct weld single-speed top wind jack delivers dependable heavy-duty lifting with a 12,000 lb support capacity and 10,000 lb lift rating. The spring-return drop leg, durable black finish, and compact 26-inch retracted height help make setup, storage, and height adjustment straightforward.

  • 12,000 lb support capacity
  • 10,000 lb lift capacity
  • 12.5 in travel
  • Direct weld mount
  • Topwind handle crank

Product Contents

  • RAM Direct Weld Heavy Duty Square Trailer Jack, TJD-12000TWSP-R
    Topwind single speed Spring-return handle Handle clip included Mounting hardware included

Why This Jack Works Well

Recommendation: Choose this jack when you need a strong manual lift solution for heavy trailers and want quick, controlled height adjustment with a stable square-tube design. The 8 in x 8 in welded drop leg sand foot, grease zerk, and right-side pin position support practical daily use on demanding setups.

Specifications

BrandRAM Direct
Part NumberTJD-12000TWSP-R
Mounting StyleDirect Weld
Lift MechanismTopwind Handle Crank
Support Capacity12,000 lb
Lift Capacity10,000 lb
Travel12.5 in
Retracted Height26 in
Drop Leg Adjustment13.75 in
Outer Tube4 in Square
Foot8 in x 8 in Welded Sand Foot
FinishBlack Exterior Coating
Jack StyleSquare, Non-Swivel, Manual Lift
Jack Leg StyleDrop Leg Spring Return
Pin PositionRight Side

Need help choosing the right trailer jack? Call us at 877-869-6690 for expert assistance and fast ordering support.
