Installation Instructions for Pro Series Pro Slider

Part Numbers:

• 30092

Tools Required:

• Drill Bits: 3/16" and 17/32"
• Torque Wrench
• Aerosol White Lithium Grease with Spray Nozzle Extension
• General Wrenches and Hand Tools

Safety Notes:

• Warning: Pro Slider hitches that are not properly locked can suddenly move and cause death or serious injury.
  • Ensure trailer tires are blocked in front and behind each tire.
  • Trailer landing gear must rest on firm ground.
  • The truck must be stationary, in park, with the emergency brake engaged.
  • Always perform a push test or pull test before towing.
• Caution: Turning clearance is reduced when towing with a short bed truck. Monitor the truck cab and trailer clearance during turns to avoid damage.

Step-by-Step Instructions:

Step 1: Prepare for Installation

• Compare all kit parts with the included diagram to ensure everything is available.
• Grease the leaf springs under the Pro Slider using white lithium grease. Repeat monthly during use.

Step 2: Install the Pro Slider in the Truck Bed

• Attach the handle shaft to the handle elbow as shown.
• Insert the handle assembly through the left and right slide assemblies.
• Position the Pro Slider into the base rails. Pin the Pro Slider in the center position of the tubes.

Step 3: Align and Secure Base Rails

• Ensure the center lines of the base rails are 21.94 inches apart.
• Verify diagonal measurements “x” and “y” are within 0.1 inch (1/8") of each other.
• Drill 2 holes (3/16" first, then enlarge to 17/32"). Install 1/2" carriage bolts with washers and nuts.
• Install slotted spacers to fill corrugations under the truck bed.

Step 4: Assemble and Torque Hardware

• Loosely attach the head support to the Pro Slider at the desired height.
• Tighten all hardware in a two-step process:
  • Snug all hardware following a consistent sequence.
  • Torque 1/2” bolts to 85 lb.ft.

Step 5: Lubricate Slide Tube

• Apply all-purpose grease or Teflon lube to the top, sides, and roller holes of the slide tube.
• Repeat monthly during use.

Step 6: Moving Between Towing and Maneuvering Positions

• To Move to Maneuvering Position:

  • Align the truck and trailer in a straight line.
  • Pull the handle forward and engage the Pro Slider latch.
  • Perform a push test to ensure locking.

• To Move to Towing Position:

  • Push the handle rearward and back the truck into the Pro Slider.
  • Perform a pull test to confirm locking.

Hardware List:

• (2) Cotter Pins
• (4) 1/2” Carriage Bolts
• (4) Slotted Spacers
• (4) Bolt Plates
• (4) Washers and Nuts

Specifications:

• Alignment: Rails must be 21.94 inches apart (center-to-center)
• Torque Specifications: 1/2” bolts to 85 lb.ft

Manufacturer Notes:

• This Pro Slider is designed for Cequent Performance Products 5th Wheel Base Rail Kits.
• Use with short bed trucks requires a 13-inch minimum pin box extension for turning clearance.

Compliance:
Meets SAE J684 standards when installed and used correctly.

Warranty:

• 3-Year Limited Warranty when used with Cequent mounting kits.
• Excludes misuse, neglect, and unauthorized modifications.

Installation Instructions for Pro Series Pro Slider

Part Numbers:

• 30092

Tools Required:

• Drill Bits: 3/16" and 17/32"
• Torque Wrench
• Aerosol White Lithium Grease with Spray Nozzle Extension
• General Wrenches and Hand Tools

Safety Notes:

• Warning: Pro Slider hitches that are not properly locked can suddenly move and cause death or serious injury.
  • Ensure trailer tires are blocked in front and behind each tire.
  • Trailer landing gear must rest on firm ground.
  • The truck must be stationary, in park, with the emergency brake engaged.
  • Always perform a push test or pull test before towing.
• Caution: Turning clearance is reduced when towing with a short bed truck. Monitor the truck cab and trailer clearance during turns to avoid damage.

Step-by-Step Instructions:

Step 1: Prepare for Installation

• Compare all kit parts with the included diagram to ensure everything is available.
• Grease the leaf springs under the Pro Slider using white lithium grease. Repeat monthly during use.

Step 2: Install the Pro Slider in the Truck Bed

• Attach the handle shaft to the handle elbow as shown.
• Insert the handle assembly through the left and right slide assemblies.
• Position the Pro Slider into the base rails. Pin the Pro Slider in the center position of the tubes.

Step 3: Align and Secure Base Rails

• Ensure the center lines of the base rails are 21.94 inches apart.
• Verify diagonal measurements “x” and “y” are within 0.1 inch (1/8") of each other.
• Drill 2 holes (3/16" first, then enlarge to 17/32"). Install 1/2" carriage bolts with washers and nuts.
• Install slotted spacers to fill corrugations under the truck bed.

Step 4: Assemble and Torque Hardware

• Loosely attach the head support to the Pro Slider at the desired height.
• Tighten all hardware in a two-step process:
  • Snug all hardware following a consistent sequence.
  • Torque 1/2” bolts to 85 lb.ft.

Step 5: Lubricate Slide Tube

• Apply all-purpose grease or Teflon lube to the top, sides, and roller holes of the slide tube.
• Repeat monthly during use.

Step 6: Moving Between Towing and Maneuvering Positions

• To Move to Maneuvering Position:

  • Align the truck and trailer in a straight line.
  • Pull the handle forward and engage the Pro Slider latch.
  • Perform a push test to ensure locking.

• To Move to Towing Position:

  • Push the handle rearward and back the truck into the Pro Slider.
  • Perform a pull test to confirm locking.

Hardware List:

• (2) Cotter Pins
• (4) 1/2” Carriage Bolts
• (4) Slotted Spacers
• (4) Bolt Plates
• (4) Washers and Nuts

Specifications:

• Alignment: Rails must be 21.94 inches apart (center-to-center)
• Torque Specifications: 1/2” bolts to 85 lb.ft

Manufacturer Notes:

• This Pro Slider is designed for 5th Wheel Base Rail Kits.
• Use with short bed trucks requires a 13-inch minimum pin box extension for turning clearance.

Compliance:
Meets SAE J684 standards when installed and used correctly.

Warranty:

• 3-Year Limited Warranty when used with mounting kits.
• Excludes misuse, neglect, and unauthorized modifications.

Additional Information:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

• Warranty duration and coverage details are provided in the full installation PDF. For complete warranty instructions, please download the full installation PDF.

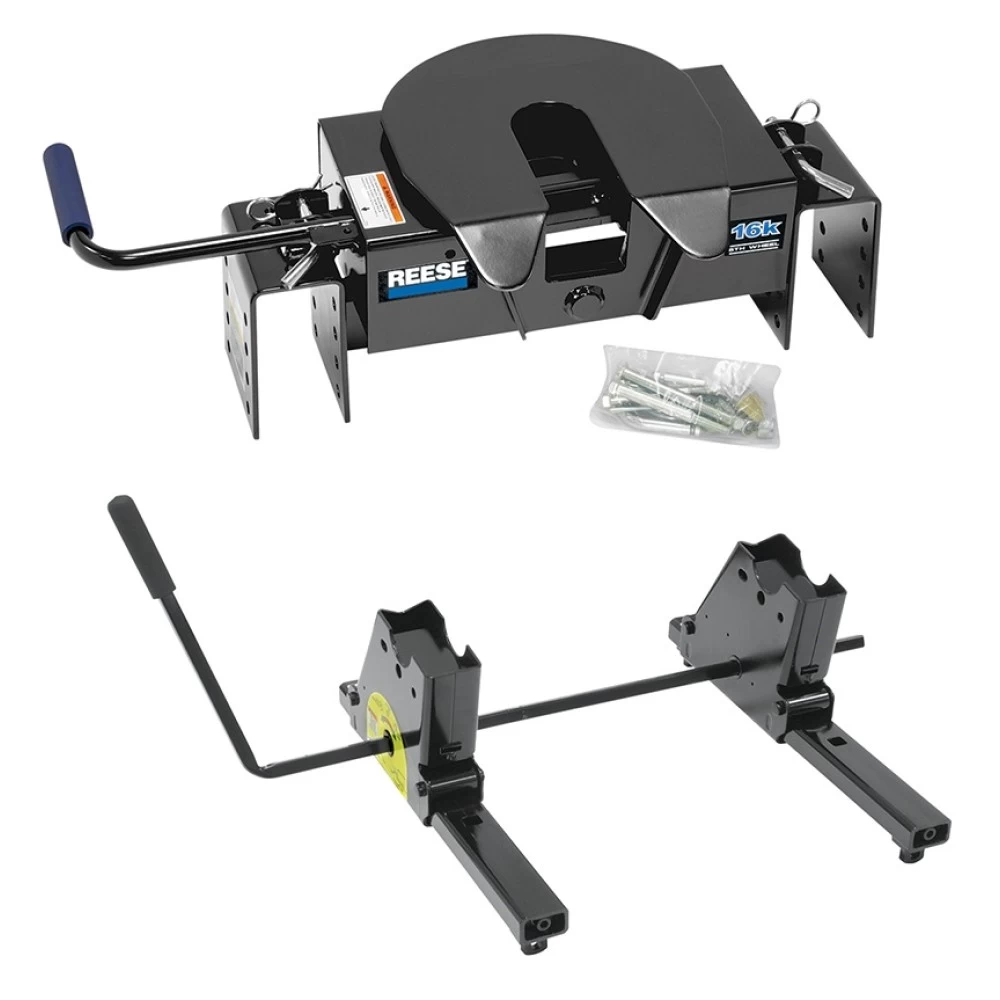

Installation Instructions for 15K Fifth Wheel Hitch

Part Number:

• 30099

Tools Required:

• Torque Wrench
• 1/2" Socket and Wrench
• 3/4" Socket and Wrench
• 7/8" Socket and Wrench
• Tape Measure
• Marking Pencil
• Lubricating Grease or Plastic Lube Plate

Step-by-Step Instructions:

Step 1: Guidelines for Matching Hitch, Truck, and Trailer

• Verify that the Gross Trailer Weight (GTW) does not exceed 15,000 lbs, and the kingpin weight does not exceed 3,750 lbs.
• Ensure a minimum clearance of 6 inches between the trailer and truck bed walls for safe turning and maneuvering.
• Use only a SAE 2-inch kingpin with this hitch.
• For short-bed trucks (less than 8 feet but longer than 6 feet):
  • Use an extended pin box for increased turning clearance.
  • Cequent recommends adding a slider, such as the 30048, 30092, or 50008, for low-speed, off-highway maneuvers.
• This hitch is intended for use with recreational fifth-wheel trailers only.

Step 2: Assemble the Hitch

1. Prepare the Components:

   • Unpack and verify all parts using the parts list provided in the manual.
   • Lay out all components for easy access.

2. Install Base Rails:

   • Place the base rails (Part #25) across the truck bed as specified in the mounting kit instructions.
   • Secure the base rails to the truck frame using hardware from the mounting kit.

3. Attach the Legs:

   • Insert the legs (Part #28) into the second rectangular slot from the ends of the base rails.
   • Insert long pull pins (Part #11) through the base rail holes and secure with spring cotter pins (Part #12).

4. Install the Head Support:

   • Attach the head support (Part #27) to the legs, aligning the mounting holes for the desired hitch height:
     • Lowest height: 13 inches
     • Highest height: 17 inches
   • Insert 1/2-inch x 4.5-inch bolts (Part #29) and secure with lock nuts (Part #31).
   • Torque all bolts to 75 lb.-ft..

5. Attach the Hitch Head:

   • Install the head assembly (Part #26) into the yokes on the head support.
   • Insert short pull pins (Part #23) with the grooved ends toward the tailgate.
   • Secure the pull pins with spring cotter pins (Part #12).

Step 3: Hitching Procedure

1. Prepare the Trailer:

   • Block the trailer wheels securely on both sides.
   • Use the trailer’s landing gear to adjust the kingpin height so it is 1/2 to 1 inch below the hitch skid plate.

2. Open the Hitch Locking Mechanism:

   • Pull the hitch handle outward and forward until it rests in the handle groove, cocking the locking bar open.

3. Hitch the Trailer:

   • Slowly back the truck toward the trailer, aligning the kingpin with the hitch funnel.
   • As the kingpin enters the hitch, the locking bar will automatically close around it, securing the kingpin in place.

4. Verify Connection:

   • Ensure there is no gap between the bottom of the pin box and the hitch skid plate.
   • Insert a padlock or bail pin through the holes in the handle tab and sleeve for added security.

5. Perform a Pull Test:

   • With the trailer wheels blocked and the landing gear supporting the trailer weight:
     • Release the truck’s emergency brake and gently attempt to pull forward.
     • Ensure the hitch holds the trailer securely.

Step 4: Unhitching Procedure

1. Secure the Trailer:

   • Block the trailer wheels firmly on both sides.
   • Lower the landing gear to support the trailer’s weight.

2. Disconnect the Truck:

   • Remove the electrical cable and breakaway switch cable.
   • Unlock and remove the padlock or bail pin from the hitch handle.

3. Release the Hitch Locking Mechanism:

   • Pull the hitch handle outward and forward until the locking bar is cocked open.

4. Separate the Truck and Trailer:

   • Slowly drive the truck forward, ensuring no one is between the truck and trailer during the process.

5. Close the Locking Bar:

   • Pull the hitch handle outward and back to close the locking bar, securing the hitch for storage.

Maintenance Schedule:

• Before Each Trip:
  • Grease the skid plate with automotive chassis grease or use a plastic lube plate no thicker than 3/16 inches.
  • Check all bolts, pull pins, and cotter pins for proper security.
• After Each Use:
  • Inspect the hitch head and locking mechanism for wear or damage.
• Every 1,000 Miles:
  • Re-torque all bolts to the specified torque values.

Hardware List:

• (1x) Fifth Wheel Head Assembly
• (1x) Head Support
• (2x) Legs
• (2x) Base Rails
• (4x) Long Pull Pins
• (4x) Spring Cotter Pins
• (4x) 1/2" x 4.5" Bolts
• (4x) Lock Nuts

Safety Notes:

• WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching or unhitching.
• Never exceed the hitch’s rated 15,000 lbs GTW or 3,750 lbs kingpin weight.
• Avoid placing your body between the truck and trailer unless all safety precautions are in place.

Specifications:

• Gross Trailer Weight (GTW): 15,000 lbs
• Maximum Kingpin Weight: 3,750 lbs
• Hitch Height Adjustment: 13 to 17 inches
• Recommended Torque:
  • 1/2" Bolts: 75 lb.-ft.

Installation Instructions for 15K Fifth Wheel Hitch

Part Number:

• 30099

Tools Required:

• Torque Wrench
• 1/2" Socket and Wrench
• 3/4" Socket and Wrench
• 7/8" Socket and Wrench
• Tape Measure
• Marking Pencil
• Lubricating Grease or Plastic Lube Plate

Step-by-Step Instructions:

Step 1: Guidelines for Matching Hitch, Truck, and Trailer

• Verify that the Gross Trailer Weight (GTW) does not exceed 15,000 lbs, and the kingpin weight does not exceed 3,750 lbs.
• Ensure a minimum clearance of 6 inches between the trailer and truck bed walls for safe turning and maneuvering.
• Use only a SAE 2-inch kingpin with this hitch.
• For short-bed trucks (less than 8 feet but longer than 6 feet):
  • Use an extended pin box for increased turning clearance.
  • It is recommended to add a slider for low-speed, off-highway maneuvers.
• This hitch is intended for use with recreational fifth-wheel trailers only.

Step 2: Assemble the Hitch

1. Prepare the Components:

   • Unpack and verify all parts using the parts list provided in the manual.
   • Lay out all components for easy access.

2. Install Base Rails:

   • Place the base rails across the truck bed as specified in the mounting kit instructions.
   • Secure the base rails to the truck frame using hardware from the mounting kit.

3. Attach the Legs:

   • Insert the legs into the second rectangular slot from the ends of the base rails.
   • Insert long pull pins through the base rail holes and secure with spring cotter pins.

4. Install the Head Support:

   • Attach the head support to the legs, aligning the mounting holes for the desired hitch height:
     • Lowest height: 13 inches
     • Highest height: 17 inches
   • Insert 1/2-inch x 4.5-inch bolts and secure with lock nuts.
   • Torque all bolts to 75 lb.-ft..

5. Attach the Hitch Head:

   • Install the head assembly into the yokes on the head support.
   • Insert short pull pins with the grooved ends toward the tailgate.
   • Secure the pull pins with spring cotter pins.

Step 3: Hitching Procedure

1. Prepare the Trailer:

   • Block the trailer wheels securely on both sides.
   • Use the trailer’s landing gear to adjust the kingpin height so it is 1/2 to 1 inch below the hitch skid plate.

2. Open the Hitch Locking Mechanism:

   • Pull the hitch handle outward and forward until it rests in the handle groove, cocking the locking bar open.

3. Hitch the Trailer:

   • Slowly back the truck toward the trailer, aligning the kingpin with the hitch funnel.
   • As the kingpin enters the hitch, the locking bar will automatically close around it, securing the kingpin in place.

4. Verify Connection:

   • Ensure there is no gap between the bottom of the pin box and the hitch skid plate.
   • Insert a padlock or bail pin through the holes in the handle tab and sleeve for added security.

5. Perform a Pull Test:

   • With the trailer wheels blocked and the landing gear supporting the trailer weight:
     • Release the truck’s emergency brake and gently attempt to pull forward.
     • Ensure the hitch holds the trailer securely.

Step 4: Unhitching Procedure

1. Secure the Trailer:

   • Block the trailer wheels firmly on both sides.
   • Lower the landing gear to support the trailer’s weight.

2. Disconnect the Truck:

   • Remove the electrical cable and breakaway switch cable.
   • Unlock and remove the padlock or bail pin from the hitch handle.

3. Release the Hitch Locking Mechanism:

   • Pull the hitch handle outward and forward until the locking bar is cocked open.

4. Separate the Truck and Trailer:

   • Slowly drive the truck forward, ensuring no one is between the truck and trailer during the process.

5. Close the Locking Bar:

   • Pull the hitch handle outward and back to close the locking bar, securing the hitch for storage.

Maintenance Schedule:

• Before Each Trip:
  • Grease the skid plate with automotive chassis grease or use a plastic lube plate no thicker than 3/16 inches.
  • Check all bolts, pull pins, and cotter pins for proper security.
• After Each Use:
  • Inspect the hitch head and locking mechanism for wear or damage.
• Every 1,000 Miles:
  • Re-torque all bolts to the specified torque values.

Hardware List:

• (1x) Fifth Wheel Head Assembly
• (1x) Head Support
• (2x) Legs
• (2x) Base Rails
• (4x) Long Pull Pins
• (4x) Spring Cotter Pins
• (4x) 1/2" x 4.5" Bolts
• (4x) Lock Nuts

Safety Notes:

• WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching or unhitching.
• Never exceed the hitch’s rated 15,000 lbs GTW or 3,750 lbs kingpin weight.
• Avoid placing your body between the truck and trailer unless all safety precautions are in place.

Specifications:

• Gross Trailer Weight (GTW): 15,000 lbs
• Maximum Kingpin Weight: 3,750 lbs
• Hitch Height Adjustment: 13 to 17 inches
• Recommended Torque:
  • 1/2" Bolts: 75 lb.-ft.

Warranty Information:

• Warranty Duration: 1 year from the date of purchase.
• Coverage: The warranty covers defects in material and workmanship under normal use conditions.
• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
